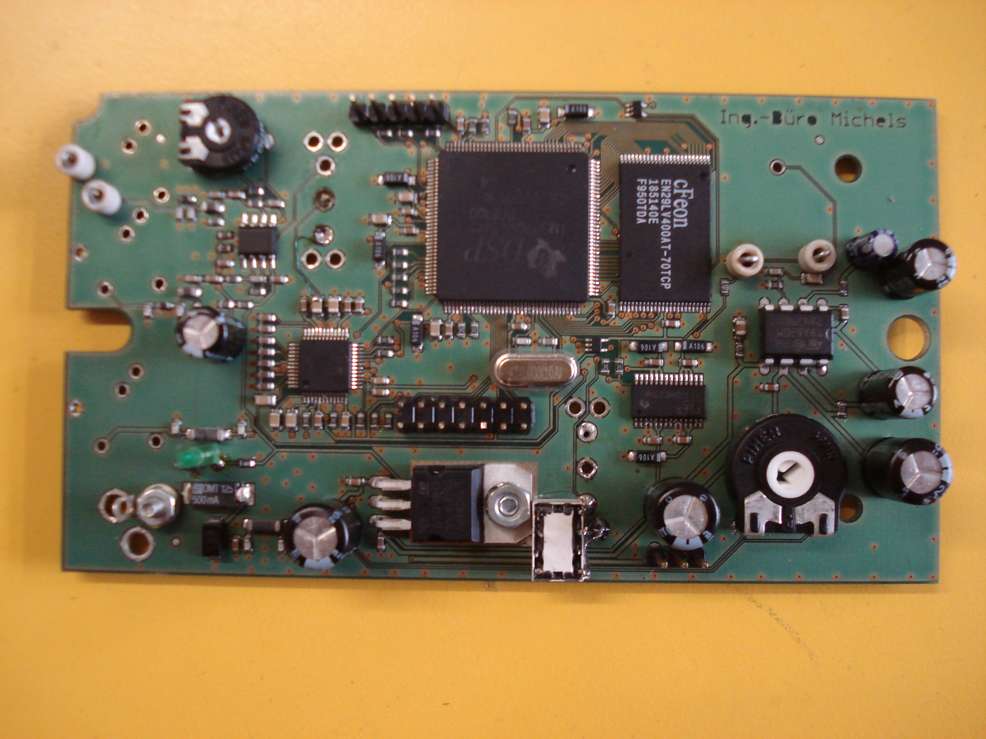

LINGUA, The Speech Extractor; the REAL Electronic Noise Suppresor for Speech Communication builit in to the Drake TR7

Designed by INg. Michels in Germany

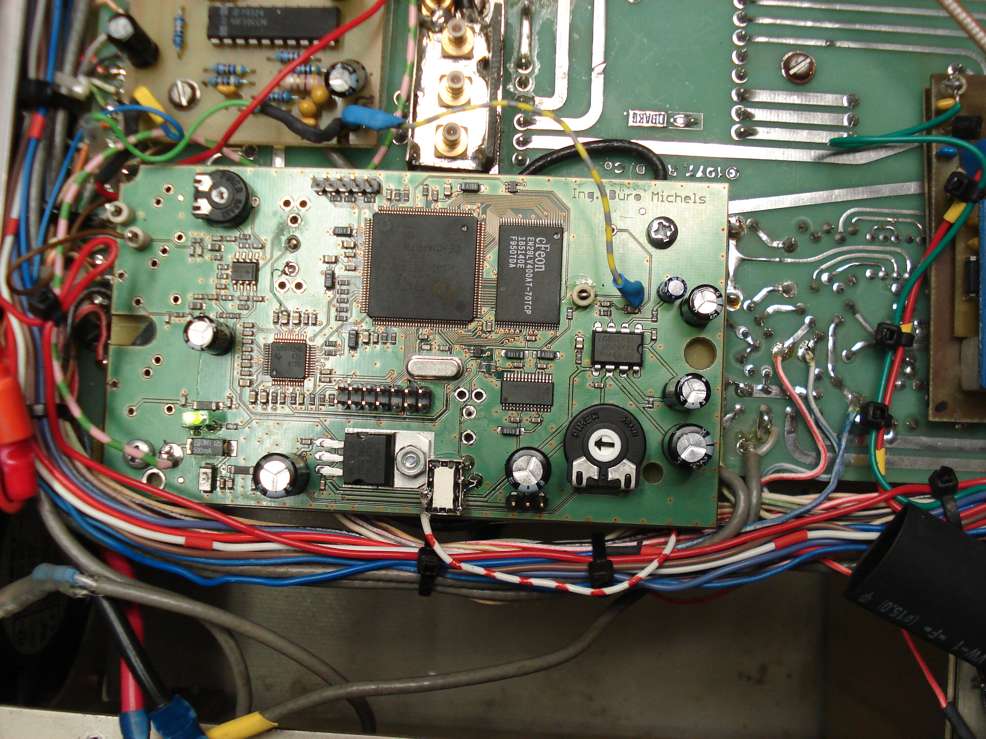

Lingua, der Sprachextraktor von Ing. Büro Michels, Modifiziert für einbau in Drake TR7

www.ing-michels.de

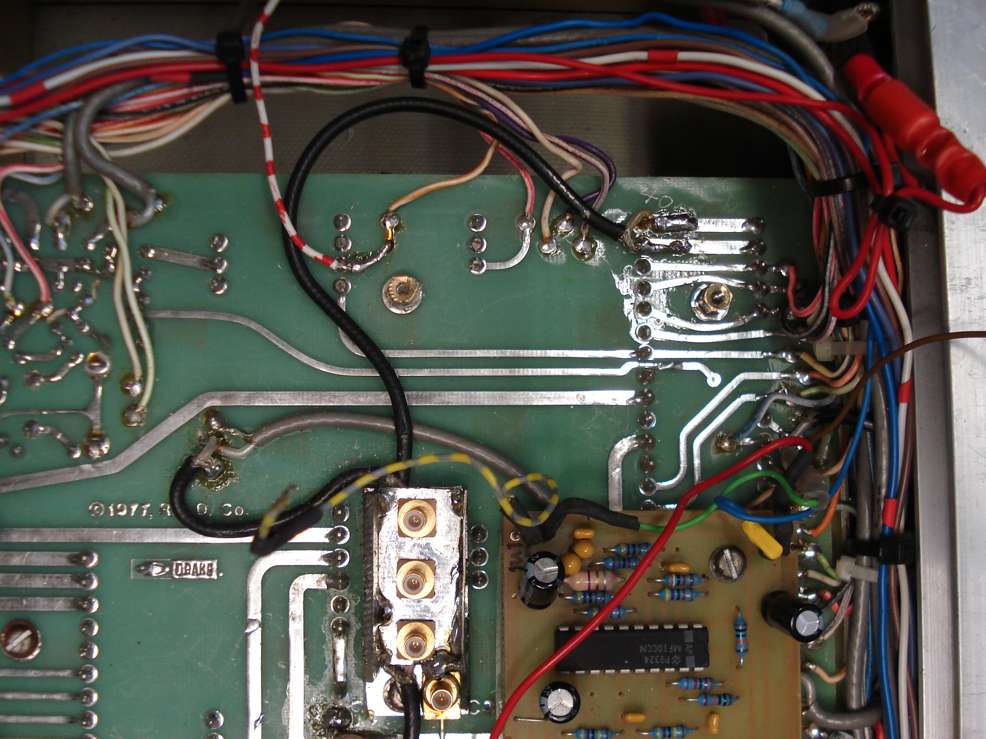

The Parent Board of the TR7 ready to adapat the Speech Extractor PCB

"Das Parent Board" von TR7 fertig für die Montage von Sprachextractor Leiterplatte

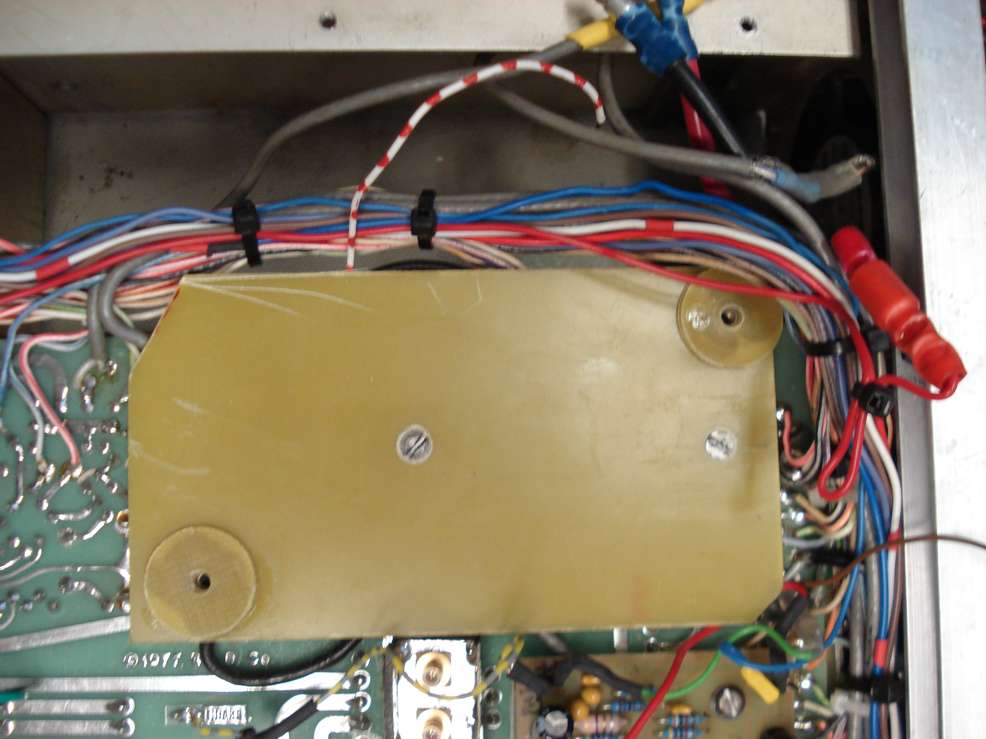

Mounting and Isolation plate for the Lingua Speechextractor

Montage-und isolationsplatte für Lingua Sprachextractor

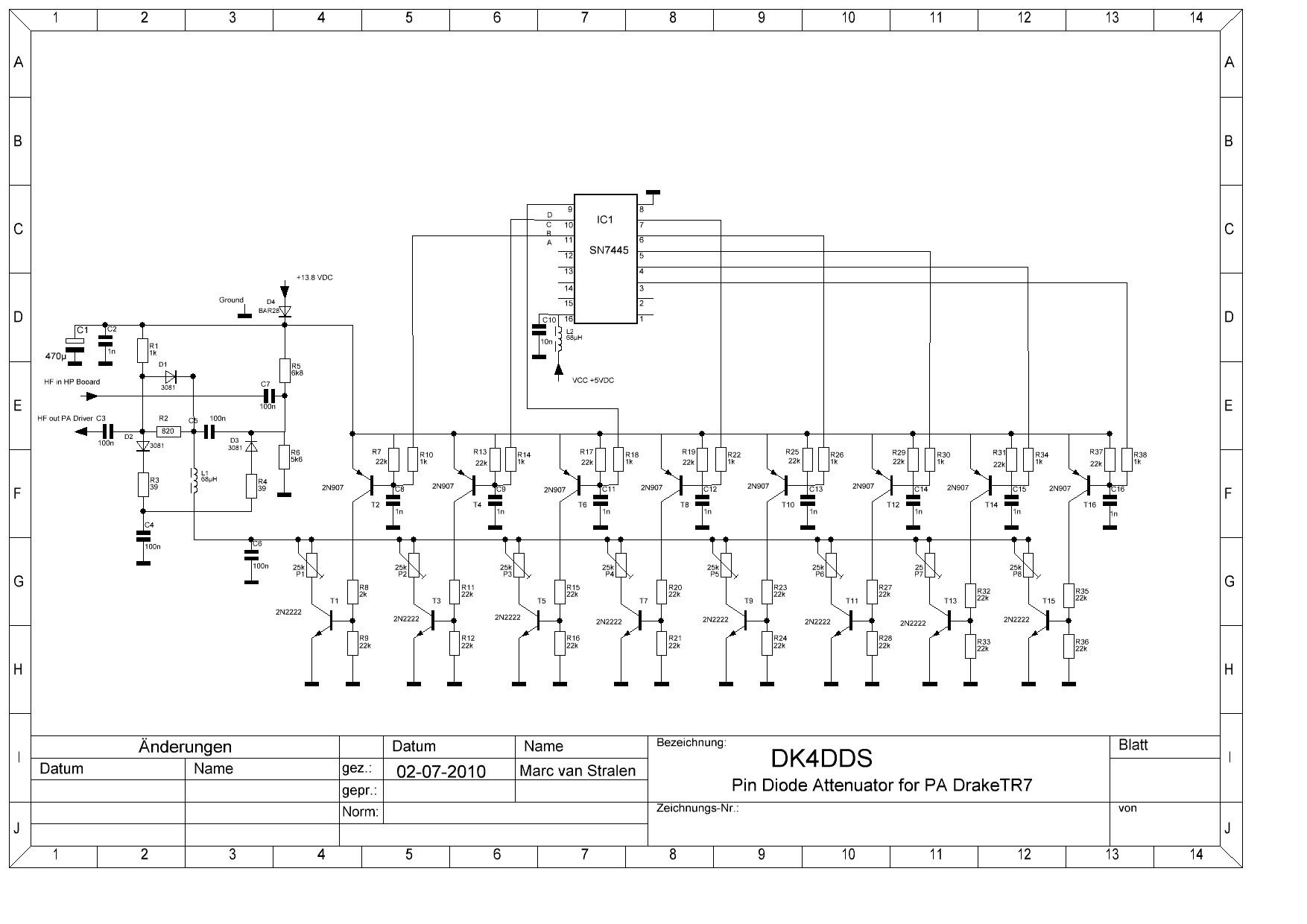

Pin Diode Attenuator for standard TR7 PA see my article

Modern 100 Watt Mosfet PA for TR7

• A pair of  is very expensive and not very re

• A matched pair of  cheap Thosiba transistors is an option 2SC2879 (RF PARTS)

• Some times the  PA is not stable anymore after replacing the PA Final Transistors

• Driver Transistors are difficult to obtain in the past the 2SC1969 Mitsibushi could be used but is not Manufactured anylonger

• The output from  160 meters to 10 meters is not very flat

• With maximum output on 28 Mhz the PA will oscillating at lower amateur bands

Circuit Diagram10 Watt Mosfet Driver for 100 Watt Mosfet PA

10 Watt Mosfet Treiber für 100 Watt Mosfet Endstufe

Down Load:  Circuit Diagram 10 Watt Driver  Schaltbild 10 Watt Driver in PDF Format

This PA is availbe as a kit by QRP PROJECT in Berlin Germany www.qrpproject.de

100 Watt Mosfet PA for TR 7

Circuit Diagram 100 Watt Mosfet PA

Schaltbild 100 Watt Mosfet Endstufe

Down Load  Circuit Diagarm in PDF Format /Herunterladen Sie das Schaltbild vpn 100 Watt Endstufe in PDF

20 dB Pre amplifier 10 dBm out 10 Watt Mosfet driver & 100 Watt Mosfet with PA 2x RD100 HHF1
