ANTENNA Y21510XL4

PERFORMANCES:

No of ele

L

(mm)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Temp

(◦K)

G/T

(dB)

Tlos

(K)

15

10115

17.06

29.69

19.05

16.26

27.2

28.6

226.8

-6.49

4.0



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

139.900

146.000

198.9

1.06:1



DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

Pos

0

265

390

532

919

1564

2295

3086

3932

4824

5758

6652

7566

8476

9374

10115

Length

1006

1032

850

943

931

908

896

877

866

848

846

845

843

841

833

825

All elements made of Al tubes Ǿ10mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

G0KSC 15LFA

4.75

14.72

49.9

1.17:1

4.60

4.45

20.72

5.9

215.0

-0.45

InnoV 15 LFA

4.76

14.73

49.0

1.17:1

4.60

4.45

20.74

6.6

215.4

-0.44

K1FO 18

4.78

14.37

199.9

1.32:1

4.36

4.16

20.62

2.8

228.6

-0.82

InnoV 15 OWL

4.78

14.79

52.2

1.32:1

4.36

4.15

20.66

7.6

217.9

-0.57

M2 28 XPOL

4.81

15.18

200.1

5.19:1

4.83

4.83

21.14

13.9

243.1

-0.57

DJ9BV 4.8

4.82

14.63

49.7

1.29:1

4.40

4.19

20.48

6.6

242.8

-1.22

M2 5WL

4.83

14.64

200.9

1.42:1

4.56

4.36

20.58

3.7

248.1

-1.22

YU7EF 15

4.84

14.89

41.8

3.18:1

4.46

4.24

20.78

10.3

218.1

-0.46

Y21510XL4

4.86

14.91

198.9

1.06:1

5.44

5.48

21.07

4.0

219.7

-0.19

RU1AA_2

4.89

15.06

50.0

1.25:1

4.62

4.42

20.98

6.6

232.5

-0.53

SM5BSZ 14A

4.89

15.13

55.3

5.63:1

4.00

4.00

20.65

7.8

231.5

-0.85

RA3AQ 15

4.92

15.16

51.7

1.12:1

4.59

4.59

21.11

6.8

231.9

-0.39

SM5BSZ 14

4.95

15.27

49.3

4.37:1

5.20

5.20

21.36

5.7

239.7

-0.29

K5GW 17

4.98

14.83

48.5

1.73:1

4.43

4.21

20.73

9.8

220.8

-0.56

SM2CEW 19

4.99

14.92

78.4

1.62:1

4.38

4.38

20.83

9.0

223.1

-0.50

G0KSC 16 OWL FD

4.99

14.75

51.7

1.10:1

4.25

4.25

20.63

9.0

218.8

-0.62

BVO-5WL

5.02

15.00

47.4

1.26:1

4.58

4.58

20.97

6.9

236.2

-0.61

YU7EF 16M

5.12

14.90

49.9

1.03:1

4.36

4.16

20.70

7.0

221.9

-0.61

G0KSC 16LFA3R

5.14

15.12

49.9

1.10:1

5.10

5.10

21.16

4.8

212.0

0.05

K1FO 19

5.16

15.10

204.9

1.25:1

4.49

4.27

20.98

3.4

225.4

-0.40

G0KSC 16LFA

5.21

15.40

49.2

1.13:1

4.56

4.33

21.29

11.0

212.7

0.16

InnoV 16 LFA

5.23

15.12

47.3

1.13:1

4.52

4.23

20.99

7.0

213.7

-0.16

RU1AA 15

5.27

15.44

54.6

3.70:1

4.78

4.78

21.38

9.2

230.9

-0.10

M2 18XXX

5.30

15.00

199.7

1.07:1

4.56

4.36

20.90

7.4

231.9

-0.60

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

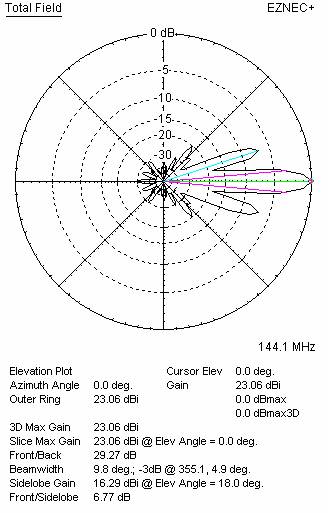

DIAGRAMS (no loss included)

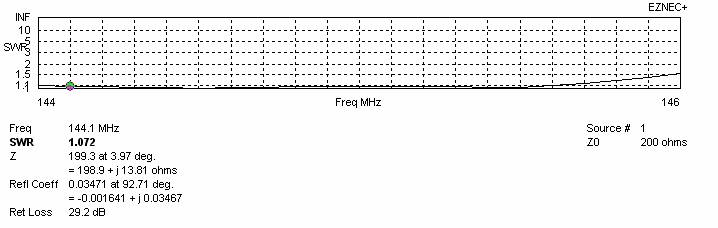

SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

17.71

225.7

-5.82

110







110

17.92

221.1

-5.51

120







120

18.07

219.1

-5.33

130







130

18.19

220.1

-5.23

140

17.88

248.1

-6.06

140







150







150

18.36

224.2

-5.14

160

18.26

242.4

-5.58

160







170







170

18.53

224.1

-4.96

180

18.50

239.0

-5.28

180







190







190

18.69

224.3

-4.81

200

18.68

237.2

-5.06

200







210







210

18.85

224.9

-4.66

220

18.83

235.9

-4.89

220







230







230

18.98

226.1

-4.55

240

18.97

234.5

-4.72

240







250







250

19.10

228.6

-4.48

260

19.10

232.8

-4.56

260







270







270

19.21

231.1

-4.42

280

19.22

230.6

-4.40

280







290







290

19.32

231.8

-4.32

300

19.34

228.1

-4.23

300







310







310

19.45

230.5

-4.17

320

19.46

225.7

-4.06

320







330







330

19.59

228.2

-3.98

340

19.59

223.6

-3.89

340







350







350

19.72

226.4

-3.82

360

19.71

222.2

-3.75

360







370







370

19.83

225.5

-3.69

380

19.82

221.6

-3.62

380







390

19.87

221.4

-3.57

390

19.93

225.1

-3.58

400

19.91

221.4

-3.53

400







410

19.96

221.5

-3.48

410

20.01

224.8

-3.50

420

19.99

221.6

-3.46

420







430

20.03

221.8

-3.42

430

20.08

224.2

-3.42

440

20.05

222.1

-3.39

440







450

20.09

222.3

-3.37

450

20.14

223.6

-3.34

460

20.11

222.6

-3.35

460







470

20.14

222.8

-3.33

470

20.18

222.4

-3.28

480

20.16

223.0

-3.31

480







490

20.17

223.2

-3.31

490

20.22

221.4

-3.22

500

20.19

223.5

-3.29

500

29.23

220.9

-3.20

510

20.20

223.7

-3.29

510

20.24

220.4

-3.18

520

20.21

223.8

-3.28

520

20.25

220.0

-3.16

530

20.22

224.1

-3.27

530

20.26

219.7

-3.16

540

20.22

224.3

-3.28

540

20.26

219.5

-3.14

550

20.23

224.5

-3.27

550

20.27

219.5

-3.13











20.27

219.8

-3.14

















































*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used

with good result, and which distances should be avoided.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

4424

4211

22.92

222.3

-0.54

Per DL6WU formula

5440

5480

23.22

219.7

-0.19

For max G/T

4060

1180

20.60

219.5

-2.81

For lowest temperature I

4060

5480

22.96

218.8

-0.44

For lowest temperature II



STACKING DIAGRAMS FOR MAX G/T





STACKING DIAGRAMS FOR LOWEST TEMPERATURE I





STACKING DIAGRAMS FOR LOWEST TEMPERATURE II
