ANTENNA Y21506XL7

PERFORMANCES:

No of ele

L

(mm)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Temp (◦K)

G/T

(dB)

Tlos

(K)

15

10115

16.79

27.96

20.59

17.72

28.4

30.2

221.9

-6.67

6.1



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

138.400

146.000

199.3

1.05:1

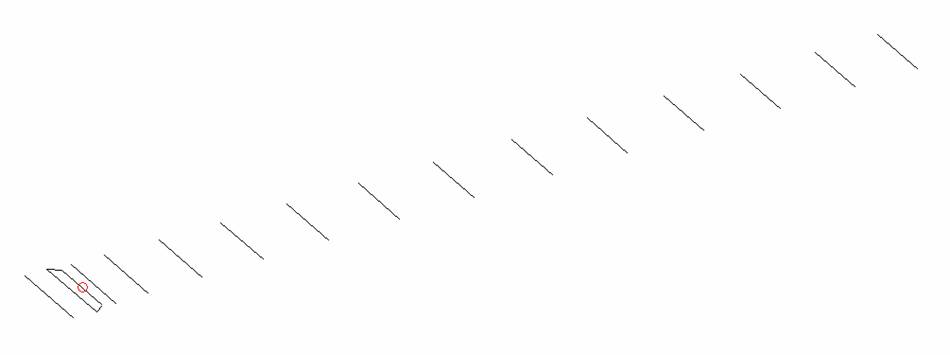

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

Pos

0

265

390

525

921

1566

2296

3089

3934

4828

5752

6655

7576

8486

9384

10115

Length

1016

1038

850

957

943

922

912

891

881

867

861

857

851

845

839

833

All elements made of Al tubes Ǿ6mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

G0KSC 15LFA

4.75

14.72

49.9

1.17:1

4.60

4.45

20.72

5.9

215.0

-0.45

InnoV 15 LFA

4.76

14.73

49.0

1.17:1

4.60

4.45

20.74

6.6

215.4

-0.44

K1FO 18

4.78

14.37

199.9

1.32:1

4.36

4.16

20.62

2.8

228.6

-0.82

InnoV 15 OWL

4.78

14.79

52.2

1.32:1

4.36

4.15

20.66

7.6

217.9

-0.57

M2 28 XPOL

4.81

15.18

200.1

5.19:1

4.83

4.83

21.14

13.9

243.1

-0.57

DJ9BV 4.8

4.82

14.63

49.7

1.29:1

4.40

4.19

20.48

6.6

242.8

-1.22

M2 5WL

4.83

14.64

200.9

1.42:1

4.56

4.36

20.58

3.7

248.1

-1.22

YU7EF 15

4.84

14.89

41.8

3.18:1

4.46

4.24

20.78

10.3

218.1

-0.46

Y21506XL7

4.86

14.64

199.3

1.05:1

5.38

5.42

20.80

6.1

216.3

-0.40

RU1AA_2

4.89

15.06

50.0

1.25:1

4.62

4.42

20.98

6.6

232.5

-0.53

SM5BSZ 14A

4.89

15.13

55.3

5.63:1

4.00

4.00

20.65

7.8

231.5

-0.85

RA3AQ 15

4.92

15.16

51.7

1.12:1

4.59

4.59

21.11

6.8

231.9

-0.39

SM5BSZ 14

4.95

15.27

49.3

4.37:1

5.20

5.20

21.36

5.7

239.7

-0.29

K5GW 17

4.98

14.83

48.5

1.73:1

4.43

4.21

20.73

9.8

220.8

-0.56

SM2CEW 19

4.99

14.92

78.4

1.62:1

4.38

4.38

20.83

9.0

223.1

-0.50

G0KSC 16 OWL FD

4.99

14.75

51.7

1.10:1

4.25

4.25

20.63

9.0

218.8

-0.62

BVO-5WL

5.02

15.00

47.4

1.26:1

4.58

4.58

20.97

6.9

236.2

-0.61

YU7EF 16M

5.12

14.90

49.9

1.03:1

4.36

4.16

20.70

7.0

221.9

-0.61

G0KSC 16LFA3R

5.14

15.12

49.9

1.10:1

5.10

5.10

21.16

4.8

212.0

0.05

K1FO 19

5.16

15.10

204.9

1.25:1

4.49

4.27

20.98

3.4

225.4

-0.40

G0KSC 16LFA

5.21

15.40

49.2

1.13:1

4.56

4.33

21.29

11.0

212.7

0.16

InnoV 16 LFA

5.23

15.12

47.3

1.13:1

4.52

4.23

20.99

7.0

213.7

-0.16

RU1AA 15

5.27

15.44

54.6

3.70:1

4.78

4.78

21.38

9.2

230.9

-0.10

M2 18XXX

5.30

15.00

199.7

1.07:1

4.56

4.36

20.90

7.4

231.9

-0.60

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz



DIAGRAMS (no loss included)



SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

17.83

218.8

-5.56

110







110

17.98

215.8

-5.35

120







120

18.09

215.3

-5.23

130

17.77

237.6

-5.98

130

18.17

217.5

-5.19

140







140







150

18.14

233.8

-5.54

150

18.27

223.6

-5.22

160







160







170

18.35

231.4

-5.28

170

18.39

224.2

-5.11

180







180







190

18.50

230.2

-5.11

190

18.54

223.4

-4.94

200







200







210

18.63

229.5

-4.97

210

18.68

222.3

-4.78

220







220







230

18.75

228.5

-4.83

230

18.81

222.2

-4.65

240







240







250

18.87

227.1

-4.68

250

18.92

223.4

-4.56

260







260







270

18.98

225.4

-4.54

270

19.03

224.5

-4.47

280







280







290

19.10

223.3

-4.38

290

19.14

224.4

-4.36

300







300







310

19.22

221.3

-4.22

310

19.27

222.8

-4.20

320







320







330

19.33

219.5

-4.07

330

19.40

220.8

-4.03

340







340







350

19.45

218.1

-3.93

350

19.52

219.6

-3.89

360







360

19.57

219.4

-3.83

370

19.55

217.4

-3.81

370

19.62

219.4

-3.78

380

19.60

217.2

-3.76

380

19.67

219.6

-3.74

390

19.65

217.1

-3.71

390

19.71

219.7

-3.70

400

19.69

217.1

-3.67

400







410

19.73

217.2

-3.63

410

19.78

220.0

-3.63

420

19.77

217.3

-3.59

420







430

19.80

217.5

-3.56

430

19.84

219.7

-3.57

440

19.83

217.7

-3.54

440







450

19.86

217.9

-3.51

450

19.90

219.1

-3.50

460

19.88

218.0

-3.49

460

19.92

218.6

-3.47

470

19.90

218.2

-3.48

470

19.94

218.2

-3.44

480

19.92

218.4

-3.46

480

19.96

217.6

-3.41

490

19.93

218.5

-3.45

490

19.97

217.1

-3.39

500

19.94

218.7

-3.45

500

19.99

216.6

-3.35

510

19.96

218.8

-3.43

510

20.00

216.1

-3.33

520

19.96

219.0

-3.43

520

20.01

215.6

-3.32

530

19.97

219.2

-3.43

530

20.01

214.3

-3.31

540

19.98

219.4

-3.42

540

20.02

214.2

-3.30

550

19.98

219.6

-3.43

550

20.02

215.3

-3.30

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used

with good result, and which distances should be avoided.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

4240

3993

22.58

218.3

-0.81

Per DL6WU formula

5380

5420

22.95

216.3

-0.40

For max G/T

4060

1180

20.65

216.0

-2.70

For lowest temperature I

4060

5420

22.71

216.1

-0.64

For lowest temperature II

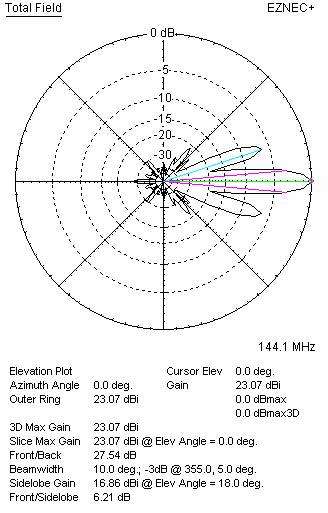

STACKING DIAGRAMS FOR MAX G/T





STACKING DIAGRAMS FOR LOWEST TEMPERATURE I





STACKING DIAGRAMS FOR LOWEST TEMPERATURE I
