ANTENNA Y21410XL8

PERFORMANCES:

No of ele

L

(mm)

G

(dBi)

F/B

(dB)

F/Sh (dBi)

F/Sv (dBi)

Hor

(◦)

Ver

(◦)

Temp

(◦K)

G/T

(dB)

Tlos

(K)

14

9235

16.71

33.04

19.79

16.96

28.2

30.0

230.0

-6.91

4.0



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

139.000

146.050

200.1

1.07:1

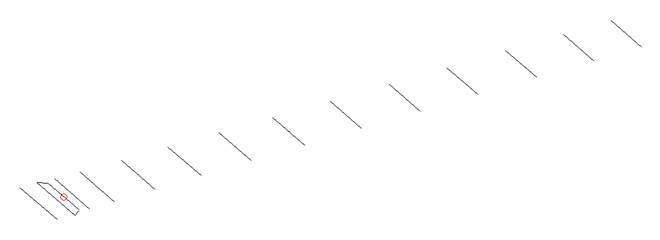

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

Pos

0

265

391

532

921

1565

2292

3082

3928

4825

5764

6670

7579

8428

9235

Length

1006

1024

900

941

931

906

893

879

865

846

843

843

843

841

833

All elements made of Al tubes Ǿ10mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

G0KSC 14LFA3R

4.23

14.44

48.8

1.07:1

4.19

4.00

20.35

2.4

216.5

-0.86

YU7EF 14M

4.24

14.23

48.6

1.07:1

4.07

3.85

20.08

7.0

220.1

-1.20

UA9TC 14RS

4.24

14.33

49.5

1.06:1

4.13

3.80

20.22

5.2

216.7

-0.99

G0KSC 14 LFA

4.30

14.51

47.1

1.22:1

4.24

4.02

20.41

5.5

218.1

-0.82

KF2YN Boxkite 16

4.30

15.85

50.5

1.16:1

5.50

5.10

21.83

6.2

227.4

0.41

InnoV 14 LFA

4.32

14.45

48.6

1.10:1

4.18

3.97

20.34

6.6

215.6

-0.85

YU7EF 14

4.37

14.48

41.0

2.30:1

4.21

4.00

20.33

8.8

220.0

-0.94

YU7EF 14LT

4.37

13.91

47.8

1.29:1

3.89

3.64

19.60

11.7

211.0

-1.49

K1FO 17

4.40

14.44

27.7

1.25:1

4.24

4.02

20.34

4.9

229.5

-1.12

DJ9BV 4.4

4.41

14.32

38.3

1.36:1

4.27

4.07

20.18

6.6

251.5

-1.68

Y21410XL7

4.44

14.56

200.1

1.07:1

5.42

5.36

20.71

4.0

225.1

-0.66

SHARK 20

4.47

14.34

42.8

1.05:1

4.33

4.10

20.19

3.9

258.5

-1.79

I0JXX 16

4.47

14.36

30.4

1.05:1

4.05

4.05

20.24

8.4

217.5

-0.98

CC17B2

4.49

14.53

200.1

1.20:1

4.27

4.07

20.43

5.9

228.6

-1.01

RA3AQ-14

4.61

14.71

50.0

1.19:1

4.27

4.07

20.55

5.0

219.1

-0.71

G4CQM 16

4.64

14.55

50.9

1.78:1

4.39

4.18

20.47

8.8

234.6

-1.08

YU7EF 15M

4.68

14.59

48.6

1.03:1

4.21

4.00

20.40

7.0

221.7

-0.89

DK7ZB 14

4.73

14.92

26.9

1.50:1

4.59

4.39

20.87

6.8

233.0

-0.65

DG7YBN 16

4.74

14.79

46.6

1.18:1

4.45

4.60

20.79

6.1

222.4

-0.53

G0KSC 15LFA

4.75

14.72

49.9

1.17:1

4.60

4.45

20.72

5.9

215.0

-0.45

InnoV 15 LFA

4.76

14.73

49.0

1.17:1

4.60

4.45

20.74

6.6

215.4

-0.44

K1FO 18

4.78

14.37

199.9

1.32:1

4.36

4.16

20.62

2.8

228.6

-0.82

InnoV 15 OWL

4.78

14.79

52.2

1.32:1

4.36

4.15

20.66

7.6

217.9

-0.57

M2 28 XPOL

4.81

15.18

200.1

5.19:1

4.83

4.83

21.14

13.9

243.1

-0.57

DJ9BV 4.8

4.82

14.63

49.7

1.29:1

4.40

4.19

20.48

6.6

242.8

-1.22

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

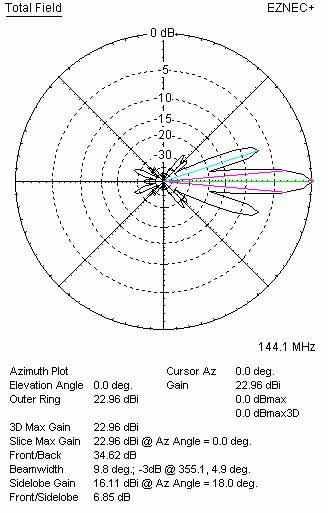

DIAGRAMS (no loss included)

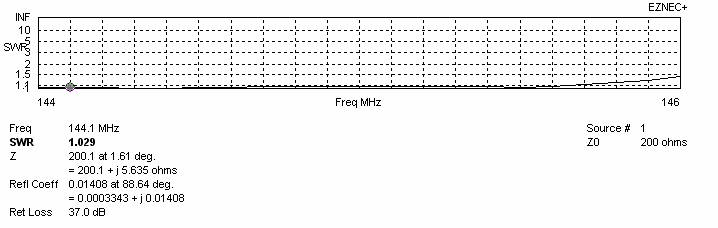

SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

17.51

228.1

-6.06

110







110

17.69

223.4

-5.79

120







120

17.83

221.6

-5.61

130

17.40

254.6

-6.65

130

17.93

223.1

-5.54

140







140







150

17.86

249.0

-6.10

150

18.08

228.0

-5.49

160







160







170

18.13

244.2

-5.74

170

18.25

227.0

-5.30

180







180







190

18.32

241.5

-5.50

190

18.41

228.2

-5.16

200







200







210

18.48

239.7

-5.31

210

18.55

230.0

-5.06

220







220







230

18.52

238.1

-5.14

230

18.68

231.8

-4.96

240







240







250

18.75

236.3

-4.98

250

18.80

234.0

-4.88

260







260







270

18.87

234.0

-4.81

270

18.92

235.4

-4.79

280







280







290

19.00

231.5

-4.63

290

19.05

234.5

-4.64

300







300







310

19.13

228.9

-4.46

310

19.19

231.8

-4.45

320







320







330

19.26

226.0

-4.29

330

19.33

228.9

-4.26

340







340







350

19.38

225.3

-4.14

350

19.46

227.2

-4.09

360







360







370

19.49

224.4

-4.01

370

19.57

226.6

-3.97

380

19.54

224.3

-3.96

380







390

19.59

224.3

-3.91

390

19.66

226.3

-3.88

400

19.63

224.4

-3.87

400







410

19.67

224.6

-3.83

410

19.74

226.2

-3.80

420

19.70

224.8

-3.81

420







430

19.73

225.1

-3.78

430

19.79

226.3

-3.75

440

19.76

225.4

-3.76

440







450

19.78

225.7

-3.75

450

19.83

226.5

-3.71

460

19.80

226.0

-3.73

460







470

19.82

226.3

-3.72

470

19.86

226.6

-3.68

480

19.84

226.6

-3.70

480

19.87

226.5

-3.67

490

19.85

226.8

-3.70

490

19.88

226.2

-3.65

500

19.86

227.0

-3.69

500

19.89

225.8

-3.64

510

19.87

227.3

-3.69

510

19.90

225.3

-3.62

520

19.87

227.5

-3.69

520

19.91

224.8

-3.60

530

19.88

227.7

-3.68

530

19.91

224.4

-3.59



19.88

227.7

-3.68

540

19.91

224.2

-3.58



19.88

227.7

-3.68

550

19.91

224.2

-3.59

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used

with good result, and which distances should be avoided.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

4270

4019

22.59

223.4

-0.90

Per DL6WU formula

5420

5360

22.86

225.1

-0.66

For max G/T

3960

1180

20.39

220.9

-3.05

For lowest temperature I

3960

5360

22.62

222.8

-0.86

For lowest temperature II

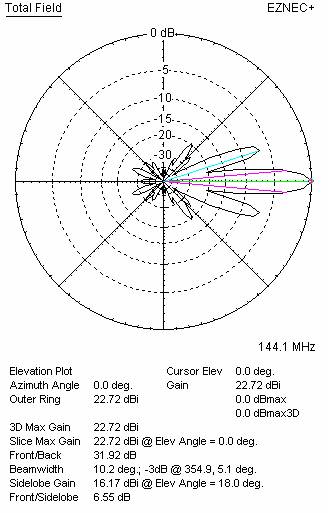

STACKING DIAGRAMS FOR MAX G/T



STACKING DIAGRAMS FOR LOWEST TEMPERATURE I





STACKING DIAGRAMS FOR LOWEST TEMPERATURE II
