ANTENNA Y21210XL7

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

12

7265

15.68

27.83

21.45

17.09

32.2

34.6

222.3

-7.79

3.7



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

141.400

146.100

199.5

1.07:1

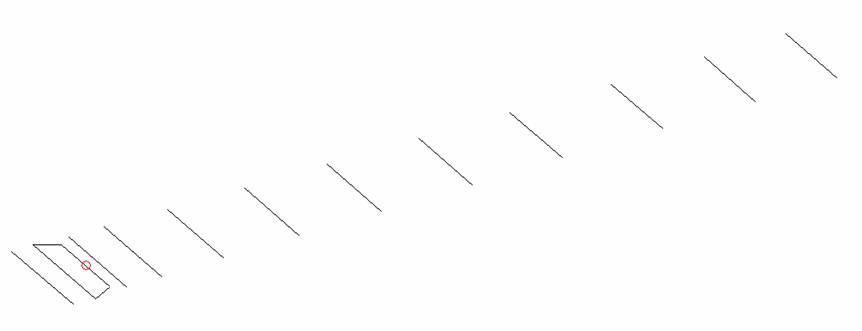

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

Pos

0

145

340

446

792

1416

2146

2946

3824

4702

5584

6496

7265

Length

1010

1012

1012

944

937

905

889

867

859

851

837

827

827

All elements made of Al tubes Ǿ10mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

DK7ZB 11

3.40

13.68

27.9

1.27:1

3.94

3.71

19.61

5.0

234.3

-1.94

UA9TC 12RS

3.40

13.55

51.7

1.09:1

3.80

3.56

19.46

5.1

218.2

-1.78

G0KSC 12LFA

3.41

13.64

50.1

1.18:1

3.90

3.70

19.58

4.3

221.2

-1.72

MBI 3.4

3.42

13.58

37.7

1.62:1

3.87

3.62

19.49

9.2

227.7

-1.93

G0KSC 12LFA 2R

3.43

13.46

50.3

1.06:1

3.95

3.75

19.48

4.9

220.5

-1.80

InnoV 12 LFA

3.43

13.56

49.3

1.07:1

3.80

3.60

19.47

5.4

218.9

-1.78

Gulf Alpha 14

3.44

13.24

198.0

1.21:1

3.71

3.44

19.14

5.5

229.6

-2.32

Gulf Alpha 114 XPOL

3.44

13.25

200.5

1.21:1

3.57

3.57

19.14

5.5

231.8

-2.37

YU7EF 12

3.49

13.67

45.4

1.77:1

3.85

3.60

19.55

6.1

221.1

-1.75

Y21210XL7

3.49

13.53

199.5

1.07:1

4.38

4.88

19.58

3.7

222.6

-1.74

SM5BSZ 11

3.51

13.95

54.4

3.06:1

4.05

3.80

19.81

6.3

238.8

-1.82

SM5BSZ 11A

3.53

14.01

52.3

3.03:1

4.13

3.92

19.93

6.1

245.4

-1.82

17LQD EKM#1

3.59

13.30

50.0

1.23:1

3.75

3.52

19.21

4.2

242.1

-2.48

17LQD EKM#2

3.59

13.39

50.0

1.25:1

3.75

3.50

19.32

4.5

227.5

-2.10

DL6WU 14

3.61

13.63

51.4

1.28:1

3.94

3.70

19.53

2.6

246.9

-2.24

DJ9BV 3.6

3.61

13.67

53.5

1.30:1

4.00

3.78

19.57

5.4

249.7

-2.25

K1FO 15

3.64

13.76

39.1

1.30:1

3.94

3.71

19.67

4.8

233.0

-1.85

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

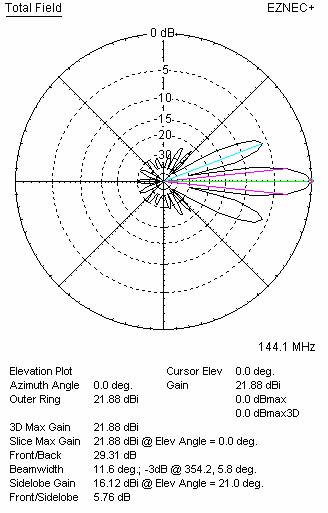

DIAGRAMS (no loss included)

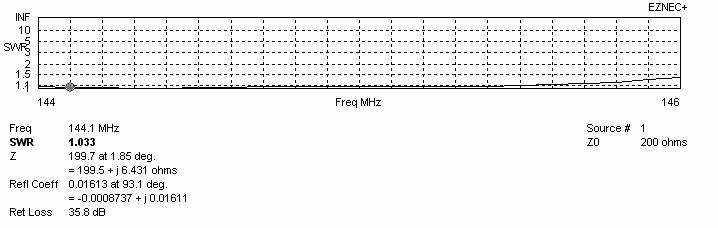

SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

16.89

221.4

-6.66

110







110

17.02

217.5

-6.34

120







120

17.12

216.0

-6.21

130

16.91

243.0

-6.94

130

17.20

216.6

-6.14

140







140







150

17.20

234.9

-6.50

150

17.35

218.7

-6.03

160







160







170

17.39

230.9

-6.23

170

17.49

219.2

-5.90

180







180







190

17.54

228.9

-6.04

190

17.62

220.5

-5.80

200







200







210

17.68

227.6

-5.88

210

17.74

222.9

-5.73

220







220







230

17.81

226.3

-5.72

230

17.85

226.1

-5.68

240







240







250

17.94

224.6

-5.56

250

17.98

227.5

-5.58

260







260







270

18.07

222.7

-5.39

270

18.12

226.1

-5.41

280







280







290

18.21

220.8

-5.22

290

18.27

223.1

-5.20

300







300







310

18.34

219.3

-5.05

310

18.43

220.4

-4.99

320







320







330

18.46

218.3

-4.91

330

18.56

218.8

-4.82

340

18.52

218.0

-4.85

340

18.62

218.6

-5.76

350

18.57

217.8

-4.80

350

18.67

218.6

-4.71

360

18.62

217.8

-4.75

360

18.71

219.0

-4.68

370

18.66

217.9

-4.71

370

18.75

219.6

-4.65

380

18.69

218.2

-4.68

380

18.77

220.2

-4.64

390

18.72

218.5

-4.66

390

18.80

220.8

-4.62

400

18.75

218.9

-4.64

400

18.82

221.2

-4.61

410

18.77

219.3

-4.63

410

18.83

221.5

-4.61

420

18.79

219.8

-4.61

420

18.85

221.7

-4.59

430

18.81

220.2

-4.60

430

18.86

221.6

-4.58

440

18.82

220.6

-4.60

440

18.86

221.3

-4.58

450

18.83

221.0

-4.60

450

18.87

221.0

-4.56

460

18.84

221.4

-4.60

460

18.87

220.5

-4.55









470

18.88

220.0

-4.53









480

18.88

219.5

-4.52









490

18.88

219.2

-4.51

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used

with good result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3751

3498

21.48

218.7

-1.92

Per DL6WU formula

4380

4880

21.73

222.6

-1.74

For max G/T

3780

1280

19.84

215.5

-3.49

For lowest temperature I

3780

3480

21.48

218.6

-1.91

For lowest temperature II



STACKING DIAGRAMS FOR MAX G/T



STACKING DIAGRAMS FOR FOR LOWEST TEMPERATURE I



STACKING DIAGRAMS FOR FOR LOWEST TEMPERATURE II
