ANTENNA Y21208XL6

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

12

7265

15.60

29.65

22.42

17.22

32.6

35.2

220.5

-7.84

4.6



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

141.600

146.000

200.5

1.07:1

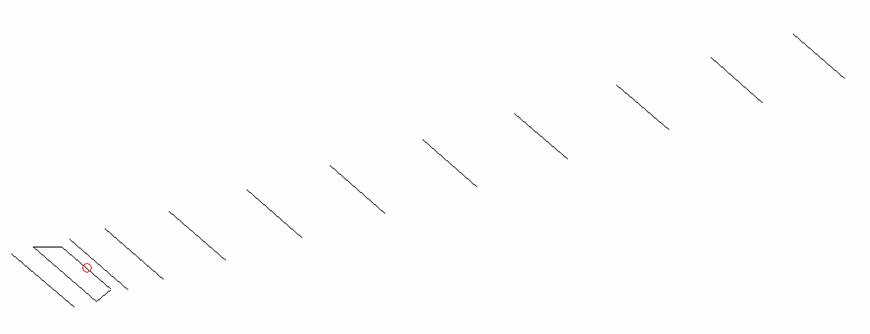

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

Pos

0

130

340

445

792

1419

2142

2946

3814

4694

5585

6496

7265

Length

1012

1008

800

951

943

913

897

877

867

855

843

835

831

All elements made of Al tubes Ǿ9mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

DK7ZB 11

3.40

13.68

27.9

1.27:1

3.94

3.71

19.61

5.0

234.3

-1.94

UA9TC 12RS

3.40

13.55

51.7

1.09:1

3.80

3.56

19.46

5.1

218.2

-1.78

G0KSC 12LFA

3.41

13.64

50.1

1.18:1

3.90

3.70

19.58

4.3

221.2

-1.72

MBI 3.4

3.42

13.58

37.7

1.62:1

3.87

3.62

19.49

9.2

227.7

-1.93

G0KSC 12LFA 2R

3.43

13.46

50.3

1.06:1

3.95

3.75

19.48

4.9

220.5

-1.80

InnoV 12 LFA

3.43

13.56

49.3

1.07:1

3.80

3.60

19.47

5.4

218.9

-1.78

Gulf Alpha 14

3.44

13.24

198.0

1.21:1

3.71

3.44

19.14

5.5

229.6

-2.32

Gulf Alpha 114 XPOL

3.44

13.25

200.5

1.21:1

3.57

3.57

19.14

5.5

231.8

-2.37

YU7EF 12

3.49

13.67

45.4

1.77:1

3.85

3.60

19.55

6.1

221.1

-1.75

Y21208XL6

3.49

13.45

200.5

1.07:1

4.28

4.84

19.54

4.6

221.0

-1.76

SM5BSZ 11

3.51

13.95

54.4

3.06:1

4.05

3.80

19.81

6.3

238.8

-1.82

SM5BSZ 11A

3.53

14.01

52.3

3.03:1

4.13

3.92

19.93

6.1

245.4

-1.82

17LQD EKM#1

3.59

13.30

50.0

1.23:1

3.75

3.52

19.21

4.2

242.1

-2.48

17LQD EKM#2

3.59

13.39

50.0

1.25:1

3.75

3.50

19.32

4.5

227.5

-2.10

DL6WU 14

3.61

13.63

51.4

1.28:1

3.94

3.70

19.53

2.6

246.9

-2.24

DJ9BV 3.6

3.61

13.67

53.5

1.30:1

4.00

3.78

19.57

5.4

249.7

-2.25

K1FO 15

3.64

13.76

39.1

1.30:1

3.94

3.71

19.67

4.8

233.0

-1.85

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz



DIAGRAMS (no loss included)

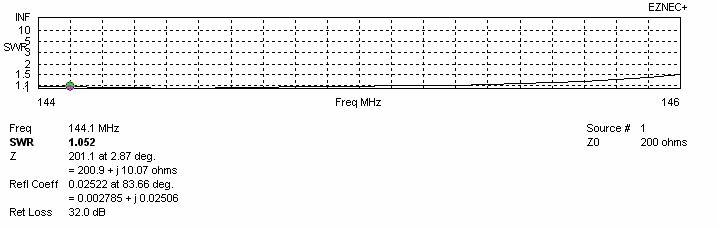

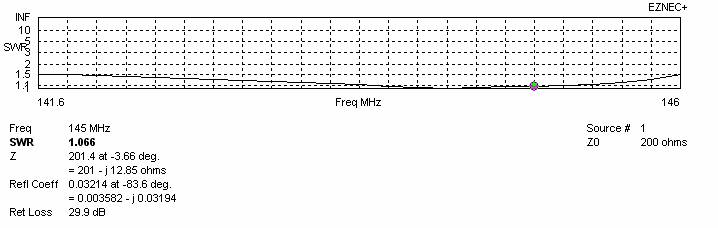

SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

16.88

219.0

-6.51

110







110

17.00

215.4

-6.31

120







120

17.10

214.1

-6.19

130

16.92

237.3

-6.82

130

17.18

214.8

-6.12

140







140

17.25

216.3

-6.08

150

17.18

230.4

-6.43

150







160







160

17.38

217.4

-5.97

170

17.36

227.1

-6.19

170







180







180

17.51

218.4

-5.86

190

17.50

225.6

-6.02

190







200







200

17.64

220.0

-5.77

210

17.64

224.6

-5.86

210







220







220

17.76

222.4

-5.70

230

17.77

223.6

-5.71

230







240







240

17.88

224.4

-5.61

250

17.90

222.2

-5.55

250







260







260

18.01

224.1

-5.48

270

18.05

220.5

-5.39

270







280







280

18.16

221.9

-5.29

290

18.17

218.9

-5.22

290







300







300

18.31

219.3

-5.08

310

18.30

217.6

-5.06

310







320







320

18.45

217.5

-4.91

330

18.42

216.7

-4.92

330

18.51

217.1

-4.84

340

18.47

216.4

-4.87

340

18.57

217.0

-4.78

350

18.52

216.3

-4.81

350

18.62

217.2

-4.73

360

18.56

216.4

-4.77

360

18.66

217.6

-4.70

370

18.60

216.5

-4.74

370

18.69

218.1

-4.68

380

18.64

216.7

-4.70

380

18.72

218.7

-4.66

390

18.67

217.0

-4.68

390

18.74

219.3

-4.65

400

18.69

217.4

-4.67

400

18.76

219.7

-4.64

410

18.71

217.8

-4.65

410

18.77

220.0

-4.64

420

18.73

218.3

-4.64

420

18.78

220.2

-4.63

430

18.74

218.7

-4.64

430

18.79

220.2

-4.62

440

18.76

219.1

-4.63

440

18.80

220.1

-4.61

450

18.76

219.4

-4.64

450

18.80

219.8

-4.60









460

18.81

219.4

-4.58









470

18.81

218.9

-4.57









480

18.81

218.4

-4.56

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used

with good result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3706

3440

21.42

217.2

-1.92

Per DL6WU formula

4280

4840

21.69

221.0

-1.76

For max G/T

3580

1280

19.76

212.7

-3.52

For lowest temperature I

3580

3480

21.39

217.3

-1.98

For lowest temperature II

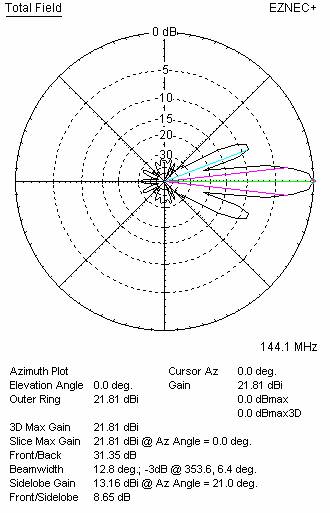

STACKING DIAGRAMS FOR MAX G/T

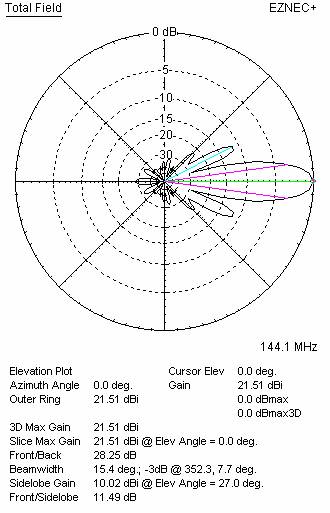

STACKING DIAGRAMS FOR LOWEST TEMPERATURE I



STACKING DIAGRAMS FOR LOWEST TEMPERATURE II
