ANTENNA Y21106XL5

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

11

6000

14.86

29.93

23.96

18.43

35.0

38.4

225.0

-8.66

4.9



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

141.400

146.700

200.0

1.04:1



DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

D9

Pos

0

135

321

416

742

1294

1962

2722

3539

4388

5272

6000

Length

1016

1004

880

945

949

927

909

899

877

861

853

835

All elements made of Al tubes Ǿ6mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

BQH 12J

2.80

12.80

50.0

1.01:1

3.67

3.40

18.83

4.3

246.2

-2.93

CT1FFU 10C

2.82

13.04

27.2

1.23:1

3.62

3.31

18.93

4.2

222.9

-2.40

M2 12

2.84

12.68

37.0

1.13:1

3.48

3.20

18.54

5.4

232.5

-2.97

KF2YN Boxkite12

2.84

14.90

48.5

1.22:1

6.00

4.40

20.84

5.9

227.4

-0.58

BQH 10

2.86

13.05

22.6

1.47:1

3.69

3.43

19.00

7.0

232.5

-2.51

WB9UWA 12

2.87

12.73

23.9

1.47:1

3.48

3.20

18.61

7.0

223.0

-2.72

DK7ZB 10

2.87

13.00

25.8

1.61:1

3.87

3.60

19.17

6.8

247.5

-2.62

Y21106XL5

2.88

12.71

200.0

1.04:1

3.94

3.42

18.77

4.9

227.1

-2.64

K1FO 13

2.89

12.94

24.7

1.38:1

3.64

3.39

18.88

4.6

239.2

-2.76

Y21110XL2

2.94

12.98

200.6

1.08:1

3.84

3.52

19.01

4.0

226.4

-2.39

M2 20 XPOL

2.97

13.11

200.1

1.20:1

3.64

3.64

19.09

6.3

241.7

-2.59

G0KSC 11 LFA

2.98

13.11

48.3

1.06:1

3.78

3.65

19.14

3.0

224.9

-2.23

UA9TC 11RS

2.98

13.09

50.9

1.10:1

3.66

3.37

19.01

5.0

223.0

-2.34

G0KSC 11OWL

3.00

13.16

49.8

1.42:1

3.69

3.44

19.09

7.7

224.6

-2.27

BVO-3WL

3.01

13.43

52.7

3.08:1

3.90

3.70

19.38

8.6

253.1

-2.50

G0KSC 11LFA3R

3.01

13.00

50.1

1.08:1

3.60

3.33

18.92

4.0

223.0

-2.41

YU7EF 11

3.04

13.07

49.0

1.62:1

3.56

3.30

18.87

4.7

222.6

-2.46

F9FT 16

3.06

12.64

20.8

1.37:1

3.54

3.26

18.63

6.0

241.3

-3.05

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz



DIAGRAMS (no loss included)

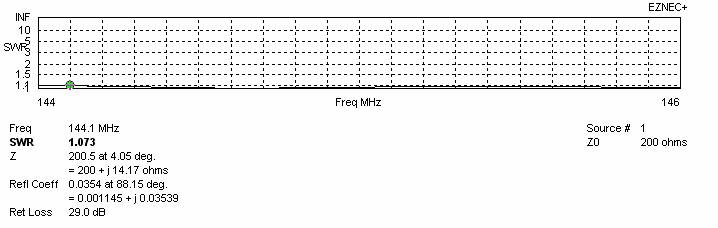

SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

16.16

217.9

-7.20

110







110

16.29

215.1

-7.01

120







120

16.39

214.7

-6.90

130

16.18

238.9

-7.59

130

16.48

216.5

-6.85

140







140







150

16.48

230.4

-7.13

150

16.62

221.4

-6.81

160







160







170

16.68

227.0

-6.86

170

16.79

221.2

-6.64

180







180







190

16.86

225.5

-6.65

190

16.96

221.3

-6.47

200







200







210

17.02

224.7

-6.48

210

17.12

221.9

-6.32

220







220







230

17.18

224.0

-6.30

230

17.28

221.8

-6.16

240







240







250

17.33

223.3

-6.14

250

17.44

220.5

-5.97

260







260







270

17.48

222.8

-5.98

270

17.60

219.2

-5.79

280







280

17.68

218.9

-5.70

290

17.62

222.4

-5.83

290

17.75

219.0

-5.63

300

17.80

222.2

-5.65

300

17.82

219.4

-5.57

310

17.75

222.2

-5.70

310

17.88

220.2

-5.53

320

17.89

222.3

-5.56

320

17.93

221.3

-5.50

330

17.85

222.2

-5.60

330

17.97

222.7

-5.49

340

17.96

222.7

-5.50

340

18.00

224.3

-5.49

350

17.93

222.4

-5.52

350

18.02

226.0

-5.50

360

18.00

223.3

-5.47

360







370

17.98

223.0

-5.48









380

18.03

224.0

-5.45









390

18.04

224.3

-5.45









400

18.04

224.6

-5.46









410

18.05

224.9

-5.45









*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used

with good result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3459

3163

20.73

223.2

-2.76

Per DL6WU formula

3940

3420

20.92

227.1

-2.64

For max G/T

3840

1280

19.29

215.6

-4.04

For lowest temperature I

3840

2800

20.60

219.4

-2.81

For lowest temperature II



STACKING DIAGRAMS FOR MAX G/T



STACKING DIAGRAMS FOR LOWEST TEMPERATURE I





STACKING DIAGRAMS FOR LOWEST TEMPERATURE II
