ANTENNA Y21008XL8

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

10

5565

14.73

20.73

21.95

17.05

35.4

38.6

229.4

-8.87

4.3



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

136.400

146.100

201.0

1.07:1



DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

D7

D8

Pos

0

298

402

521

908

1550

2278

3085

3892

4782

5565

Length

1012

1000

1000

953

937

913

895

881

869

849

843

All elements made of Al tubes Ǿ8mm  -     All dimensions given in milimetres   -   No boom correction included





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

I0JXX 12

2.68

12.67

26.9

1.31:1

3.58

3.30

18.64

6.9

238.0

-2.97

Y21008XL8

2.72

12.58

201.0

1.08:1

3.68

3.38

18.61

4.3

232.7

-2.90

BQH 12J

2.80

12.80

50.0

1.01:1

3.67

3.40

18.83

4.3

246.2

-2.93

CT1FFU 10C

2.82

13.04

27.2

1.23:1

3.62

3.31

18.93

4.2

222.9

-2.40

M2 12

2.84

12.68

37.0

1.13:1

3.48

3.20

18.54

5.4

232.5

-2.97

KF2YN Boxkite12

2.84

14.90

48.5

1.22:1

6.00

4.40

20.84

5.9

227.4

-0.58

BQH 10

2.86

13.05

22.6

1.47:1

3.69

3.43

19.00

7.0

232.5

-2.51

WB9UWA 12

2.87

12.73

23.9

1.47:1

3.48

3.20

18.61

7.0

223.0

-2.72

DK7ZB 10

2.87

13.00

25.8

1.61:1

3.87

3.60

19.17

6.8

247.5

-2.62

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz



DIAGRAMS (no loss included)



SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

15.95

223.4

-7.53

110







110

16.09

219.6

-7.32

120







120

16.20

218.3

-7.18

130

15.97

246.1

-7.94

130

16.29

220.0

-7.12

140







140







150

16.27

239.3

-7.51

150

16.43

225.1

-7.09

160







160







170

16.49

234.8

-7.21

170

16.61

224.4

-6.89

180







180







190

16.68

232.0

-6.97

190

16.78

225.3

-6.74

200







200







210

16.85

229.9

-6.76

210

16.94

227.4

-6.62

220







220







230

17.02

228.3

-6.56

230

17.10

227.5

-6.46

240







240

17.19

226.6

-6.35

250

17.18

227.3

-6.38

250

17.28

225.5

-6.24

260







260

17.37

224.4

-6.13

270

17.33

226.6

-6.21

270

17.45

223.7

-6.04

280







280

17.53

223.4

-5.95

290

17.47

226.4

-6.07

290

17.60

223.6

-5.89

300

17.53

226.5

-6.01

300

17.67

224.2

-5.83

310

17.59

226.6

-5.95

310

17.73

225.2

-5.79

320

17,65

226.7

-5.90

320

17.77

226.4

-5.77

330

17.69

227.0

-5.86

330

17.81

227.9

-5.76

340

17.73

227.2

-5.83

340

17.85

229.5

-5.75

350

17.77

227.5

-5.79

350

17.87

231.2

-5.76

360

17.80

227.8

-5.77

360







370

17.82

228.2

-5.75









380

17.84

228.5

-5.74











17.85

228.9

-5.74











17.87

229.2

-5.72











17.88

229.8

-5.72









*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3421

3147

20.62

228.4

-2.96

Per DL6WU formula

3780

3380

20.78

232.8

-2.88

For max G/T

3680

1280

19.11

218.7

-4.28

For lowest temperature

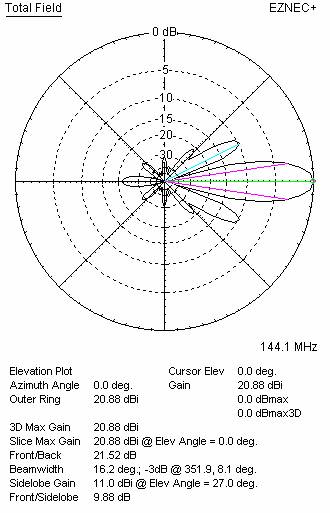

STACKING DIAGRAMS FOR MAX G/T



STACKING DIAGRAMS FOR MAX LOWEST TEMPERATURE
