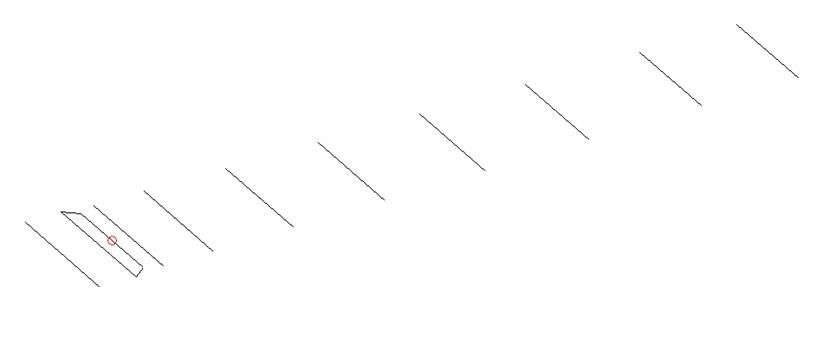

ANTENNA Y21006XL4
PERFORMANCES:
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
10 |
5565 |
14.69 |
20.95 |
22.46 |
17.46 |
35.6 |
38.8 |
229.1 |
-8.91 |
5.5 |
WORKING CONDITION:
Frequency for SWR=1,5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
|
Lowest |
Highest |
||
137.700 |
146.000 |
199.6 |
1.02:1 |
DIMENSIONS:
|
Ref |
De1 |
De2 |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
D7 |
D8 |
Pos |
0 |
285 |
392 |
522 |
912 |
1556 |
2272 |
3075 |
3892 |
4788 |
5565 |
Length |
1018 |
1032 |
904 |
944 |
944 |
922 |
906 |
892 |
876 |
858 |
848 |
All elements made of Al tubes Ǿ6mm - All dimensions given in milimetres - No boom correction included |
COMPARISON
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
I0JXX 12 |
2.68 |
12.67 |
26.9 |
1.31:1 |
3.58 |
3.30 |
18.64 |
6.9 |
238.0 |
-2.97 |
Y21006XL4 |
2.72 |
12.54 |
199.6 |
1.02:1 |
3.68 |
3.38 |
18.57 |
5.5 |
232.9 |
-2.95 |
BQH 12J |
2.80 |
12.80 |
50.0 |
1.01:1 |
3.67 |
3.40 |
18.83 |
4.3 |
246.2 |
-2.93 |
CT1FFU 10C |
2.82 |
13.04 |
27.2 |
1.23:1 |
3.62 |
3.31 |
18.93 |
4.2 |
222.9 |
-2.40 |
M2 12 |
2.84 |
12.68 |
37.0 |
1.13:1 |
3.48 |
3.20 |
18.54 |
5.4 |
232.5 |
-2.97 |
KF2YN Boxkite12 |
2.84 |
14.90 |
48.5 |
1.22:1 |
6.00 |
4.40 |
20.84 |
5.9 |
227.4 |
-0.58 |
BQH 10 |
2.86 |
13.05 |
22.6 |
1.47:1 |
3.69 |
3.43 |
19.00 |
7.0 |
232.5 |
-2.51 |
WB9UWA 12 |
2.87 |
12.73 |
23.9 |
1.47:1 |
3.48 |
3.20 |
18.61 |
7.0 |
223.0 |
-2.72 |
DK7ZB 10 |
2.87 |
13.00 |
25.8 |
1.61:1 |
3.87 |
3.60 |
19.17 |
6.8 |
247.5 |
-2.62 |
Z(ohms) - measured on 144.100 MHz Bandwidth – VSWR measured on 145.000 MHz |

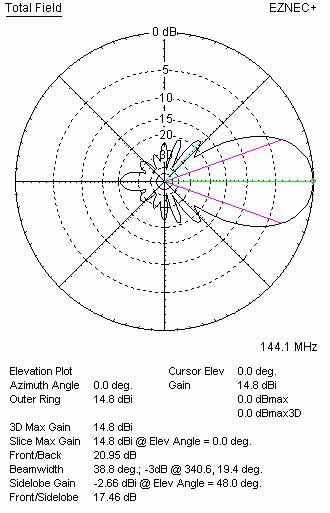

DIAGRAMS (no loss included)

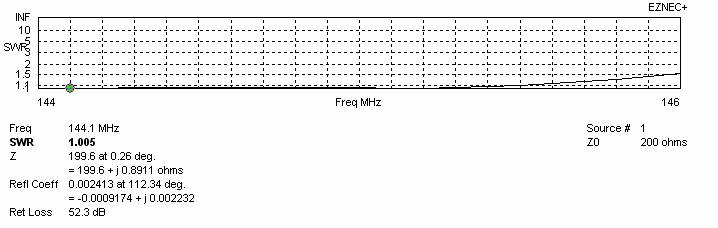

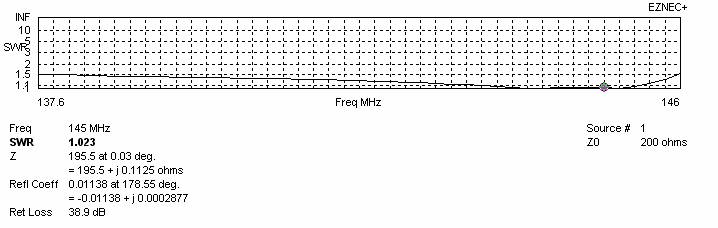

SWR DIAGRAMS (loss included for Al)
STACKING
Horizontal distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
100 |
|
|
|
100 |
15.93 |
221.9 |
-7.52 |
110 |
|
|
|
110 |
16.06 |
218.5 |
-7.32 |
120 |
|
|
|
120 |
16.17 |
217.7 |
-7.20 |
130 |
15.95 |
242.9 |
-7.90 |
130 |
16.26 |
219.7 |
-7.15 |
140 |
|
|
|
140 |
|
|
|
150 |
16.25 |
237.2 |
-7.49 |
150 |
16.40 |
225.3 |
-7.12 |
160 |
|
|
|
160 |
|
|
|
170 |
16.46 |
233.5 |
-7.22 |
170 |
16.58 |
224.7 |
-6.93 |
180 |
|
|
|
180 |
|
|
|
190 |
16.65 |
231.1 |
-6.98 |
190 |
16.76 |
225.1 |
-6.76 |
200 |
|
|
|
200 |
|
|
|
210 |
16.83 |
229.3 |
-6.77 |
210 |
16.93 |
226.3 |
-6.61 |
220 |
|
|
|
220 |
|
|
|
230 |
16.99 |
227.9 |
-6.58 |
230 |
17.10 |
225.7 |
-6.43 |
240 |
|
|
|
240 |
|
|
|
250 |
17.16 |
226.8 |
-6.39 |
250 |
17.27 |
223.6 |
-6.22 |
260 |
|
|
|
260 |
17.36 |
222.7 |
-6.11 |
270 |
17.31 |
226.2 |
-6.23 |
270 |
17.44 |
222.2 |
-6.02 |
280 |
|
|
|
280 |
17.52 |
222.2 |
-5.94 |
290 |
17.45 |
226.0 |
-6.08 |
290 |
17.59 |
222.6 |
-5.88 |
300 |
|
|
|
300 |
17.65 |
223.4 |
-5.83 |
310 |
17.57 |
226.1 |
-5.96 |
310 |
17.71 |
224.6 |
-5.80 |
320 |
17.62 |
226.2 |
-5.92 |
320 |
17.75 |
226.1 |
-5.78 |
330 |
17.67 |
226.4 |
-5.87 |
330 |
17.79 |
227.7 |
-5.78 |
340 |
17.71 |
226.7 |
-5.84 |
340 |
17.82 |
229.5 |
-5.78 |
350 |
17.74 |
227.0 |
-5.81 |
350 |
17.84 |
231.3 |
-5.79 |
360 |
17.77 |
227.3 |
-5.79 |
360 |
|
|
|
370 |
17.79 |
227.6 |
-5.77 |
|
|
|
|
380 |
17.81 |
228.0 |
-5.76 |
|
|
|
|
390 |
17.82 |
228.3 |
-5.76 |
|
|
|
|
400 |
17.83 |
228.6 |
-5.75 |
|
|
|
|
*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result. and which distances should be avoided. In H-stack it can be slightly changed.
BEST DISTANCES FOR 4 ANTENNAS IN H-STACK
Horizontal distance (cm) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Remark |
3403 |
3132 |
20.57 |
228.2 |
-3.02 |
Per DL6WU formula |
3780 |
3280 |
20.71 |
231.1 |
-2.93 |
For max G/T |
3780 |
1280 |
19.10 |
218.9 |
-4.30 |
For lowest temperature |

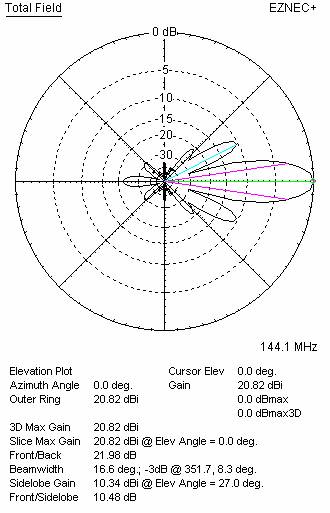

STACKING DIAGRAMS FOR MAX G/T
STACKING DIAGRAMS FOR LOWEST TEMPERATURE
