ANTENNA Y20905XL1
PERFORMANCES:
|
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
9 |
4645 |
14.05 |
22.22 |
23.90 |
16.80 |
37.8 |
42.4 |
235.7 |
-9.67 |
5.5 |
WORKING CONDITION:
|
Frequency for SWR=1,5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
|
|
Lowest |
Highest |
||
|
139.900 |
146.000 |
198.0 |
1.08:1 |

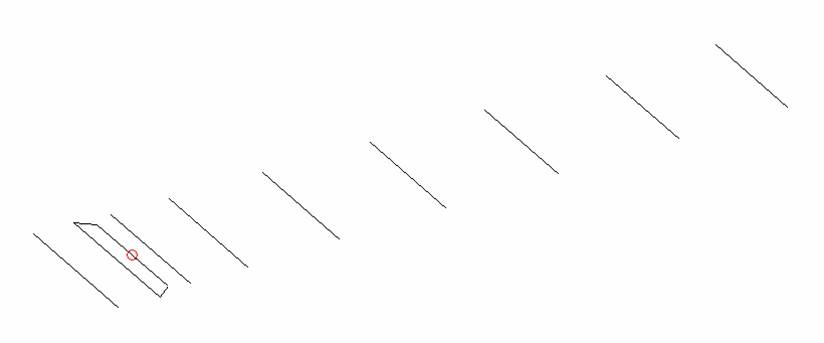

DIMENSIONS:
|
|
Ref |
De1 |
De2 |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
D7 |
All elements made of Al tubes Ǿ5 mm All dimensions given in milimetres No boom correction included |
|
Pos |
0 |
278 |
385 |
512 |
908 |
1546 |
2285 |
3065 |
3899 |
4645 |
|
|
Length |
1020 |
1026 |
846 |
956 |
946 |
923 |
908 |
889 |
876 |
864 |
COMPARISON
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
YU7EF 9 |
2.16 |
11.84 |
49.8 |
1.17:1 |
3.20 |
2.89 |
17.74 |
5.3 |
236.6 |
-3.84 |
|
F9FT 11 |
2.17 |
11.78 |
21.5 |
1.25:1 |
3.26 |
2.97 |
17.75 |
5.3 |
251.0 |
-4.10 |
|
CC 13B2 |
2.17 |
11.79 |
21.1 |
1.37:1 |
3.33 |
3.01 |
17.78 |
5.9 |
257.9 |
-4.18 |
|
K1FO 11 |
2.18 |
11.97 |
44.0 |
1.29:1 |
3.30 |
3.00 |
17.90 |
4.3 |
248.0 |
-3.89 |
|
CC 215WB |
2.19 |
11.78 |
17.4 |
1.47:1 |
3.36 |
3.07 |
17.78 |
6.6 |
266.6 |
-4.33 |
|
Vine 9 FD |
2.22 |
11.93 |
50.0 |
1.07:1 |
3.21 |
2.91 |
17.80 |
9.4 |
230.0 |
-3.67 |
|
Y20905XL1 |
2.23 |
11.90 |
198.0 |
1.08:1 |
3.48 |
2.68 |
17.72 |
3.7 |
229.9 |
-3.73 |
|
G0KSC 9OWL |
2.28 |
12.15 |
49.0 |
1.20:1 |
3.28 |
2.97 |
18.00 |
6.4 |
229.5 |
-3.46 |
|
KF2YN Boxkite 10 |
2.29 |
14.29 |
49.0 |
1.14:1 |
4.49 |
3.89 |
20.25 |
5.6 |
225.9 |
-1.13 |
|
G4CQM CQM12UX |
2.32 |
11.94 |
50.2 |
1.06:1 |
3.20 |
2.89 |
17.82 |
4.0 |
231.6 |
-3.68 |
|
Flexa 224 |
2.34 |
11.52 |
60.4 |
1.09:1 |
3.50 |
3.30 |
17.66 |
30.1 |
259.2 |
-4.33 |
|
RA3AQ 9 |
2.35 |
12.38 |
49.2 |
1.10:1 |
3.40 |
3.13 |
18.31 |
5.6 |
234.3 |
-3.24 |
|
CT1FFU 9 |
2.38 |
12.23 |
28.1 |
1.15:1 |
3.26 |
2.97 |
18.08 |
3.6 |
226.8 |
-3.33 |
|
ZL1RS 9 |
2.38 |
12.24 |
48.7 |
2.19:1 |
3.30 |
3.01 |
18.13 |
5.6 |
227.2 |
-3.28 |
|
Eagle 10 |
2.38 |
12.28 |
23.6 |
1.33:1 |
3.44 |
3.16 |
18.27 |
6.0 |
243.0 |
-3.43 |
|
G4CQM CQM12UC |
2.39 |
12.15 |
49.4 |
1.03:1 |
3.30 |
3.01 |
18.05 |
5.2 |
235.6 |
-3.54 |
|
DK7ZB 9 |
2.39 |
12.41 |
27.5 |
1.23:1 |
3.56 |
3.30 |
18.45 |
6.2 |
250.5 |
-3.39 |
|
Vine 10 FD |
2.45 |
12.27 |
47.6 |
1.08:1 |
3.35 |
3.04 |
18.17 |
9.5 |
226.7 |
-3.23 |
|
DD0VF 9 |
2.46 |
12.47 |
25.0 |
1.16:1 |
3.48 |
3.18 |
18.44 |
4.4 |
235.8 |
-3.14 |
|
Z(ohms) - measured on 144.100 MHz Bandwidth – VSWR measured on 145.000 MHz |
||||||||||

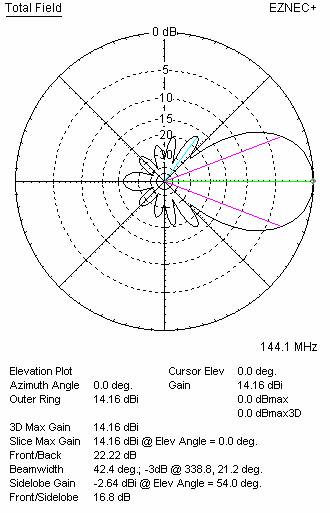

DIAGRAMS (no loss included)

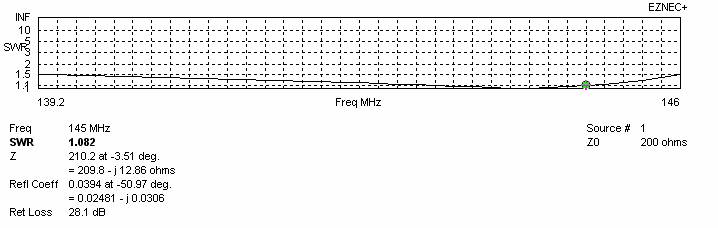

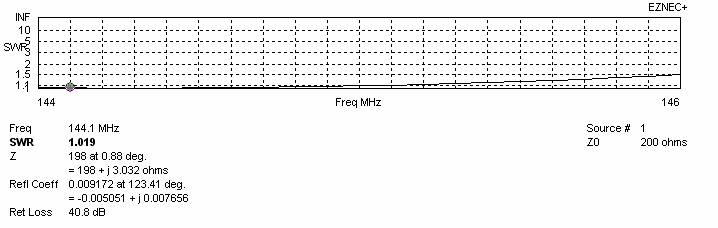

SWR DIAGRAMS (loss included for Al)
STACKING
|
Horizontal distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
|
100 |
|
|
|
100 |
15.42 |
222.1 |
-8.04 |
|
110 |
|
|
|
110 |
15.55 |
218.4 |
-7.83 |
|
120 |
|
|
|
120 |
15.66 |
217.3 |
-7.70 |
|
130 |
15.46 |
245.9 |
-8.44 |
130 |
15.76 |
219.2 |
-7.64 |
|
140 |
|
|
|
140 |
|
|
|
|
150 |
15.73 |
238.9 |
-8.05 |
150 |
15.89 |
225.6 |
-7.64 |
|
160 |
|
|
|
160 |
|
|
|
|
170 |
15.94 |
235.6 |
-7.77 |
170 |
16.06 |
226.4 |
-7.48 |
|
180 |
|
|
|
180 |
|
|
|
|
190 |
16.13 |
234.1 |
-7.56 |
190 |
16.24 |
228.3 |
-7.34 |
|
200 |
|
|
|
200 |
|
|
|
|
210 |
16.31 |
233.6 |
-7.37 |
210 |
16.40 |
229.1 |
-7.19 |
|
220 |
|
|
|
220 |
|
|
|
|
230 |
16.48 |
233.5 |
-7.20 |
230 |
16.59 |
227.3 |
-6.97 |
|
240 |
|
|
|
240 |
16.69 |
226.3 |
-6.86 |
|
250 |
16.64 |
233.7 |
-7.04 |
250 |
16.78 |
225.8 |
-6.75 |
|
260 |
|
|
|
260 |
16.86 |
225.9 |
-6.67 |
|
270 |
16.79 |
234.0 |
-6.89 |
270 |
16.94 |
226.8 |
-6.61 |
|
280 |
16.86 |
234.2 |
-6.83 |
280 |
17.01 |
228.2 |
-6.57 |
|
290 |
16.92 |
234.3 |
-6.77 |
290 |
17.07 |
230.1 |
-6.54 |
|
300 |
16.98 |
234.5 |
-6.72 |
300 |
17.13 |
232.2 |
-6.52 |
|
310 |
17.03 |
234.7 |
-6.67 |
310 |
17.17 |
234.5 |
-6.53 |
|
320 |
17.07 |
234.9 |
-6.63 |
320 |
17.21 |
236.9 |
-6.53 |
|
330 |
17.11 |
235.0 |
-6.59 |
330 |
17.23 |
239.2 |
-6.55 |
|
340 |
17.14 |
235.2 |
-6.57 |
340 |
|
|
|
|
350 |
17.16 |
235.4 |
-6.55 |
350 |
|
|
|
|
360 |
17.18 |
235.6 |
-6.53 |
360 |
|
|
|
|
370 |
17.20 |
235.7 |
-6.52 |
|
|
|
|
|
380 |
17.21 |
235.9 |
-6.51 |
|
|
|
|
*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result. and which distances should be avoided.
BEST DISTANCES FOR 4 ANTENNAS IN H-STACK
|
Horizontal distance (cm) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Remark |
|
3211 |
2877 |
19.93 |
233.4 |
-3.75 |
Per DL6WU formula |
|
3680 |
2680 |
19.90 |
229.5 |
-3.71 |
For max G/T |
|
3480 |
1280 |
18.59 |
218.0 |
-4.79 |
For lowest temperature |

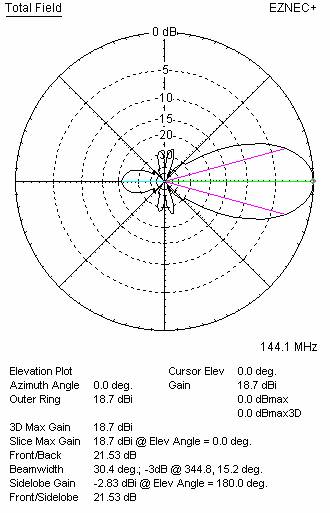

STACKING DIAGRAMS FOR MAX G/T
STACKING DIAGRAMS FOR LOWEST TEMPERATURE
