ANTENNA Y20810XL6

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

8

3465

13.28

22.24

22.56

15.79

40.4

46.0

253.4

-10.76

3.2



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

141.400

146.600

201.0

1.07:1

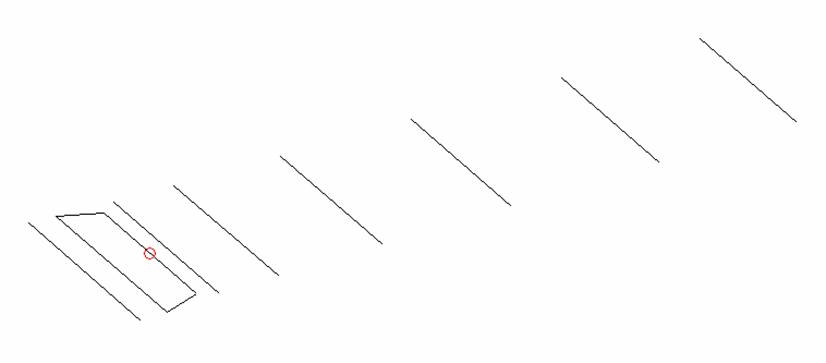

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

All elements made of Al tubes Ǿ10 mm

All dimensions given in milimetres

No boom correction included

Pos

0

125

335

426

752

1318

1999

2765

3465

Length

1008

1010

810

938

936

910

888

876

858





COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

G4CQM 10 UZ2

1.67

10.74

45.1

1.26:1

2.89

2.51

16.68

5.7

235.9

-4.90

DG7YBN 8

1.68

10.94

47.5

1.16:1

2.91

2.56

16.84

3.5

238.8

-4.79

I4GBZ 7

1.69

11.41

48.4

2.27:1

3.18

2.86

17.26

5.7

278.9

-5.04

Y20810XL6

1.75

11.13

201.0

1.07:1

3.32

2.50

17.03

3.7

240.4

-4.63

G0KSC 8LFA

1.79

11.06

50.0

1.24:1

3.15

2.40

16.95

3.6

222.2

-4.37

W1JR 8 MOD

1.80

11.14

50.0

1.14:1

3.07

2.75

16.99

5.3

256.7

-4.95

DJ9BV 1.8

1.80

11.34

77.5

1.34:1

3.16

2.80

17.28

5.5

261.2

-4.74

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

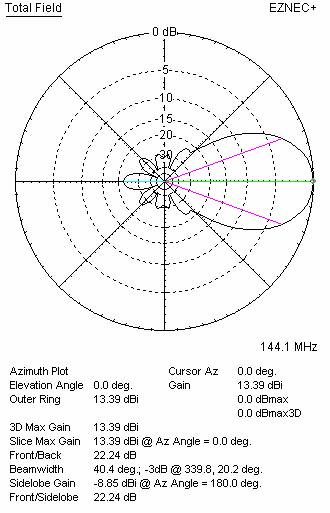

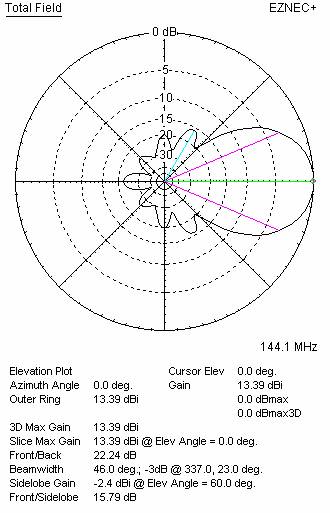

DIAGRAMS (no loss included)

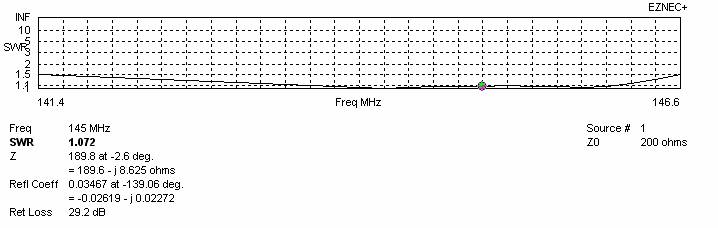

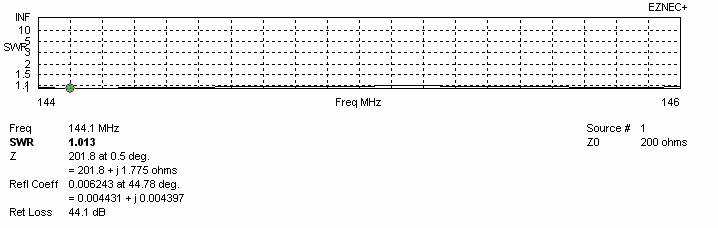

SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

14.66

230.6

-8.95

110







110

14.83

224.8

-8.67

120







120

14.97

221.8

-8.47

130

14.64

265.6

-9.60

130

15.10

222.1

-8.35

140







140







150

14.99

254.8

-9.06

150

15.29

227.3

-8.26

160

15.13

251.8

-8.87

160







170

15.26

250.0

-8.71

170

15.48

230.8

-8.14

180

15.38

249.0

-8.57

180







190

15.49

248.6

-8.45

190

15.66

234.8

-8.03

200







200

15.76

234.9

-7.93

210

15.69

249.0

-8.26

210

15.86

234.3

-7.82

220







220

15.96

233.7

-7.71

230

15.88

250.2

-8.09

230

16.06

234.0

-7.62

240







240

16.15

235.3

-7.55

250

16.04

251.6

-7.96

250

16.22

237.8

-7.53

260







260

16.29

241.3

-7.52

270

16.17

252.8

-7.85

270

16.34

245.3

-7.55

280







280







290

16.28

253.7

-7.75

290







300







300







310

16.36

254.3

-7.68

310







320

16.38

254.4

-7.67

320







330

16.40

254.5

-7.65

330







340

16.42

254.6

-7.63

340







350

16.43

254.6

-7.62

350







360

16.44

254.7

-7.61

360







370

16.44

254.7

-7.61









380

16.44

254.6

-7.62









*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result. and which distances should be avoided.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3013

2662

19.21

246.1

-4.71

Per DL6WU formula

3320

2500

19.18

240.4

-4.63

For max G/T

3320

1280

17.96

221.7

-5.49

For lowest temperature



STACKING DIAGRAMS FOR MAX G/T



STACKING DIAGRAMS FOR LOWEST TEMPERATURE
