ANTENNA Y20806XL2

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

8

3465

13.16

22.63

24.37

17.00

41.2

47.4

249.7

-10.81

4.6



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

141.100

146.800

200.6

1.08:1

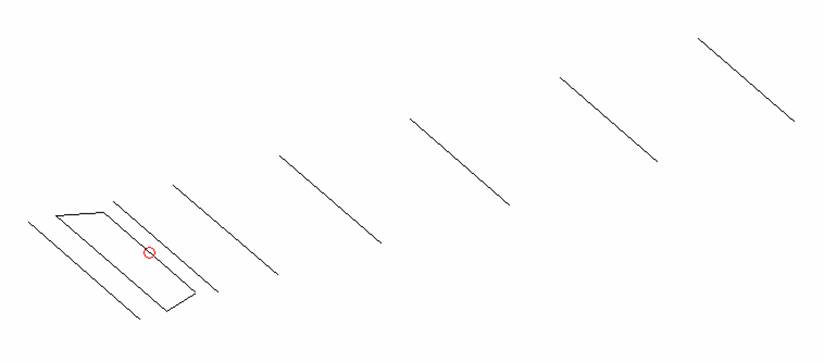

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

D6

All elements made of Al tubes Ǿ6 mm

All dimensions given in milimetres

No boom correction included

Pos

0

140

340

429

742

1288

1969

2755

3465

Length

1016

1010

818

948

950

924

902

888

870



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

G4CQM 10 UZ2

1.67

10.74

45.1

1.26:1

2.89

2.51

16.68

5.7

235.9

-4.90

DG7YBN 8

1.68

10.94

47.5

1.16:1

2.91

2.56

16.84

3.5

238.8

-4.79

I4GBZ 7

1.69

11.41

48.4

2.27:1

3.18

2.86

17.26

5.7

278.9

-5.04

Y20806XL2

1.75

11.01

200.6

1.08:1

3.32

2.50

16.93

4.6

236.9

-4.66

G0KSC 8LFA

1.79

11.06

50.0

1.24:1

3.15

2.40

16.95

3.6

222.2

-4.37

W1JR 8 MOD

1.80

11.14

50.0

1.14:1

3.07

2.75

16.99

5.3

256.7

-4.95

DJ9BV 1.8

1.80

11.34

77.5

1.34:1

3.16

2.80

17.28

5.5

261.2

-4.74

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

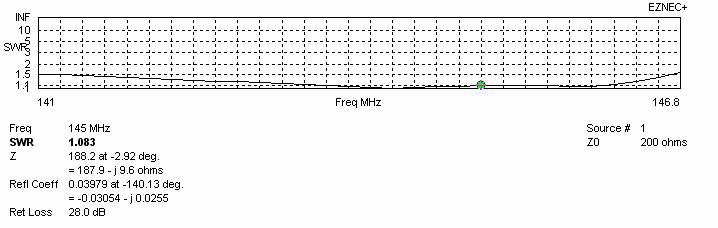

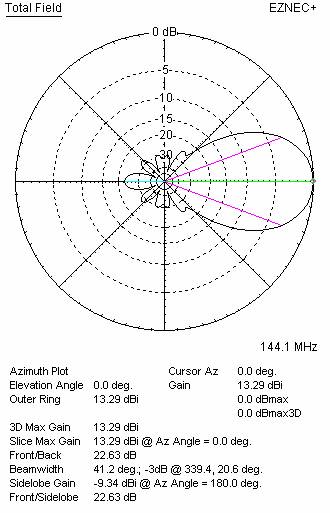

DIAGRAMS (no loss included)



SWR DIAGRAMS (loss included for Al)

STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

`14.65

226.9

-8.89

110







110

14.80

222.3

-8.65

120







120

14.93

220.3

-8.48

130

14.67

257.1

-9.42

130

15.04

221.1

-8.39

140







140







150

14.97

248.5

-8.97

150

15.22

225.0

-8.28

160







160







170

15.21

245.4

-8.68

170

15.41

226.8

-8.13

180

15.32

245.0

-8.56

180







190

15.43

245.1

-8.45

190

15.59

229.1

-7.99

200

15.53

245.6

-8.36

200







210

15.62

246.2

-8.28

210

15.78

228.0

-7.78

220

15.71

247.0

-8.21

220

15.89

227.6

-7.67

230

15.80

247.8

-8.13

230

15.98

228.3

-7.59

240







240

16.07

230.2

-7.53

250

15.96

249.2

-8.00

250

16.14

233.2

-7.52

260







260

16.21

237.2

-7.53

270

16.09

250.3

-7.88

270







280







280







290

16.19

250.9

-7.80

290







300







300







310

16.27

251.1

-7.72

310







320

16.29

251.1

-7.70

320







330

16.31

251.1

-7.68

330







340

16.33

251.0

-7.66

340







350

16.34

250.9

-7.65

350







360

16.34

250.8

-7.64

360







370

16.35

250.7

-7.63









380

16.34

250.6

-7.64









*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result, and which distances should be avoided.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

2957

2588

19.06

240.6

-4.75

Per DL6WU formula

3320

2500

19.08

236.9

-4.66

For max G/T

3320

1340

18.31

224.4

-5.20

For lowest temperature



STACKING DIAGRAMS FOR MAX G/T





STACKING DIAGRAMS FOR LOWEST TEMPERATURE
