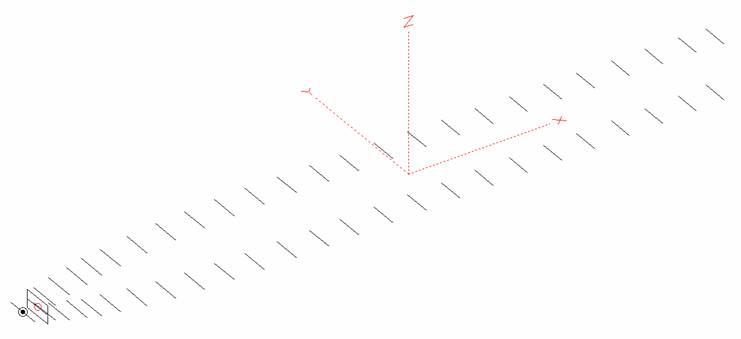

ANTENNA X75008XL4Q



DESCRIPTION



Radiator

Number of  yagi elements

Boomlength (mm)



Double rectangle

49 + radiator

6135





PERFORMANCES (loss included, KF2YN correction applied)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor lobe

(◦)

Ver lobe

(◦)

Ta

(K)

Tlos

(K)

G/T

(dB)

20.13

34.65

19.03

15.95

20.4

18.2

26.4

3.0

+5.91



DIMENSIONS

Element

Ref

De

D1, D2

D3,D4

D5,D6

D7,D8

D9,D10

D11,D12

D13,D14

Position

0

130

195

322

481

608

776

1014

1266

Length

330

271

295.5

291

288.5

283.5

281

279.5

277.5

Height

0

±80

±66

±110

±145

±179

±199

±232

±255

Element

D15,D16

D17,D18

D19,D20

D21,D22

D23,D24

D25,D26

D27,D28

D29,D30

D31,D32

Position

1522

1788

2056

2342

2626

2896

3198

3492

3790

Length

277

274.5

269.5

266.5

265

261.5

256.5

255.5

253.5

Height

±269

±280

±286

±286

±285

±282

±280

±278

±276

Element

D33,D34

D35,D36

D37,D38

D39,D40

D41,D42

D43,D44

D45,D46

D47,D48



Position

4088

4392

4698

4988

5298

5592

5888

6135



Length

251.5

249.5

249.5

249.5

249.5

245.5

245.5

242.5



Height

±271

±269

±268

±266

±264

±261

±257

±245





Remark

All elements made of Al rods Ǿ8 mm

All dimensions given in milimetres

No boom correction included.



Ref = Reflector

De =  Dipole (radiator)

D  =   Director



CONSTRUCTION OF RADIATOR

Material: Aluminum rod Ø= 8 mm

H = 271.0 mm

V = 80 mm

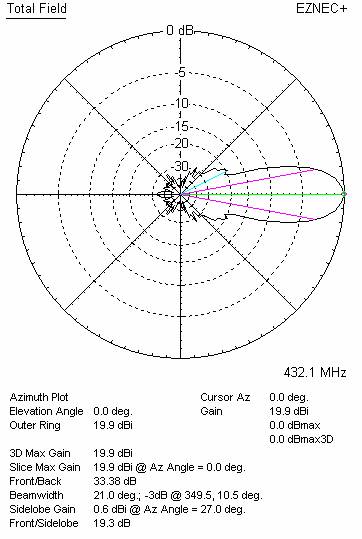

DIAGRAMS



Horizontal and verticall pattern in free space, no loss condition





WORKING CONDITION

Frequency bandwidth for SWR=1.5 (MHz)

Z (Ώ)

at 432.100 MHz

SWR

at 145.000 MHz

Lowest

Highest

412.000

441.800

200.1

1.06:1

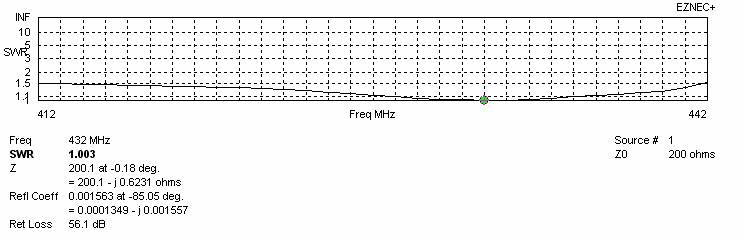

SWR DIAGRAMS (loss included for Al)

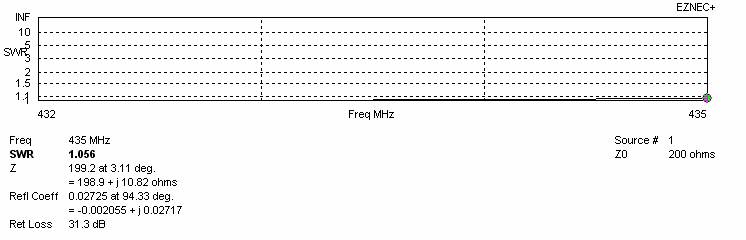

SWR curve for amateur bandwidth 432 – 435 MHz

Frequency bandwidth for SWR = 1.5



COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBi)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

EAntenna 432LFA23

8.44

18.96

47.8

3.99:1

1.90

1.84

24.89

8.1

29.6

10.17

YU7EF EF7023B-5

8.47

18.98

48.6

1.21:1

1.79

1.73

24.78

6.4

30.2

9.99

RA3AQ AQ70-24f

8.52

19.22

52.0

1.13:1

1.87

1.82

24.82

6.1

29.0

10.20

X75008XL4Q

8.84

20.13

200.1

1.06:1

2.14

2.64

26.21

3.0

26.7

11.94

InnoV 24 LFA

8.89

19.32

46.4

1.19:2

1.92

1.87

25.25

5.9

28.0

10.78

YU7EF EF7024B-5

8.90

19.19

50.1

1.60:1

1.84

1.79

25.00

7.6

31.5

10.04

+YU7XL QY72810721

10.01

19.64

198.1

1.29:1

2.22

2.06

25.65

3.4

27.2

11.30

YU7EF EF7027B-5

10.18

19.67

50.3

1.64:1

1.94

1.89

25.47

7.8

32.2

10.39

WiMo 27 (YU7EF)

10.43

19.43

191.8

2.72:1

1.85

1.80

25.08

4.3

27.5

10.70

K1FO 33

10.61

20.03

200.5

1.19:1

2.08

2.04

25.95

6.1

31.8

10.93

RA3AQ AQ70-30f

11.39

20.33

51.6

1.10:1

2.08

2.04

26.15

5.8

28.3

11.61

InnoV 30 LFA

11.64

20.45

49.6

2.38:1

2.27

2.22

26.42

6.7

30.6

11.56

*YU7EF EF7032-5

12.49

19.97

51.3

3.44:1

1.94

1.90

25.59

6.6

29.9

10.84

InnoV 33 LFA

13.03

20.85

50.1

1.17:1

2.32

2.29

26.81

5.3

28.8

12.22

DJ9BV OPT70-13wl

13.29

20.85

183.0

1.44:1

2.35

2.29

26.80

5.2

33.4

11.56

I0JXX 39JXX70

13.53

20.16

194.0

1.19:1

2.00

1.97

25.86

6.3

30.9

10.97

InnoV 34 LFA

13.54

20.89

49.4

3.05:1

2.46

2.43

26.87

7.5

31.6

11.87

InnoV 35 LFA

14.00

20.95

49.1

2.69:1

2.46

2.43

26.93

7.5

31.4

11.96

InnoV 38 LFA

15.41

21.45

49.3

1.87:1

2.30

3.35

27.23

6.9

28.9

12.62

InnoV 40 LFA

16.26

21.67

48.0

2.27:1

2.69

2.66

27.67

7.5

29.4

12.99

Z(ohms) - measured on 432.100 MHz

Bandwidth – VSWR measured on 435.000 MHz



STACKING

(ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED)

RECOMMENDED STACKING DISTANCES



Two antennas vertically

(mm)

Two antennas horizontally

(mm)

Four antennas in H-stack

(mm)

Horizontal distance



2140

2140

Vertical distance

2640



2640

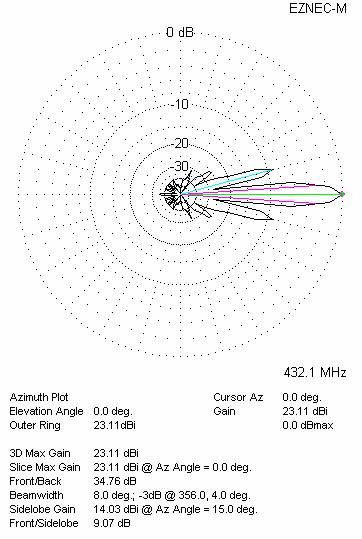

TWO ANTENNAS STACKED VERTICALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

2640

23.18

26.8

3.0

+8.90



Two antennas stacked vertically

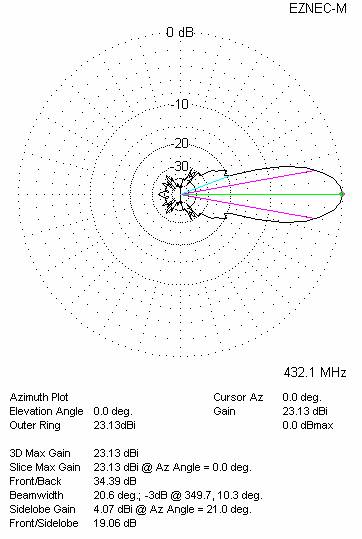

TWO ANTENNAS STACKED HORIZONTALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

2140

23.16

26.2

3.0

+8.97



Two antennas stacked horizontally

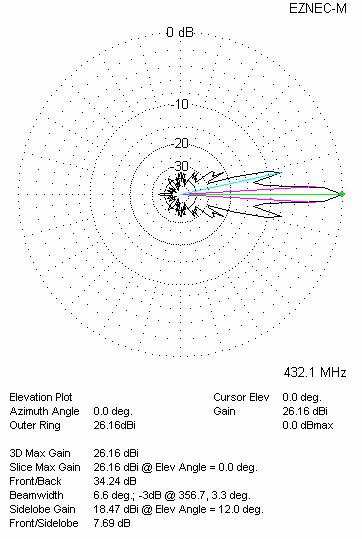

FOUR ANTENNAS IN H-STACK

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

H = 2140

26.21

26.7

3.0

+11.94

V = 2640



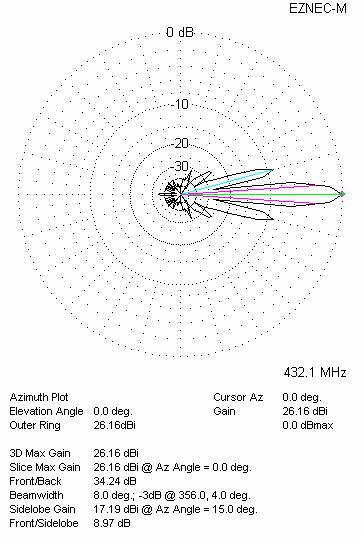

Four antennas in H-stack
