ANTENNA X74008XL1Q
DESCRIPTION
Radiator
Number of yagi elements
Boomlength (mm)
Double rectangle
39 + radiator
4635
|
|
ANTENNA X74008XL1Q |
||
|
|
|||
|
|
DESCRIPTION |
||
|
|
Radiator |
Number of yagi elements |
Boomlength (mm) |
|
|
Double rectangle |
39 + radiator |
4635 |
|
PERFORMANCES (loss included, KF2YN correction applied) |
||||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor lobe (◦) |
Ver lobe (◦) |
Ta (K) |
Tlos (K) |
G/T (dB) |
|
19.17 |
45.55 |
27.80 |
16.00 |
23.4 |
19.6 |
27.0 |
2.7 |
+4.87 |
|
DIMENSIONS |
||||||||
|
Element |
Ref |
De |
D1, D2 |
D3,D4 |
D5,D6 |
D7,D8 |
D9,D10 |
D11,D12 |
|
Position |
0 |
126 |
195 |
322 |
481 |
608 |
776 |
1014 |
|
Length |
330 |
268.5 |
295.5 |
290.5 |
287.5 |
284 |
281 |
279.5 |
|
Height |
0 |
±80 |
±67 |
±112 |
±148 |
±181 |
±202 |
±235 |
|
Element |
D13,D14 |
D15,D16 |
D17,D18 |
D19,D20 |
D21,D22 |
D23,D24 |
D25,D26 |
D27,D28 |
|
Position |
1266 |
1522 |
1788 |
2056 |
2342 |
2626 |
2896 |
3198 |
|
Length |
277.5 |
277 |
274.5 |
269.5 |
266.5 |
265 |
256.5 |
264.5 |
|
Height |
±258 |
±268 |
±278 |
±284 |
±284 |
±282 |
±280 |
±278 |
|
Element |
D29,D30 |
D31,D32 |
D33,D34 |
D35,D36 |
D37,D38 |
|
|
|
|
Position |
3496 |
3792 |
4086 |
4388 |
4635 |
|
|
|
|
Length |
255.5 |
253.5 |
251.5 |
249.5 |
248.5 |
|
|
|
|
Height |
±275 |
±269 |
±269 |
±267 |
±252 |
|
|
|
|
Remark All elements made of Al rods Ǿ8 mm All dimensions given in milimetres No boom correction included. |
Ref = Reflector De = Dipole (radiator) D = Director |
|
CONSTRUCTION OF RADIATOR |
|
Material: Aluminum rod Ø= 8 mm |
|
H = 268.5 mm |
|
V = 80 mm |
|
|
|

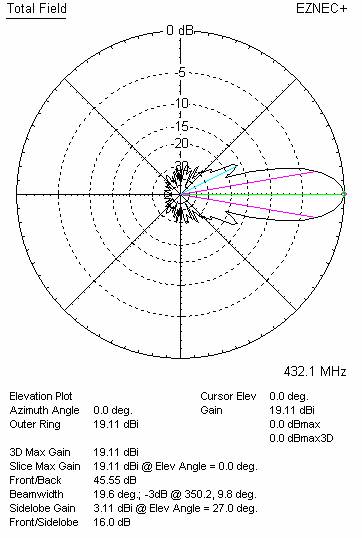

DIAGRAMS |
|
Horizontal and verticall pattern in free space, no loss condition |
|
|
WORKING CONDITION |
|||
|
Frequency bandwidth for SWR=1.5 (MHz) |
Z (Ώ) at 432.100 MHz |
SWR at 145.000 MHz |
||
|
Lowest |
Highest |
|||
|
415.000 |
440.400 |
198.2 |
1.03:1 |
|
|

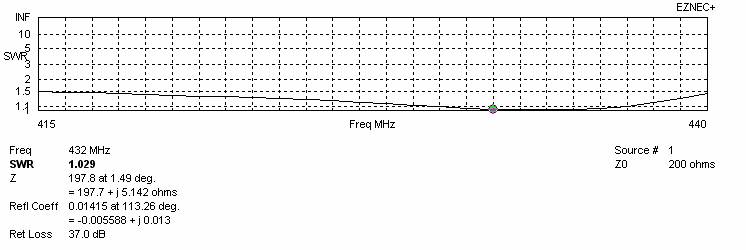

SWR DIAGRAMS (loss included for Al) |
|
SWR curve for amateur bandwidth 432 – 435 MHz |
|
Frequency bandwidth for SWR = 1.5 |
|
COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length) |
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBi) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
YU7EF EF7019B-5 |
6.43 |
17.91 |
50.5 |
1.12:1 |
1.60 |
1.54 |
23.72 |
5.7 |
32.7 |
8.59 |
|
KF2YN Polly 20 CR |
6.50 |
18.30 |
48.8 |
1.21:1 |
1.90 |
1.90 |
24.43 |
3.8 |
31.1 |
9.50 |
|
InnoV 19 LFA |
6.54 |
18.18 |
47.6 |
1.09:1 |
1.68 |
1.63 |
24.10 |
5.0 |
29.2 |
9.45 |
|
Tonna 21 DX |
6.61 |
17.91 |
58.4 |
2.32:1 |
1.67 |
1.61 |
23.80 |
6.7 |
41.3 |
7.63 |
|
X74008XL1Q |
6.68 |
19.17 |
198.2 |
1.03:1 |
2.04 |
2.08 |
25.21 |
2.7 |
26.4 |
11.00 |
|
KF2YN Boxkite 22 |
6.70 |
19.26 |
52.1 |
1.17:1 |
1.99 |
1.90 |
25.14 |
10.8 |
40.2 |
9.11 |
|
InnoV 20 LFA |
6.99 |
18.28 |
50.5 |
1.09:1 |
1.73 |
1.67 |
24.31 |
5.0 |
28.1 |
9.82 |
|
RA3AQ AQ70-21f |
7.14 |
18.54 |
52.3 |
1.07:1 |
1.73 |
1.67 |
24.41 |
6.9 |
31.0 |
9.51 |
|
+DG7YBN 23 |
7.55 |
18.65 |
48.4 |
1.56:1 |
1.76 |
1.70 |
24.51 |
3.8 |
27.8 |
10.08 |
|
YU7EF EF7021B-5 |
7.59 |
18.66 |
50.2 |
1.33:1 |
1.74 |
1.68 |
24.50 |
7.8 |
32.3 |
9.41 |
|
I0JXX 25JXX70 |
7.91 |
18.53 |
198.6 |
1.12:1 |
1.74 |
1.68 |
24.41 |
5.6 |
32.7 |
9.26 |
|
KF2YN Polly 24 CR |
8.15 |
19.15 |
51.8 |
1.14:1 |
1.90 |
1.90 |
25.11 |
3.7 |
31.0 |
10.20 |
|
+YU7XL QY72410417 |
8.35 |
19.01 |
199.0 |
1.23:1 |
2.00 |
1.90 |
24.99 |
3.4 |
27.1 |
10.67 |
|
InnoV 23 LFA |
8.40 |
19.16 |
45.2 |
1.23:1 |
1.87 |
1.82 |
25.08 |
5.6 |
28.2 |
10.58 |
|
DJ9BV BVO70-8.5wl |
8.43 |
19.14 |
203.9 |
1.45:1 |
1.95 |
1.90 |
25.13 |
5.0 |
37.1 |
9.44 |
|
DJ9BV OPT70-8.5wl |
8.44 |
19.04 |
186.1 |
1.56:1 |
1.80 |
1.75 |
24.87 |
4.9 |
33.9 |
9.57 |
|
EAntenna 432LFA23 |
8.44 |
18.96 |
47.8 |
3.99:1 |
1.90 |
1.84 |
24.89 |
8.1 |
29.6 |
10.17 |
|
YU7EF EF7023B-5 |
8.47 |
18.98 |
48.6 |
1.21:1 |
1.79 |
1.73 |
24.78 |
6.4 |
30.2 |
9.99 |
|
RA3AQ AQ70-24f |
8.52 |
19.22 |
52.0 |
1.13:1 |
1.87 |
1.82 |
24.82 |
6.1 |
29.0 |
10.20 |
|
InnoV 24 LFA |
8.89 |
19.32 |
46.4 |
1.19:2 |
1.92 |
1.87 |
25.25 |
5.9 |
28.0 |
10.78 |
|
YU7EF EF7024B-5 |
8.90 |
19.19 |
50.1 |
1.60:1 |
1.84 |
1.79 |
25.00 |
7.6 |
31.5 |
10.04 |
|
+YU7XL QY72810721 |
10.01 |
19.64 |
198.1 |
1.29:1 |
2.22 |
2.06 |
25.65 |
3.4 |
27.2 |
11.30 |
|
YU7EF EF7027B-5 |
10.18 |
19.67 |
50.3 |
1.64:1 |
1.94 |
1.89 |
25.47 |
7.8 |
32.2 |
10.39 |
|
WiMo 27 (YU7EF) |
10.43 |
19.43 |
191.8 |
2.72:1 |
1.85 |
1.80 |
25.08 |
4.3 |
27.5 |
10.70 |
|
K1FO 33 |
10.61 |
20.03 |
200.5 |
1.19:1 |
2.08 |
2.04 |
25.95 |
6.1 |
31.8 |
10.93 |
|
RA3AQ AQ70-30f |
11.39 |
20.33 |
51.6 |
1.10:1 |
2.08 |
2.04 |
26.15 |
5.8 |
28.3 |
11.61 |
|
InnoV 30 LFA |
11.64 |
20.45 |
49.6 |
2.38:1 |
2.27 |
2.22 |
26.42 |
6.7 |
30.6 |
11.56 |
|
*YU7EF EF7032-5 |
12.49 |
19.97 |
51.3 |
3.44:1 |
1.94 |
1.90 |
25.59 |
6.6 |
29.9 |
10.84 |
|
Z(ohms) - measured on 432.100 MHz Bandwidth – VSWR measured on 435.000 MHz |
||||||||||
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED) |
|||||||||
|
RECOMMENDED STACKING DISTANCES |
|||||||||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas in H-stack (mm) |
||||||
|
Horizontal distance |
|
2040 |
2040 |
||||||
|
Vertical distance |
2080 |
|
2080 |
||||||
|
TWO ANTENNAS STACKED VERTICALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
2040 |
22.16 |
26.8 |
2.7 |
+7.89 |
|||||
|
Two antennas stacked vertically |
|||||||||
|
TWO ANTENNAS STACKED HORIZONTALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
2060 |
22.22 |
26.7 |
2.7 |
+7.96 |
|||||
|
Two antennas stacked horizontally |
|||||||||
|

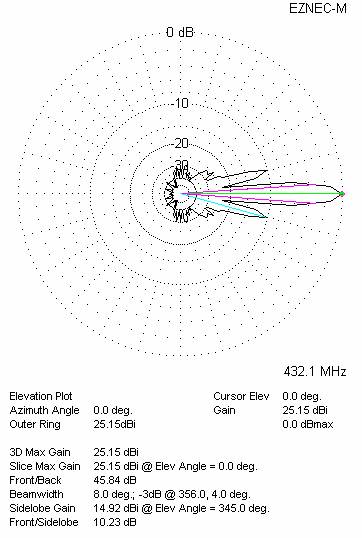

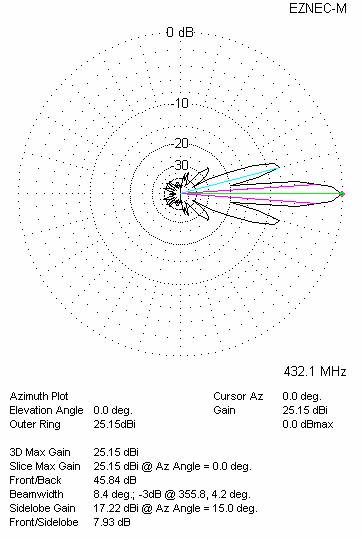

FOUR ANTENNAS IN H-STACK |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
H = 2060 |
25.21 |
26.4 |
2.7 |
+11.00 |
|||||
|
V = 2080 |
|||||||||
|
Four antennas in H-stack |
|||||||||
