ANTENNA X72808XL3Q
DESCRIPTION
Radiator
Number of yagi elements
Boomlength (mm)
Double rectangle
27 + radiator
2825
|
|
ANTENNA X72808XL3Q |
||
|
|
|||
|
|
DESCRIPTION |
||
|
|
Radiator |
Number of yagi elements |
Boomlength (mm) |
|
|
Double rectangle |
27 + radiator |
2825 |
|
PERFORMANCES (loss included, KF2YN correction applied) |
||||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor lobe (◦) |
Ver lobe (◦) |
Ta (K) |
Tlos (K) |
G/T (dB) |
|
17.55 |
34.65 |
25.58 |
17.63 |
28.6 |
23.4 |
28.5 |
2.4 |
+3.01 |
|

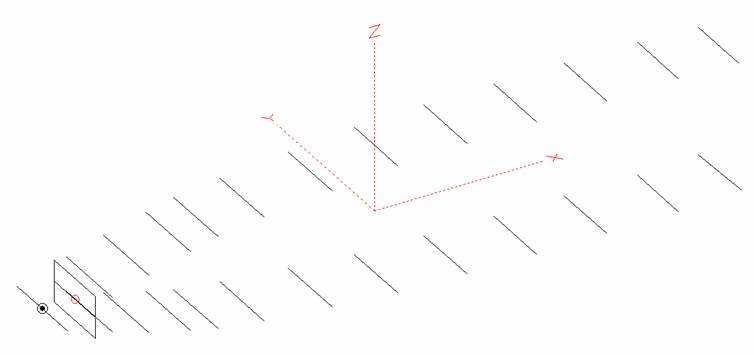

DIMENSIONS |
|||||||||
|
Element |
Ref |
De |
D1, D2 |
D3,D4 |
D5,D6 |
D7,D8 |
D9,D10 |
D11,D12 |
D13,D14 |
|
Position |
0 |
128 |
195 |
324 |
481 |
608 |
776 |
1014 |
1266 |
|
Length |
331 |
272.5 |
295.5 |
290.5 |
287.5 |
284 |
281 |
279.5 |
277.5 |
|
Height |
0 |
±80 |
±67 |
±112 |
±146 |
±180 |
±200 |
±233 |
±257 |
|
Element |
D15,D16 |
D17,D18 |
D18,D20 |
D21,D22 |
D23,D24 |
D25.D26 |
|
|
|
|
Position |
1526 |
1788 |
2056 |
2336 |
2604 |
2825 |
|
|
|
|
Length |
276.5 |
274 |
269 |
265 |
263 |
256 |
|
|
|
|
Height |
±268 |
±274 |
±278 |
±278 |
±271 |
±255 |
|
|
|
|
Remark All elements made of Al rods Ǿ8 mm All dimensions given in milimetres No boom correction included. |
Ref = Reflector De = Dipole (radiator) D = Director |
||||||||
|
CONSTRUCTION OF RADIATOR |
|
Material: Aluminum rod Ø= 8 mm |
|
H = 272.5 mm |
|
V = 80 mm |
|
|
|

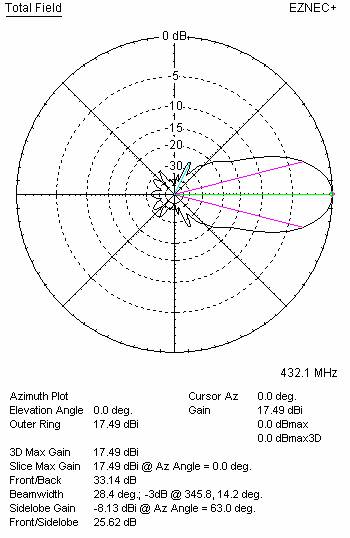

DIAGRAMS |
|
Horizontal and verticall pattern in free space, no loss condition |
|
|
WORKING CONDITION |
|||
|
Frequency bandwidth for SWR=1.5 (MHz) |
Z (Ώ) at 432.100 MHz |
SWR at 145.000 MHz |
||
|
Lowest |
Highest |
|||
|
411.000 |
441.500 |
201.3 |
1.02:1 |
|
|

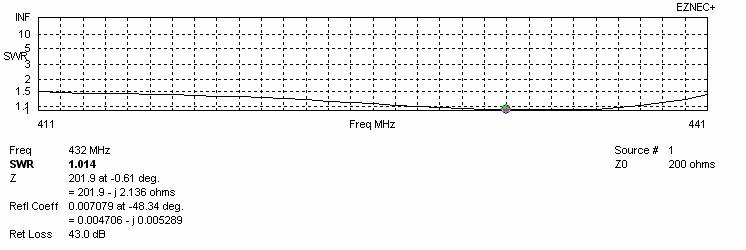

SWR DIAGRAMS (loss included for Al) |
|
SWR curve for amateur bandwidth 432 – 435 MHz |
|
Frequency bandwidth for SWR = 1.5 |
|
COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length) |
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBi) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
YU7EF EF7013M-6 |
3.83 |
16.11 |
49.4 |
1.06:1 |
1.33 |
1.25 |
22.01 |
4.7 |
32.9 |
6.84 |
|
F9FT 19 |
4.02 |
15.96 |
55.7 |
1.14:1 |
1.33 |
1.26 |
21.88 |
6.1 |
39.1 |
5.96 |
|
DG7YBN Tonna 19 mod |
4.02 |
16.17 |
44.7 |
1.15:1 |
1.35 |
1.27 |
22.07 |
6.1 |
33.8 |
6.82 |
|
InnoV 14 LFA |
4.03 |
16.46 |
52.6 |
1.14:1 |
1.38 |
1.32 |
22.31 |
4.5 |
30.0 |
7.42 |
|
DG7YBN 14 |
4.06 |
16.38 |
49.4 |
1.51:1 |
1.38 |
1.31 |
22.30 |
3.5 |
30.7 |
7.42 |
|
X72808XL3Q |
4.07 |
17.55 |
201.3 |
1.02:1 |
1.74 |
1.86 |
23.64 |
2.4 |
26.2 |
9.46 |
|
YU7EF EF7014M-6 |
4.24 |
16.50 |
49.5 |
1.11:1 |
1.39 |
1.2 |
22.39 |
4.5 |
33.3 |
7.17 |
|
RA3AQ AQ70-14f |
4.30 |
16.63 |
52.8 |
1.09:1 |
1.42 |
1.34 |
22.54 |
6.9 |
33.6 |
7.28 |
|
KF2YN Boxkite 16 |
4.37 |
18.02 |
49.1 |
1.06:1 |
1.74 |
1.61 |
23.85 |
10.2 |
41.2 |
7.71 |
|
I0JXX 16JXX70 |
4.46 |
16.53 |
201.8 |
1.05:1 |
1.41 |
1.33 |
22.44 |
4.9 |
33.6 |
7.18 |
|
EAntenna 432LFA15 |
4.48 |
15.66 |
48.4 |
1.25:1 |
1.22 |
1.14 |
21.36 |
4.0 |
28.5 |
6.82 |
|
InnoV 15 LFA |
4.59 |
16.68 |
51.1 |
1.08:1 |
1.42 |
1.34 |
22.57 |
4.8 |
30.0 |
7.81 |
|
YU7EF EF7015M-5 |
4.69 |
16.80 |
49.5 |
1.03:1 |
1.43 |
1.36 |
22.66 |
5.4 |
33.6 |
7.40 |
|
WiMo 15 (YU7EF) |
4.89 |
17.06 |
174.5 |
3.05:1 |
1.46 |
1.30 |
22.87 |
4.3 |
30 |
8.10 |
|
InnoV 16 LFA |
5.19 |
17.27 |
48.4 |
1.19:1 |
1.50 |
1.43 |
23.15 |
4.8 |
29.7 |
8.43 |
|
*InnoV 17 LFA |
5.33 |
17.25 |
49.9 |
1.03:1 |
1.45 |
1.45 |
23.11 |
4.3 |
29.5 |
8.41 |
|
YU7EF EF7017M-5 |
5.56 |
17.41 |
50.7 |
1.06:1 |
1.52 |
1.44 |
23.22 |
5.6 |
33.4 |
7.98 |
|
*KF2YN Polly 18 CR |
5.69 |
17.79 |
48.1 |
1.18:1 |
1.95 |
1.95 |
23.96 |
3.7 |
31.4 |
9.00 |
|
RA3AQ AQ70-18f |
5.74 |
17.76 |
51.7 |
1.08:1 |
1.59 |
1.53 |
23.64 |
6.1 |
32.6 |
8.51 |
|
InnoV 18 LFA |
5.76 |
17.49 |
49.8 |
1.05:1 |
1.52 |
1.45 |
23.33 |
4.3 |
28.9 |
8.72 |
|
KF2YN Boxkite 22 |
6.70 |
19.26 |
52.1 |
1.17:1 |
1.99 |
1.90 |
25.14 |
10.8 |
40.2 |
9.11 |
|
InnoV 20 LFA |
6.99 |
18.28 |
50.5 |
1.09:1 |
1.73 |
1.67 |
24.31 |
5.0 |
28.1 |
9.82 |
|
RA3AQ AQ70-21f |
7.14 |
18.54 |
52.3 |
1.07:1 |
1.73 |
1.67 |
24.41 |
6.9 |
31.0 |
9.51 |
|
Z(ohms) - measured on 432.100 MHz Bandwidth – VSWR measured on 435.000 MHz |
||||||||||
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED) |
|||||||||
|
RECOMMENDED STACKING DISTANCES |
|||||||||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas in H-stack (mm) |
||||||
|
Horizontal distance |
|
1740 |
1740 |
||||||
|
Vertical distance |
1860 |
|
1860 |
||||||
|
TWO ANTENNAS STACKED VERTICALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
1860 |
20.60 |
26.3 |
2.4 |
+6.41 |
|||||
|
Two antennas stacked vertically |
|||||||||
|
TWO ANTENNAS STACKED HORIZONTALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
1740 |
2059 |
28.4 |
2.4 |
+6.06 |
|||||
|
Two antennas stacked horizontally |
|||||||||
|

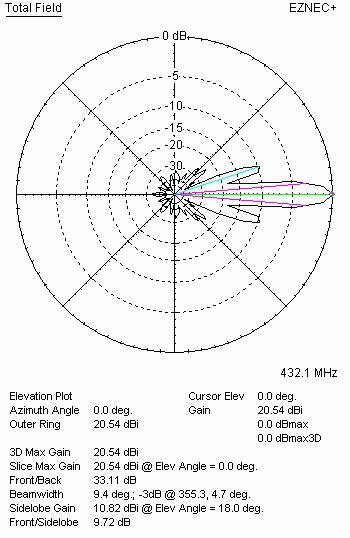

FOUR ANTENNAS IN H-STACK |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
H = 1740 |
23.64 |
26.2 |
2.4 |
+9.46 |
|||||
|
V = 1860 |
|||||||||
|
Four antennas in H-stack |
|||||||||
