ANTENNA X71606XL3Q



DESCRIPTION

Radiator

Number of  yagi elements

Boomlength (mm)

Double rectangle

15 + radiator

1185



PERFORMANCES (loss included, KF2YN correction applied)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor lobe

(◦)

Ver lobe

(◦)

Ta

(K)

Tlos

(K)

G/T

(dB)

14.67

28.65

27.26

15.93

39.6

32.4

31.8

3.1

-0.36



DIMENSIONS



Ref

De

D1, D2

D3,D4

D5,D6

D7,D8

D9,D10

D11,D12

D13,D14

Position

0

89

165

306

462

582

751

997

1185

Length

335

282

302

299

291.5

287.5

286.5

285.5

281.5

Height

0

±65

±66

±128

±165

±196

±225

±229

±215

Remark

All elements made of Al rods Ǿ6 mm

All dimensions given in milimetres

No boom correction included.

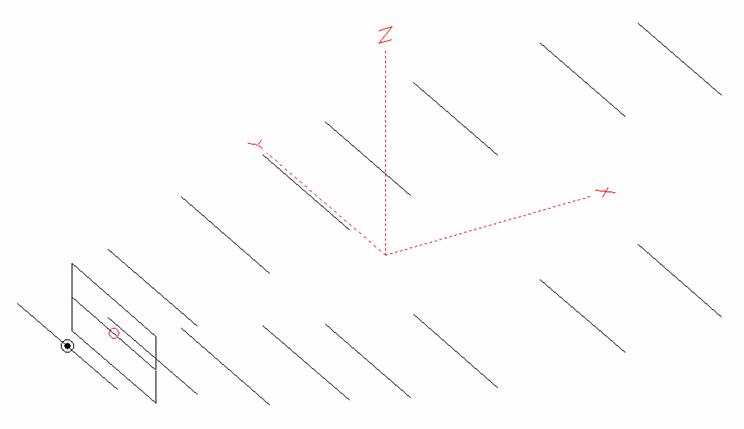

CONSTRUCTION OF RADIATOR

Material: Aluminum rod Ø= 6 mm

H = 282 mm

V = 65 mm



DIAGRAMS

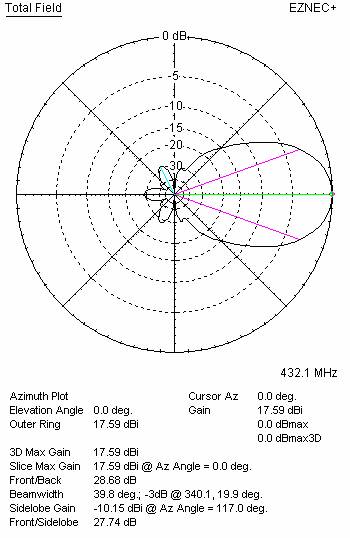

Horizontal and verticall pattern in free space, no loss condition





WORKING CONDITION

Frequency bandwidth for SWR=1.5 (MHz)

Z (Ώ)

at 432.100 MHz

SWR

at 145.000 MHz



Lowest

Highest



414.500

441.800

201.6

1.02:1

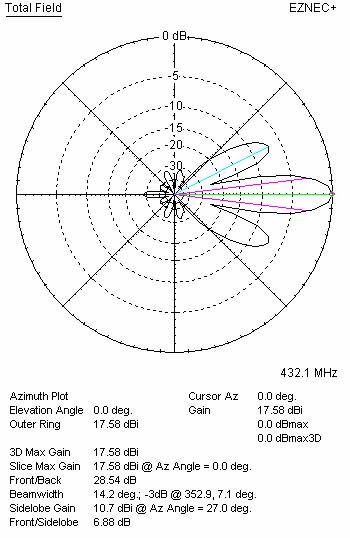

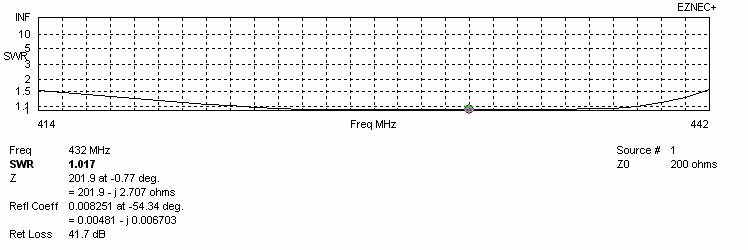

SWR DIAGRAMS (loss included for Al)





COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

X71606XL3Q

1.73

14.67

201.6

1.02:1

1.28

1.32

20.78

3.1

30.7

5.91

KF2YN Boxkite 10

2.37

16.55

48.7

1.08:1

1.50

1.30

22.46

8.7

38.3

6.64

InnoV 10 LFA

2.43

14.43

50.7

1.13:1

1.12

1.03

20.36

3.7

36.4

4.76

YU7EF EF7010B

2.59

14.64

50.0

1.06:1

1.14

1.05

20.56

5.0

37.0

4.88

YU7EF EF7011B-5

2.87

15.07

49.0

1.56:1

1.20

1.11

21.00

4.7

36.1

5.43

Innov 11 LFA

2.87

15.05

50.4

1.07:1

1.20

1.10

20.98

4.0

33.7

5.70

EAntenna 432LFA11

2.94

15.09

47.9

1.28:1

1.20

1.11

21.02

3.9

34.1

5.69

*KF2YN Polly 12 CR

3.17

15.70

48.3

1.17:1

1.30

1.30

21.74

3.2

32.3

6.65

InnoV 12 LFA

3.29

15.48

50.1

1.07:1

1.24

1.16

21.40

4.0

31.2

6.46

YU7EF EF7012B-5

3.30

15.58

48.6

1.40:1

1.26

1.17

21.50

4.9

33.3

6.27

EAntenna 432LFA12

3.31

15.32

50.1

1.45:1

1.23

1.14

21.24

4.3

33.2

6.03

KF2YN Boxkite 13

3.37

17.38

50.9

1.09:1

1.63

1.50

23.29

9.3

39.4

7.35

Innov 13 LFA

3.72

15.92

50.1

1.15:1

1.31

1.23

21.85

4.5

30.9

6.96

YU7EF EF7013M-6

3.83

16.11

49.4

1.06:1

1.33

1.25

22.01

4.7

32.9

6.84

F9FT 19

4.02

15.96

55.7

1.14:1

1.33

1.26

21.88

6.1

39.1

5.96

DG7YBN Tonna 19 mod

4.02

16.17

44.7

1.15:1

1.35

1.27

22.07

6.1

33.8

6.82

InnoV 14 LFA

4.03

16.46

52.6

1.14:1

1.38

1.32

22.31

4.5

30.0

7.42

DG7YBN 14

4.06

16.38

49.4

1.51:1

1.38

1.31

22.30

3.5

30.7

7.42

Z(ohms) - measured on 432.100 MHz

Bandwidth – VSWR measured on 435.000 MHz





STACKING

(ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED)

RECOMMENDED STACKING DISTANCES



Two antennas vertically

(mm)

Two antennas horizontally

(mm)

Four antennas in H-stack

(mm)

Horizontal distance



1280

1280

Vertical distance

1320



1320

TWO ANTENNAS STACKED VERTICALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

1320

17.73

31.2

3.1

+2.78



Two antennas stacked vertically

TWO ANTENNAS STACKED HORIZONTALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

1280

17.72

31.2

3.1

+2.77



Two antennas stacked horizontally

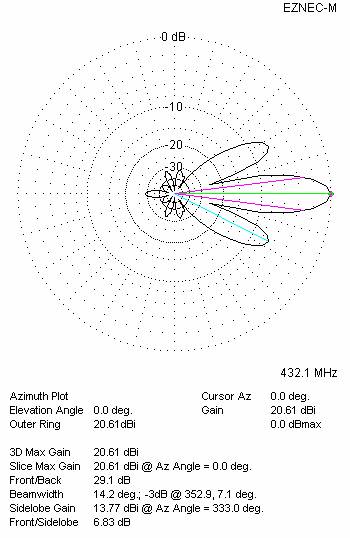

FOUR ANTENNAS IN H-STACK

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

H = 1280

20.75

30.6

3.1

+5.88

V = 1320



Four antennas in H-stack
