ANTENNA X61415XL1Q

SINGLE ANTENNA



PERFORMANCES:

No of ele

L

(mm)

G

(dBi)

G

(dBd)

F/B (dB)

F/Sh (dB)

F/Sv (dB)

Hor

(◦)

Ver

(◦)

Tlos

(K)

14



11705



15.19

13.04

20.54

24.78

17.17

42.8

38.7

4.1



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 50.150 MHz

SWR at 50.300 MHz

Lowest

Highest

Bandwidth

49.650

50.550

0.900

199.9

1.05:1

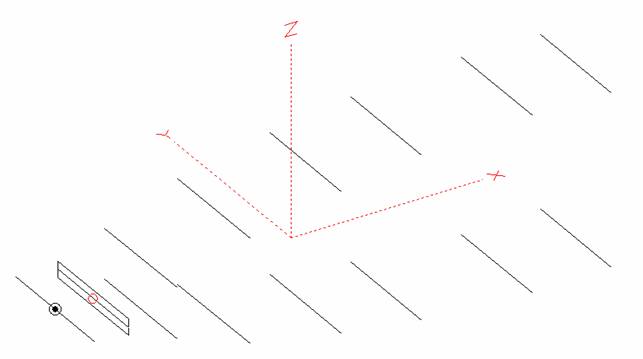

DIMENSIONS:



Ref

De

D1/D2

D3/D4

D5/D6

D7/D8

D9/D10

D11/D12

All elements of Al tubes Ǿ15mm

All dimensions given in milimetres

Position

0

845

1928

3566

5635

7444

9938

11705

Length

2938

2600

2690

2676

2656

2630

2622

2610

Height

0

±180

±565

±1165

±1565

±1825

±1965

±1935

No boom correction included.



CONSTRUCTION OF RADIATOR (De)

Construction of radiator: H = 2600 mm, v = 180 mm, material aluminum tube Ø15 mm





COMPARISON



TYPE OF

ANTENNA

SINGLE ANTENA

OPTIMAL STACKING

75% STACKING



L

(λ)



GAIN

(dBd)

Z

(ohms)

VSWR

Band

width

Spacing

(m)

4 ant

E

2 ant

H

2 ant

Spacing

(m)

4 Ant

E

2 Ant

H

2 Ant



E

H

Gain

(dBd)

Gain

(dBd)

Gain

(dBd)

E

H

Gain

(dBd)

Gain

(dBd)

Gain

(dBd)



X61415XL1Q

1.96

13.04

199.9

1.05:1

11.40

12.90

19.11

16.07

16.08

8.55

9.68

18.39

15.75

15.73

K5GW 8

1.96

11.77

52.9

1.13:1

9.52

8.70

17.78

14.73

14.76

7.14

6.53

16.26

14.15

13.95

BQH 8

2.00

11.95

50.1

1.18:1

9.62

8.74

17.94

14.91

14.93

7.22

6.56

16.49

14.36

14.18

M² 6M2WLC

2.00

11.76

35.8

1.27:1

9.28

8.38

17.67

14.68

14.68

6.96

6.27

16.19

14.14

13.96

DK7ZB 8

2.05

11.83

27.1

1.16:1

9.33

8.46

17.75

14.76

14.76

7.00

6.34

16.29

14.21

14.03

K6STI 7

2.05

12.12

13.7

1.76:1

9.94

9.14

18.10

15.05

15.11

7.46

6.86

16.52

14.45

14.26

N6CA 8

2.07

11.95

21.5

1.20:1

9.52

8.66

17.89

14.88

14.91

7.14

6.49

16.53

14.36

14.23

InnoV 0 OP-DES

2.08

11.90

49.3

1.11:1

8.95

7.98

17.74

14.77

14.77

6.71

5.99

16.50

14.31

14.24

G0KSC 8 12.49mLFA

2.09

11.92

49.9

1.12:1

9.33

8.42

17.84

14.86

14.85

7.00

6.32

16.61

14.37

14.28

Z(ohms) - measured on 50.150 MHz

Bandwidth – VSWR measured on 50.300 MHz

Loss included for Aluminum, KF2YN correction applied



DIAGRAMS (no loss included, KF2YN correction not included)



SWR DIAGRAMS (loss included for Al)

STACKING

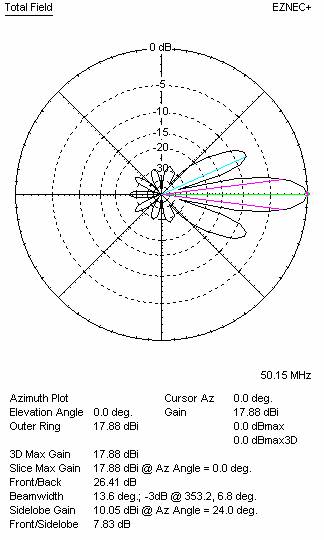

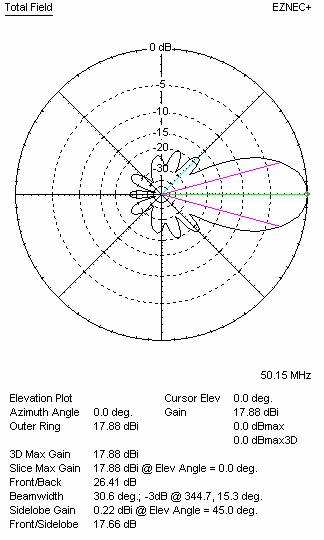

Optimal stacking, 2 antennas horizontally stacked at (m)

G

(dBi)

G

(dBd)

Hor

(◦)

Ver

(◦)



11.40



18.22

16.07

13.6

30.6

These are true values (loss included for aluminum, KF2YN correction applied)

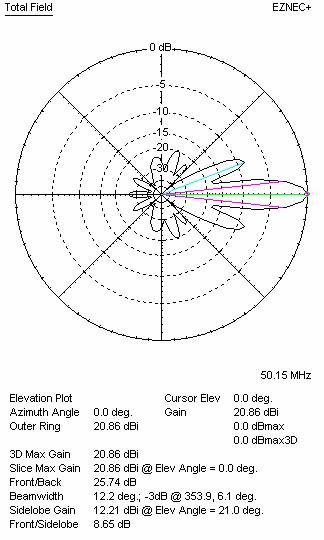

Optimal stacking, 2 antennas vertically stacked at (m)

G

(dBi)

G (dBd)

Hor

(◦)

Ver

(◦)



12.90



18.23

16.08

36.2

12.2

These are true values (loss included for aluminum, KF2YN correction applied)





Horizontal distance (m)

Vertical distance (m)









11.40



12.90



21.26

19.11

13.6

12.2

These are true values (loss included for aluminum, KF2YN correction applied)

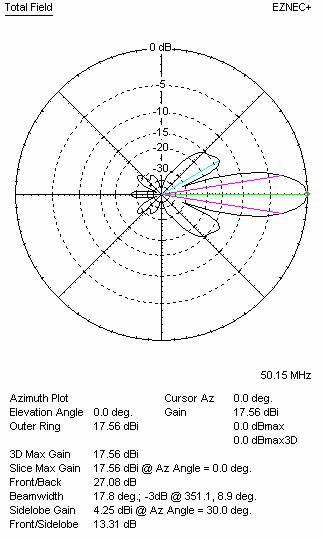

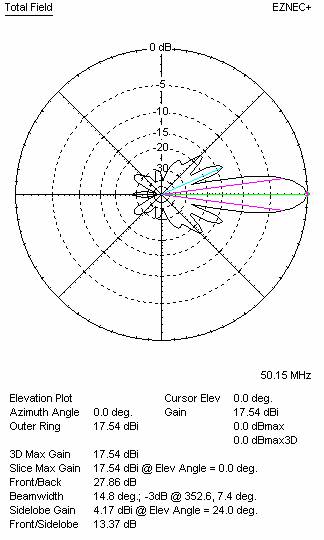

75% stacking, 2 antennas horizontally stacked at (m)

G

(dBi)

G (dBd)

Hor

(◦)

Ver

(◦)



8.55



17.90

15.75

17.8

30.2

These are true values (loss included for aluminum, KF2YN correction applied)

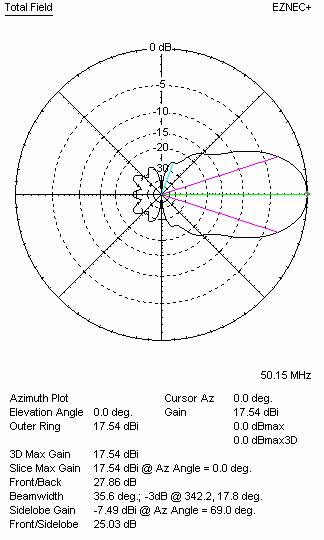

Optimal stacking, 2 antennas vertically stacked at (m)

G

(dBi)

G (dBd)

Hor

(◦)

Ver

(◦)



9.68



17.88

15.73

35.6

14.8

These are true values (loss included for aluminum, KF2YN correction applied)

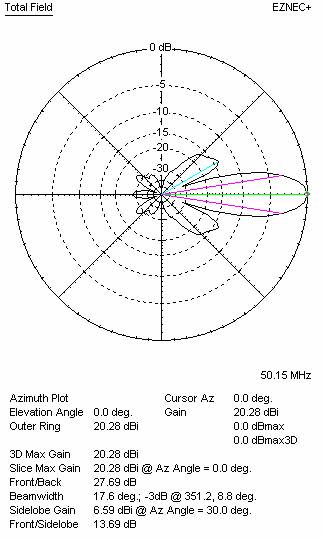

75% stacking, 4 antennas in H stack,

G

(dBi)

G

(dBd)

Hor

(◦)

Ver

(◦)

Horizontal distance (m)

Vertical distance (m)

8.55



9.68



20.54

18.39

17.6

14.8

These are true values (loss included for aluminum, KF2YN correction applied)
