ANTENNA X61015XL3Q
SINGLE ANTENNA
PERFORMANCES:
No of ele |
L (mm) |
G (dBi) |
G (dBd) |
F/B (dB) |
F/Sh (dB) |
F/Sv (dB) |
Hor (◦) |
Ver (◦) |
Tlos (K) |
10 |
7085 |
13.53 |
11.28 |
20.54 |
24.72 |
17.17 |
42.8 |
38.7 |
3.5
|
WORKING CONDITION:
Frequency for SWR=1.5 (MHz) |
Z (Ώ) at 50.150 MHz |
SWR at 50.300 MHz |
||
Lowest |
Highest |
Bandwidth |
||
49.200 |
50.550 |
1.350 |
204.3 |
1.07:1 |
DIMENSIONS:
|
Ref |
De |
D1/D2 |
D3/D4 |
D5/D6 |
D7/D8 |
All elements made of Al tubes Ǿ15 mm All dimensions given in milimetres |
Position |
0 |
768 |
1922 |
3488 |
5552 |
7085 |
|
Length |
2956 |
2608 |
2686 |
2670 |
2662 |
2650 |
|
Height |
0 |
±180 |
±575 |
±1185 |
±1605 |
±1745 |
No boom correction included.
CONSTRUCTION OF RADIATOR (De)
Construction of radiator: H = 2608 mm, v = 180 mm, material aluminum tube Ø15 mm
COMPARISON
TYPE OF ANTENNA |
SINGLE ANTENA |
OPTIMAL STACKING |
75% STACKING |
||||||||||||
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Band width |
||||||||||||
Spacing (m) |
4 ant |
E 2 ant |
H 2 ant |
Spacing (m) |
4 Ant |
E 2 Ant |
H 2 Ant |
||||||||
E |
H |
Gain (dBd) |
Gain (dBd) |
Gain (dBd) |
E |
H |
Gain (dBd) |
Gain (dBd) |
Gain (dBd) |
||||||
X61015XL3Q |
1.18 |
11.35 |
204.3 |
1.07:1 |
10.52 |
10.50 |
17.50 |
14.43 |
14.43 |
7.90 |
7.88 |
16.88 |
14.16 |
14.05 |
|
EAntenna 50LFA6 |
1.19 |
9.57 |
50.4 |
1.06:1 |
7.35 |
6.15 |
15.53 |
12.51 |
12.54 |
5.51 |
4.61 |
14.41 |
12.06 |
12.00 |
|
Create CL6DXX 7el |
1.19 |
9.78 |
89.4 |
1.08:1 |
7.50 |
6.35 |
15.65 |
12.70 |
12.63 |
5.62 |
4.76 |
14.15 |
12.20 |
11.93 |
|
DK7ZB 6 50 ohm |
1.19 |
9.96 |
45.8 |
1.20:1 |
7.85 |
6.73 |
15.63 |
12.88 |
12.80 |
5.89 |
5.04 |
14.36 |
12.49 |
12.10 |
|
DK7ZB 6 28 ohm |
1.20 |
10.19 |
27.2 |
1.07:1 |
8.12 |
7.02 |
16.15 |
13.15 |
13.13 |
6.09 |
5.27 |
14.79 |
12.65 |
12.44 |
|
HyGain VB-66DX |
1.21 |
8.12 |
50.7 |
1.05:1 |
6.89 |
5.64 |
13.28 |
10.88 |
10.26 |
5.17 |
4.23 |
12.54 |
10.53 |
10.48 |
|
HyGain VB-66B |
1.21 |
8.33 |
45.4 |
1.16:1 |
7.05 |
5.80 |
13.61 |
11.12 |
10.55 |
5.29 |
5.17 |
12.51 |
10.75 |
10.25 |
|
EAntenna 50LFA6XL |
1.21 |
10.17 |
51.0 |
1.07:1 |
7.94 |
6.84 |
16.14 |
13.12 |
13.12 |
5.96 |
5.13 |
14.86 |
12.64 |
12.51 |
|
W1JR 6 |
1.21 |
9.47 |
45.1 |
1.08:1 |
7.35 |
6.17 |
15.53 |
12.39 |
11.39 |
5.51 |
4.61 |
14.41 |
12.06 |
12.00 |
|
Z(ohms) - measured on 50.150 MHz Bandwidth – VSWR measured on 50.300 MHz Loss included for Aluminum, KF2YN correction applied |

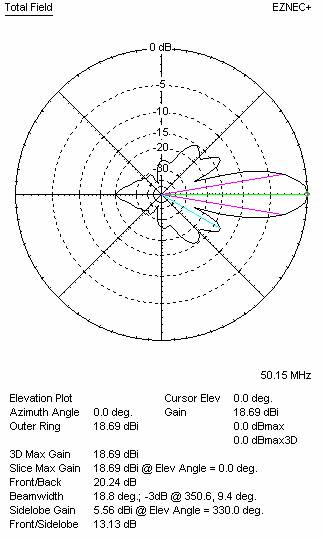

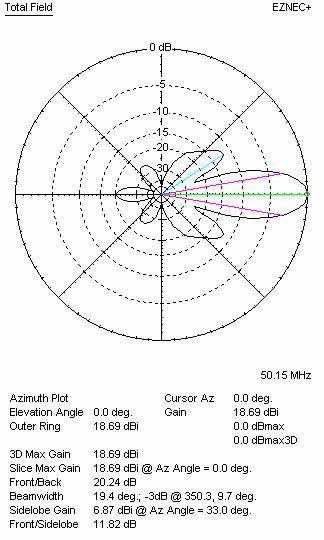

DIAGRAMS (no loss included, KF2YN correction not included)
SWR DIAGRAMS (loss included for Al)
STACKING
Optimal stacking, 2 antennas horizontally stacked at (m) |
G (dBi) |
G (dBd) |
Hor (◦) |
Ver (◦) |
10.52
|
16.58 |
14.43 |
16.6 |
39.0 |
These are true values (loss included for aluminum, KF2YN correction applied) |
Optimal stacking, 2 antennas vertically stacked at (m) |
G (dBi) |
G (dBd) |
Hor (◦) |
Ver (◦) |
10.50
|
16.58 |
14.43 |
43.0 |
15.0 |
These are true values (loss included for aluminum, KF2YN correction applied) |
Optimal stacking, 4 antennas in H stack, |
G (dBi) |
G (dBd) |
Hor (◦) |
Ver (◦) |
|
Horizontal distance (m) |
Vertical distance (m) |
||||
10.52 |
10.50
|
19.65 |
17.50 |
15.0 |
15.0 |
These are true values (loss included for aluminum, KF2YN correction applied) |
75% stacking, 2 antennas horizontally stacked at (m) |
G (dBi) |
G (dBd) |
Hor (◦) |
Ver (◦) |
7.90
|
16.31 |
14.16 |
19.4 |
38.7 |
These are true values (loss included for aluminum, KF2YN correction applied) |
Optimal stacking, 2 antennas vertically stacked at (m) |
G (dBi) |
G (dBd) |
Hor (◦) |
Ver (◦) |
7.88
|
16.20 |
14.05 |
42.4 |
18.6 |
These are true values (loss included for aluminum, KF2YN correction applied) |
75% stacking, 4 antennas in H stack, |
G (dBi) |
G (dBd) |
Hor (◦) |
Ver (◦) |
|
Horizontal distance (m) |
Vertical distance (m) |
||||
7.90 |
7.05
|
19.03 |
16.88 |
19.4 |
18.8 |
These are true values (loss included for aluminum, KF2YN correction applied) |
