ANTENNA X61012XL1Q

SINGLE ANTENNA



PERFORMANCES:

No of ele

L

(mm)

G

(dBi)

G (dBd)

F/B (dB)

F/Sh (dB)

F/Sv (dB)

Hor

(◦)

Ver

(◦)

Tlos

(K)

10

7085

13.43

11.28

27.1

27.1

18.78

42.8

40.0



3.4





WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 50.150 MHz

SWR at 50.300 MHz

Lowest

Highest

Bandwidth

49.300

50.600

1.300

198.3

1.05:1



DIMENSIONS:



Ref

De

D1/D2

D3/D4

D5/D6

D7/D8

All elements made of Al tubes Ǿ12 mm

All dimensions given in milimetres

Position

0

750

1868

3562

5451

7085

Length

2972

2592

2692

2676

2676

2644

Height

0

±200

±600

±1160

±1525

±1685

No boom correction included.

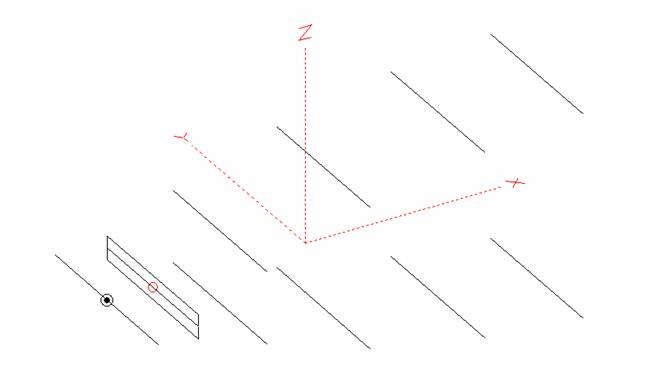

CONSTRUCTION OF RADIATOR (De)

Construction of radiator: H = 2592 mm, v = 200 mm, material aluminum tube Ø12 mm





COMPARISON



TYPE OF

ANTENNA

SINGLE ANTENA

OPTIMAL STACKING

75% STACKING



L

(λ)



GAIN

(dBd)

Z

(ohms)

VSWR

Band

width

Spacing

(m)

4 ant

E

2 ant

H

2 ant

Spacing

(m)

4 Ant

E

2 Ant

H

2 Ant



E

H

Gain

(dBd)

Gain

(dBd)

Gain

(dBd)

E

H

Gain

(dBd)

Gain

(dBd)

Gain

(dBd)



X61012XL1Q

1.18

11.28

198.3

1.05:1

10.55

9.95

17.40

14.35

14.35

7.91

7.46

16.85

14.10

13.98

EAntenna 50LFA6

1.19

9.57

50.4

1.06:1

7.35

6.15

15.53

12.51

12.54

5.51

4.61

14.41

12.06

12.00

Create CL6DXX 7el

1.19

9.78

89.4

1.08:1

7.50

6.35

15.65

12.70

12.63

5.62

4.76

14.15

12.20

11.93

DK7ZB 6 50 ohm

1.19

9.96

45.8

1.20:1

7.85

6.73

15.63

12.88

12.80

5.89

5.04

14.36

12.49

12.10

DK7ZB 6 28 ohm

1.20

10.19

27.2

1.07:1

8.12

7.02

16.15

13.15

13.13

6.09

5.27

14.79

12.65

12.44

HyGain VB-66DX

1.21

8.12

50.7

1.05:1

6.89

5.64

13.28

10.88

10.26

5.17

4.23

12.54

10.53

10.48

HyGain VB-66B

1.21

8.33

45.4

1.16:1

7.05

5.80

13.61

11.12

10.55

5.29

5.17

12.51

10.75

10.25

EAntenna 50LFA6XL

1.21

10.17

51.0

1.07:1

7.94

6.84

16.14

13.12

13.12

5.96

5.13

14.86

12.64

12.51

W1JR 6

1.21

9.47

45.1

1.08:1

7.35

6.17

15.53

12.39

11.39

5.51

4.61

14.41

12.06

12.00

Z(ohms) - measured on 50.150 MHz

Bandwidth – VSWR measured on 50.300 MHz

Loss included for Aluminum, KF2YN correction applied

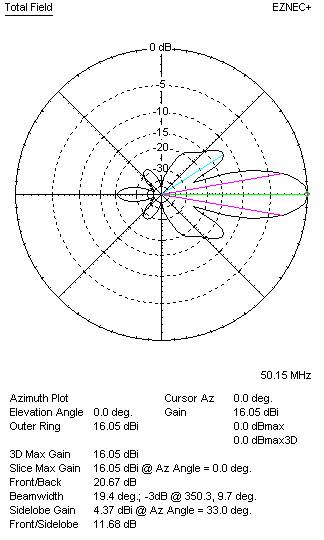

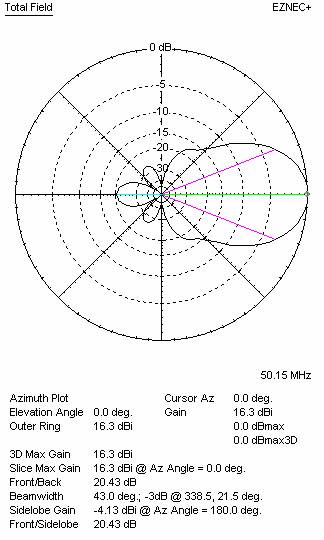

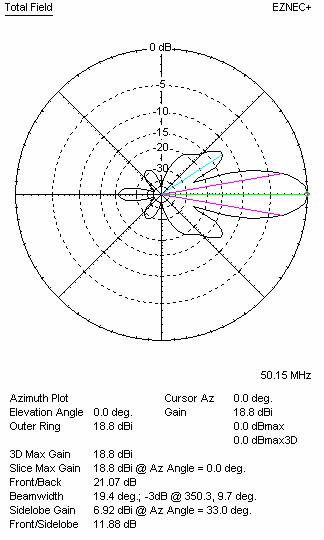

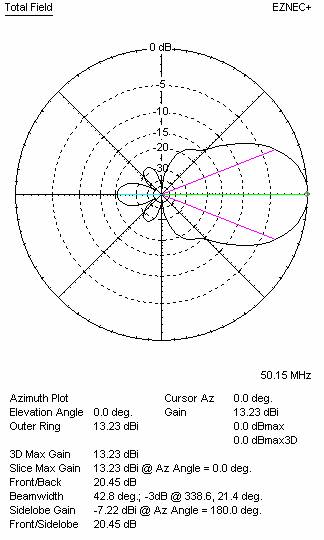

DIAGRAMS (no loss included, KF2YN correction not included)

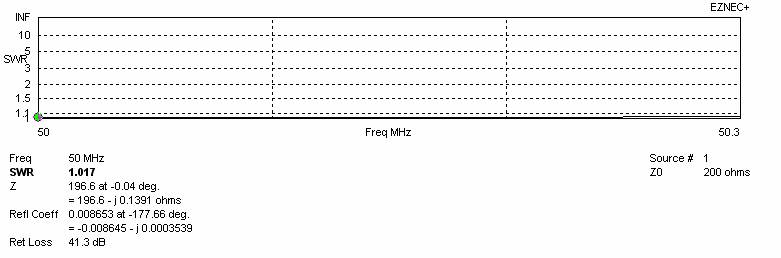

SWR DIAGRAMS (loss included for Al)

STACKING



Optimal stacking, 2 antennas horizontally stacked at (m)

G

(dBi)

G

(dBd)

Hor

(◦)

Ver

(◦)



10.55



16.50

14.35

15.0

40.2

These are true values (loss included for aluminum, KF2YN correction applied)



Optimal stacking, 2 antennas vertically stacked at (m)

G

(dBi)

G

(dBd)

Hor

(◦)

Ver

(◦)



9.95



16.50

14.35

43.0

16.0

These are true values (loss included for aluminum, KF2YN correction applied)





Optimal stacking, 4 antennas in H stack,

G

(dBi)

G

(dBd)

Hor

(◦)

Ver

(◦)

Horizontal distance (m)

Vertical distance (m)

10.55



9.95



19.55

17.40

15.0

16.0

These are true values (loss included for aluminum, KF2YN correction applied)





75% stacking, 2 antennas horizontally stacked at (m)

G

(dBi)

G (dBd)

Hor

(◦)

Ver

(◦)



7.91



16.25

14.10

19.4

39.8

These are true values (loss included for aluminum, KF2YN correction applied)





Optimal stacking, 2 antennas vertically stacked at (m)

G

(dBi)

G (dBd)

Hor

(◦)

Ver

(◦)



7.46



16.13

13.98

42.4

19.2

These are true values (loss included for aluminum, KF2YN correction applied)





75% stacking, 4 antennas in H stack,

G

(dBi)

G

(dBd)

Hor

(◦)

Ver

(◦)

Horizontal distance (m)

Vertical distance (m)

7.91



7.46



19.00

16.85

19.4

19.4

These are true values (loss included for aluminum, KF2YN correction applied)
