ANTENNA X236405XL1QAG
DESCRIPTION
Radiator
Number of yagi elements
Boomlength (mm)
Double rectangle
63
2785
|
|
ANTENNA X236405XL1QAG |
||
|
|
|||
|
|
DESCRIPTION |
||
|
|
Radiator |
Number of yagi elements |
Boomlength (mm) |
|
|
Double rectangle |
63 |
2785 |
|
PERFORMANCES (loss included, KF2YN correction applied) |
||||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
Tlos (K) |
G/T (dB) |
|
21.26 |
37.29 |
14.96 |
17.03 |
17.6 |
15.8 |
15.7 |
3.9 |
+9.29 |
|
DIMENSIONS |
|
|||||||||
|
|
Ref |
De |
D1, D2 |
D3, D4 |
D5, D6 |
D7, D8 |
D9, D10 |
D11, D12 |
D13, D14 |
|
|
Position |
0 |
36 |
60 |
106 |
155 |
204 |
265 |
340 |
423 |
|
|
Length |
109.0 |
93.0 |
96.5 |
94.5 |
93.5 |
91.0 |
91.0 |
89.5 |
87.5 |
|
|
Height |
0 |
±24.0 |
±25.0 |
±40.0 |
±52.0 |
±62.0 |
±70.0 |
±77.0 |
±82.0 |
|
|
|
D15, D16 |
D17, D18 |
D19, D20 |
D21, D22 |
D23, D24 |
D25, D26 |
D27, D28 |
D29, D30 |
D31, D32 |
|
|
Position |
515 |
608 |
705 |
804 |
906 |
1008 |
1108 |
1208 |
1308 |
|
|
Length |
85.5 |
85.0 |
83.0 |
81.5 |
80.5 |
80.0 |
80.0 |
80.0 |
80.0 |
|
|
Height |
±85.0 |
±86.5 |
±87.5 |
±88.5 |
±89.5 |
±89.5 |
±91.5 |
±91.5 |
±92.5 |
|
|
|
D33, D34 |
D35, D36 |
D37, D38 |
D39, D40 |
D41, D42 |
D43, D44 |
D45, D46 |
D47, D48 |
D49, D50 |
|
|
Position |
1408 |
1508 |
1606 |
1708 |
1808 |
1909 |
2009 |
2109 |
2209 |
|
|
Length |
80.0 |
79.5 |
79.0 |
79.0 |
77.0 |
77.0 |
77.0 |
76.5 |
75.5 |
|
|
Height |
±92.5 |
±92.5 |
±93.5 |
±92.5 |
±91.5 |
±91.5 |
±89.5 |
±89.5 |
±89.5 |
|
|
|
D51, D52 |
D53, D54 |
D55, D56 |
D47, D58 |
D59, D60 |
D61, D62 |
|
|
|
|
|
Position |
2308 |
2408 |
2508 |
2607 |
2704 |
2785 |
|
|
|
|
|
Length |
75.5 |
75.0 |
74.5 |
74.5 |
74.4 |
74.5 |
|
|
|
|
|
Height |
±89.5 |
±89.5 |
±89.5 |
±89.5 |
±89.5 |
±83.5 |
|
|
|
|
|
Remark |
All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg All dimensions given in milimetres No boom correction included. |
|||||||||
|
CONSTRUCTION OF RADIATOR |
|
Material: Silverplated copper wire Ø= 2.5 mm |
|
H = 93.0 mm |
|
V = 24 mm |
|
|
|
DIAGRAMS |
|

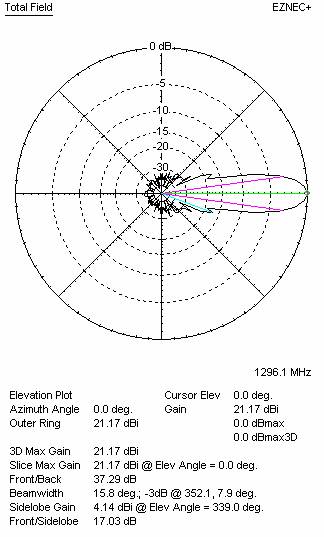

Horizontal and verticall pattern in free space, no loss condition |
|
|
WORKING CONDITION |
|||
|
Frequency bandwidth for SWR=1.5 (MHz) |
Z (Ώ) at 1296.100 MHz |
SWR at 1300.000 MHz |
||
|
Lowest |
Highest |
|||
|
1230.000 |
1326.000 |
199.2 |
1.04:1 |
|
|
SWR DIAGRAMS (loss included for Al) |
|

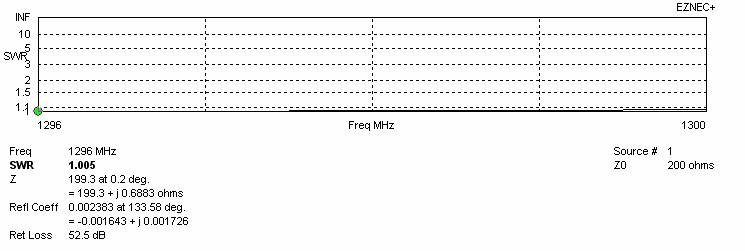

SWR curve for amateur bandwidth 1296 – 1300 MHz |
|

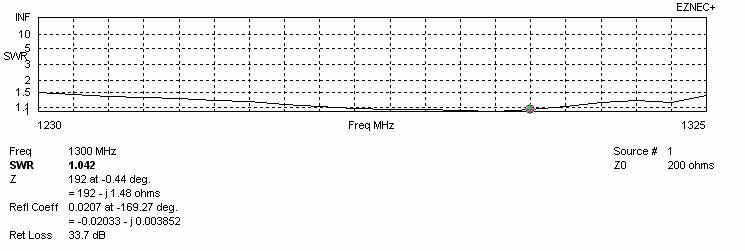

Frequency bandwidth for SWR = 1.5 |
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED) |
|||||||||
|
RECOMMENDED STACKING DISTANCES |
|||||||||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas in H-stack (mm) |
||||||
|
Horizontal distance |
|
900 |
900 |
||||||
|
Vertical distance |
900 |
|
900 |
||||||
|
TWO ANTENNAS STACKED VERTICALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
900 |
24.27 |
15.7 |
3.9 |
+12.30 |
|||||
|
Two antennas stacked vertically |
|||||||||
|
TWO ANTENNAS STACKED HORIZONTALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
900 |
24.33 |
15.5 |
3.9 |
+12.41 |
|||||
|
Two antennas stacked horizontally |
|||||||||
|
FOUR ANTENNAS IN H-STACK |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
H = 900 |
27.34 |
15.5 |
3.9 |
+15.42 |
|||||
|
V = 900 |
|||||||||
|
Four antennas in H-stack |
|||||||||
