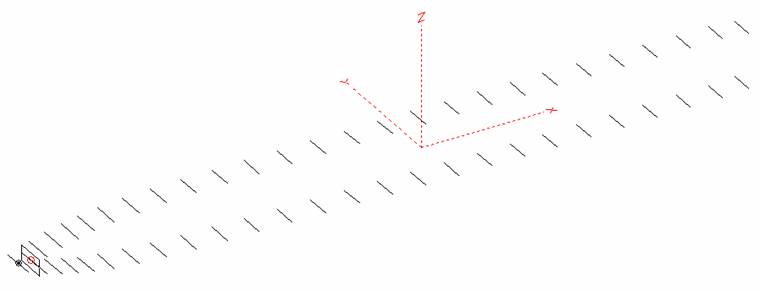

ANTENNA X235205XL1QAG
DESCRIPTION
Radiator
Number of yagi elements
Boomlength (mm)
Double rectangle
51
2185
|
|
ANTENNA X235205XL1QAG |
||
|
|
|||
|
|
DESCRIPTION |
||
|
|
Radiator |
Number of yagi elements |
Boomlength (mm) |
|
|
Double rectangle |
51 |
2185 |
|
PERFORMANCES (loss included, KF2YN correction applied) |
||||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
Tlos (K) |
G/T (dB) |
|
20.40 |
36.79 |
14.89 |
17.72 |
19.4 |
17.5 |
16.0 |
3.9 |
+8.35 |
|
DIMENSIONS |
|||||||||
|
|
Ref |
De |
D1, D2 |
D3, D4 |
D5, D6 |
D7, D8 |
D9, D10 |
D11, D12 |
D13, D14 |
|
Position |
0 |
36 |
60 |
106 |
155 |
204 |
265 |
340 |
423 |
|
Length |
109.0 |
93.0 |
96.5 |
94.5 |
93.5 |
91.0 |
91.0 |
89.5 |
87.5 |
|
Height |
0 |
±24.0 |
±25.0 |
±40.0 |
±52.0 |
±62.0 |
±70.0 |
±77.0 |
±82.0 |
|
|
D15, D16 |
D17, D18 |
D19, D20 |
D21, D22 |
D23, D24 |
D25, D26 |
D27, D28 |
D29, D30 |
D31, D32 |
|
Position |
515 |
608 |
705 |
804 |
906 |
1008 |
1108 |
1208 |
1308 |
|
Length |
85.5 |
85.0 |
83.0 |
81.5 |
81.0 |
80.5 |
80.5 |
80.5 |
80.5 |
|
Height |
±85.0 |
±86.5 |
±87.5 |
±88.5 |
±89.5 |
±89.5 |
±91.5 |
±91.5 |
±92.5 |
|
|
D33, D34 |
D35, D36 |
D37, D38 |
D39, D40 |
D41, D42 |
D43, D44 |
D45, D46 |
D47, D48 |
D49, D50 |
|
Position |
1408 |
1508 |
1606 |
1708 |
1808 |
1908 |
2008 |
2106 |
2185 |
|
Length |
80.5 |
79.5 |
79.5 |
79.0 |
77.0 |
77.0 |
76.0 |
76.0 |
76.0 |
|
Height |
±92.5 |
±92.5 |
±93.5 |
±92.5 |
±91.5 |
±91.5 |
±89.5 |
±89.5 |
±83.0 |
|
Remark |
All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg All dimensions given in milimetres No boom correction included. |
||||||||
|
CONSTRUCTION OF RADIATOR |
|
Material: Silverplated copper wire Ø= 2.5 mm |
|
H = 93.0 mm |
|
V = 24 mm |
|
|
|
DIAGRAMS |
|

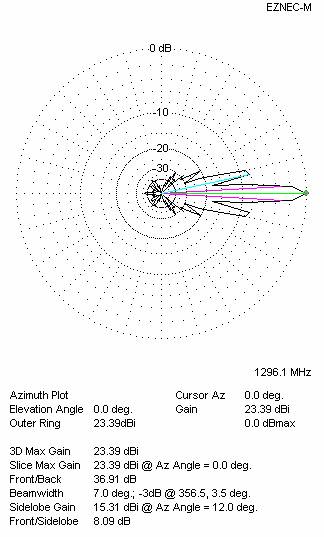

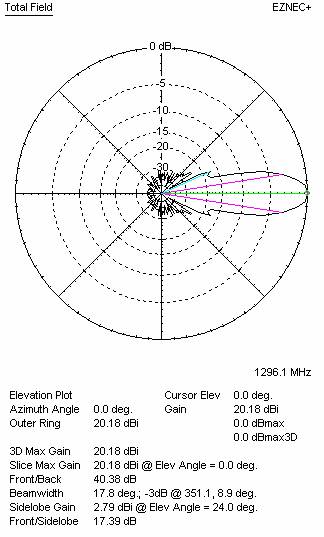

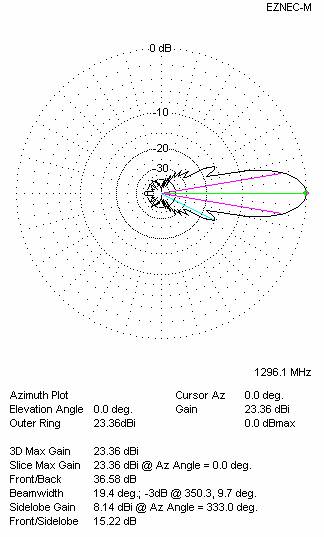

Horizontal and verticall pattern in free space, no loss condition |
|
|
WORKING CONDITION |
|||
|
Frequency bandwidth for SWR=1.5 (MHz) |
Z (Ώ) at 1296.100 MHz |
SWR at 1300.000 MHz |
||
|
Lowest |
Highest |
|||
|
1229.000 |
1327.000 |
201.2 |
1.02:1 |
|
|
SWR DIAGRAMS (loss included for Al) |
|

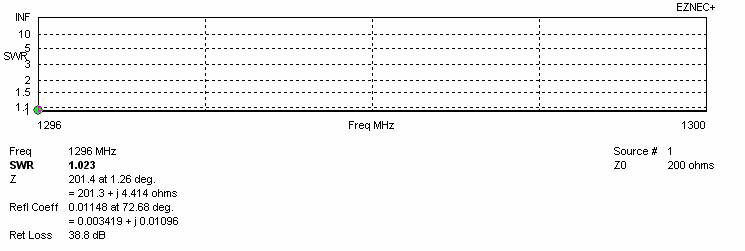

SWR curve for amateur bandwidth 1296 – 1300 MHz |
|

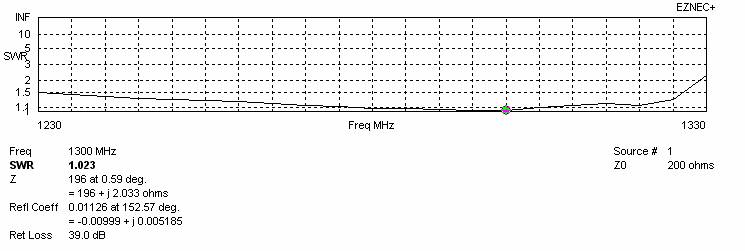

Frequency bandwidth for SWR = 1.5 |
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED) |
|||||||||
|
RECOMMENDED STACKING DISTANCES |
|||||||||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas in H-stack (mm) |
||||||
|
Horizontal distance |
|
820 |
720 |
||||||
|
Vertical distance |
880 |
|
880 |
||||||
|
TWO ANTENNAS STACKED VERTICALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
880 |
23.45 |
16.1 |
3.9 |
+11.37 |
|||||
|
Two antennas stacked vertically |
|||||||||
|
TWO ANTENNAS STACKED HORIZONTALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
820 |
23.48 |
16.0 |
3.9 |
+11.43 |
|||||
|
Two antennas stacked horizontally |
|||||||||
|
FOUR ANTENNAS IN H-STACK |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
H = 820 |
26.39 |
16.0 |
3.6 |
+14.34 |
|||||
|
V = 880 |
|||||||||
|
Four antennas in H-stack |
|||||||||
