ANTENNA X233805XL2QAG



DESCRIPTION



Radiator

Number of  yagi elements

Boomlength (mm)



Double rectangle

37

1485





PERFORMANCES (loss included, KF2YN correction applied)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Temp

(◦K)

Tlos

(K)

G/T

(dB)

19.05

31.19

17.62

18.08

23.6

20.2

16.2

3.6

+6.94



DIMENSIONS



Ref

De

D1, D2

D3,D4

D5,D6

D7,D8

D9,D10

D11,D12

D13,D14

D15,D16

D17,D18

Position

0

35

59

106

155

204

265

341

424

515

608

Length

109.5

93.5

96.0

94.0

93.0

90.5

90.5

89.0

87.0

86.0

84.0

Height

0

±24.0

±24.0

±39.5

±52.0

±62.0

±70.0

±77.0

±82.0

±85.0

±86.5



D19,D20

D21,D22

D23,D24

D25, D26

D27,D28

D29,D30

D31,D32

D33,D34

D35,D36





Position

706

806

906

1006

1105

1205

1306

1402

1485





Length

83.0

82.0

81.0

80.5

80.5

79.5

78.5

78.5

78.5





Height

±87.5

±88.5

±88.5

±88.5

±88.5

±88.5

±88.5

±87.5

±82.5





Remark

All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg

All dimensions given in milimetres

No boom correction included.

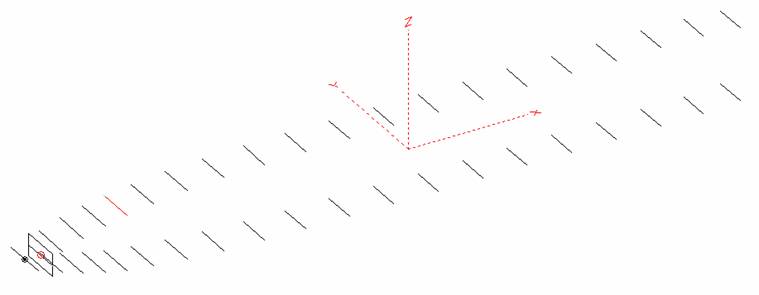

CONSTRUCTION OF RADIATOR

Material: Silverplated copper wire Ø= 2.5 mm

H = 93.5 mm

V = 24 mm





DIAGRAMS

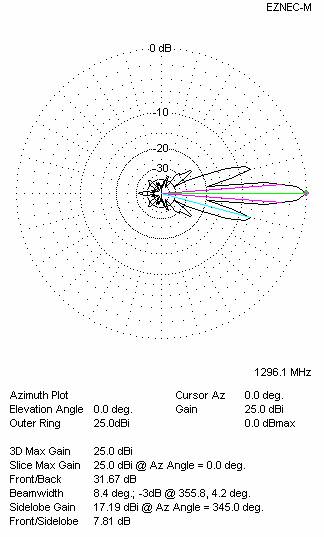

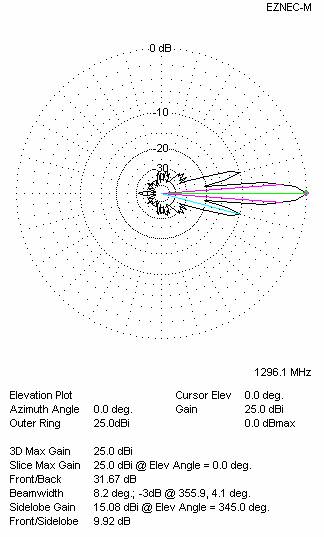

Horizontal and verticall pattern in free space, no loss condition





WORKING CONDITION

Frequency bandwidth for SWR=1.5 (MHz)

Z (Ώ)

at 1296.100 MHz

SWR

at 1300.000 MHz

Lowest

Highest

1224.000

1331.200

200.6

1.03:1

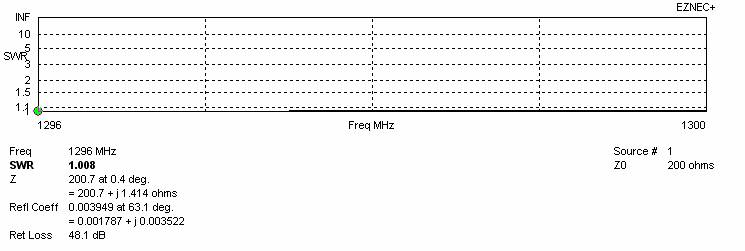

SWR DIAGRAMS (loss included for Al)

SWR curve for amateur bandwidth 1296 – 1300 MHz

Frequency bandwidth for SWR = 1.5





STACKING

(ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED)

RECOMMENDED STACKING DISTANCES



Two antennas vertically

(mm)

Two antennas horizontally

(mm)

Four antennas in H-stack

(mm)

Horizontal distance



680

680

Vertical distance

680



680

TWO ANTENNAS STACKED VERTICALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

680

22.03

16.0

3.6

+9.98



Two antennas stacked vertically

TWO ANTENNAS STACKED HORIZONTALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

680

22.12

16.1

3.6

+10.04



Two antennas stacked horizontally

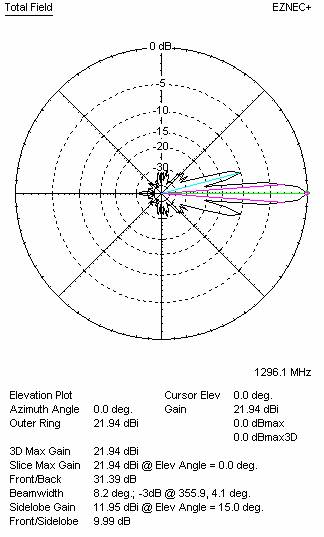

FOUR ANTENNAS IN H-STACK

DISTANCE
(mm)

G
(dBi)

TA
(K)

Tloss
(K)

G/T
(dB)

H = 680

25.09

15.9

3.6

+13.07

V = 680



Four antennas in H-stack
