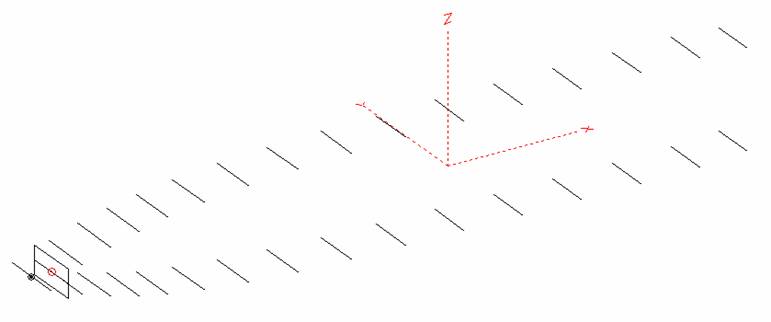

ANTENNA X233205XL4QAG
DESCRIPTION
Radiator
Number of yagi elements
Boomlength (mm)
Double rectangle
31
1185
|
|
ANTENNA X233205XL4QAG |
||
|
|
|||
|
|
DESCRIPTION |
||
|
|
Radiator |
Number of yagi elements |
Boomlength (mm) |
|
|
Double rectangle |
31 |
1185 |
|
PERFORMANCES (loss included, KF2YN correction applied) |
||||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
Tlos (K) |
G/T (dB) |
|
18.29 |
34.60 |
19.18 |
18.91 |
26.0 |
21.8 |
16.3 |
3.3 |
+6.18 |
|
DIMENSIONS |
|||||||||
|
|
Ref |
De |
D1, D2 |
D3,D4 |
D5,D6 |
D7,D8 |
D9,D10 |
D11,D12 |
D13,D14 |
|
Position |
0 |
33 |
58 |
106 |
155 |
204 |
265 |
341 |
424 |
|
Length |
109.5 |
92.5 |
96.0 |
94.0 |
93.0 |
90.5 |
90.5 |
89.0 |
87.0 |
|
Height |
0 |
±24.0 |
±24.0 |
±39.5 |
±52.0 |
±62.0 |
±70.0 |
±77.0 |
±82.0 |
|
|
D15,D16 |
D17,D18 |
D19,D20 |
D21,D22 |
D23,D24 |
D25, D26 |
D27,D28 |
D29,D30 |
|
|
Position |
515 |
608 |
706 |
805 |
905 |
1005 |
1105 |
1195 |
|
|
Length |
85.5 |
84.5 |
82.5 |
82.0 |
81.0 |
80.5 |
80.0 |
80.0 |
|
|
Height |
±85.0 |
±86.5 |
±87.5 |
±88.5 |
±88.5 |
±88.5 |
±87.5 |
±82.5 |
|
|
Remark |
All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg All dimensions given in milimetres No boom correction included. |
||||||||
|
CONSTRUCTION OF RADIATOR |
|
Material: Silverplated copper wire Ø= 2.5 mm |
|
H = 92.5 mm |
|
V = 24 mm |
|
|
|

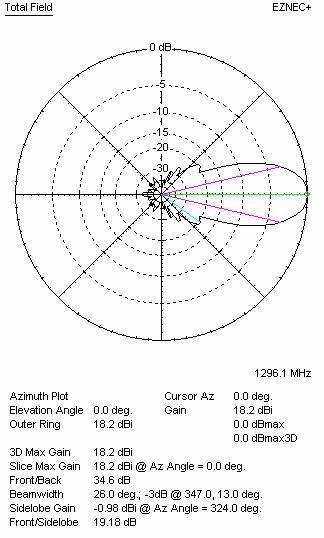

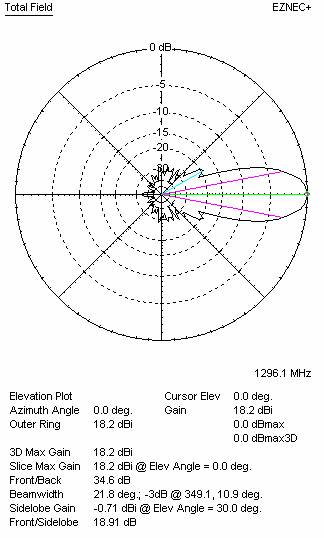

DIAGRAMS |
|
Horizontal and verticall pattern in free space, no loss condition |
|
|
WORKING CONDITION |
|||
|
Frequency bandwidth for SWR=1.5 (MHz) |
Z (Ώ) at 1296.100 MHz |
SWR at 1300.000 MHz |
||
|
Lowest |
Highest |
|||
|
1239.000 |
1329.000 |
199.5 |
1.05:1 |
|
|
SWR DIAGRAMS (loss included for Al) |
|

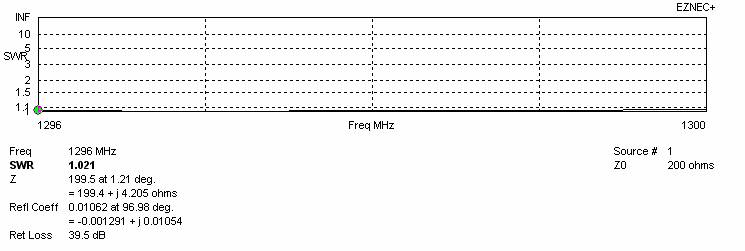

SWR curve for amateur bandwidth 1296 – 1300 MHz |
|

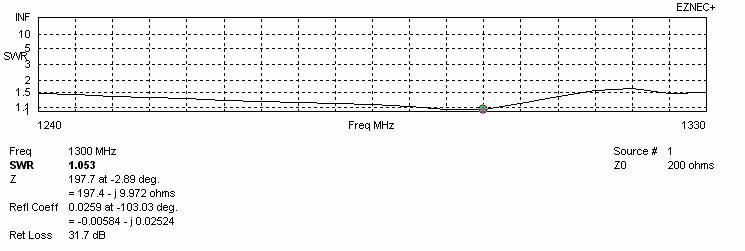

Frequency bandwidth for SWR = 1.5 |
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED) |
|||||||||
|
RECOMMENDED STACKING DISTANCES |
|||||||||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas in H-stack (mm) |
||||||
|
Horizontal distance |
|
580 |
580 |
||||||
|
Vertical distance |
640 |
|
640 |
||||||
|
TWO ANTENNAS STACKED VERTICALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
640 |
21.28 |
15.5 |
3.6 |
+9.37 |
|||||
|
Two antennas stacked vertically |
|||||||||
|
TWO ANTENNAS STACKED HORIZONTALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
580 |
21.33 |
16.2 |
3.6 |
+9.23 |
|||||
|
Two antennas stacked horizontally |
|||||||||
|
FOUR ANTENNAS IN H-STACK |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
H = 580 |
24.32 |
15.4 |
3.6 |
+12.44 |
|||||
|
V = 640 |
|||||||||
|
Four antennas in H-stack |
|||||||||
