ANTENNA X232605XL5QAG

PERFORMANCES (loss included, KF2YN correction applied)

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Temp

(◦K)

Tlos

(K)

G/T

(dB)

17.29

28.52

21.48

21.07

29.6

24.2

17.0

3.3

+4.97

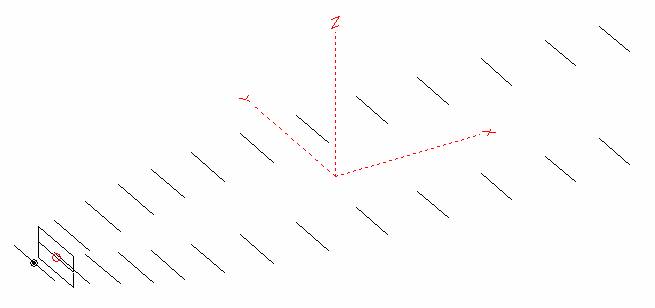

DIMENSIONS
	Ref	De	D1, D2	D3,D4	D5,D6	D7,D8	D9,D10
Position	0	33	58	105	155	204	265
Length	109.5	92.5	95.5	93.5	93.0	90.5	90.5
Height	0	±24	±24.5	±40.0	±52.0	±62.0	±70.0
	D11,D12	D13,D14	D15,D16	D17,D18	D19,D20	D21,D22	D23, D24
Position	340	424	515	608	705	802	885
Length	89.0	87.0	85.5	84.5	82.5	82.0	80.5
Height	±77.0	±82.0	±85.0	±86.5	±87.5	±88.5	±85.5
Remark	All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg All dimensions given in milimetres No boom correction included.

CONSTRUCTION OF RADIATOR

Material: Silverplated copper wire Ø= 2.5 mm

H = 92.5 mm

V = 24 mm

DIAGRAMS

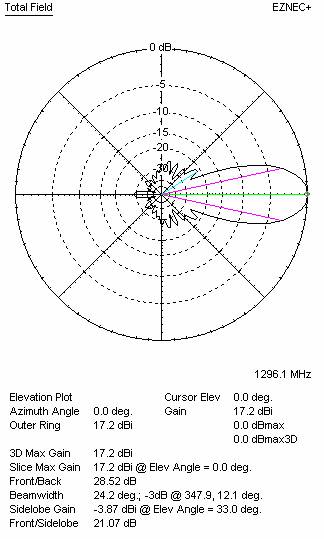

Horizontal and verticall pattern in free space, no loss condition

	WORKING CONDITION
Frequency bandwidth for SWR=1.5 (MHz)			Z (Ώ) at 1296.100 MHz	SWR at 1300.000 MHz
Lowest		Highest
1230.000		1316.000	200.1	1.05:1

SWR DIAGRAMS (loss included for Al)

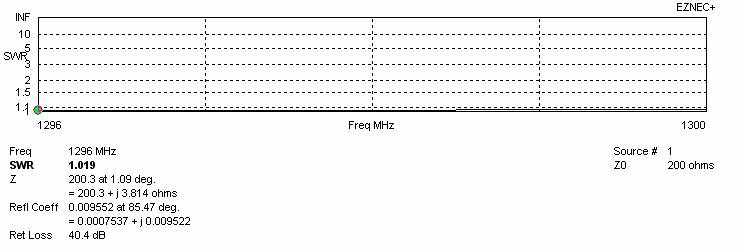

SWR curve for amateur bandwidth 1296 – 1300 MHz

Frequency bandwidth for SWR = 1.5

STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED)
RECOMMENDED STACKING DISTANCES
		Two antennas vertically (mm)		Two antennas horizontally (mm)			Four antennas in H-stack (mm)
Horizontal distance				500			500
Vertical distance		620					620
TWO ANTENNAS STACKED VERTICALLY
DISTANCE (mm)	G (dBi)		TA (K)		Tloss (K)			G/T (dB)
620	20.33		15.6		3.0			+8.41

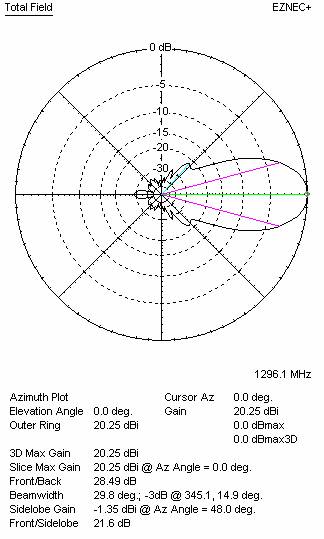

Two antennas stacked vertically
TWO ANTENNAS STACKED HORIZONTALLY
DISTANCE (mm)	G (dBi)		TA (K)			Tloss (K)			G/T (dB)
500	20.30		16.7			3.0			+8.09

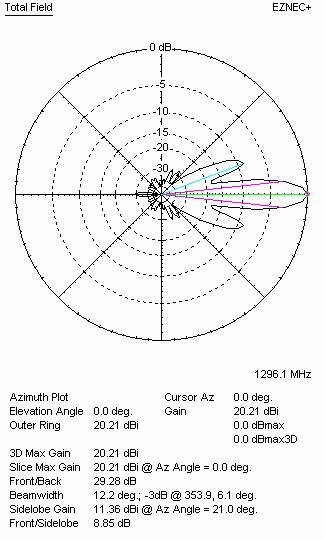

Two antennas stacked horizontally
FOUR ANTENNAS IN H-STACK
DISTANCE (mm)	G (dBi)		TA (K)			Tloss (K)			G/T (dB)
H = 500	23.35		15.7			3.0			+11.40
V = 620

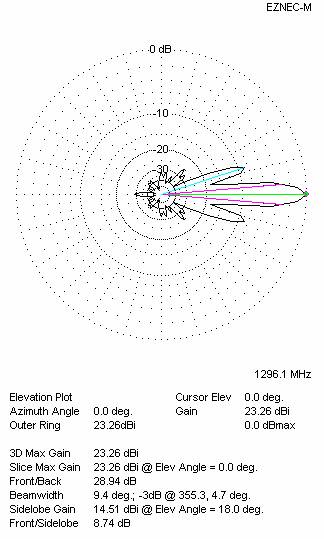

Four antennas in H-stack
