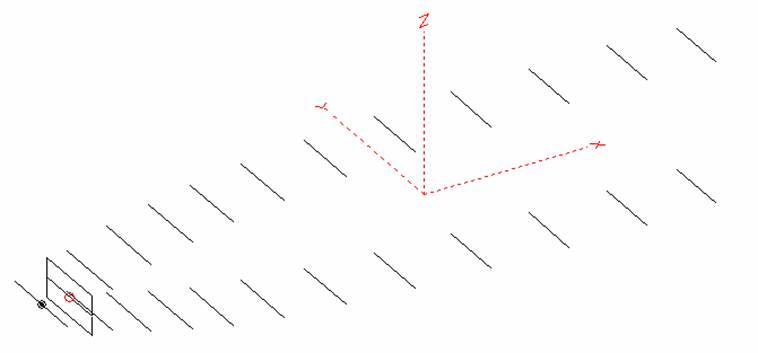

ANTENNA X232405XL5QAG
DESCRIPTION
Radiator
Number of yagi elements
Boomlength (mm)
Double rectangle
23
785
|
|
ANTENNA X232405XL5QAG |
||
|
|
|||
|
|
DESCRIPTION |
||
|
|
Radiator |
Number of yagi elements |
Boomlength (mm) |
|
|
Double rectangle |
23 |
785 |
|
PERFORMANCES (loss included, KF2YN correction applied) |
||||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
Tlos (K) |
G/T (dB) |
|
16.89 |
30.09 |
21.79 |
21.64 |
31.0 |
25.2 |
16.9 |
3.0 |
+4.69 |
|
DIMENSIONS |
|||||||
|
|
Ref |
De |
D1, D2 |
D3,D4 |
D5,D6 |
D7,D8 |
D9,D10 |
|
Position |
0 |
33 |
58 |
105 |
155 |
204 |
265 |
|
Length |
109.5 |
93.0 |
95.5 |
94.0 |
93.0 |
90.5 |
90.5 |
|
Height |
0 |
±24 |
±24.5 |
±40.0 |
±52.0 |
±62.0 |
±70.0 |
|
|
D11,D12 |
D13,D14 |
D15,D16 |
D17,D18 |
D19,D20 |
D21,D22 |
|
|
Position |
340 |
424 |
515 |
608 |
702 |
785 |
|
|
Length |
89.0 |
87.0 |
85.5 |
84.5 |
82.5 |
82.0 |
|
|
Height |
±77.0 |
±82.0 |
±85.0 |
±86.5 |
±87.5 |
±84.5 |
|
|
Remark |
All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg All dimensions given in milimetres No boom correction included. |
||||||
|
CONSTRUCTION OF RADIATOR |
|
Material: Silverplated copper wire Ø= 2.5 mm |
|
H = 93.0 mm |
|
V = 24 mm |
|
|
|
DIAGRAMS |
|

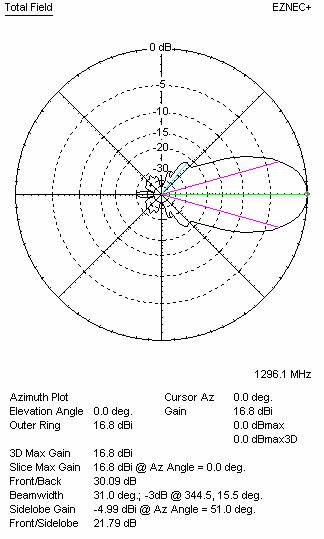

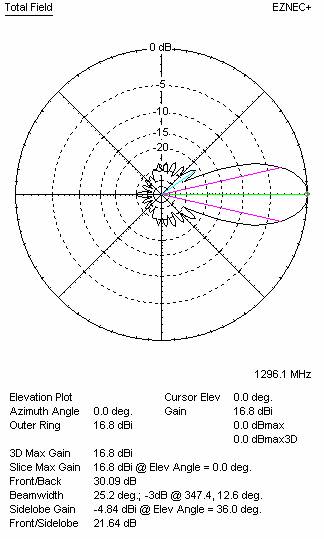

Horizontal and verticall pattern in free space, no loss condition |
|
|
WORKING CONDITION |
|||
|
Frequency bandwidth for SWR=1.5 (MHz) |
Z (Ώ) at 1296.100 MHz |
SWR at 1300.000 MHz |
||
|
Lowest |
Highest |
|||
|
1221.000 |
1323.000 |
200.8 |
1.05:1 |
|
|
SWR DIAGRAMS (loss included for Al) |
|

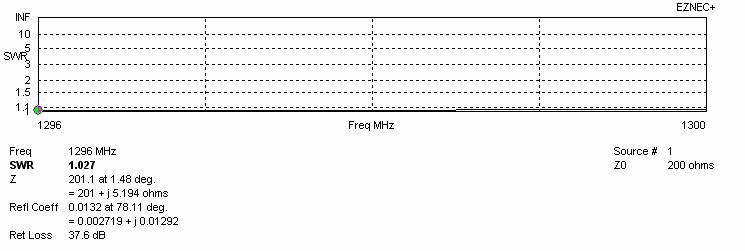

SWR curve for amateur bandwidth 1296 – 1300 MHz |
|

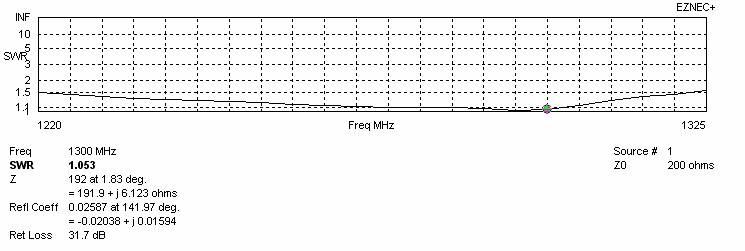

Frequency bandwidth for SWR = 1.5 |
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED) |
|||||||||
|
RECOMMENDED STACKING DISTANCES |
|||||||||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas in H-stack (mm) |
||||||
|
Horizontal distance |
|
480 |
480 |
||||||
|
Vertical distance |
620 |
|
620 |
||||||
|
TWO ANTENNAS STACKED VERTICALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
620 |
19.94 |
16.0 |
3.0 |
+7.91 |
|||||
|

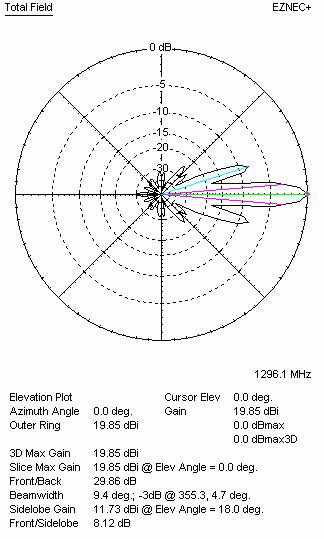

Two antennas stacked vertically |
|||||||||
|
TWO ANTENNAS STACKED HORIZONTALLY |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
480 |
19.90 |
16.6 |
3.0 |
+7.71 |
|||||
|

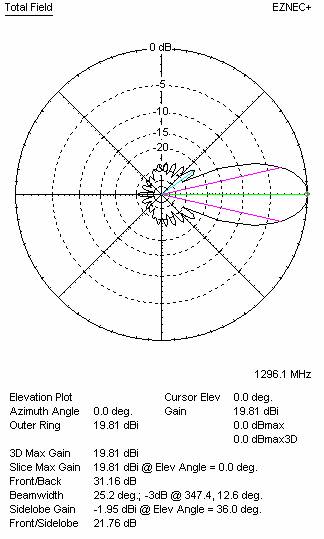

Two antennas stacked horizontally |
|||||||||
|
FOUR ANTENNAS IN H-STACK |
|||||||||
|
DISTANCE |
G |
TA |
Tloss |
G/T |
|||||
|
H = 460 |
22.96 |
15.9 |
3.0 |
+10.96 |
|||||
|
V = 620 |
|||||||||
|

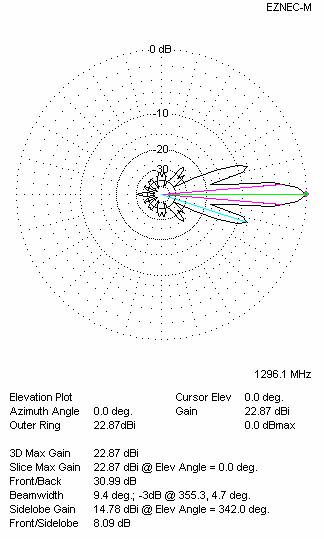

Four antennas in H-stack |
|||||||||
