ANTENNA X23205XL1Q

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

32

9845

18.05

36.46

15.93

16.04

25.8

22.1

220.7

-5.39

5.7



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR

at 145.000 MHz

Lowest

Highest

Bandwidth

140.800

147.300

6.500

197.8

1.06:1



DIMENSIONS:



Ref

De

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

D14

D14

Pos

0

365

529

930

1421

1732

2276

3012

3746

4518

5302

6066

6828

7604

8388

9184

9845

Length

1012

786

930

927

911

884

900

900

896

890

884

874

874

874

874

867

851

Height

0

±240

±180

±330

±440

±510

±570

±650

±725

±785

±805

±825

±825

±835

±825

±795

±755

Dimensions given in milimetres - Diameter of elements 5 milimetres - No boom correction included.

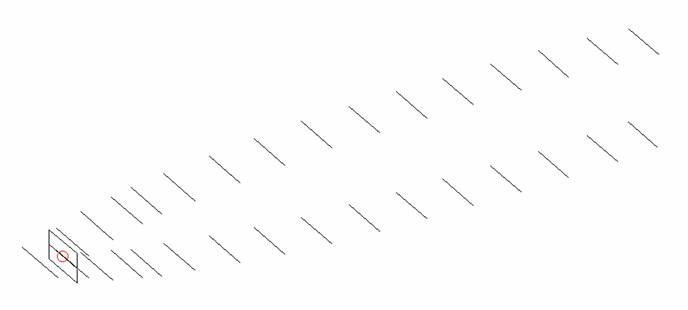

CONSTRUCTION OF RADIATOR

H = 786

V = 240

Ø= 5 mm





COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

RA3AQ-14

4.61

14.71

50.0

1.19:1

4.27

4.07

20.55

5.0

219.1

-0.71

G4CQM 16

4.64

14.55

50.9

1.78:1

4.39

4.18

20.47

8.8

234.6

-1.08

YU7EF 15M

4.68

14.59

48.6

1.03:1

4.21

4.00

20.40

7.0

221.7

-0.89

DK7ZB 14

4.73

14.92

26.9

1.50:1

4.59

4.39

20.87

6.8

233.0

-0.65

X23205XL1Q

4.73

15.93

197.8

1.06:1

5.50

5.90

22.01

6.7

214.4

+0.85

DG7YBN 16

4.74

14.79

46.6

1.18:1

4.45

4.60

20.79

6.1

222.4

-0.53

G0KSC 15LFA

4.75

14.72

49.9

1.17:1

4.60

4.45

20.72

5.9

215.0

-0.45

InnoV 15 LFA

4.76

14.73

49.0

1.17:1

4.60

4.45

20.74

6.6

215.4

-0.44

K1FO 18

4.78

14.37

199.9

1.32:1

4.36

4.16

20.62

2.8

228.6

-0.82

InnoV 15 OWL

4.78

14.79

52.2

1.32:1

4.36

4.15

20.66

7.6

217.9

-0.57

M2 28 XPOL

4.81

15.18

200.1

5.19:1

4.83

4.83

21.14

13.9

243.1

-0.57

DJ9BV 4.8

4.82

14.63

49.7

1.29:1

4.40

4.19

20.48

6.6

242.8

-1.22

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

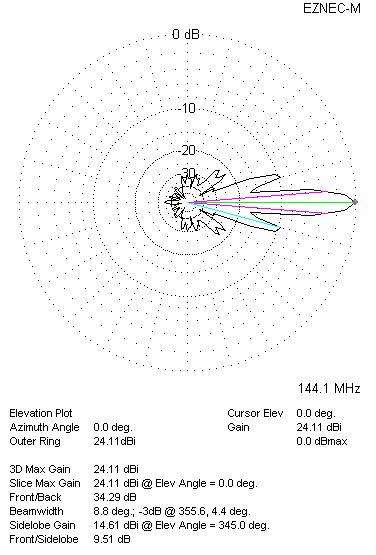

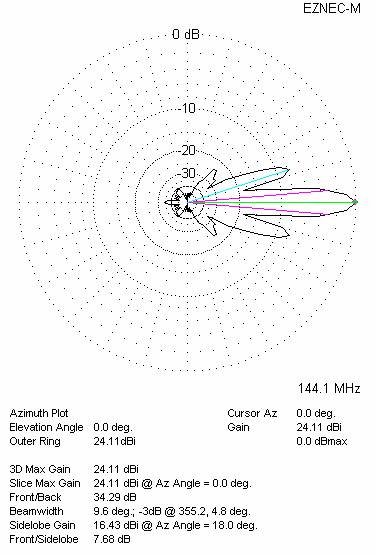

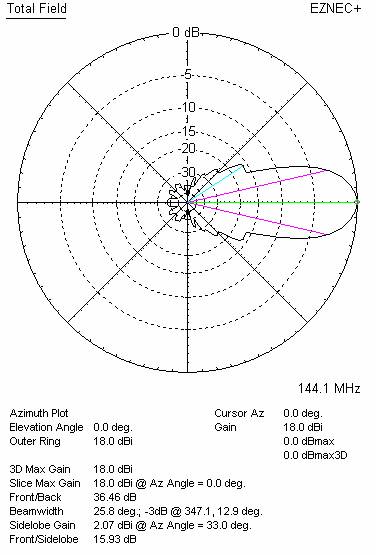

DIAGRAMS (no loss included)

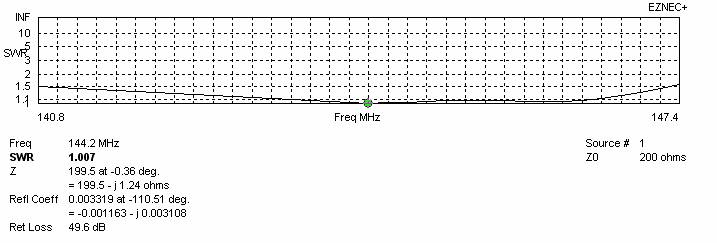

SWR DIAGRAMS (loss included for Al)



BEST DISTANCES FOR STACK



Four antennas in H-stack

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

Remark

4659

5.427

23.98

214.1

+0.65

5.7

Per DL6WU formula

5500

5900

24.16

214.4

+0.85

5.7

For max G/T

5500

5900

24.16

214.4

+0.85

5.7

For lowest temperature

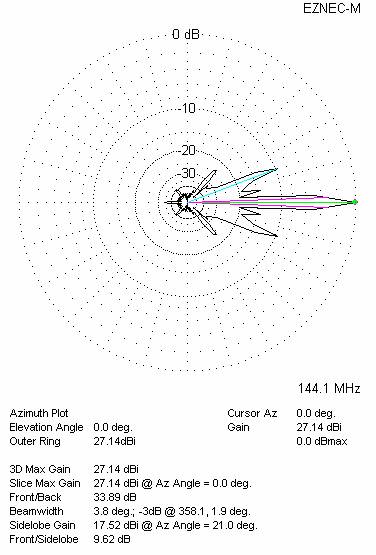

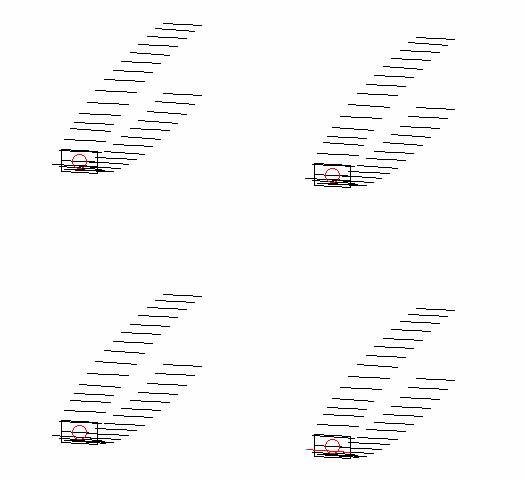

Four antennas in H-stack, H=5.50  V=5.90 metres

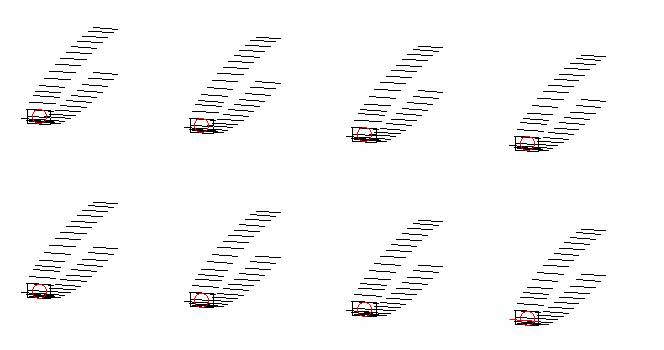

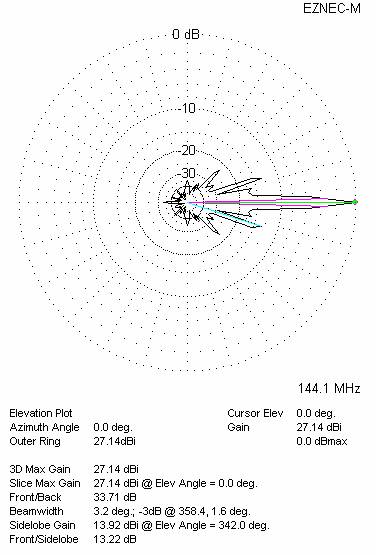

Eight antennas in stack (four in horizontal and two in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

5500

5900

27.19

214.1

+3.88

5.7

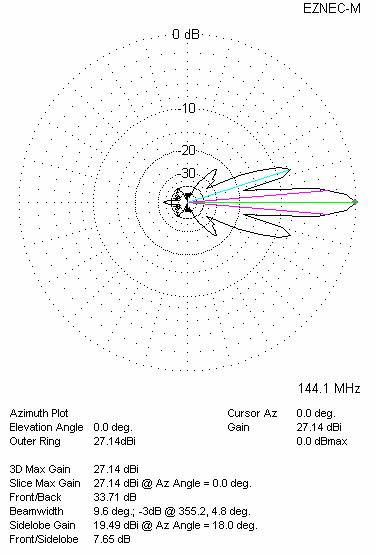

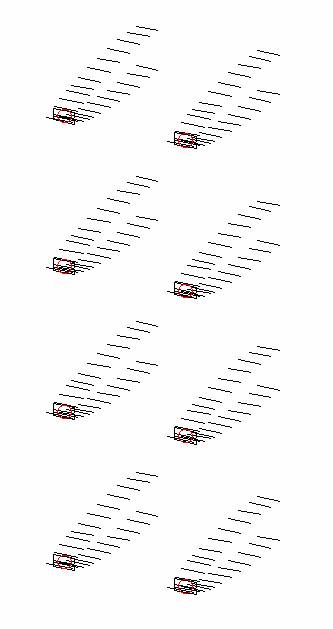

Eight antennas in stack (two in horizontal and four in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

5500

5900

27.19

213.1

+3.90

5.7
