ANTENNA X22008XL4Q
PERFORMANCES:
|
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
20 |
5205 |
15.92 |
34.43 |
23.86 |
18.27 |
33.8 |
28.8 |
218.6 |
-7.48 |
3.0 |
WORKING CONDITION:
|
Frequency for SWR=1.5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
||
|
Lowest |
Highest |
Bandwidth |
||
|
140.600 |
146.900 |
6.300 |
200.7 |
1.01:1 |
DIMENSIONS:
|
|
Ref |
De |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
D7 |
D8 |
|
|
Pos |
0 |
338 |
532 |
920 |
1408 |
1778 |
2286 |
3028 |
3769 |
4532 |
5205 |
|
Length |
1008 |
792 |
913 |
907 |
899 |
887 |
885 |
883 |
883 |
881 |
859 |
|
Height |
0 |
±230 |
±190 |
±320 |
±435 |
±515 |
±580 |
±680 |
±735 |
±755 |
±725 |
|
Dimensions given in milimetres - Diameter of elements 10 milimetres - No boom correction included. |
|||||||||||
CONSTRUCTION OF RADIATOR
H = 792
V = 230
Ø= 10 mm
COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
DD0VF 9 |
2.46 |
12.47 |
25.0 |
1.16:1 |
3.48 |
3.18 |
18.44 |
4.4 |
235.8 |
-3.14 |
|
YU7EF 10LT |
2.49 |
11.84 |
45.7 |
1.13:1 |
3.13 |
2.82 |
17.69 |
5.3 |
224.3 |
-3.67 |
|
K5GW 10 |
2.49 |
12.45 |
37.4 |
1.41:1 |
3.44 |
3.16 |
18.38 |
7.4 |
234.6 |
-3.17 |
|
X22008XL4Q |
2.50 |
13.77 |
198.7 |
1.03:1 |
4.00 |
4.60 |
19.82 |
3.0 |
219.5 |
-1.45 |
|
G4CQM 9 |
2.52 |
12.63 |
46.4 |
2.02:1 |
3.62 |
3.35 |
18.68 |
7.3 |
244.4 |
-3.05 |
|
G0KSC 10 LFA |
2.53 |
12.61 |
48.5 |
1.05:1 |
3.48 |
3.18 |
18.54 |
2.6 |
229.8 |
-2.92 |
|
K1FO 12 |
2.53 |
12.49 |
31.1 |
1.23:1 |
3.46 |
3.18 |
18.42 |
4.3 |
240.7 |
-3.25 |
|
YU7EF 10 |
2.59 |
12.44 |
50.3 |
1.06:1 |
3.39 |
3.10 |
18.34 |
6.9 |
227.8 |
-3.08 |
|
Gulf Alpha 11 |
2.60 |
12.33 |
204.1 |
1.07:1 |
3.46 |
3.19 |
18.32 |
5.3 |
248.9 |
-3.49 |
|
Gulf Alpha 11 XPOL |
2.60 |
12.31 |
188.1 |
1.07:1 |
3.32 |
3.32 |
18.29 |
5.6 |
249.8 |
-3.53 |
|
G0KSC 10LFA+2 |
2.60 |
12.45 |
47.4 |
1.24:1 |
3.39 |
3.09 |
18.35 |
4.1 |
226.7 |
-3.06 |
|
Z(ohms) - measured on 144.100 MHz Bandwidth – VSWR measured on 145.000 MHz |
||||||||||

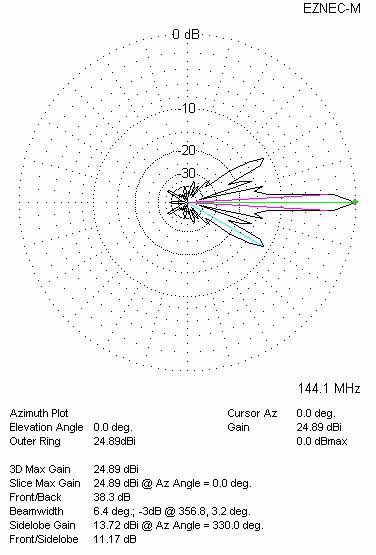

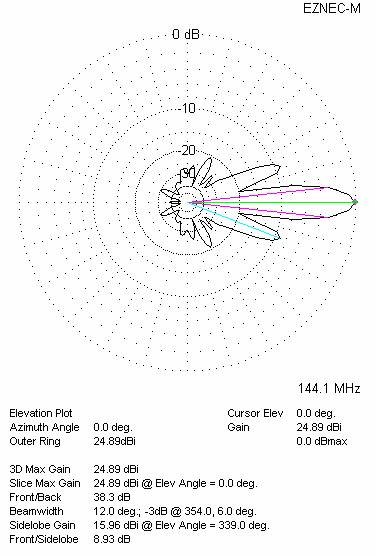

DIAGRAMS (no loss included)

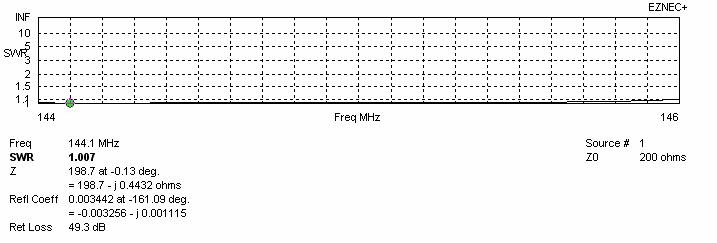

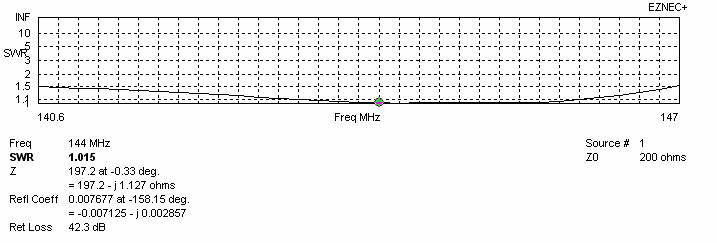

SWR DIAGRAMS (loss included for Al)
BEST DISTANCES FOR STACK
Four antennas in H-stack
|
Horizontal distance (mm) |
Vertical distance (mm) |
G (dBi) |
TA (K) |
G/T (dB) |
Tlos (K) |
Remark |
|
3578 |
4183 |
21.80 |
220.5 |
-1.64 |
3.0 |
Per DL6WU formula |
|
4000 |
4600 |
21.97 |
219.5 |
-1.45 |
3.0 |
For max G/T |
|
3720 |
4600 |
21.91 |
219.4 |
-1.53 |
3.0 |
For lowest temperature |

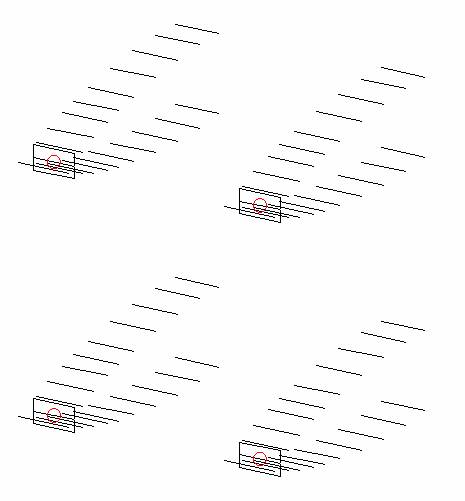

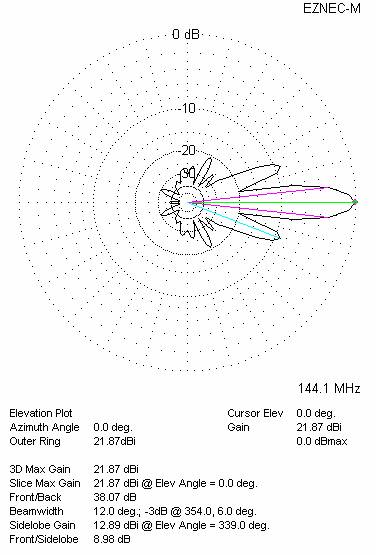

Four antennas in H-stack, H=4.00 V=4.60 metres

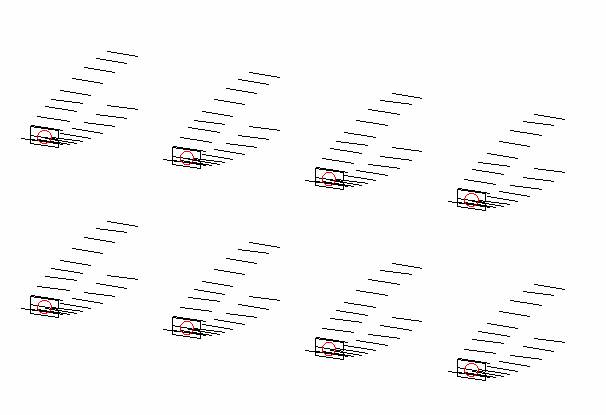

Eight antennas in stack (four in horizontal and two in vertical plane)
|
Horizontal distance (mm) |
Vertical distance (mm) |
G (dBi) |
TA (K) |
G/T (dB) |
Tlos (K) |
|
4000 |
4600 |
24.99 |
219.0 |
+1.58 |
3.0 |

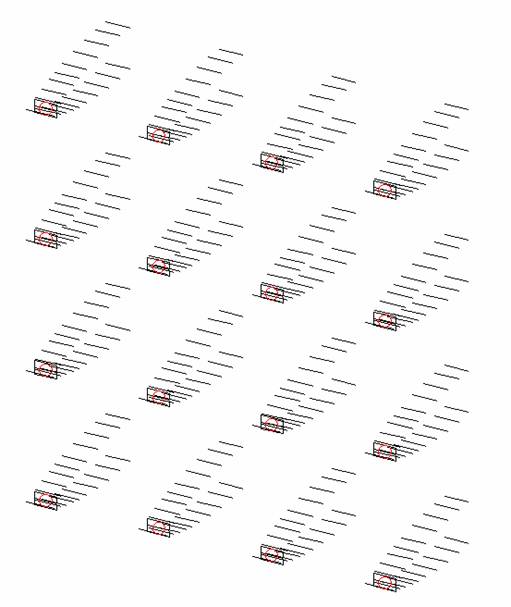

Sixteen antennas (four in horizontal and four antennas in vertical plane)
|
Horizontal distance (mm) |
Vertical distance (mm) |
G (dBi) |
TA (K) |
G/T (dB) |
Tlos (K) |
|
4000 |
4600 |
28.01 |
220.6 |
+4.57 |
3.0 |

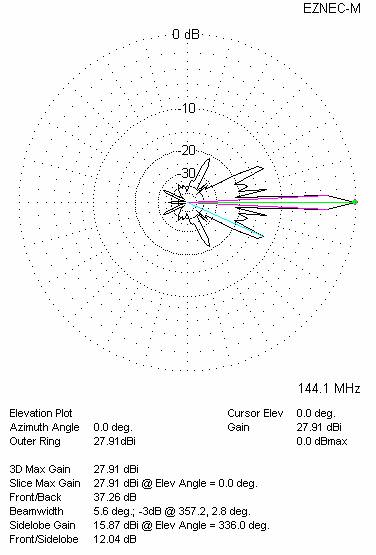

SIXTEEN ANTENNAS AT H=4.00+4.00+4.00 AND V=4.40+4.40+4.40 METRES - DIAGRAMS
