ANTENNA X22005XL5Q

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

20

5165

15.85

33.94

23.14

19.14

34.0

28.8

217.7

-7.53

5.4



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR

at 145.000 MHz

Lowest

Highest

Bandwidth

141.400

146.300

4.900

199.7

1.08:1



DIMENSIONS:



Ref

De

D1

D2

D3

D4

D5

D6

D7

D8



Pos

0

350

529

929

1428

1742

2276

3032

3758

4526

5165

Length

1014

794

933

929

920

906

906

906

902

898

873

Height

0

±220

±180

±330

±450

±520

±590

±665

±725

±725

±705

Dimensions given in milimetres - Diameter of elements 5 milimetres - No boom correction included.

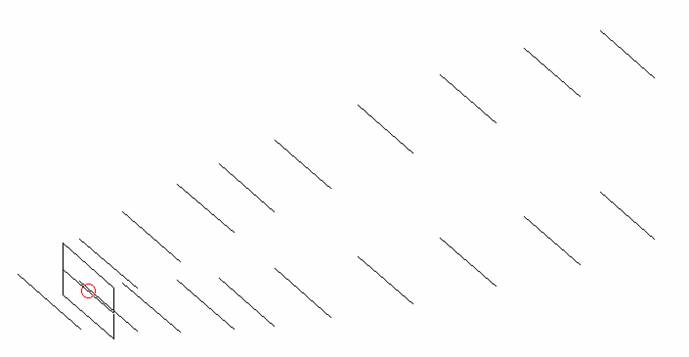

CONSTRUCTION OF RADIATOR

H = 794

V = 220

Ø= 5 mm





COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

DD0VF 9

2.46

12.47

25.0

1.16:1

3.48

3.18

18.44

4.4

235.8

-3.14

X22005XL5Q

2.48

13.74

199.7

1.08:1

4.00

4.40

19.73

5.4

217.7

-1.50

YU7EF 10LT

2.49

11.84

45.7

1.13:1

3.13

2.82

17.69

5.3

224.3

-3.67

K5GW 10

2.49

12.45

37.4

1.41:1

3.44

3.16

18.38

7.4

234.6

-3.17

G4CQM 9

2.52

12.63

46.4

2.02:1

3.62

3.35

18.68

7.3

244.4

-3.05

G0KSC 10 LFA

2.53

12.61

48.5

1.05:1

3.48

3.18

18.54

2.6

229.8

-2.92

K1FO 12

2.53

12.49

31.1

1.23:1

3.46

3.18

18.42

4.3

240.7

-3.25

YU7EF 10

2.59

12.44

50.3

1.06:1

3.39

3.10

18.34

6.9

227.8

-3.08

Gulf Alpha 11

2.60

12.33

204.1

1.07:1

3.46

3.19

18.32

5.3

248.9

-3.49

Gulf Alpha 11 XPOL

2.60

12.31

188.1

1.07:1

3.32

3.32

18.29

5.6

249.8

-3.53

G0KSC 10LFA+2

2.60

12.45

47.4

1.24:1

3.39

3.09

18.35

4.1

226.7

-3.06

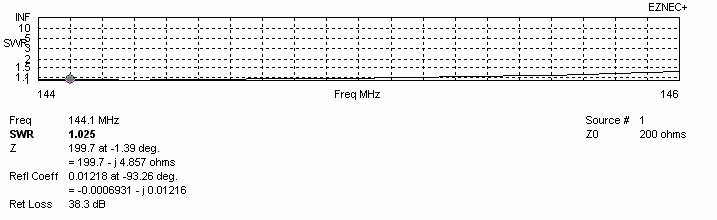

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

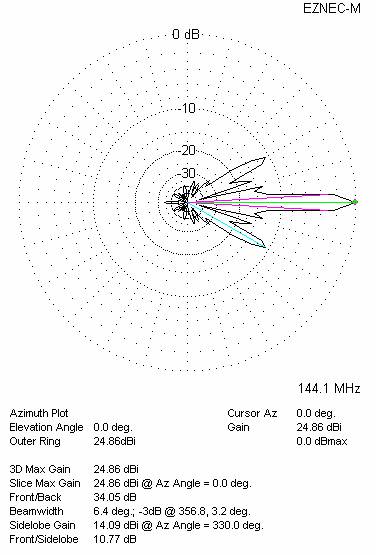

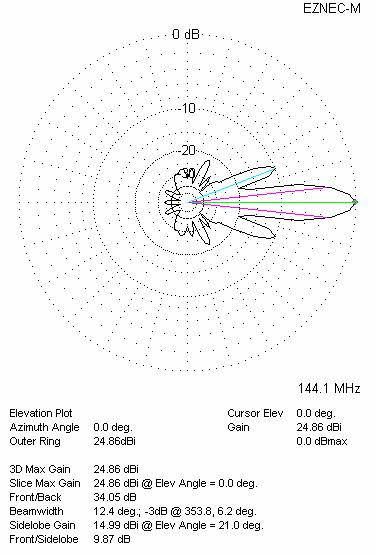

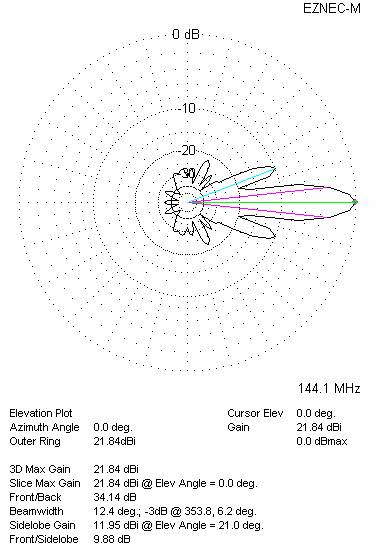

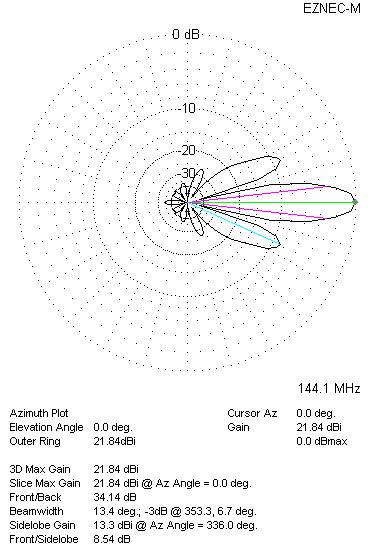

DIAGRAMS (no loss included)

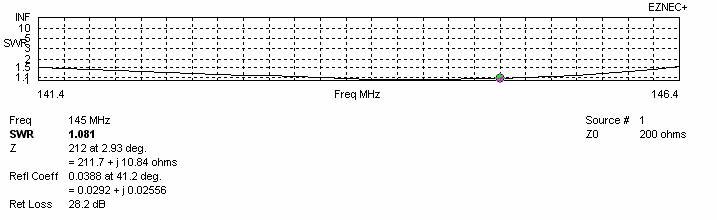

SWR DIAGRAMS (loss included for Al)

STACKING TABLE

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100







110







110







120







120







130







130







140







140







150







150







160







160







170







170







180







180







190







190







200







200







210







210







220







220







230







230







240







240







250







250







260







260







270







270







280







280







290







290







300







300







310







310







320







320







330







330







340







340







350

18.71

215.2

-4.66

350

18.47

222.6

-5.04

360







360







370

18.77

214.8

-4.59

370

18.56

221.3

-4.93

380







380







390

18.81

215.0

-4.56

390

18.66

218.9

-4.78

400

18.83

215.2

-4.54

400









18.84

215.6

-4.54

410

18.74

217.4

-4.67









420















430

18.79

217.1

-4.62









440

18.81

217.2

-4.60









450

18.82

217.5

-4.60









460







*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result, and which distances should be avoided. In H-stack it can be slightly changed.

*Yellow coloured – good distances





BEST DISTANCES FOR STACK



Four antennas in H-stack

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

Remark

3558

4183

21.76

217.8

-1.62

5.4

Per DL6WU formula

4000

4400

21.88

217.7

-1.50

5.4

For max G/T

3800

4300

21.85

217.3

-1.52

5.4

For lowest temperature

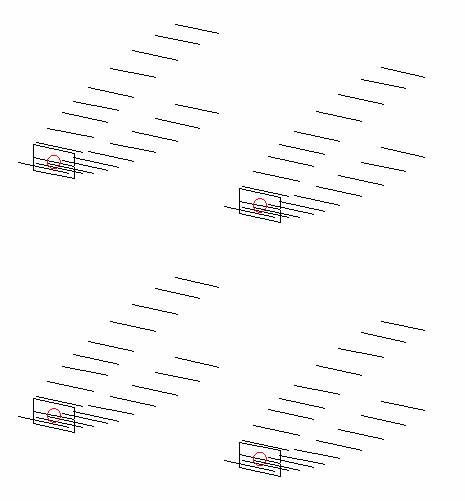

Four antennas in H-stack, H=4.00  V=4.60 metres

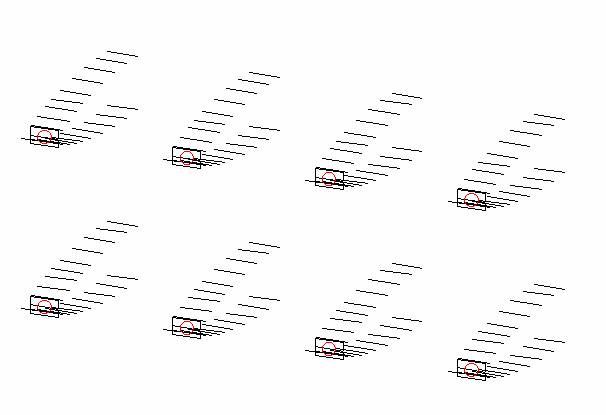

Eight antennas in stack (four in horizontal and two in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

4000

4400

24.91

217.5

+1.53

5.4

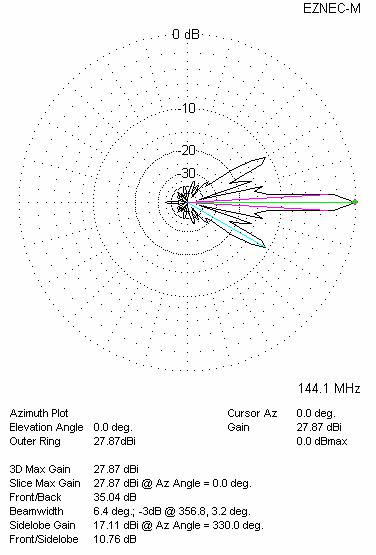

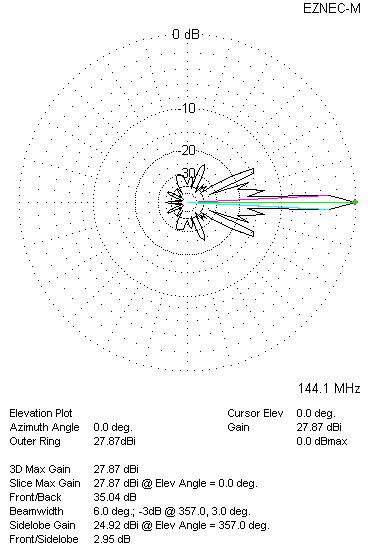

Sixteen antennas (four in horizontal and four antennas in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

4000

4400

27.92

219.7

+4.50

5.4
