ANTENNA X21610XL2Q

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

16

3605

14.96

26.85

26.45

15.95

38.6

30.6

225.6

-8.57

3.3



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR

at 145.000 MHz

Lowest

Highest

Bandwidth

141.000

146.700

5.700

196.9

1.07:1

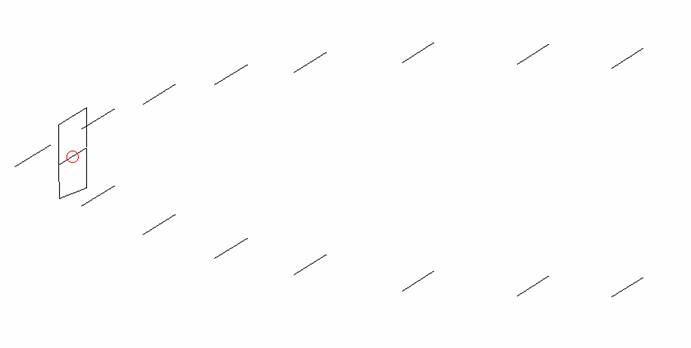

DIMENSIONS:



Ref

De

D1

D2

D3

D4

D5

D6

D7

Dimensions given in milimetres

Diameter of elements 10 milimetres

No boom correction included.



Pos

0

235

394

762

1210

1696

2338

3024

3605

Length

1010

786

921

921

917

903

891

891

877

Height

0

±230

±230

±385

±525

±625

±715

±725

±705



CONSTRUCTION OF RADIATOR

H = 786

V = 230

Ø= 10 mm





COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

X21608XL2Q

1.73

12.73

196.9

1.07:1

3.80

4.10

18.88

3.3

224.3

-2.48

G0KSC 8LFA

1.79

11.06

50.0

1.24:1

3.15

2.40

16.95

3.6

222.2

-4.37

W1JR 8 MOD

1.80

11.14

50.0

1.14:1

3.07

2.75

16.99

5.3

256.7

-4.95

DJ9BV 1.8

1.80

11.34

77.5

1.34:1

3.16

2.80

17.28

5.5

261.2

-4.74

K1FO 10

1.84

11.34

29.4

1.44:1

3.10

2.78

17.27

4.3

257.7

-4.69

Vine 8 FD

1.85

11.18

51.4

1.12:1

3.00

2.63

17.06

8.5

232.3

-4.45

YU7EF 8

1.87

11.31

48.5

1.21:1

3.04

2.71

17.23

3.8

242.1

-4.46

BQH8B

1.88

11.60

50.0

1.29:1

3.28

2.97

17.62

7.2

259.3

-4.37

UR5EAZ 9

1.89

11.32

49.2

1.01:1

3.07

2.75

17.26

3.6

249.7

-4.56

G4CQM 8

1.91

11.52

49.5

1.11:1

3.15

2.83

17.45

5.1

248.5

-4.35

KF2YN Boxkite9

1.92

13.98

49.2

1.28:2

4.45

3.70

19.95

5.6

228.6

-1.48

CT1FFU 8

1.94

11.28

27.1

1.05:1

2.96

2.62

17.10

2.9

232.3

-4.41

G0KSC 8OWL

1.95

11.63

48.9

1.26:1

3.13

2.82

17.55

4.6

235.7

-4.02

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

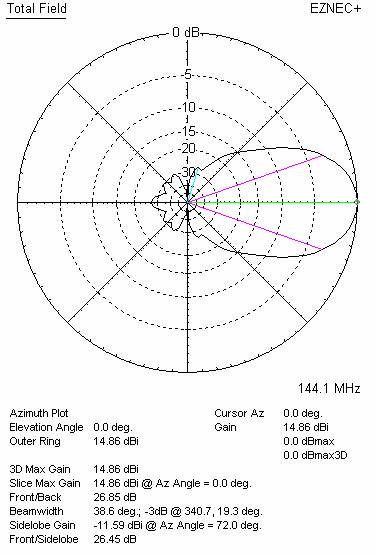

DIAGRAMS (no loss included)

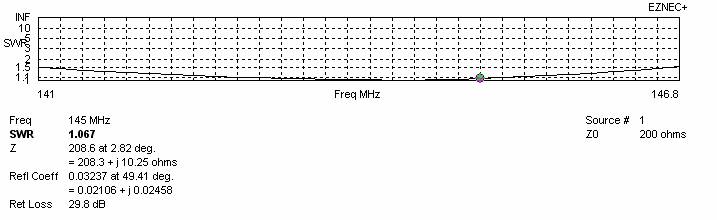

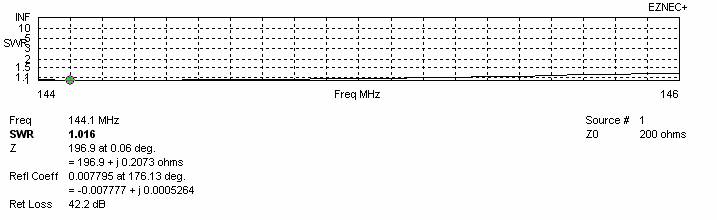

SWR DIAGRAMS (loss included for Al)

STACKING TABLE

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100







110







110







120







120







130







130







140

16.18

223.4

-7.35

140







150

16.36

222.4

-7.16

150







160

16.52

222.3

-6.99

160







170

16.66

222.8

-6.86

170







180







180







190







190







200

17.00

225.8

-6.58

200

15.96

266.1

-8.0

210







210







220







220







230







230







240







240







250

17.40

228.9

-6.24

250

16.95

228.9

-6.69

260







260

17.06

226.5

-6.53

270







270

17.15

225.1

-6.42

280







280

17.23

225.2

-6.34

290







290

17.28

227.2

-6.33

300

17.67

226.5

-5.92

300







310







310







320

17.74

224.8

-5.82

320







330

17.77

224.0

-5.78

330







340

17.79

223.4

-5.74

340

17.55

230.2

-6.11

350

17.81

222.9

-5.71

350

17.62

227.7

-6.00

360

17.83

222.6

-5.69

360

17.68

225.4

-5.89

370

17.84

222.5

-5.68

370

17.74

223.7

-5.80

380

17.85

222.6

-5.67

380

17.79

222.7

-5.73

390

17.85

223.0

-5.68

390

17.82

222.3

-5.70

400

17.85

223.4

-5.69

400

17.85

222.5

-5.67









410

17.87

223.1

-5.66









420

17.89

223.8

-5.65









430

17.89

224.5

-5.67

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result, and which distances should be avoided. In H-stack it can be slightly changed.

*Yellow coloured – good distances





BEST DISTANCES FOR STACK



Four antennas in H-stack

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

Remark

3147

3942

20.86

225.5

-2.67

3.3

Per DL6WU formula

3800

4100

21.03

224.3

-2.48

3.3

For max G/T

1620

3900

19.64

219.6

-3.61

3.3

For lowest temperature

Four antennas in H-stack, H=3.80+3.80+3.80 V=4.10+4.10+4.10 metres

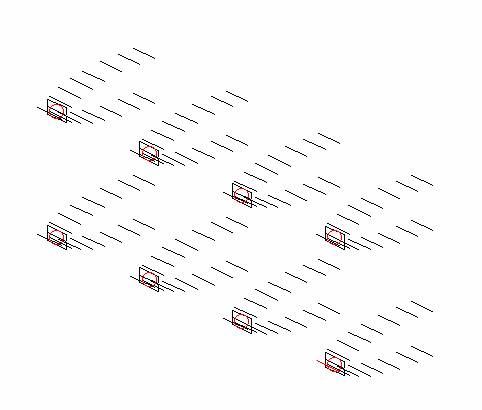

Eight antennas in stack (four in horizontal and two in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

3800

4100

24.03

222.6

+0.56

3.6







Sixteen antennas (four in horizontal and four antennas in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

3800

4100

27.03

227.6

+3.46

3.6

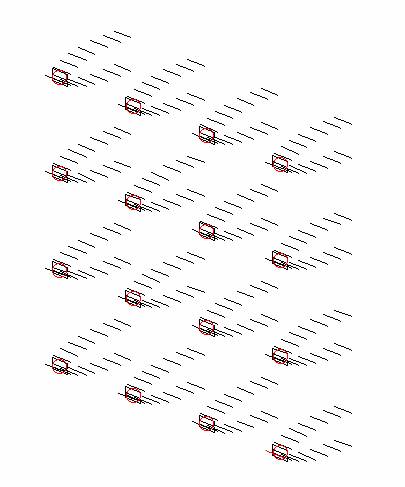

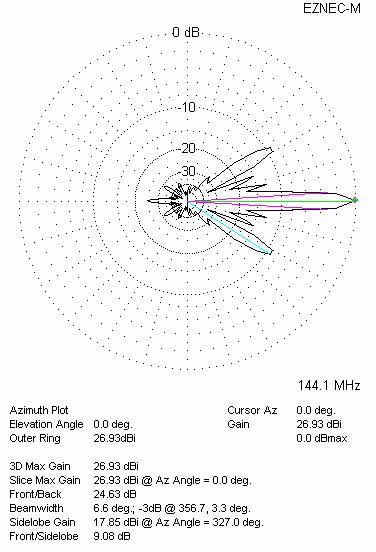

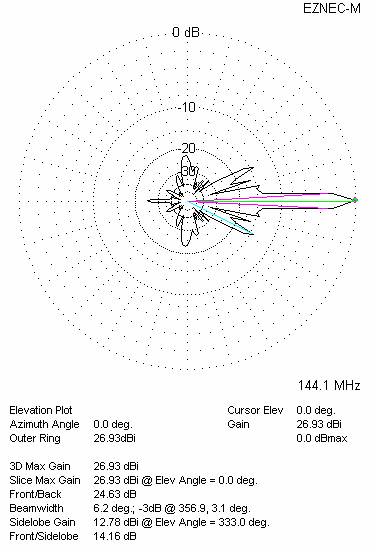

SIXTEEN ANTENNAS AT H=3.80+3.80+3.80 AND V=4.10+4.10+4.10 METRES - DIAGRAMS
