ANTENNA X21206XL2Q
PERFORMANCES:
|
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
12 |
2305 |
13.46 |
32.68 |
- |
16.82 |
44.5 |
37.9 |
232.7 |
-10.20 |
4.2 |
WORKING CONDITION:
|
Frequency for SWR=1.5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
||
|
Lowest |
Highest |
Bandwidth |
||
|
142.200 |
146.400 |
4.200 |
198.7 |
1.16:1 |
DIMENSIONS:
|
|
Ref |
De |
D1 |
D2 |
D3 |
D4 |
D5 |
Dimensions given in milimetres Diameter of elements 6 milimetres No boom correction included.
|
|
Pos |
0 |
232 |
402 |
758 |
1188 |
1732 |
2305 |
|
|
Length |
1012 |
776 |
918 |
927 |
935 |
923 |
897 |
|
|
Height |
0 |
±240 |
±230 |
±390 |
±520 |
±595 |
630 |

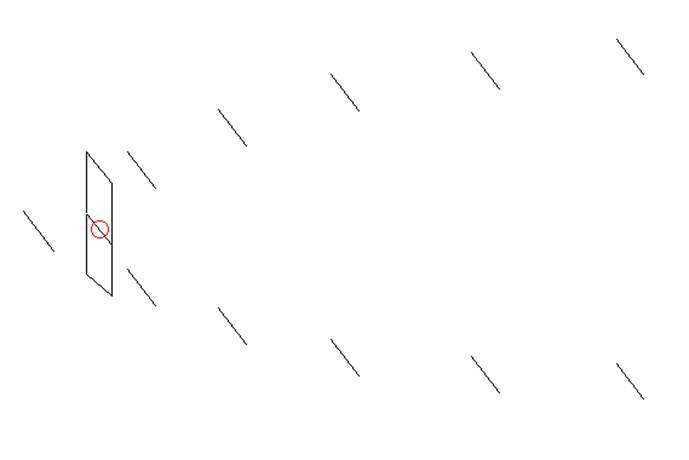

CONSTRUCTION OF RADIATOR
H = 776
V = 240
Ø= 6 mm
COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
G4CQM 6 |
1.00 |
9.46 |
56.7 |
1.83:1 |
2.60 |
2.17 |
15.44 |
7.9 |
249.7 |
-6.38 |
|
KF2YN boxkite6 |
1.04 |
12.47 |
49.9 |
1.20:1 |
3.90 |
3.00 |
18.25 |
4.6 |
263.1 |
-3.80 |
|
Vine 6 FD |
1.10 |
9.69 |
48.3 |
1.18:1 |
2.64 |
2.21 |
15.67 |
8.2 |
238.4 |
-5.95 |
|
X21206XL2Q |
1.11 |
11.32 |
198.7 |
1.16:1 |
3.70 |
3.42 |
17.42 |
4.2 |
235.7 |
-4.15 |
|
G0KSC 6LFA |
1.13 |
9.69 |
49.3 |
1.04:1 |
2.60 |
2.19 |
15.64 |
4.0 |
236.9 |
-5.96 |
|
DD0VF 6 |
1.16 |
9.73 |
27.2 |
1.07:1 |
2.63 |
2.22 |
15.71 |
5.5 |
240.1 |
-5.94 |
|
M2 2M7 |
1.28 |
9.94 |
204.9 |
1.14:1 |
2.65 |
2.26 |
15.76 |
3.7 |
245.0 |
-5.98 |
|
Z(ohms) - measured on 144.100 MHz Bandwidth – VSWR measured on 145.000 MHz |
||||||||||

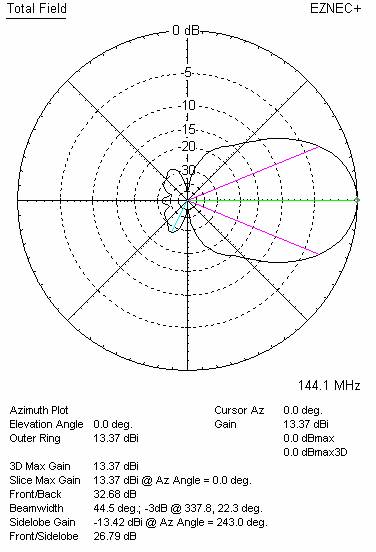

DIAGRAMS (no loss included)

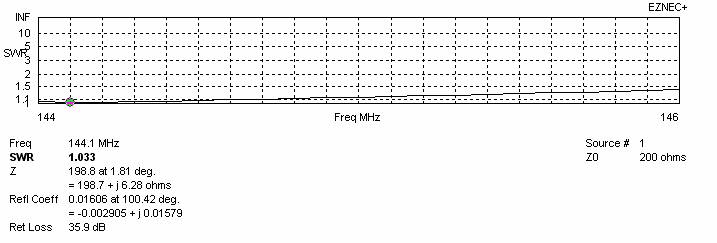

SWR DIAGRAMS (loss included for Al)
STACKING
|
Horizontal distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
|
100 |
|
|
|
100 |
|
|
|
|
110 |
14.57 |
224.9 |
-8.99 |
110 |
|
|
|
|
120 |
14.80 |
222.3 |
-8.72 |
120 |
|
|
|
|
130 |
14.97 |
221.6 |
-8.53 |
130 |
|
|
|
|
140 |
15.12 |
221.8 |
-8.39 |
140 |
|
|
|
|
150 |
15.25 |
222.7 |
-8.28 |
150 |
|
|
|
|
160 |
15.37 |
224.3 |
-8.18 |
160 |
|
|
|
|
170 |
15.48 |
226.3 |
-8.11 |
170 |
|
|
|
|
180 |
15.58 |
228.8 |
-8.06 |
180 |
15.11 |
269.2 |
-9.20 |
|
190 |
15.68 |
231.3 |
-8.00 |
190 |
15.35 |
157.6 |
-8.78 |
|
200 |
15.76 |
233.8 |
-7.97 |
200 |
15.52 |
249.3 |
-8.47 |
|
210 |
15.84 |
236.0 |
-7.93 |
210 |
15.65 |
243.5 |
-8.25 |
|
220 |
15.92 |
237.8 |
-7.88 |
220 |
15.75 |
239.5 |
-8.08 |
|
230 |
15.99 |
239.0 |
-7.83 |
230 |
15.82 |
236.8 |
-7.96 |
|
240 |
16.06 |
239.8 |
-7.77 |
240 |
15.87 |
235.7 |
-7.89 |
|
250 |
16.12 |
240.1 |
-7.72 |
250 |
15.91 |
237.4 |
-7.88 |
|
260 |
16.18 |
240.0 |
-7.66 |
260 |
15.95 |
240.4 |
-7.89 |
|
270 |
16.23 |
239.6 |
-7.60 |
270 |
16.00 |
241.7 |
-7.86 |
|
280 |
16.27 |
238.9 |
-7.55 |
280 |
16.05 |
240.7 |
-7.80 |
|
290 |
16.31 |
237.9 |
-7.49 |
290 |
16.12 |
238.3 |
-7.69 |
|
300 |
16.34 |
236.9 |
-7.44 |
300 |
16.19 |
235.7 |
-7.57 |
|
310 |
16.36 |
235.7 |
-7.40 |
310 |
16.26 |
233.8 |
-7.47 |
|
320 |
16.38 |
234.5 |
-7.36 |
320 |
16.32 |
232.9 |
-7.39 |
|
330 |
16.40 |
233.4 |
-7.32 |
330 |
16.37 |
233.0 |
-7.34 |
|
340 |
16.41 |
232.3 |
-7.29 |
340 |
16.42 |
234.0 |
-7.31 |
|
350 |
16.42 |
231.3 |
-7.26 |
350 |
16.45 |
235.6 |
-7.31 |
|
360 |
16.43 |
230.5 |
-7.24 |
360 |
16.46 |
237.5 |
-7.33 |
|
370 |
16.44 |
229.9 |
-7.22 |
370 |
|
|
|
|
380 |
16.44 |
229.5 |
-7.21 |
380 |
|
|
|
|
390 |
16.44 |
229.3 |
-7.21 |
|
|
|
|
*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good result, and which distances should be avoided. In H-stack it can be slightly changed.
*Yellow coloured – good distances
BEST DISTANCES FOR STACK

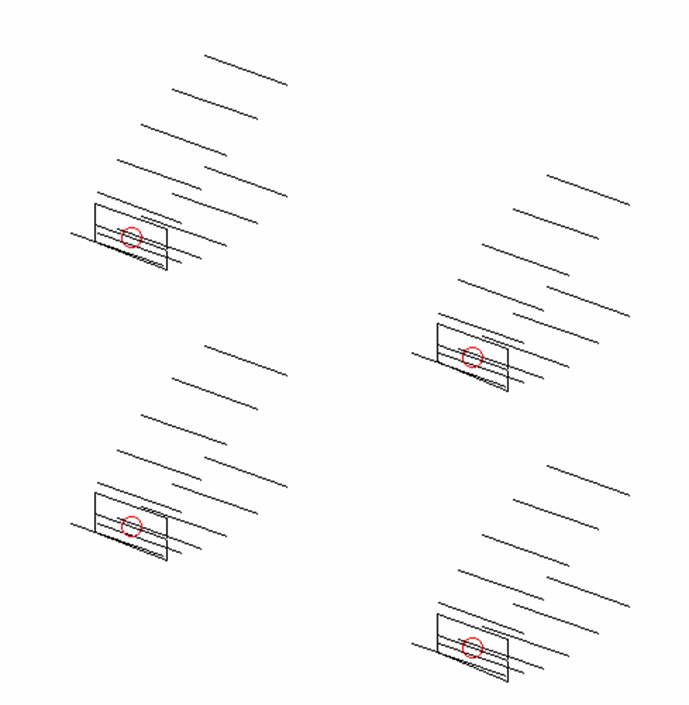

Four antennas in H-stack
|
Horizontal distance (mm) |
Vertical distance (mm) |
G (dBi) |
TA (K) |
G/T (dB) |
Tlos (K) |
Remark |
|
2747 |
3203 |
19.33 |
241.5 |
-4.50 |
4.2 |
Per DL6WU formula |
|
3700 |
3420 |
19.57 |
235.7 |
-4.15 |
4.2 |
For max G/T |
|
1380 |
3300 |
18.19 |
221.2 |
-5.26 |
4.2 |
For lowest temperature |

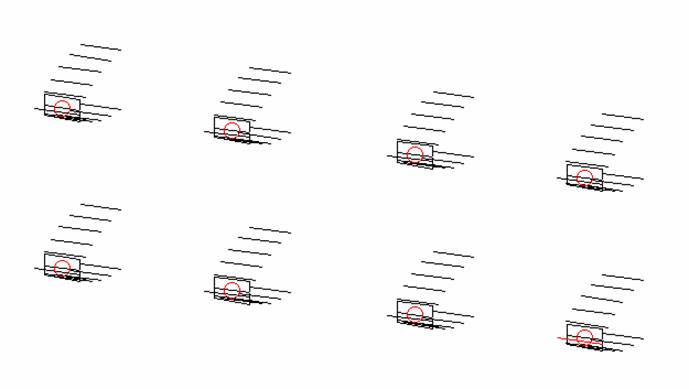

Eight antennas in stack (four in horizontal and two in vertical plane)
|
Horizontal distance (mm) |
Vertical distance (mm) |
G (dBi) |
TA (K) |
G/T (dB) |
Tlos (K) |
|
3700 |
3420 |
22.59 |
234.6 |
-1.11 |
4.2 |
|
1380 |
3300 |
20.62 |
221.6 |
-2.84 |
4.2 |

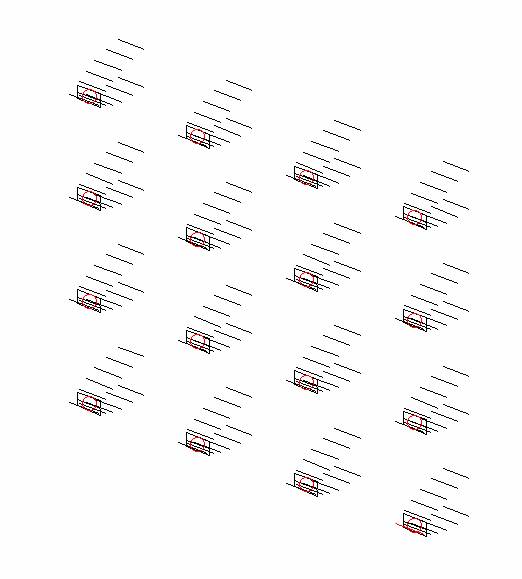

Sixteen antennas (four in horizontal and four antennas in vertical plane)
|
Horizontal distance (mm) |
Vertical distance (mm) |
G (dBi) |
TA (K) |
G/T (dB) |
Tlos (K) |
|
1380 |
3300 |
23.66 |
220.6 |
+0.22 |
4.2 |
|
3700 |
3420 |
25.61 |
236.0 |
+1.86 |
4.2 |
