ANTENNA Q210E8XL10

10 ELE OBLONG ANTENNA MADE OF ALUMINUM TUBES Ø10 MM

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

10

5985

15.33

30.22

18.98

16.10

33.4

35.1

230.6

-8.30

3.5



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

142.200

146.400

50.0

1.08:1



DIMENSIONS:



Ref

De1

D1

D2

D3

D4

D5

D6

D7

D8

All elements made of Al tubes Ǿ10 mm

The height of the rectangles is 400 mm

All dimensions given in milimetres

Pos

0

384

592

1138

1886

2686

3554

4421

5302

5985

Length

735

683

651

621

595

581

565

553

551

547

No boom correction included.



COMPARISON



TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

BQH 12J

2.80

12.80

50.0

1.01:1

3.67

3.40

18.83

4.3

246.2

-2.93

CT1FFU 10C

2.82

13.04

27.2

1.23:1

3.62

3.31

18.93

4.2

222.9

-2.40

M2 12

2.84

12.68

37.0

1.13:1

3.48

3.20

18.54

5.4

232.5

-2.97

KF2YN Boxkite12

2.84

14.90

48.5

1.22:1

6.00

4.40

20.84

5.9

227.4

-0.58

BQH 10

2.86

13.05

22.6

1.47:1

3.69

3.43

19.00

7.0

232.5

-2.51

WB9UWA 12

2.87

12.73

23.9

1.47:1

3.48

3.20

18.61

7.0

223.0

-2.72

DK7ZB 10

2.87

13.00

25.8

1.61:1

3.87

3.60

19.17

6.8

247.5

-2.62

Q210E8XL10

2.87

13.18

50.0

1.08:1

4.08

3.64

19.26

3.5

226.9

-2.14

K1FO 13

2.89

12.94

24.7

1.38:1

3.64

3.39

18.88

4.6

239.2

-2.76

Y21110XL2

2.94

12.98

200.6

1.08:1

3.84

3.52

19.01

4.0

226.4

-2.39

M2 20 XPOL

2.97

13.11

200.1

1.20:1

3.64

3.64

19.09

6.3

241.7

-2.59

G0KSC 11 LFA

2.98

13.11

48.3

1.06:1

3.78

3.65

19.14

3.0

224.9

-2.23

UA9TC 11RS

2.98

13.09

50.9

1.10:1

3.66

3.37

19.01

5.0

223.0

-2.34

G0KSC 11OWL

3.00

13.16

49.8

1.42:1

3.69

3.44

19.09

7.7

224.6

-2.27

BVO-3WL

3.01

13.43

52.7

3.08:1

3.90

3.70

19.38

8.6

253.1

-2.50

G0KSC 11LFA3R

3.01

13.00

50.1

1.08:1

3.60

3.33

18.92

4.0

223.0

-2.41

YU7EF 11

3.04

13.07

49.0

1.62:1

3.56

3.30

18.87

4.7

222.6

-2.46

F9FT 16

3.06

12.64

20.8

1.37:1

3.54

3.26

18.63

6.0

241.3

-3.05

Z(ohms) - measured on 144.100 MHz

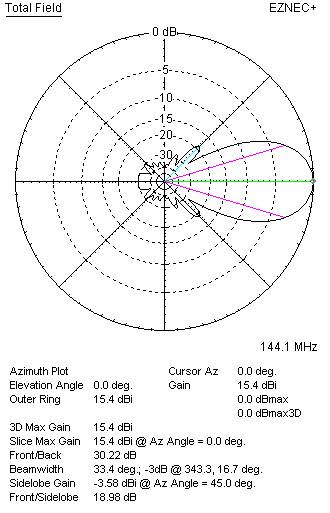

DIAGRAMS (no loss included)

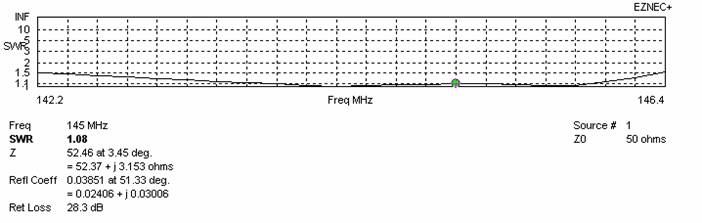

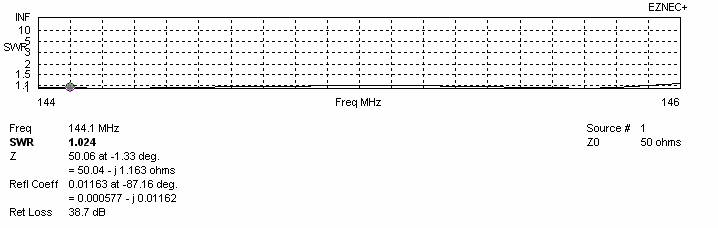

SWR DIAGRAMS (loss included for Al)





BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

Tlos

(K)

G/T

(dB)

Remark

3620

3450

21.25

224.7

3.5

-2.27

Per DL6WU formula

4080

3640

21.41

226.9

3.5

-2.14

For max G/T

3440

1380

19.51

212.2

3.5

-3.76

For lowest temperature

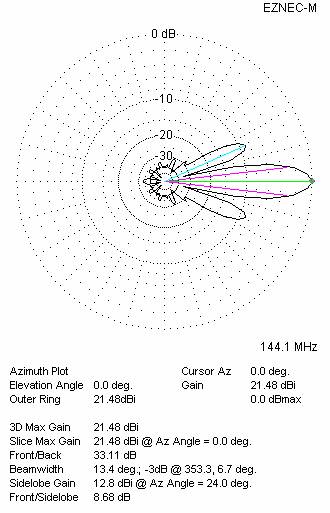

Patterns for lowest temperature



Patterns for max G/T
