ANTENNA Q209E2XL10

9 ELE OBLONG ANTENNA MADE OF ALUMINUM TUBES Ø10 MM

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

9

4585

14.42

21.15

20.46

16.46

37.0

39.2

237.1

-9.32

2.9



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

142.100

146.200

50.0

1.03:1

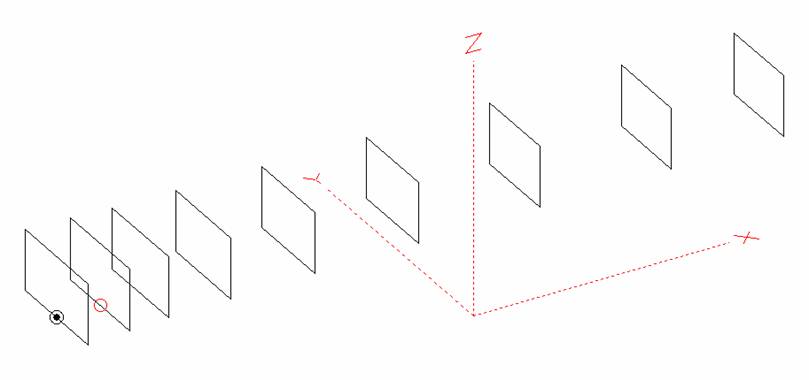

DIMENSIONS:



Ref

De1

D1

D2

D3

D4

D5

D6

D7

All elements made of Al tubes Ǿ10 mm

The height of the rectangles is 400 mm

All dimensions given in milimetres

Pos

0

285

549

952

1502

2187

3006

3844

4585

Length

726

677

640

611

597

577

567

559

553

No boom correction included.



COMPARISON



TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

WiMo WX220 XPOL

2.13

11.23

202.0

1.08:1

2.94

2.94

17.44

8.4

300.8

-5.19

Gulf Alpha 9

2.13

11.62

203.3

1.15:1

3.26

2.97

17.64

4.6

266.2

-4.46

Gulf Alpha 9 XPOL

2.13

11.60

203.9

1.15:1

3.12

3.12

17.62

5.0

267.6

-4.50

DJ9BV 2.1

2.13

11.89

44.9

1.30:1

3.33

3.04

17.87

5.8

255.2

-4.05

OZ5HF 9

2.16

11.52

38.0

1.15:1

3.21

2.92

17.47

3.0

272.6

-4.74

YU7EF 9

2.16

11.84

49.8

1.17:1

3.20

2.89

17.74

5.3

236.6

-3.84

F9FT 11

2.17

11.78

21.5

1.25:1

3.26

2.97

17.75

5.3

251.0

-4.10

CC 13B2

2.17

11.79

21.1

1.37:1

3.33

3.01

17.78

5.9

257.9

-4.18

K1FO 11

2.18

11.97

44.0

1.29:1

3.30

3.00

17.90

4.3

248.0

-3.89

CC 215WB

2.19

11.78

17.4

1.47:1

3.36

3.07

17.78

6.6

266.6

-4.33

Q209E2XL10

2.20

12.27

50.0

1.03:1

3.82

3.48

18.38

2.9

242.1

-3.31

Vine 9 FD

2.22

11.93

50.0

1.07:1

3.21

2.91

17.80

9.4

230.0

-3.67

G4CQM CQM12UX

2.32

11.94

50.2

1.06:1

3.20

2.89

17.82

4.0

231.6

-3.68

Flexa 224

2.34

11.52

60.4

1.09:1

3.50

3.30

17.66

30.1

259.2

-4.33

RA3AQ 9

2.35

12.38

49.2

1.10:1

3.40

3.13

18.31

5.6

234.3

-3.24

CT1FFU 9

2.38

12.23

28.1

1.15:1

3.26

2.97

18.08

3.6

226.8

-3.33

ZL1RS 9

2.38

12.24

48.7

2.19:1

3.30

3.01

18.13

5.6

227.2

-3.28

Eagle 10

2.38

12.28

23.6

1.33:1

3.44

3.16

18.27

6.0

243.0

-3.43

G4CQM CQM12UC

2.39

12.15

49.4

1.03:1

3.30

3.01

18.05

5.2

235.6

-3.54

DK7ZB 9

2.39

12.41

27.5

1.23:1

3.56

3.30

18.45

6.2

250.5

-3.39

Vine 10 FD

2.45

12.27

47.6

1.08:1

3.35

3.04

18.17

9.5

226.7

-3.23

DD0VF 9

2.46

12.47

25.0

1.16:1

3.48

3.18

18.44

4.4

235.8

-3.14

Z(ohms) - measured on 144.100 MHz





DIAGRAMS (no loss included)

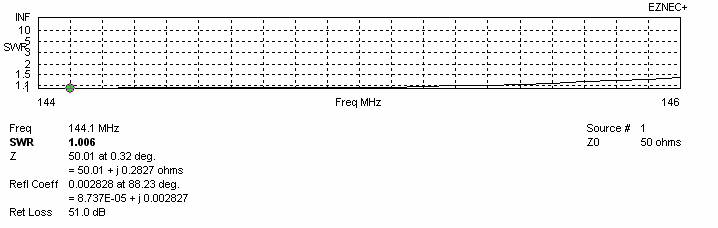

SWR DIAGRAMS (loss included for Al)





BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

Tlos

(K)

G/T

(dB)

Remark

3278

3101

20.28

238.0

2.9

-3.49

Per DL6WU formula

3800

3480

20.53

242.1

2.9

-3.31

For max G/T

2920

1520

18.70

222.0

2.9

-4.76

For lowest temperature

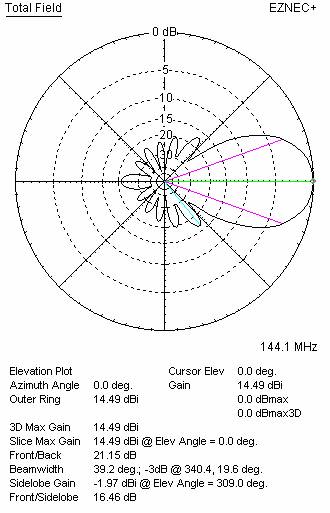

Patterns for lowest temperature



Patterns for max G/T
