ANTENNA Q206E1XL5
6 ELE OBLONG ANTENNA MADE OF ALUMINUM RODS Ø5 MM
PERFORMANCES:
|
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
4 |
2555 |
12.69 |
21.69 |
24.47 |
16.81 |
43.8 |
48.4 |
260.3 |
-11.46 |
5.5 |
WORKING CONDITION:
|
Frequency for SWR=1.5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
|
|
Lowest |
Highest |
||
|
142.500 |
146.200 |
50.3 |
1.06:1 |
DIMENSIONS:
|
|
Ref |
De1 |
D1 |
D2 |
D3 |
D4 |
|
All elements made of Al tubes Ǿ5 mm The height of the rectangles is 400 mm All dimensions given in milimetres |
|
Pos |
0 |
292 |
555 |
1106 |
1872 |
2555 |
|
|
|
Length |
713 |
670 |
647 |
617 |
593 |
586 |
|
No boom correction included.
COMPARISON
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
G4CQM 6 |
1.00 |
9.46 |
56.7 |
1.83:1 |
2.60 |
2.17 |
15.44 |
7.9 |
249.7 |
-6.38 |
|
KF2YN boxkite6 |
1.04 |
12.47 |
49.9 |
1.20:1 |
3.90 |
3.00 |
18.25 |
4.6 |
263.1 |
-3.80 |
|
Vine 6 FD |
1.10 |
9.69 |
48.3 |
1.18:1 |
2.64 |
2.21 |
15.67 |
8.2 |
238.4 |
-5.95 |
|
G0KSC 6LFA |
1.13 |
9.69 |
49.3 |
1.04:1 |
2.60 |
2.19 |
15.64 |
4.0 |
236.9 |
-5.96 |
|
DD0VF 6 |
1.16 |
9.73 |
27.2 |
1.07:1 |
2.63 |
2.22 |
15.71 |
5.5 |
240.1 |
-5.94 |
|
Q206E1XL5 |
1.23 |
10.54 |
50.3 |
1.06:1 |
3.06 |
2.42 |
16.44 |
5.5 |
245.7 |
-5.31 |
|
M2 2M7 |
1.28 |
9.94 |
204.9 |
1.14:1 |
2.65 |
2.26 |
15.76 |
3.7 |
245.0 |
-5.98 |
|
G0KSC 7LFA |
1.39 |
10.62 |
48.0 |
1.19:1 |
2.84 |
2.49 |
16.53 |
1.8 |
248.9 |
-5.28 |
|
DG7YBN 7 |
1.44 |
10.59 |
47.2 |
1.70:1 |
2.88 |
2.47 |
16.55 |
4.5 |
242.7 |
-5.15 |
|
Vine 7 FD |
1.45 |
10.56 |
47.9 |
1.14:1 |
2.83 |
2.46 |
16.47 |
8.2 |
238.6 |
-5.16 |
|
G4CQM 7 |
1.50 |
10.76 |
50.7 |
2.31:1 |
2.89 |
2.53 |
16.69 |
7.9 |
239.9 |
-4.96 |
|
CT1FFU 7 |
1.54 |
10.82 |
28.0 |
1.02:1 |
2.87 |
2.50 |
16.70 |
2.8 |
237.7 |
-4.96 |
|
DK7ZB 7 |
1.57 |
11.11 |
28.4 |
1.64:1 |
3.16 |
2.84 |
17.13 |
5.8 |
272.6 |
-5.07 |
|
IK0BZY 6 |
1.63 |
11.11 |
19.5 |
2.27:1 |
3.10 |
2.77 |
17.04 |
4.8 |
266.5 |
-5.07 |
|
Z(ohms) - measured on 144.100 MHz |
||||||||||

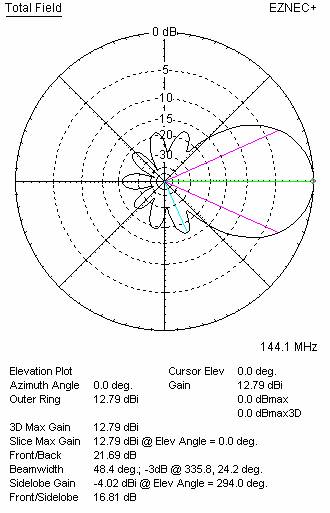

DIAGRAMS (no loss included)

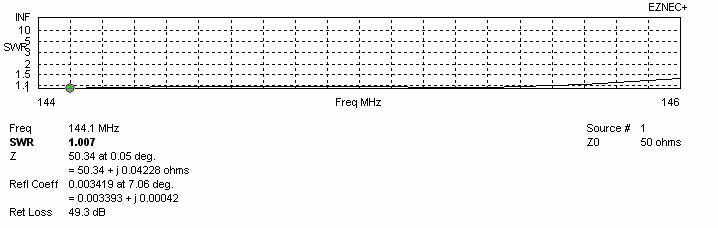

SWR DIAGRAMS (loss included for Al)
BEST DISTANCES FOR 4 ANTENNAS IN H-STACK
|
Horizontal distance (cm) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
Tlos (K) |
G/T (dB) |
Remark |
|
2789 |
2538 |
18.60 |
250.9 |
5.5 |
-5.49 |
Per DL6WU formula |
|
3060 |
2420 |
18.62 |
246.2 |
5.5 |
-5.30 |
For max G/T |
|
1920 |
1500 |
16.78 |
228.6 |
5.5 |
-6.81 |
For lowest temperature |

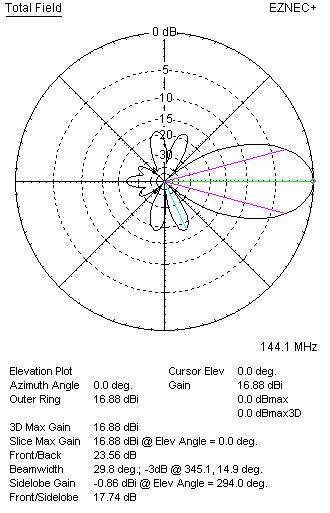

Patterns for lowest temperature
Patterns for max G/T
