ANTENNA Q205G1XL10

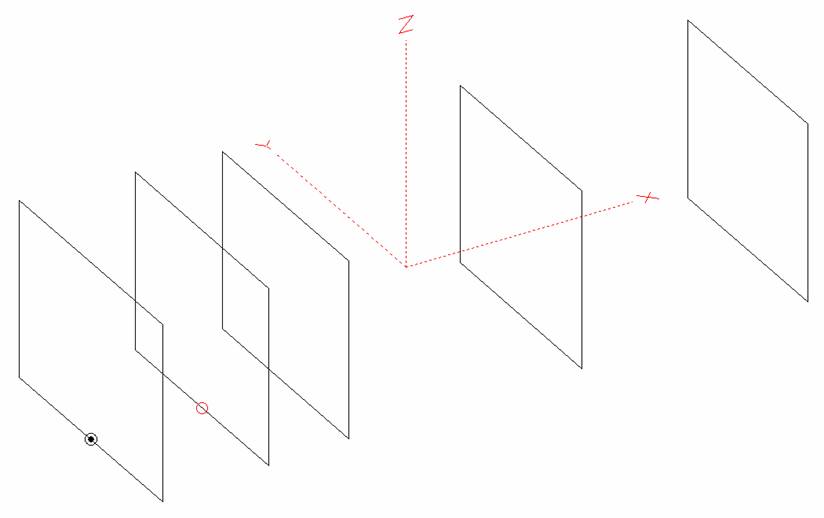

5 ELE OBLONG ANTENNA MADE OF ALUMINUM TUBES Ø10 MM



PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

4

1725

11.81

17.37

25.03

14.88

48.2

53.2

286.3

-12.76

2.6



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

142.200

146.300

49.9

1.0751



DIMENSIONS:



Ref

De1

D1

D2

D3





All elements made of Al tubes Ǿ10 mm

The height of the rectangles is 470 mm

All dimensions given in milimetres

Pos

0

295

516

1142

17.45





Length

659

616

581

561

550





No boom correction included.



COMPARISON



TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

Q204G2XL8

0.83

9.66

49.9

1.05:1

3.06

2.20

15.57

2.6

259.8

-6.43

G4CQM 6

1.00

9.46

56.7

1.83:1

2.60

2.17

15.44

7.9

249.7

-6.38

KF2YN boxkite6

1.04

12.47

49.9

1.20:1

3.90

3.00

18.25

4.6

263.1

-3.80

Vine 6 FD

1.10

9.69

48.3

1.18:1

2.64

2.21

15.67

8.2

238.4

-5.95

G0KSC 6LFA

1.13

9.69

49.3

1.04:1

2.60

2.19

15.64

4.0

236.9

-5.96

DD0VF 6

1.16

9.73

27.2

1.07:1

2.63

2.22

15.71

5.5

240.1

-5.94

M2 2M7

1.28

9.94

204.9

1.14:1

2.65

2.26

15.76

3.7

245.0

-5.98

Z(ohms) - measured on 144.100 MHz



DIAGRAMS (no loss included)

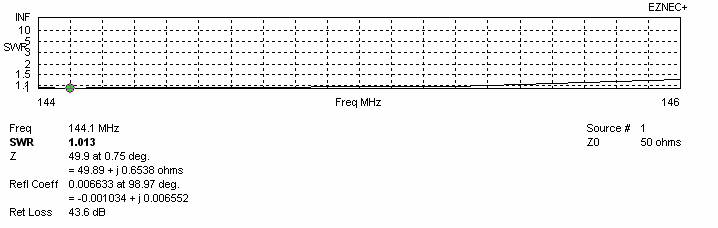

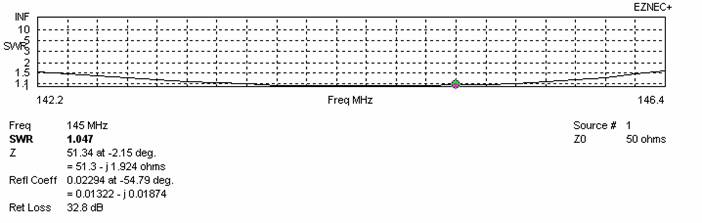

SWR DIAGRAMS (loss included for Al)





BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

Tlos

(K)

G/T

(dB)

Remark

2548

2323

17.74

265.6

2.6

-6.50

Per DL6WU formula

3060

2200

17.72

259.8

2.6

-7.43

For max G/T

1860

1580

16.27

248.3

2.6

-7.68

For lowest temperature

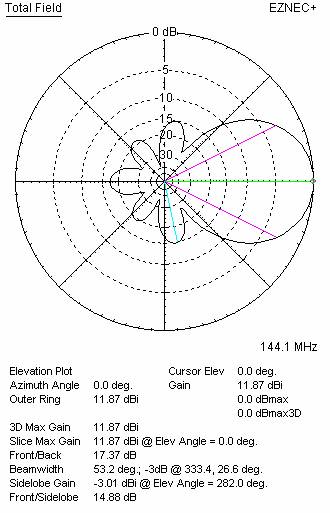

Patterns for lowest temperature

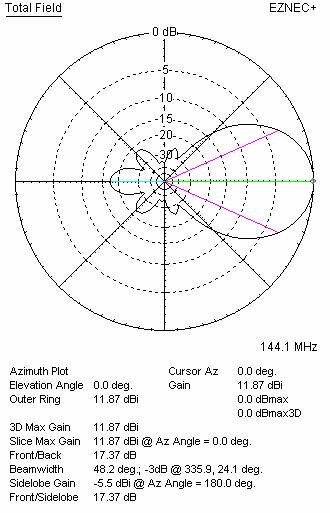

Patterns for max G/T
