ANTENNA Q204G2XL10

4 ELE OBLONG ANTENNA MADE OF ALUMINUM TUBES Ø10 MM



PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

4

1045

10.48

18.37

21.51

14.24

54.8

62.8

318.6

-14.55

2.9



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

142.100

146.800

50.0

1.07:1

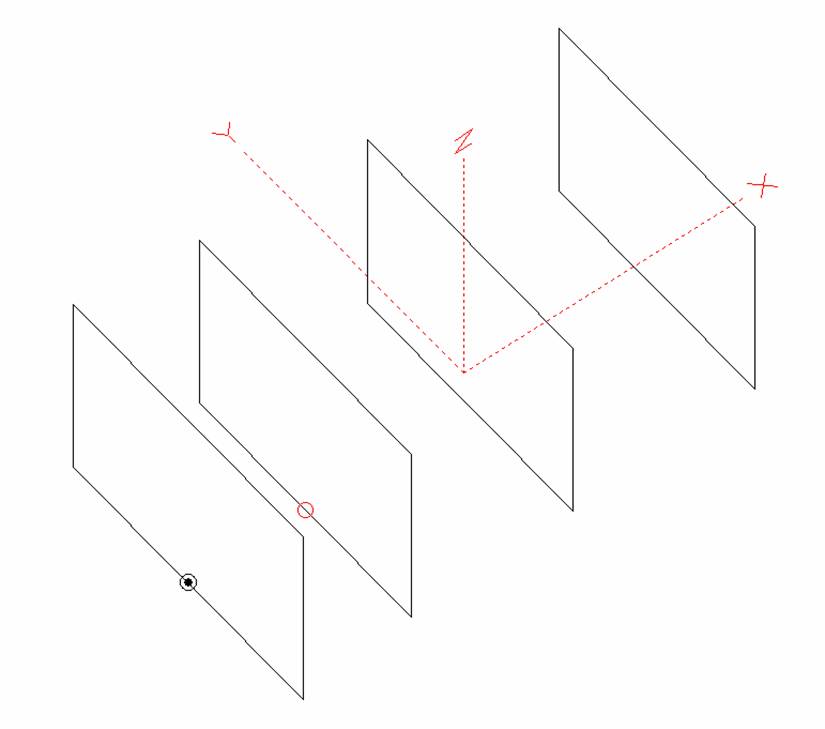

DIMENSIONS:



Ref

De1

D1

D2







All elements made of Al tubes Ǿ10 mm

The height of the rectangles is 470 mm

All dimensions given in milimetres

Pos

0

244

623

1045







Length

665

604

583

555







No boom correction included.



COMPARISON



TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

Q204G2XL10

0.50

8.33

50.0

1.07:1

2.74

1.88

14.33

2.3

259.2

-7.65

G4CQM 6

1.00

9.46

56.7

1.83:1

2.60

2.17

15.44

7.9

249.7

-6.38

KF2YN boxkite6

1.04

12.47

49.9

1.20:1

3.90

3.00

18.25

4.6

263.1

-3.80

Vine 6 FD

1.10

9.69

48.3

1.18:1

2.64

2.21

15.67

8.2

238.4

-5.95

G0KSC 6LFA

1.13

9.69

49.3

1.04:1

2.60

2.19

15.64

4.0

236.9

-5.96

DD0VF 6

1.16

9.73

27.2

1.07:1

2.63

2.22

15.71

5.5

240.1

-5.94

M2 2M7

1.28

9.94

204.9

1.14:1

2.65

2.26

15.76

3.7

245.0

-5.98

Z(ohms) - measured on 144.100 MHz

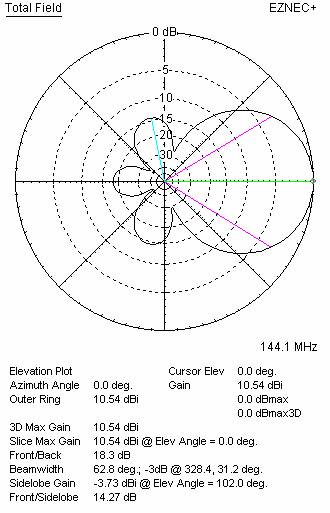

DIAGRAMS (no loss included)

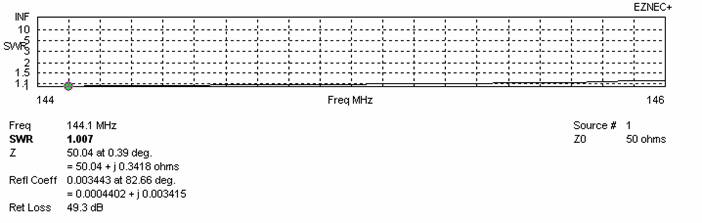

SWR DIAGRAMS (loss included for Al)







BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

Tlos

(K)

G/T

(dB)

Remark

2260

1997

16.49

269.1

2.3

-7.80

Per DL6WU formula

2740

1880

16.48

259.2

2.3

-7.65

For max G/T

1480

1580

15.12

246.7

2.3

-8.80

For lowest temperature



Patterns for lowest temperature



Patterns for max G/T
