ANTENNA QY233601XL3D31 |
|
|
|
DESCRIPTION |
||||
|
Radiator |
Number of yagi elements |
Number of oblong elements |
Total number of elements |
Boomlength (mm) |
|
LFA |
5 |
31 |
36 |
3115 |
|

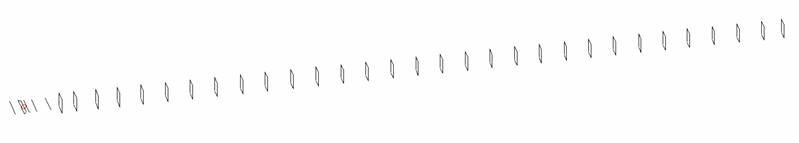

DIMENSIONS |
||||||||||||||||
|
|
Ref |
De1 |
De2 |
D1 |
D2 |
D3 |
DQ1 |
DQ2 |
DQ3 |
DQ4 |
DQ5 |
DQ6 |
DQ7 |
DQ8 |
DQ9 |
DQ10 |
|
Position |
0 |
35 |
45 |
57 |
88 |
144 |
193 |
254 |
341 |
428 |
524 |
624 |
723 |
822 |
926 |
1027 |
|
Length |
112.0 |
116.0 |
96.0 |
103.4 |
103.2 |
98.8 |
58.8 |
57.2 |
55.0 |
54.2 |
52.4 |
52.2 |
51.4 |
50.8 |
50.2 |
49.6 |
|
|
DQ11 |
DQ12 |
DQ13 |
DQ14 |
DQ15 |
DQ16 |
DQ17 |
DQ18 |
DQ19 |
DQ20 |
DQ21 |
DQ22 |
DQ23 |
DQ24 |
|
Position |
1131 |
1232 |
1334 |
1434 |
1535 |
1636 |
1734 |
1836 |
1935 |
2036 |
2134 |
2236 |
2334 |
2435 |
|
Length |
48.4 |
47.8 |
47.4 |
47.0 |
46.8 |
46.6 |
46.4 |
46.2 |
46.2 |
46.2 |
46.2 |
46.0 |
46.0 |
46.0 |
|
|
DQ25 |
DQ26 |
DQ27 |
DQ28 |
DQ29 |
DQ30 |
DQ31 |
|
|
|
|
|
|
|
|
Position |
2537 |
2636 |
2734 |
2834 |
2935 |
3034 |
3115 |
|
|
|
|
|
|
|
|
Length |
46.0 |
46.0 |
46.0 |
46.0 |
46.0 |
46.0 |
46.0 |
|
|
|
|
|
|
|
|
REMARKS |
All elements made of CuAg wires Ǿ1.5 mm The height of rectangles is 60 mm All dimensions given in milimetres |
|
PERFORMANCES (No loss condition) |
|||||||
|
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
|
20.96 |
29.40 |
16.99 |
17.29 |
18.2 |
18.2 |
213.0 |
-2.29 |
|
PERFORMANCES (Loss included for silver) |
||||||
|
Aluminum |
G (dBi) |
TA (K) |
Tloss (K) |
G/T (dB) |
Bandwidth for SWR=1.5 (MHz) |
ΔF (MHz) |
|
After NEC/EZNEC |
20.96 |
14.5 |
|
+11.23 |
1275.000 – 1316.000 |
41.000 |
|
After KF2YN correction |
20.77 |
21.3 |
7.1 |
+7.50 |
||
|
Remark |
||||||
|
DIAGRAMS (no loss included) |
|
|
|
Horizontal and vertical pattern in free space, no loss condition |
|
DIAGRAMS (loss included for silver) |
|
|

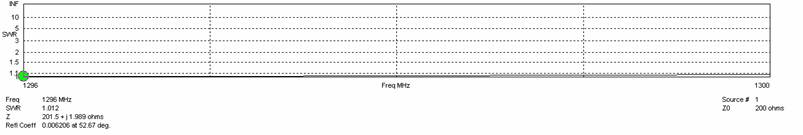

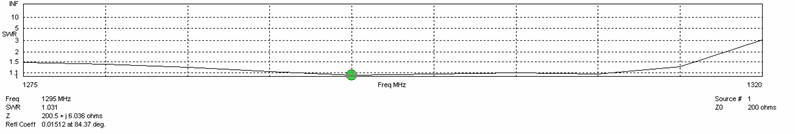

SWR diagram for the range from 1275.000 – 1320.000 MHz and 1296 – 1300 MHz
|

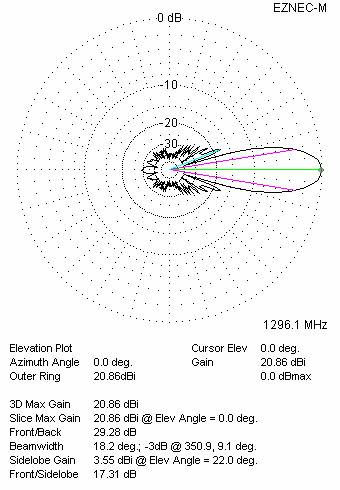

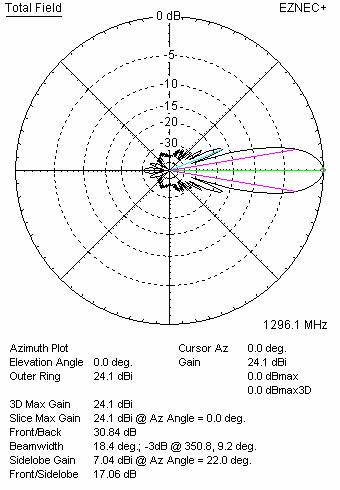

Horizontal and vertical pattern in free space, loss included for silver |
|
STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED FOR SILVER) |
|
RECOMMENDED STACKING DISTANCES |
|||
|
|
Two antennas vertically (mm) |
Two antennas horizontally (mm) |
Four antennas i H-stack (mm) |
|
Vertical distance |
980 |
|
980 |
|
Horizontal distance |
|
1000 |
1000 |
|
TWO ANTENNAS STACKED VERTICALLY |
|||||
|
DISTANCE |
G |
TA |
G/T |
Tloss |
|
|
980 |
23.91 |
21.6 |
+10.58 |
7.1 |
|
|

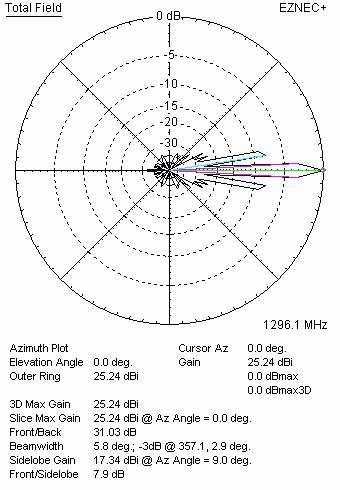

TWO ANTENNAS STACKED HORIZONTALLY |
|||||
|
DISTANCE |
G |
TA |
G/T |
Tloss |
|
|
1000 |
23.90 |
21.6 |
+10.57 |
7.1 |
|
|

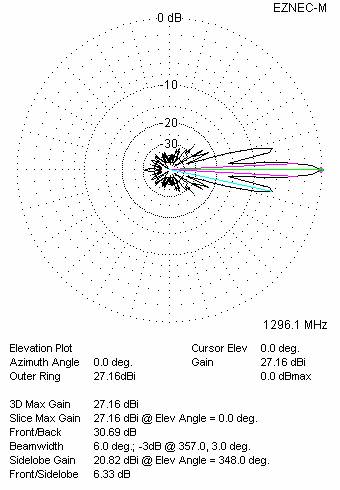

FOUR ANTENNAS IN H-STACK |
|||||
|
DISTANCE |
G |
TA |
G/T |
Tloss |
|
|
H = 1000 |
26.97 |
21.3 |
+13.70 |
7.1 |
|
|
V = 980 |
|||||
