ANTENNA QY232401XL2D19



DESCRIPTION

Radiator

Number of

yagi elements

Number of

oblong elements

Total number

of elements

Boomlength

(mm)

LFA

5

19

24

1915

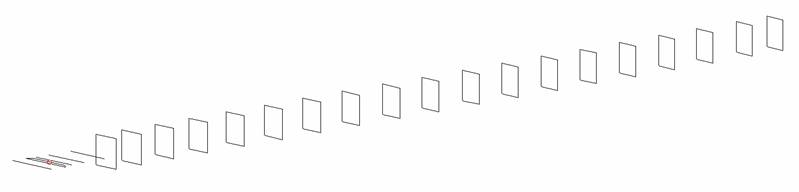

DIMENSIONS



Ref

De1

De2

D1

D2

D3

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

DQ10

Position

0

35

45

57

89

143

191

256

341

428

524

622

721

822

926

1027

Length

112.0

114.0

91.0

103.0

102.8

98.4

58.4

57.0

55.2

54.0

52.6

51.8

51.2

50.6

49.8

49.0





DQ11

DQ12

DQ13

DQ14

DQ15

DQ16

DQ17

DQ18

DQ19











Position

1131

1232

1334

1434

1535

1636

1734

1836

1915











Length

48.4

47.8

47.4

47.0

46.8

46.6

46.4

46.2

46.2













REMARKS

All elements made of CuAg wires Ǿ1.5 mm

The height of rectangles is 60 mm

All dimensions given in milimetres



PERFORMANCES (No loss condition)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Tearth

(◦K)





G/T

(dB)

19.15

33.30

19.50

18.54

22.6

22.6

15.1



+9.00



PERFORMANCES (Loss included for silver)

Aluminum

G

(dBi)

TA

(◦K)

Tloss

(◦K)

G/T

(dB)

Bandwidth for SWR=1.5

(MHz)

ΔF

(MHz)

After NEC/EZNEC

19.15

15.0



+ 9.26

1282.000 – 1318.000

36.000

After KF2YN correction

18.97

21.2

6.6

+5.70

Remark





DIAGRAMS (no loss included)

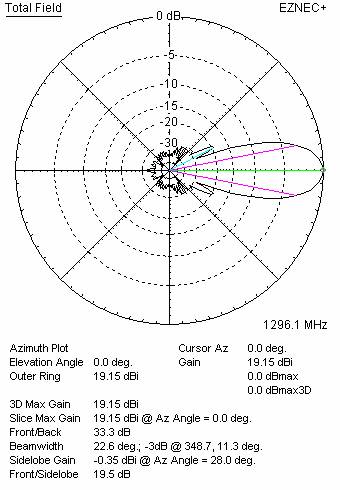

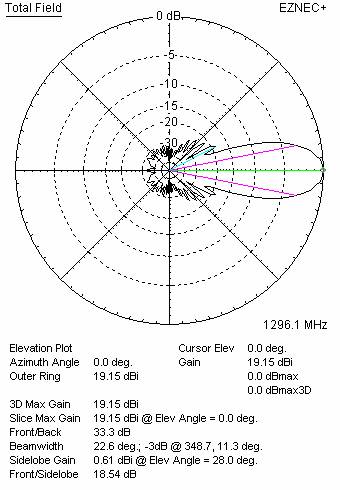

Horizontal and vertical pattern in free space, no loss condition




DIAGRAMS (loss included for silver)

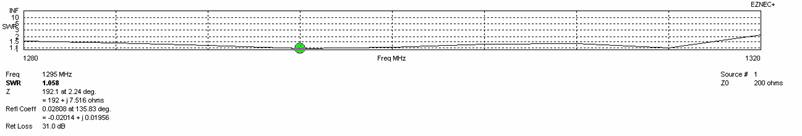

SWR diagram for the range from 1280.000 – 1320.000 MHz and 1296.000 -1300 MHz

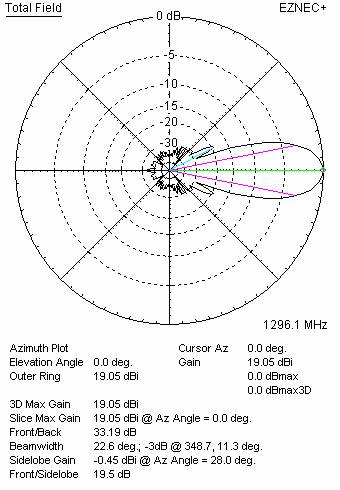

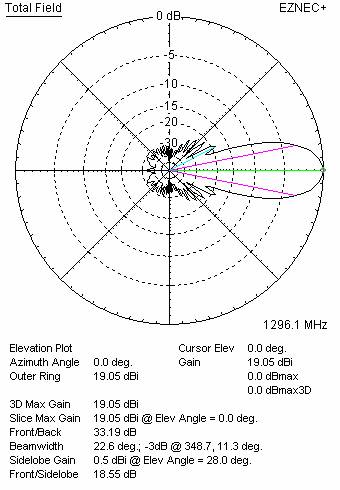

Horizontal and vertical pattern in free space, loss included for silver





STACKING

(ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED FOR SILVER)



RECOMMENDED STACKING DISTANCES



Two antennas vertically

(mm)

Two antennas horizontally

(mm)

Four antennas i H-stack

(mm)

Vertical distance

900



900

Horizontal distance



940

940

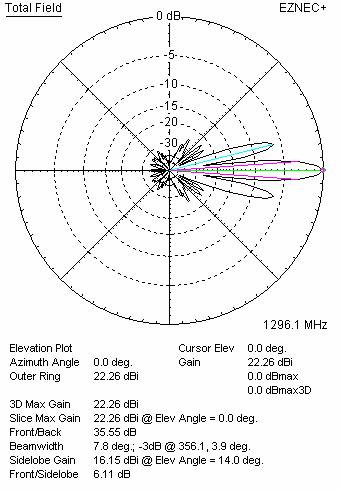

TWO ANTENNAS STACKED VERTICALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

G/T
(dB)

Tloss
(K)

800

22.04

21.2

+8.77

6.6

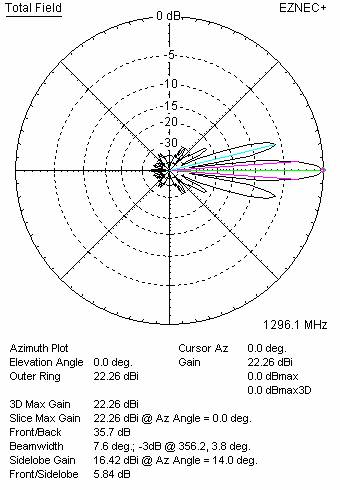

TWO ANTENNAS STACKED HORIZONTALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

G/T
(dB)

Tloss
(K)

820

22.03

21.2

+8.76

6.6

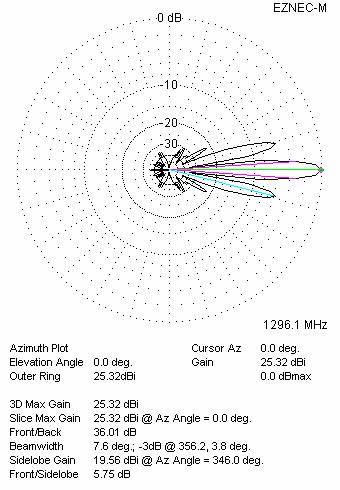

FOUR ANTENNAS IN H-STACK

DISTANCE
(mm)

G
(dBi)

TA
(K)

G/T
(dB)

Tloss
(K)

H = 820

25.10

21.1

+11.85

6.6

V = 800











DESCRIPTION

Radiator

Number of

yagi elements

Number of

oblong elements

Total number

of elements

Boomlength

(mm)

LFA

5

19

24

1915



DIMENSIONS



Ref

De1

De2

D1

D2

D3

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

DQ10

Position

0

35

45

57

89

143

191

256

341

428

524

622

721

822

926

1027

Length

112.0

114.0

91.0

103.0

102.8

98.4

58.4

57.0

55.2

54.0

52.6

51.8

51.2

50.6

49.8

49.0





DQ11

DQ12

DQ13

DQ14

DQ15

DQ16

DQ17

DQ18

DQ19











Position

1131

1232

1334

1434

1535

1636

1734

1836

1915











Length

48.4

47.8

47.4

47.0

46.8

46.6

46.4

46.2

46.2













REMARKS

All elements made of CuAg wires Ǿ1.5 mm

The height of rectangles is 60 mm

All dimensions given in milimetres



PERFORMANCES (No loss condition)

G

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Temp

(◦K)

G/T

(dB)

19.15

33.30

19.50

18.54

22.6

22.6

214.4

-4.14



PERFORMANCES (Loss included for silver)

Aluminum

G

(dBi)

Temp

(◦K)

G/T

(dB)

Bandwidth for SWR=1.5

(MHz)

ΔF

(MHz)

After NEC/EZNEC

19.05

214.7

-4.28

1282.000 – 1318.000

36.000

After KF2YN correction

18.98

216.1

-4.37

Remark





DIAGRAMS (no loss included)





Horizontal and vertical pattern in free space, no loss condition




DIAGRAMS (loss included for silver)

SWR diagram for the range from 1280.000 – 1320.000 MHz and 1296.000 -1300 MHz







Horizontal and vertical pattern in free space, loss included for silver





STACKING

(ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED FOR SILVER)



RECOMMENDED STACKING DISTANCES



Two antennas vertically

(mm)

Two antennas horizontally

(mm)

Four antennas i H-stack

(mm)

Vertical distance

900



900

Horizontal distance



940

940



TWO ANTENNAS STACKED VERTICALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

G/T
(dB)

Tloss
(K)

800

22.03

216.5

-1.32

6.5



TWO ANTENNAS STACKED HORIZONTALLY

DISTANCE
(mm)

G
(dBi)

TA
(K)

G/T
(dB)

Tloss
(K)

820

22.03

216.5

-1.32

6.5



FOUR ANTENNAS IN H-STACK

DISTANCE
(mm)

G
(dBi)

TA
(K)

G/T
(dB)

Tloss
(K)

H = 820

25.09

216.5

+1.74

6.5

V = 800





Note: For such long antennas stacked, the propper segmentation number is too big, making calculation impossible in EZNEC with a common dual-core computer. Therefore I use a lower number of segments. The result shuld be very close to what has to be the true value. Just, the antenna gain (maybe for 0.05 to 0.1 dB), and the temperature (for 1.0 to 1.5K) are  a bit higher. Therefore, the G/T factor should be correct.
