ANTENNA QY21506XL3D8

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

15

9605

16.77

28.60

20.62

17.94

28.6

29.8

218.7

-6.62

6.6



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

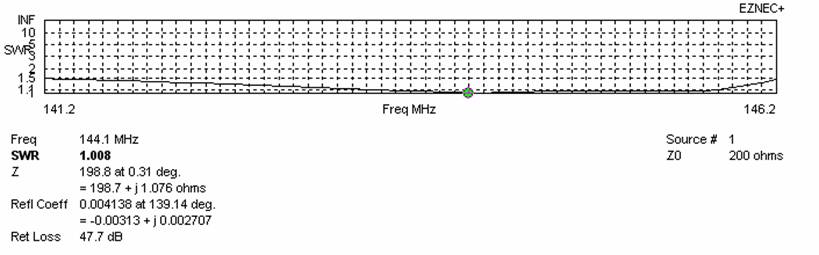

at 144.100 MHz

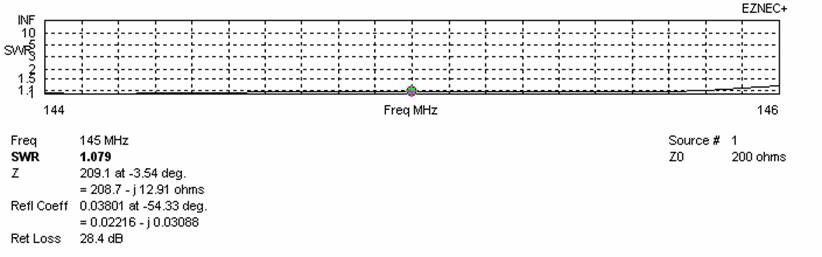

SWR at 145.000 MHz

Lowest

Highest

Bandwidth

141.200

146.200

5.000

198.7

1.08:1

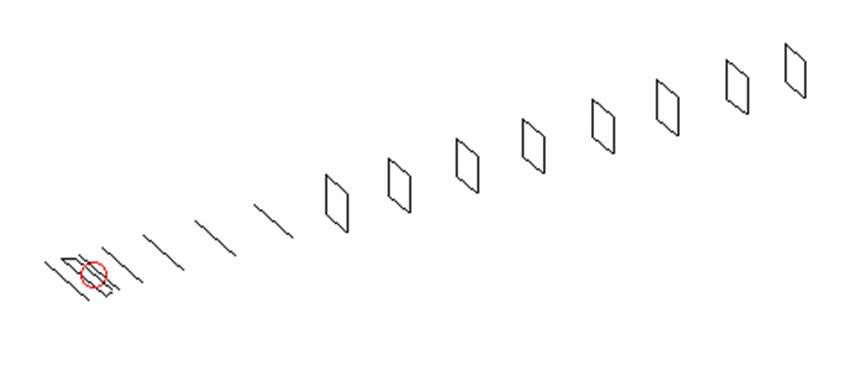

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

All elements made of Al rods Ǿ6mm

The height of all rectangles is 500

All dimensions given in milimetres

Pos

0

225

355

422

733

1286

1966

2732

Length

1016

1016

860

941

953

932

913

897



DQ1

DQ2

DQ3

DQ4









Pos

3556

4378

5274

6156

7078

7926

8836

9605

Length

523

505

493

485

479

473

465

451

No boom correction included.



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

QY21506XL3D8

4.60

14.62

198.7

1.08:1

4.42

4.28

20.56

6.6

216.7

-0.65

RA3AQ-14

4.61

14.71

50.0

1.19:1

4.27

4.07

20.55

5.0

219.1

-0.71

G4CQM 16

4.64

14.55

50.9

1.78:1

4.39

4.18

20.47

8.8

234.6

-1.08

YU7EF 15M

4.68

14.59

48.6

1.03:1

4.21

4.00

20.40

7.0

221.7

-0.89

DK7ZB 14

4.73

14.92

26.9

1.50:1

4.59

4.39

20.87

6.8

233.0

-0.65

DG7YBN 16

4.74

14.79

46.6

1.18:1

4.45

4.60

20.79

6.1

222.4

-0.53

G0KSC 15LFA

4.75

14.72

49.9

1.17:1

4.60

4.45

20.72

5.9

215.0

-0.45

InnoV 15 LFA

4.76

14.73

49.0

1.17:1

4.60

4.45

20.74

6.6

215.4

-0.44

K1FO 18

4.78

14.37

199.9

1.32:1

4.36

4.16

20.62

2.8

228.6

-0.82

InnoV 15 OWL

4.78

14.79

52.2

1.32:1

4.36

4.15

20.66

7.6

217.9

-0.57

M2 28 XPOL

4.81

15.18

200.1

5.19:1

4.83

4.83

21.14

13.9

243.1

-0.57

DJ9BV 4.8

4.82

14.63

49.7

1.29:1

4.40

4.19

20.48

6.6

242.8

-1.22

M2 5WL

4.83

14.64

200.9

1.42:1

4.56

4.36

20.58

3.7

248.1

-1.22

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

Data taken from VE7BQH G/T table



DIAGRAMS (no loss included)



DIAGRAMS (losses included)





STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

17.39

222.1

-6.05

110

16.92

238.0

-6.83

110

17.66

217.1

-5.68

120

17.35

235.3

-6.35

120

17.85

214.8

-5.44

130

17.68

229.7

-5.91

130

17.99

214.8

-5.30

140

17.90

226.3

-5.63

140

18.10

216.2

-5.22

150

18.07

224.4

-5.42

150

18.19

217.2

-5.15

160

18.20

223.4

-5.27

160

18.28

216.6

-5.05

170

18.31

222.8

-5.15

170

18.37

215.6

-4.94

180

18.40

222.6

-5.05

180

18.46

214.7

-4.83

190

18.49

222.5

-4.96

190

18.55

214.3

-4.73

200

18.56

222.4

-4.89

200

18.63

214.2

-4.65

210

18.64

222.3

-4.81

210

18.71

214.2

-4.58

220

18.71

222.2

-4.73

220

18.78

215.0

-4.52

230

18.78

222.0

-4.66

230

18.85

216.0

-4.47

240

18.84

221.7

-4.59

240

18.91

217.1

-4.43

250

18.91

221.2

-4.51

250

18.97

218.3

-4.40

260

18.98

220.6

-4.43

260

19.03

219.4

-4.36

270

19.04

220.0

4.36

270

19.09

220.3

-4.32

280

19.11

219.2

-4.27

280

19.15

220.7

-4.26

290

19.17

218.4

-4.20

290

19.21

220.7

-4.20

300

19.23

217.6

-4.12

300

19.28

220.4

-4.13

310

19.30

216.9

-4.04

310

19.34

219.8

-4.06

320

19.36

216.2

-3.96

320

19.41

219.1

-3.97

330

19.43

215.6

-3.88

330

19.47

218.4

-3.90

340

19.49

215.1

-3.81

340

19.53

217.9

-3.83

350

19.54

214.8

-3.75

350

19.58

217.7

-3.77

360

19.60

214.5

-3.69

360

19.63

217.7

-3.72

370

19.65

214.4

-3.63

370

19.68

217.7

-3.67

380

19.70

214.3

-3.58

380

19.73

217.6

-3.62

390

19.74

214.4

-3.54

390

19.77

217.4

-3.58

400

19.78

215.5

3.51

400

19.81

217.2

-3.53

410

19.81

214.6

-3.48

410

19.84

216.9

-3.50

420

19.85

214.8

-3.44

420

19.87

216.6

-3.46

430

19.87

214.9

-3.43

430

19.90

216.2

-3.42

440

19.90

215.1

-3.40

440

19.93

215.8

-3.38

450

19.92

215.2

-3.38

450

19.95

215.3

-3.35

460

19.94

215.3

-3.36

460

19.97

214.9

-3.33

470

19.95

215.4

-3.36

470

19.99

214.4

-3.30

480

19.97

215.5

-3.34

480

20.00

214.0

-3.28

490

19.98

215.6

-3.33

490

20.01

213.5

-3.26

500

19.99

215.7

-3.32

500

20.02

213.0

-3.24

510

20.00

215.9

-3.32

510

20.03

212.6

-3.22

520

20.00

216.0

-3.32

520

20.04

212.3

-3.20

530

20.01

216.1

-3.31

530

20.04

212.2

-3.20

540

20.01

216.3

-3.31

540

20.04

212.3

-3.20

550

20.01

216.5

-3.32

550

20.04

212.6

-3.21

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good

result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Tloss

(K)

Remark

3993

3844

22.19

216.3

-1.17

6.3

Per DL6WU formula

4220

4420

22.37

216.7

-0.99

6.3

For max G/T

3620

4420

22.13

215.4

-1.21

6.3

For lowest temperature

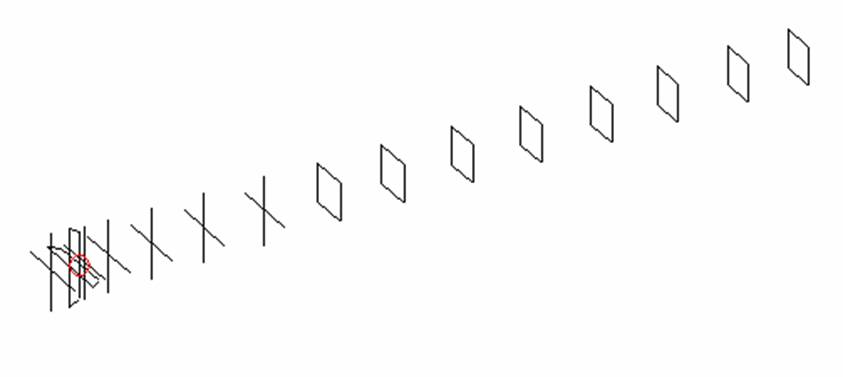

XPOL VERSION

Horizontal components: Same as above

Vertical components: Same as above, except:

PERFORMANCES:

Polarization

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor

(◦)

Ver

(◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

Horizontal

16.77

28.60

20.62

17.94

28.6

29.8

218.7

-6.62

6.6

Vertical

16.89

24.55

16.08

19.21

29.0

28.0

220.4

-6.54

6.8

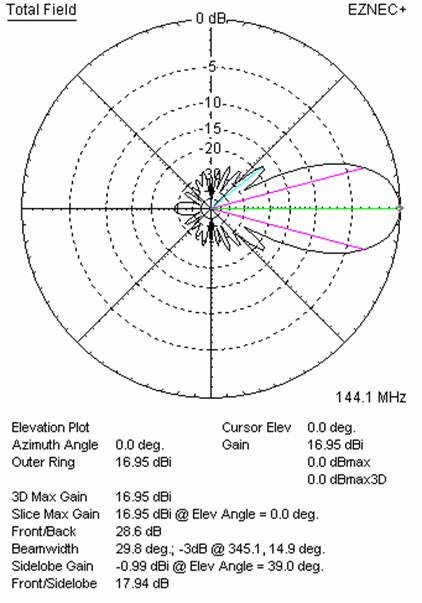

Horizontal polarisation patterns



 Vertical polarisation patterns
