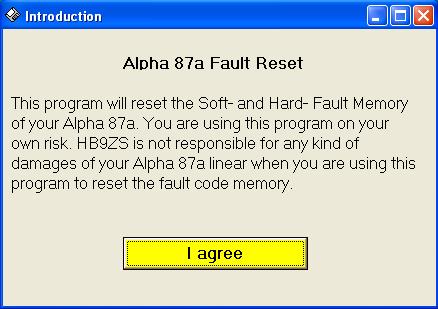

- Click to "I agree" if you accept the rules otherwise exit the program

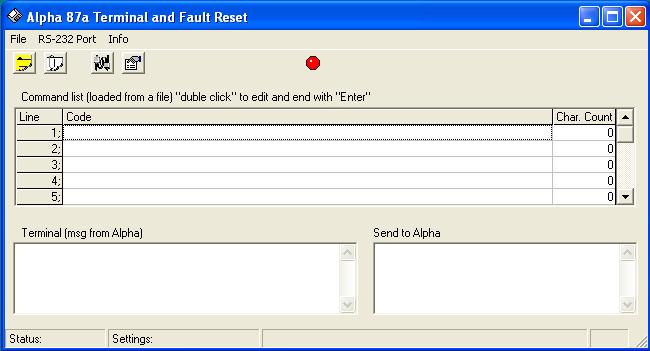

Picture after program start
- Click to "I agree" if you accept the rules otherwise exit the
program

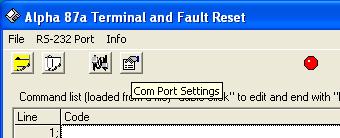

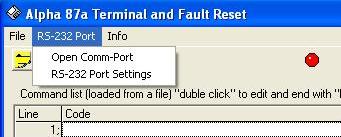

Com
Port Settings

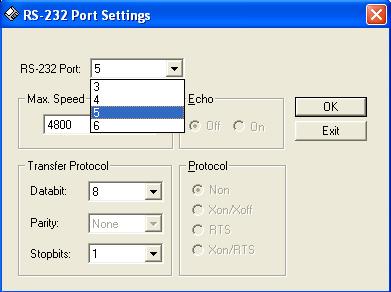

Set the COM port using the drop down menus of the program. Any free COM port
between 1 and 20 can be used.
Standard: Com1, Speed: 4800, Parity: None, Databits: 8, Stopbits:
1
Load
a Command File in to the Command List
Try for the first time the "Info 1.rst" file
in the program folder.

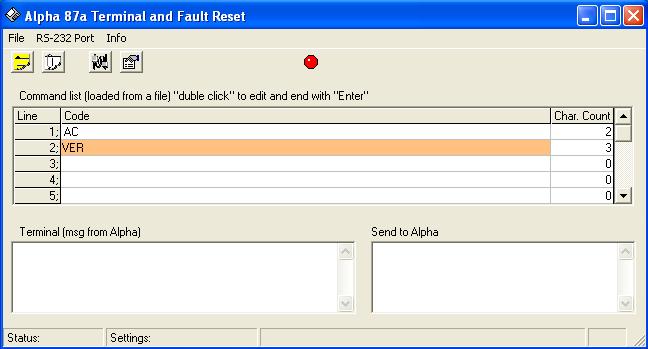

Load the file in to the command list

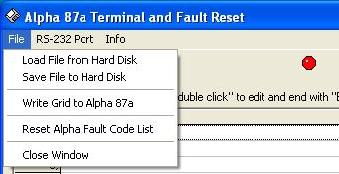

- Click on "Load file from Hard Disk" using the drop down menus of the
program.
- Open the file
- The file is now loaded in the command list.

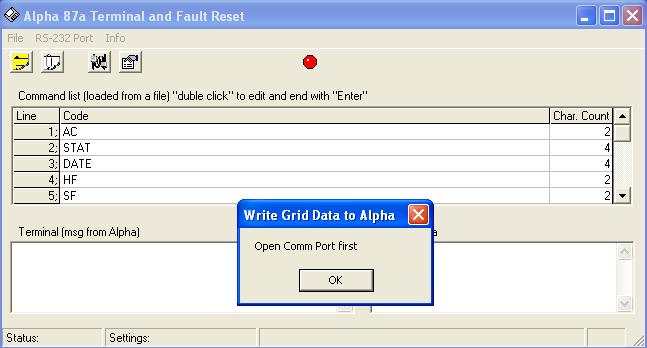

- If the Com Port is not open

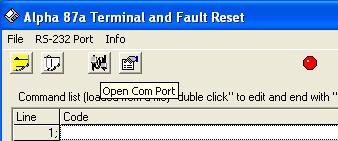

- Open the Com port by using the third icon.
- Double click the first line
- Edit the command
- Terminate the line with "Enter"
- Next line, same procedure

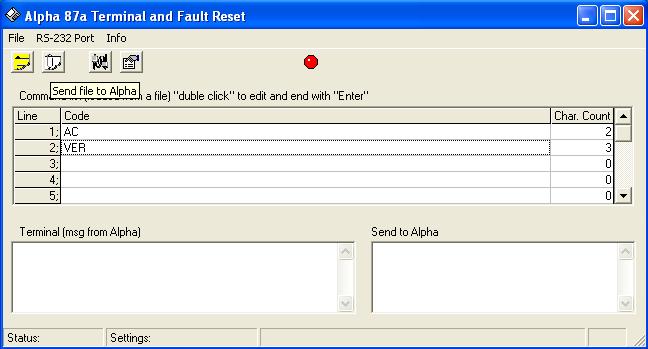

Send the list to the Alpha
- Open the Com Port
- Click the second Icon

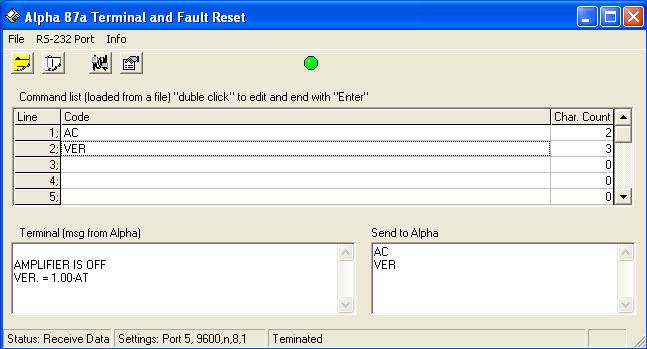

The result

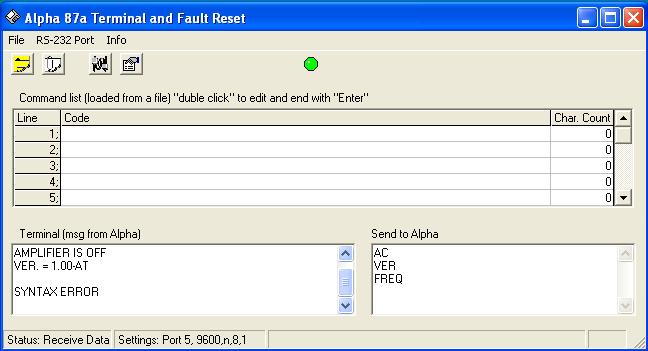

Manual Operation
- Open the Com Port
- Write the commands in to the Window "Send to Alpha"
- Terminate each command with "Enter"
- the answer of the Alpha is in the Window "Terminal (msg from Alpha)"

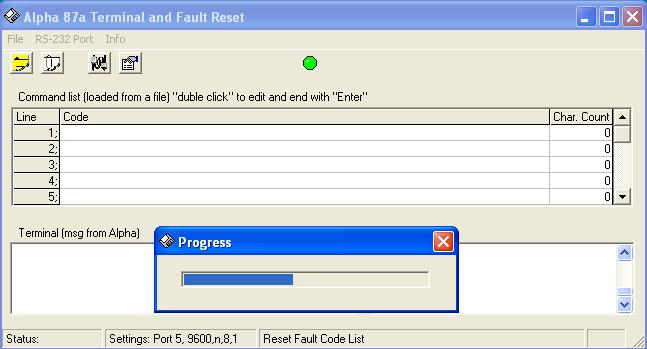

Reset
Soft- and Hard Faults
- Open the Com Port
- Click to the first Icon (Yellow)
You are not allowed by the program to reset the
fault code memory more than one time.
For more information please contact HB9ZS
11.06.2009 / HB9ZS
