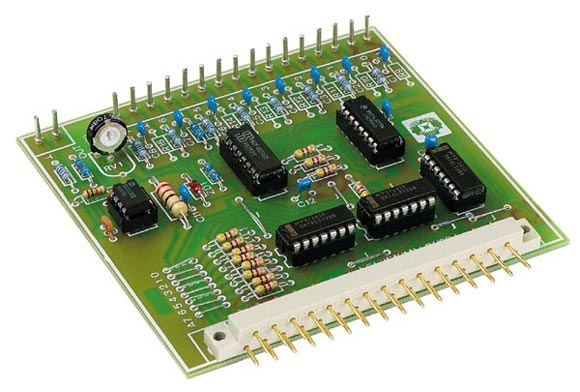

K2635 8 TO 1 ANALOG MULTIPLEXER
In most measurement and control systems, several analog
variables have to be measured or guarded. The combination of an analog
multiplexer card and one single A/D converter K2610 replaces the use of eight
single A/D converters, which is not only less expensive, but especially
space-saving and leaves some room for other I/O functions.
The software for this card cannot be more simple: with one
single instruction you chose another input. The output is buffered and can
amplify the input-signal up to 5 times.
There is space for an attenuator on each input.
A motherboard K2612, which buffers the computer signals,
generates the necessary auxilliary signals and takes care of the
interface-card-power supply, allows for the connection to the computer.

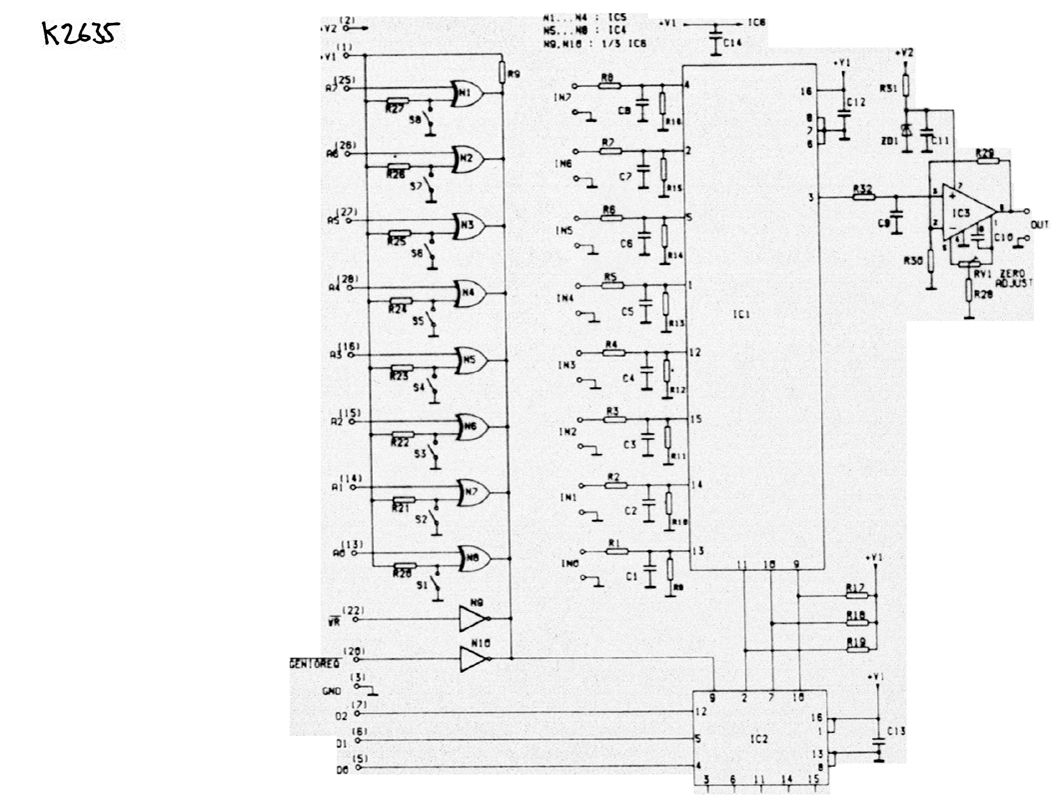

Schema
Technische Daten:
The possibility to attenuate each input separately.
Input impedances of more than 1 mega-ohm are possible.
Buffered output: min, load resistance is 1 kilo-ohm.
The output signal can be amplified (max. 5 times)
Fast response: the output is stable within 1 ms. after the selection command.
Explanation for the programming of the card (in Basic) in the manual.
8-bit address decoding on the print.
The (5V/40mA and 9V/20mA) power supply is taken care of by the motherboard
Dimensions : 106 x 106 mm.
Partslist:
| Label |
Artnr |
Qty |
Description |
| C1...C8,C11..C14 |
SI100N0 |
12 |
SIBATIT 100nF-63V |
| C10 |
C56 |
1 |
56pF CERAMIC CAPACITOR |
| C9 |
C100 |
1 |
100pF CERAMIC CAPACITOR |
| IC1 |
CD4051 |
1 |
CD4051BE SINGLE 8C. ANALOG MULTIPLEXER |
| IC2 |
74LS175 |
1 |
74LS175 QUAD D FLIP FLOP W/CLEAR |
| IC3 |
CA3130 |
1 |
CA3130E BIMOS OPAMP MINI DIP |
| IC4,IC5 |
74LS136 |
2 |
74LS136 QUAD EXCLUSIVE OR (OC) |
| IC6 |
74LS05 |
1 |
74LS05 HEX INVERTER (OC) |
| J,A0...A7 |
DBL |
15 |
JUMPER |
| J1 |
D31FD1 |
1 |
DIN41617 31C F DIP S4 (REU:012031140601) |
| J1 |
D31MS1 |
1 |
DIN41617 31C M S2.5 S4 (REU:011031140101) |
| R1...R8 |
MA100K0 |
8 |
METALFILM RES. 1/4W 100K |
| R17...R27,R33 |
RA4K7 |
13 |
RESISTOR 1/4W 4K7 |
| R28 |
RA10K0 |
1 |
RESISTOR 1/4W 10K |
| R29 |
MA15K0 |
1 |
METALFILM RES. 1/4W 15K |
| R29 |
MA30K0 |
1 |
METALFILM RES. 1/4W 30K |
| R29,R30 |
MA7K5 |
2 |
METALFILM RES. 1/4W 7.5K |
| R31 |
RC220E0 |
1 |
RESISTOR 1W 220E |
| R32 |
MA1M0 |
1 |
METALFILM RES. 1/4W 1M |
| RV1 |
K022SV |
1 |
PIHER TRIM 22K SMALL VERT |
| ZD1 |
ZB6V2 |
1 |
ZENER DIODE 6V2-1.3W |
| 14P |
14P |
3 |
14P DIL IC SOCKET 300MIL |
| 16P |
16P |
2 |
16P DIL IC SOCKET 300MIL |
| 8P |
8P |
1 |
8P DIL IC SOCKET 300MIL |
| BT30100 |
BT30100 |
2 |
BOLT M3 X 10mm CYL. HEAD |
| BT30120 |
BT30120 |
2 |
BOLT M3 X 12mm CIL. HEAD |
| H2635 |
H2635 |
1 |
MANUAL |
| MR3 |
MR3 |
4 |
NUT M3 |
| P2635 |
P2635 |
1 |
PCB |
| PPH/L |
PPH/L |
1 |
PLAST. PCBHOLDERS - ML 217/1 |
| PPH/R |
PPH/R |
1 |
PLAST. PCBHOLDERS - ML 217/2 |
| PRINTPZ |
PRINTPZ |
2 |
10 PCBTABS |
| PV/4 |
PV/4 |
2 |
SCREW 4 X 3/8 BLACK DIN7971 |
| RA1K0 |
RA1K0 |
1 |
RESISTOR 1/4W 1K |
| RA33K0 |
RA33K0 |
1 |
RESISTOR 1/4W 33K |
| RA82E0 |
RA82E0 |
1 |
RESISTOR 1/4W 82E |
