K2612 INTELLIGENT MOTHER
BOARD RS232 CONTROLLED
The VELLEMAN INTERFACE SYSTEM transforms your computer into a
POWERFUL STEERING AND REGULATING SYSTEM. One can use the system for steering
light shows motors time related devices for controlling alarm and security
installations for the automation of production processing etc. The interface
system consists of a mother board and interface PCBs. The mother board K2612 is
linked to the computer using RS232C. The interface PCBs represent the link
towards the outside world.

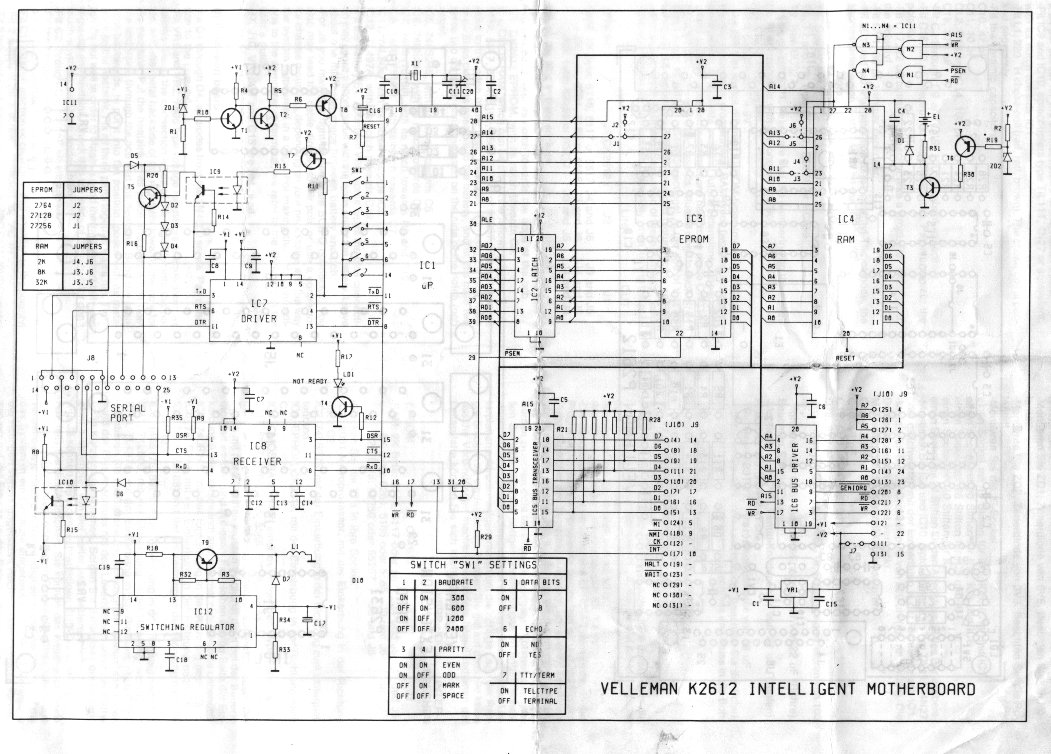

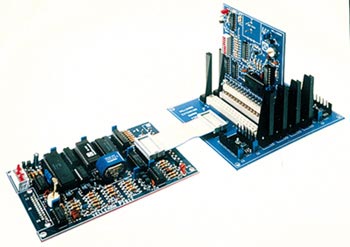

The system can be extended by means of 3 additional bus PCBs K2631 so that
up to 16 interface PCBs can be used.
This PCB has been designed for the automation of a large range
of measuring and steering functions in conjunction with a computer or terminal (which
disposes of RS232C or 20 mA current loop). Thanks to the powerful instruction
set (in the shape of mnemonics) the computer is discharged for the most part so
that time to execute other tasks such as data storage converting into diagrams
etc. becomes available.
For use as a control system the PCB should be continuously
connected to the computer. Time -specific switching is possible without
intervention by the computer since the PCB has its own clock. On all inputs an
alarm condition can be attached. Through here the mother board automatically
sends a message to the computer in case of an alarm condition. In order to avoid
dangerous situations (motors starting suddenly ...) when starting up or after a
power failure all outputs can be pre-programmed. The manual describes all
instructions in detail and also gives a number of practical examples.
Technische Daten:
Bus PCB K2631 included

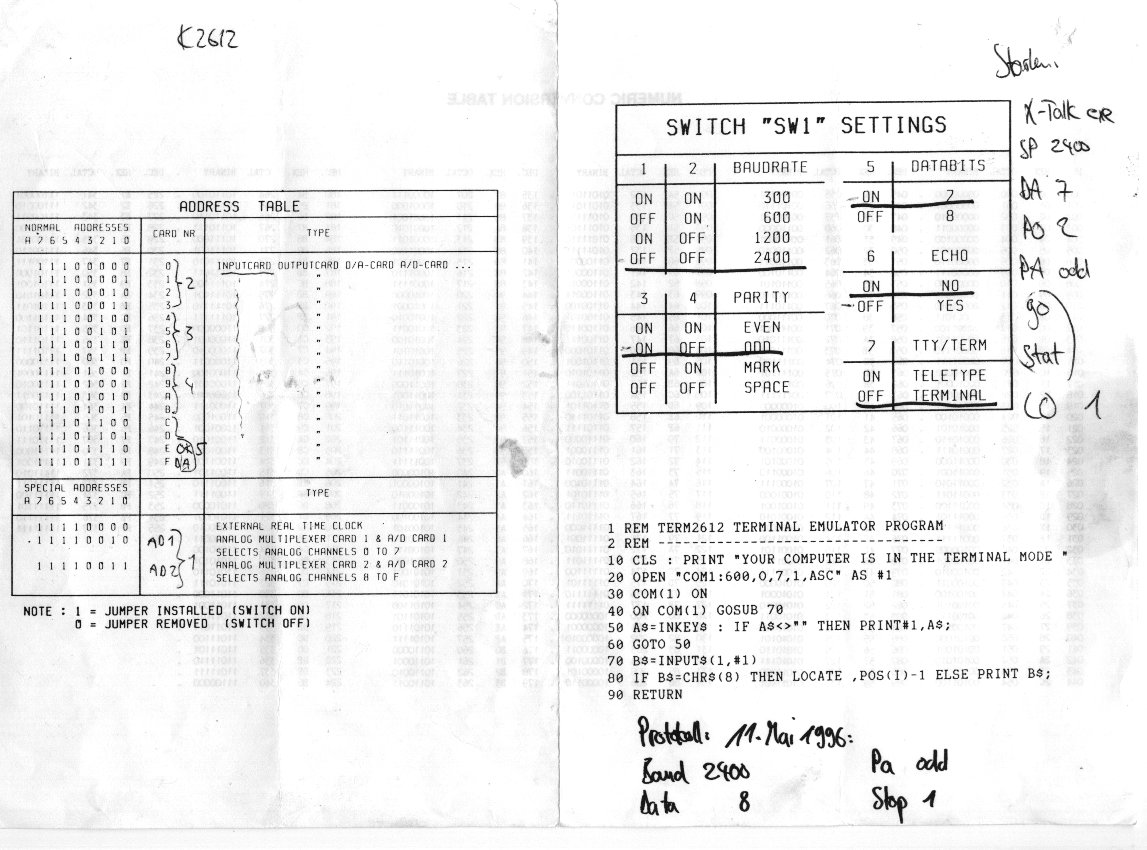

Controlled by serial link: RS232C or 20mA current loop

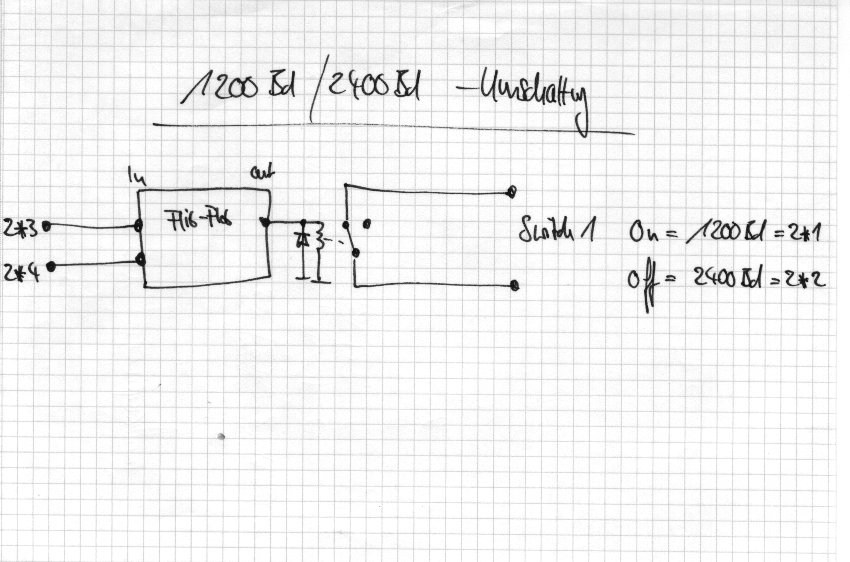

Baud rate: 300 600 1200 or 2400
Battery backup included for the memory
Supply voltage 8-9 VAC or 12 VDC/350 mA.

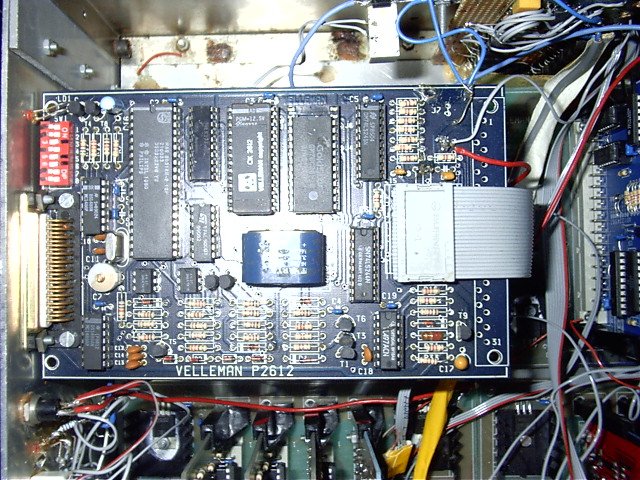

Partslist:
|
Label |
Artnr |
Qty |
Description |
|
C1 |
2200J0D |
1 |
ELCO PCB 2200µF-25V |
|
C10 |
C47 |
1 |
47pF CERAMIC CAPACITOR |
|
C11 |
C10 |
1 |
10pF CERAMIC CAPACITOR |
|
C12...C14 |
C100 |
3 |
100pF CERAMIC CAPACITOR |
|
C16 |
22J0D |
1 |
ELCO PCB 22µF-25V |
|
C17 |
22T0C |
1 |
TANTAL 22µF-16V |
|
C18 |
C270 |
1 |
270pF CERAMIC CAPACITOR |
|
C2...C5 |
SI100N0 |
4 |
SIBATIT 100NF-63V |
|
C2...C9 C19 |
SI100N0 |
9 |
SIBATIT 100NF-63V |
|
CV1 |
TRIM39P |
1 |
FOLIO TRIM 5.5- 40PF LARGE GREY |
|
D1...D4 |
1N4007 |
4 |
1N4007 DIODE 1A-1000V |
|
D1...D7 |
1N4148 |
7 |
1N4148 (1N914) |
|
E1 |
3/V100R |
1 |
NICA-CEL 53310.603.059 3.6V 100mAh PCB |
|
IC1 |
8031 |
1 |
8031 SINGLE CHIP CONTROL ROM 128 |
|
IC11 |
74LS00 |
1 |
74LS00 QUAD 2 INPUT NAND GATE |
|
IC12 |
TL497A |
1 |
TL497AC SWITCHED MODE VOLTAGE REGULATOR |
|
IC2 |
74LS373 |
1 |
74LS373 OCTAL D-TYPE LATCH |
|
IC3 |
VK2612 |
1 |
PROGRAMMED EPROM FOR MOTHERBOARD |
|
IC4 |
6116LP |
1 |
6116LP STATIC RAM 2X8 CMOS LOW POW |
|
IC5 |
74LS245 |
1 |
74LS245 OCTAL BUS TRANSCEIVER |
|
IC6 |
74LS244 |
1 |
74LS244 OCTAL BUFFER/LINE DRIVER |
|
IC7 |
75188 |
1 |
SAM 1488 QUAD LINE DRIVER RS232 |
|
IC8 |
75189 |
1 |
SAM 1489 QUAD LINE RECEIVER RS232 |
|
IC9 IC10 |
TIL111 |
2 |
4N27 OPTO CP - VDC=1500 - CTR 30 |
|
J |
DBL |
1 |
JUMPER |
|
L1 |
220H0 |
1 |
HF-CHOKE 220µH |
|
LD1 |
LED3RL |
1 |
LED 3MM RED 1.0MCD TD UNIVERSAL |
|
R1...R3 |
RA1K0 |
3 |
RESISTOR 1/4W 1K |
|
R11 R12 |
RA22K0 |
2 |
RESISTOR 1/4W 22K |
|
R13 |
RA220E0 |
1 |
RESISTOR 1/4W 220E |
|
R14 R15 |
RA100K0 |
2 |
RESISTOR 1/4W 100K |
|
R16 |
RA33E0 |
1 |
RESISTOR 1/4W 33E |
|
R17 |
RA560E0 |
1 |
RESISTOR 1/4W 560E |
|
R18 |
RA2E2 |
1 |
RESISTOR 1/4W 2E2 |
|
R19 |
RA2K2 |
1 |
RESISTOR 1/4W 2K2 |
|
R20 |
RA68K0 |
1 |
RESISTOR 1/4W 68K |
|
R33 R35 |
RA10K0 |
2 |
RESISTOR 1/4W 10K |
|
R34 |
RA1K2 |
1 |
RESISTOR 1/4W 1K2 |
|
R4...R6 |
RA10K0 |
3 |
RESISTOR 1/4W 10K |
|
R7 R21...R32 |
RA4K7 |
13 |
RESISTOR 1/4W 4K7 |
|
R8...R10 |
RA10K0 |
3 |
RESISTOR 1/4W 10K |
|
SW1 |
DS-8 |
1 |
DS-8 DIP SWITCH 1P AND 8POS. |
|
T1...T4 |
BC547B |
4 |
BC547B SI-NPN UN 50V-0.2A |
|
T5 |
BC517 |
1 |
BC517 SI-NPN DA 40V-0.4A |
|
T6...T8 |
BC557B |
3 |
BC557B SI-PNP UN 50V-0.2A |
|
T9 |
BC327 |
1 |
BC327 SI-PNP UN 50V-0.6A |
|
VR1 VR2 |
UA7805 |
2 |
UA7805 1A- 5V PLASTIC TO-220 |
|
X1 |
X12 |
1 |
X-TAL 12.00000 MC -- HC-49/U |
|
ZD1 |
ZA6V8 |
1 |
ZENER DIODE 6V8-500mW |
|
ZD2 |
ZA3V3 |
1 |
ZENER DIODE 3V3-500mW |
|
14P |
4 |
14P |
DIL IC SOCKET 300MIL |
|
20P |
3 |
20P |
DIL IC SOCKET 300MIL |
|
24P |
3 |
24P |
DIL IC SOCKET 600MIL |
|
28P |
2 |
28P |
DIL IC SOCKET 600MIL |
|
40P |
1 |
40P |
DIL IC SOCKET 600MIL |
|
BOLT |
BT30100 |
2 |
BOLT M3 X 10mm CYL. HEAD |
|
MANUAL |
H2612B |
1 |
ASSEMBLING MANUAL INTELLIGENT MOTHERBOARD |
|
MANUAL |
H2612GD |
1 |
GEBRAUCHSANLEITUNG INT. MOTHERB. DEUTSCH |
|
MANUAL |
H2612GE |
1 |
USER'S GUIDE INT. MOTHERBOARD ENGLISH |
|
MANUAL |
H2612GF |
1 |
GUIDE UTILISATEUR C.MAITRESSE INT. FR. |
|
MANUAL |
H2612GN |
1 |
GEBRUIKSAANW INT. MOEDERBORD NEDERLANDS |
|
MANUAL |
H2612GT |
1 |
TABLES-SHEET INTELLIGENT MOTHERBOARD |
|
HEATSINK |
ML8 |
2 |
HEATSINK ML8 U-PROFILE TO220/TO3P 35X28X12 |
|
NUT |
MR3 |
2 |
NUT M3 |
|
PCB |
P2612 |
1 |
PCB INTELLIGENT MOTHERBOARD |
|
PCB |
P2631 |
1 |
PCB EXTENSION BOARD |
|
PRINTTAB |
PRINTPZ |
1 |
10 PCBTABS |
|
FLATRCABLE |
VK2631 |
1 |
FLATCABLE + 2 X DIL-CONNECTOR |
