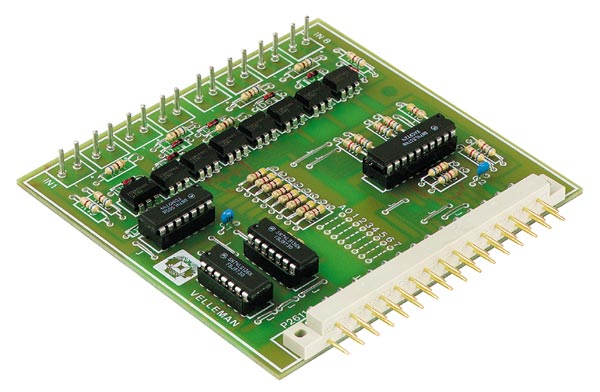

K2611 OPTOCOUPLER INPUT CARD FOR THE INTEFACE SYSTEM

With this kit and the K2612 motherboard you can provide your computer with eight optocoupler inputs to control the state of your machines (ON/OFF, time registration on machines,etc...), switches (level monitoring, general control of alarmsystems, etc..) and many other things. Using optocouplers offers many advantages:

- The inputs are galvanically separated from the rest of the circuit, allowing you to connect a 220V circuit to the input, without bringing mains onto your computer.

-The inputs are almost totally insensitive to electromagnetic disturbances such as lightning, the ON/OFF switching of apparatus, etc... The connection to the computer is made via a motherboard which buffers the computer signals, generates the necessary auxiliary signals and provides the power supply for the interface cards. Some program samples (in Basic) will be found in the manual.

Technische Daten:
8 optocoupler inputs (four couplers supplied)
Program samples (in Basic) in the manual
8-bit addressdecoding on the board
Supply current: 5V/75mA (powered by the motherboard)
Dimensions: 106 x 106 x 15 mm

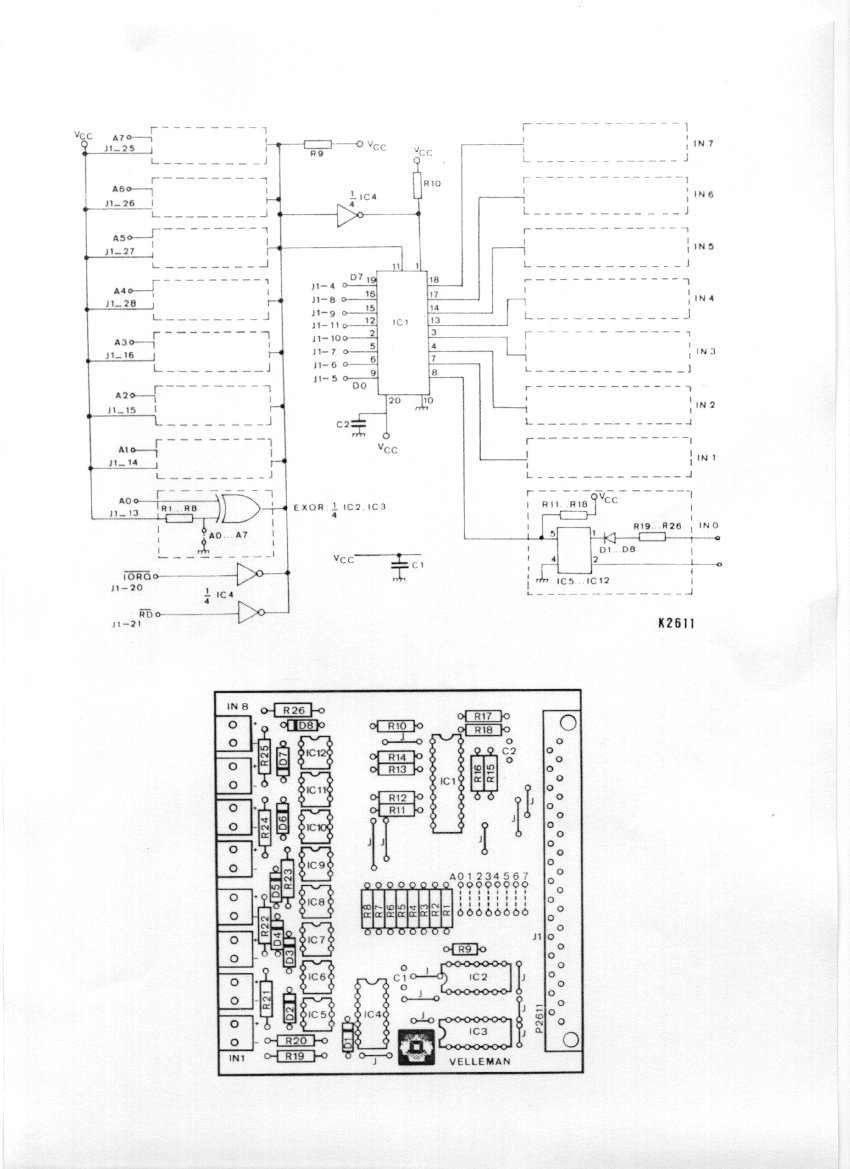

Schema:

Spareparts:

Label	Reference	Qty	Description
C1,C2	SI100N0	2	SIBATIT
D1...D8	1N4148	8	1N4148
IC1	74LS374	1	74LS374 OCTAL D-TYPE FLIP FLOP
IC2,IC3	74LS136	2	74LS136 QUAD EXCLUSIVE OR (OC)
IC4	74LS05	1	74LS05 HEX INVERTER (OC)
IC5...IC12	TIL111	4	4N27 OPTO CP VDC=1500 CTR 30
IN1...IN8	PRINTPZ	2	10 PCBTABS
J,A0...A7	DBL	10	JUMPER
J1	D31FD1	1	DIN41617 31C F DIP S4(REU:012031140601)
J1	D31MS1	1	DIN41617 31C M S2.5 S4(REU:011031140101)
R1...R10	RA4K7	10	RESISTOR 1/4W 4K7
R11...R18	RA6K8	8	RESISTOR 1/4W 6K8
R19...R26	RA680E0	8	RESISTOR 1/4W 680E
BOLT	BT30100	2	BOLT M3 X 10mm CYL. HEAD
BOLT	BT30120	2	BOLT M3 X 12mm CIL. HEAD
IC	14P	3	14P DIL IC SOCKET 300MIL
IC	20P	1	20P DIL IC SOCKET 300MIL
MANUAL	H2611	1	MANUAL
NUT	MR3	4	NUT M3
PCB	P2611	1	PCB
PCBHOLD	PPH/L	1	PLAST. PCBHOLDERS - ML 217/1
PCBHOLD	PPH/R	1	PLAST. PCBHOLDERS - ML 217/2
SCREW	PV/4	2	SCREW 4 X 3/8 BLACK DIN7971
