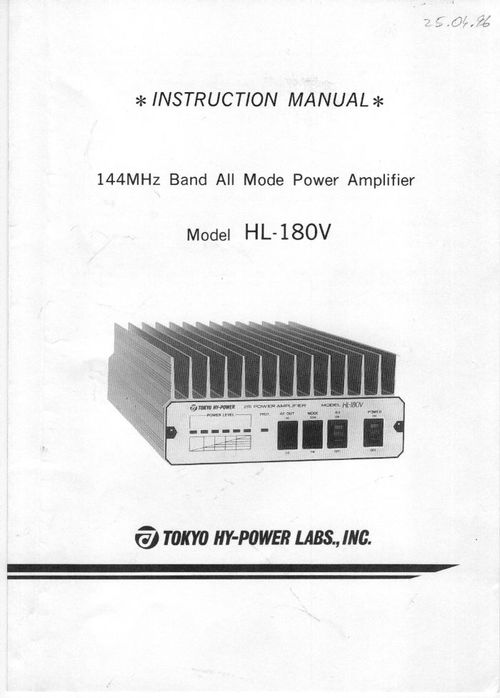

усилитель фирмы Tokyo HY-Power

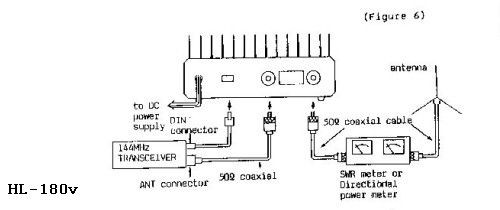

план подключения внешних устройств

продолжение следует 24 февраля 2011

Heathkit VL-1180 Mobile Amplifier

Band coverage: 144 to 148 MHz

Operating voltage: 13.6 (operates 11.5 to 16 volts) DC at 11a

Output power: 75 watts minimum for 10 watts in

Modes: SSB, FM or CW

Duty cycle: 50%, 10 minutes on - 10 minutes off

Input/output impedance: 50 ohms

Input VSWR: 2.0:1 or less at 10 watts drive

Insertion loss: less than 0.6db

IM distortion: -24db

Alignment requires exciter & dual wattmeter

Dimensions: 2 1/2" H x 4 5/8" W x 10 1/2" D
