ANTENNA QY22310XL1D15
ANTENNA QY22310XL1D15
PERFORMANCES:
|
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
23 |
17255 |
18.95 |
35.79 |
19.70 |
17.87 |
22.4 |
22.8 |
212.7 |
-4.33 |
5.2 |

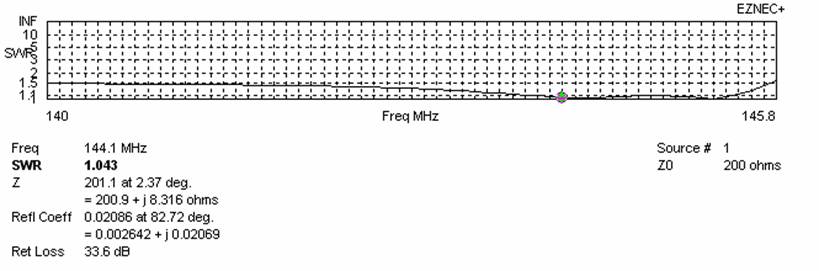

WORKING CONDITION:
|
Frequency for SWR=1,5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
||
|
Lowest |
Highest |
Bandwidth |
||
|
140.000 |
145.800 |
5.800 |
200.9 |
1.08:1 |

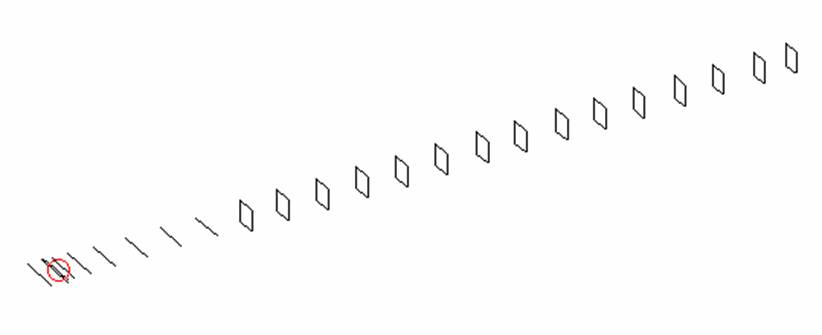

DIMENSIONS:
|
|
Ref |
De1 |
De2 |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
DQ1 |
DQ2 |
DQ3 |
|
Pos |
0 |
345 |
415 |
540 |
914 |
1504 |
2236 |
3016 |
3832 |
4723 |
5572 |
6475 |
|
Length |
1012 |
1024 |
900 |
942 |
935 |
917 |
897 |
886 |
869 |
514 |
498 |
496 |
|
|
DQ4 |
DQ5 |
DQ6 |
DQ7 |
DQ8 |
DQ9 |
DQ10 |
DQ11 |
DQ12 |
DQ13 |
DQ14 |
DQ15 |
|
Pos |
7394 |
8294 |
9215 |
10145 |
11022 |
11968 |
12855 |
13736 |
14678 |
15579 |
16496 |
17255 |
|
Length |
483 |
480 |
476 |
472 |
466 |
462 |
456 |
450 |
440 |
430 |
422 |
406 |
|
All elements of Al tubes Ǿ10 mm The height of rectangles 500 mm All dimensions given in milimetres |
||||||||||||
No boom correction included
COMPARISON
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
K2GAL 21 |
7.65 |
16.90 |
17.2 |
9.01:1 |
5.71 |
5.55 |
22.81 |
13.3 |
223.9 |
+1.46 |
|
M2 8WL(old) |
7.72 |
16.51 |
201.5 |
2.14:1 |
5.31 |
5.13 |
22.34 |
9.1 |
221.9 |
+1.03 |
|
InnoV 22 LFA |
8.01 |
16.39 |
48.6 |
1.38:1 |
4.88 |
5.09 |
22.19 |
7.7 |
208.0 |
+1.16 |
|
M2 8WLHLD |
8.05 |
17.02 |
200.0 |
4.53:1 |
5.87 |
6.05 |
22.99 |
11.8 |
234.6 |
+1.44 |
|
G0KSC 22 LFA 3R |
8.17 |
16.37 |
46.1 |
1.16:1 |
5.90 |
5.70 |
22.42 |
6.8 |
207.6 |
+1.42 |
|
QY22310XL1D15 |
8.29 |
16.80 |
200.8 |
1.08:1 |
6.34 |
6.84 |
22.90 |
5.2 |
211.4 |
+1.80 |
|
Z(ohms) - measured on 144.100 MHz Bandwidth – VSWR measured on 145.000 MHz Data taken from VE7BQH G/T table |
||||||||||

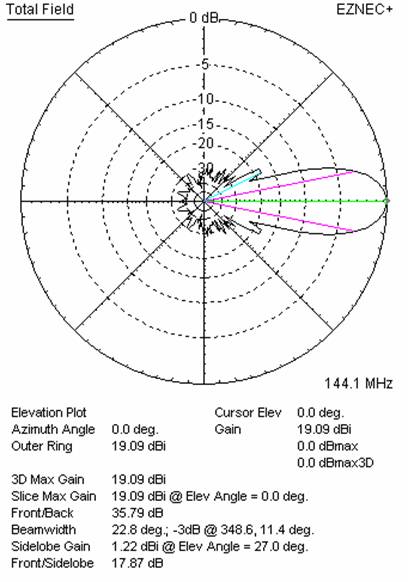

DIAGRAMS (no loss included)
DIAGRAMS (losses included)
STACKING
|
Horizontal distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
|
100 |
|
|
|
100 |
18.04 |
222.9 |
-5.43 |
|
110 |
16.20 |
395.6 |
-9.79 |
110 |
18.58 |
217.8 |
-4.79 |
|
120 |
18.36 |
225.0 |
-5.15 |
120 |
18.94 |
217.0 |
-4.41 |
|
130 |
18.78 |
221.4 |
-4.66 |
130 |
19.18 |
219.9 |
-4.23 |
|
140 |
19.10 |
222.0 |
-4.35 |
140 |
19.36 |
223.9 |
-4.13 |
|
150 |
19.36 |
221.2 |
-4.08 |
150 |
19.51 |
224.8 |
-4.00 |
|
160 |
19.57 |
220.2 |
-3.84 |
160 |
19.67 |
221.9 |
-3.78 |
|
170 |
19.74 |
219.2 |
-3.65 |
170 |
19.82 |
218.3 |
-3.56 |
|
180 |
19.88 |
218.5 |
-3.50 |
180 |
19.95 |
215.9 |
-3.38 |
|
190 |
19.99 |
217.8 |
-3.38 |
190 |
20.06 |
214.5 |
-3.24 |
|
200 |
20.10 |
217.2 |
-3.25 |
200 |
20.16 |
213.7 |
-3.12 |
|
210 |
20.19 |
216.7 |
-3.15 |
210 |
20.26 |
213.1 |
-3.01 |
|
220 |
20.28 |
216.2 |
-3.05 |
220 |
20.34 |
212.7 |
-2.92 |
|
230 |
20.36 |
215.8 |
-3.96 |
230 |
20.42 |
212.4 |
-2.83 |
|
240 |
20.26 |
215.4 |
-2.89 |
240 |
20.49 |
212.2 |
-2.76 |
|
250 |
20.50 |
215.0 |
-2.81 |
250 |
20.56 |
212.1 |
-2.69 |
|
260 |
20.57 |
214.7 |
-2.73 |
260 |
20.63 |
212.0 |
-2.61 |
|
270 |
20.63 |
214.5 |
-2.67 |
270 |
20.69 |
211.9 |
-2.55 |
|
280 |
20.69 |
214.3 |
-2.60 |
280 |
20.75 |
211.9 |
-2.49 |
|
290 |
20.75 |
214.1 |
-2.54 |
290 |
20.81 |
212.0 |
-2.43 |
|
300 |
20.81 |
213.9 |
-2.48 |
300 |
20.87 |
212.2 |
-2.38 |
|
310 |
20.87 |
213.8 |
-2.41 |
310 |
20.92 |
212.5 |
-2.34 |
|
320 |
20.92 |
213.6 |
-2.36 |
320 |
20.97 |
212.9 |
-2.29 |
|
330 |
20.98 |
213.4 |
-2.30 |
330 |
21.02 |
213.4 |
-2.26 |
|
340 |
21.03 |
213.3 |
-2.24 |
340 |
21.06 |
214.2 |
-2.23 |
|
350 |
21.08 |
213.1 |
-2.19 |
350 |
21.10 |
215.0 |
-2.21 |
|
360 |
21.14 |
213.0 |
-2.13 |
360 |
21.15 |
215.9 |
-2.17 |
|
370 |
21.19 |
212.8 |
-2.07 |
370 |
21.19 |
216.4 |
-2.15 |
|
380 |
21.24 |
212.7 |
-2.02 |
380 |
21.24 |
216.4 |
-2.10 |
|
390 |
21.29 |
212.7 |
-1.97 |
390 |
21.29 |
216.1 |
-2.04 |
|
400 |
21.34 |
212.6 |
-1.92 |
400 |
21.34 |
215.5 |
-1.98 |
|
410 |
21.39 |
212.5 |
-1.87 |
410 |
21.40 |
214.9 |
-1.91 |
|
420 |
21.44 |
212.5 |
-1.82 |
420 |
21.45 |
214.3 |
-1.84 |
|
430 |
21.48 |
212.4 |
-1.78 |
430 |
21.50 |
213.7 |
-1.78 |
|
440 |
21.53 |
212.4 |
-1.72 |
440 |
21.54 |
213.2 |
-1.73 |
|
450 |
21.57 |
212.3 |
-1.68 |
450 |
21.59 |
212.7 |
-1.67 |
|
460 |
21.61 |
212.3 |
-1.64 |
460 |
21.63 |
212.2 |
-1.62 |
|
470 |
21.65 |
212.2 |
-1.60 |
470 |
21.67 |
211.7 |
-1.57 |
|
480 |
21.69 |
212.1 |
-1.56 |
480 |
21.71 |
211.3 |
-1.52 |
|
490 |
21.72 |
212.0 |
-1.53 |
490 |
21.74 |
210.8 |
-1.48 |
|
500 |
21.75 |
211.9 |
-1.49 |
500 |
21.78 |
210.4 |
-1.43 |
|
510 |
21.78 |
211.8 |
-1.46 |
510 |
21.81 |
210.1 |
-1.39 |
|
520 |
21.81 |
211.7 |
-1.43 |
520 |
21.83 |
209.8 |
-1.37 |
|
530 |
21.83 |
212.8 |
-1.41 |
530 |
21.86 |
209.7 |
-1.34 |
|
540 |
21.85 |
211.6 |
-1.39 |
540 |
21.88 |
209.7 |
-1.32 |
|
550 |
21.87 |
211.6 |
-1.37 |
550 |
21.89 |
209.9 |
-1.31 |
|
560 |
21.89 |
211.5 |
-1.35 |
560 |
21.91 |
210.2 |
-1.30 |
|
570 |
21.90 |
211.5 |
-1.34 |
570 |
21.92 |
210.6 |
-1.30 |
|
580 |
21.92 |
211.5 |
-1.32 |
580 |
21.93 |
211.0 |
-1.29 |
|
590 |
21.93 |
211.6 |
-1.31 |
590 |
21.94 |
211.2 |
-1.29 |
|
600 |
21.94 |
211.6 |
-1.30 |
600 |
21.95 |
211.3 |
-1.28 |
|
610 |
21.74 |
211.7 |
-1.30 |
610 |
21.96 |
211.2 |
-1.27 |
|
620 |
21.95 |
211.8 |
-1.29 |
620 |
21.97 |
211.1 |
-1.26 |
|
630 |
21.95 |
211.9 |
-1.29 |
620 |
21.97 |
211.0 |
-1.25 |
|
640 |
21.96 |
211.9 |
-1.29 |
630 |
21.97 |
211.0 |
-1.25 |
|
650 |
21.96 |
212.0 |
-1.29 |
640 |
21.98 |
210.9 |
-1.24 |
|
660 |
21.96 |
212.1 |
-1.29 |
650 |
21.99 |
210.9 |
-1.23 |
|
|
|
|
|
660 |
21.99 |
211.0 |
-1.23 |
|
|
|
|
|
670 |
21.99 |
211.1 |
-1.23 |
|
|
|
|
|
680 |
21.99 |
211.3 |
-1.24 |
*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good
result. and which distances should be avoided. In H-stack it can be slightly changed.
BEST DISTANCES FOR 4 ANTENNAS IN H-STACK
|
Horizontal distance (cm) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Remark |
|
5356 |
5263 |
24.82 |
209.6 |
+1.61 |
Per DL6WU formula |
|
6340 |
6840 |
25.05 |
211.4 |
+1.80 |
For max G/T |
|
|
|
|
|
|
For lowest temperature |

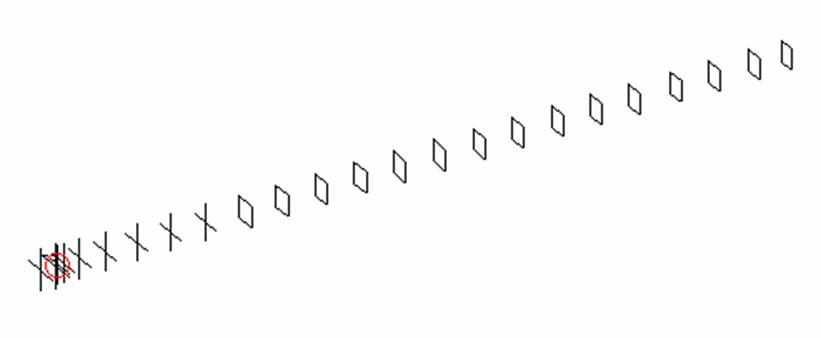

XPOL VERSION
Horizontal components: Same as above
Vertical components: Same as above, except:
PERFORMANCES:
|
Polarization |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
Horizontal |
18.95 |
35.79 |
19.70 |
17.87 |
22.4 |
22.8 |
212.7 |
-4.33 |
5.2 |
|
Vertical |
19.19 |
29.33 |
14.18 |
16.04 |
21.0 |
20.8 |
216.8 |
-4.17 |
5.4 |
Horizontal polarisation patterns

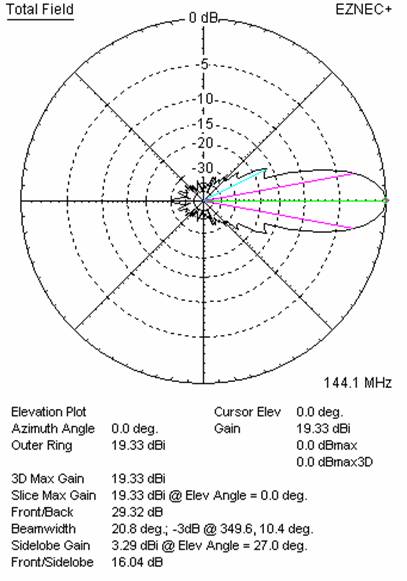

Vertical polarisation patterns
