ANTENNA QY22110XL1D13
ANTENNA QY22110XL1D13
PERFORMANCES:
|
No of ele |
L (mm) |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
21 |
15425 |
18.59 |
31.36 |
19.25 |
17.11 |
23.4 |
24.0 |
215.1 |
-4.74 |
4.9 |
WORKING CONDITION:
|
Frequency for SWR=1,5 (MHz) |
Z (Ώ) at 144.100 MHz |
SWR at 145.000 MHz |
||
|
Lowest |
Highest |
Bandwidth |
||
|
139.600 |
145.800 |
6.200 |
200.3 |
1.06:1 |

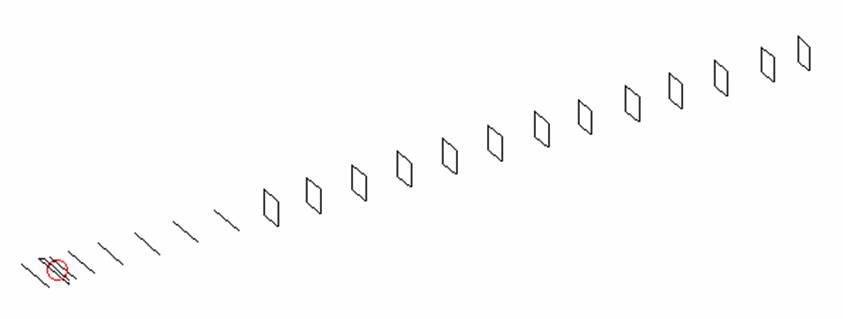

DIMENSIONS:
|
|
Ref |
De1 |
De2 |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
DQ1 |
DQ2 |
|
Pos |
0 |
355 |
425 |
550 |
923 |
1516 |
2244 |
3027 |
3842 |
4734 |
5588 |
|
Length |
1012 |
1026 |
886 |
940 |
934 |
916 |
896 |
886 |
868 |
511 |
498 |
|
|
DQ3 |
DQ4 |
DQ5 |
DQ6 |
DQ7 |
DQ8 |
DQ9 |
DQ10 |
DQ11 |
DQ12 |
DQ13 |
|
Pos |
6485 |
7404 |
8304 |
9225 |
10155 |
11032 |
11978 |
12855 |
13746 |
14688 |
15425 |
|
Length |
494 |
486 |
481 |
474 |
468 |
465 |
459 |
450 |
442 |
436 |
422 |
|
All elements of Al tubes Ǿ10 mm The height of rectangles 500 mm All dimensions given in milimetres |
|||||||||||
No boom correction included.
COMPARISON
|
TYPE OF ANTENNA |
SINGLE ANTENA |
FOUR ANTENNAS IN H-STACK |
||||||||
|
L (λ) |
GAIN (dBd) |
Z (ohms) |
VSWR Bandwidth |
E (m) |
H (m) |
Ga (dBd) |
Tlos (K) |
Ta (K) |
G/T (dB) |
|
|
BQH 25 |
7.30 |
16.38 |
27.9 |
1.16:1 |
5.27 |
5.09 |
22.28 |
8.8 |
217.1 |
+1.06 |
|
QY22110XL1D13 |
7.41 |
16.44 |
199.0 |
1.06:1 |
6.04 |
6.44 |
22.54 |
4.9 |
213.1 |
+1.40 |
|
InnoV 21 LFA |
7.55 |
16.25 |
49.0 |
1.70:1 |
5.04 |
4.88 |
22.10 |
8.2 |
208.3 |
+1.06 |
|
K2GAL 21 |
7.65 |
16.90 |
17.2 |
9.01:1 |
5.71 |
5.55 |
22.81 |
13.3 |
223.9 |
+1.46 |
|
M2 8WL(old) |
7.72 |
16.51 |
201.5 |
2.14:1 |
5.31 |
5.13 |
22.34 |
9.1 |
221.9 |
+1.03 |
|
Z(ohms) - measured on 144.100 MHz Bandwidth – VSWR measured on 145.000 MHz Data taken from VE7BQH G/T table |
||||||||||

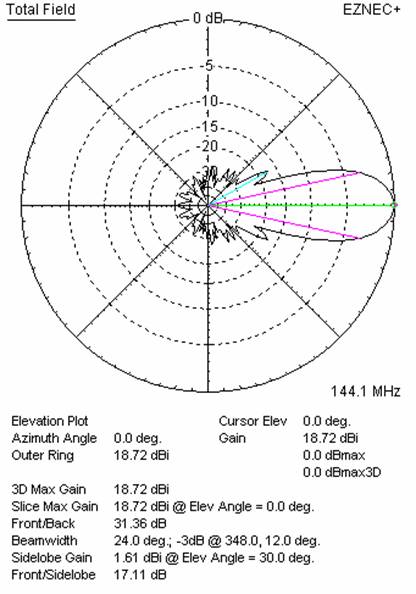

DIAGRAMS (no loss included)

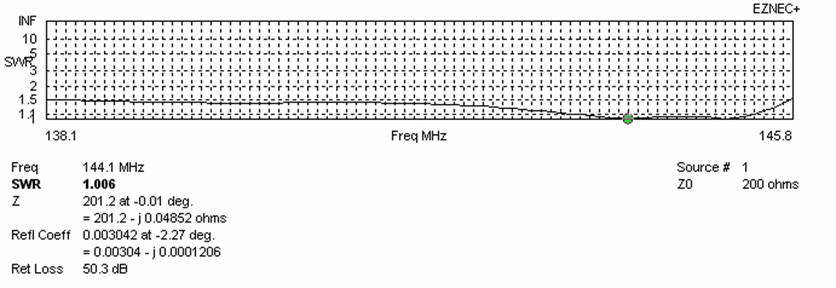

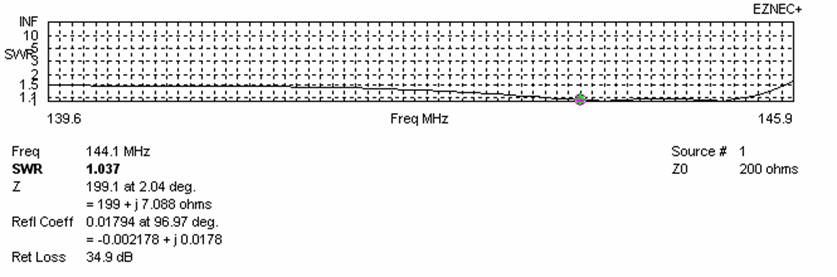

SWR DIAGRAM (losses included)

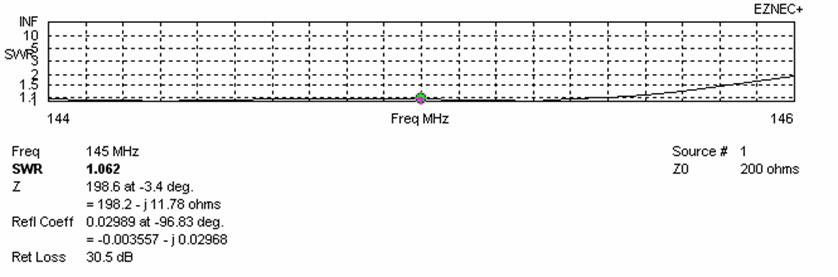

SWR DIAGRAM 144 - 146 MHz
STACKING
|
Horizontal distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
|
100 |
|
|
|
100 |
17.98 |
223.0 |
-5.49 |
|
110 |
16.31 |
372.7 |
-9.41 |
110 |
18.49 |
217.7 |
-4.87 |
|
120 |
18.22 |
226.2 |
-5.31 |
120 |
18.84 |
216.8 |
-4.51 |
|
130 |
18.64 |
224.3 |
-4.86 |
130 |
19.07 |
219.6 |
-4.33 |
|
140 |
18.96 |
224.2 |
-4.54 |
140 |
19.23 |
223.6 |
-4.25 |
|
150 |
19.22 |
223.0 |
-4.25 |
150 |
19.37 |
224.6 |
-4.13 |
|
160 |
19.42 |
221.7 |
-4.03 |
160 |
19.53 |
221.9 |
-3.92 |
|
170 |
19.58 |
220.7 |
-3.84 |
170 |
19.67 |
218.7 |
-3.72 |
|
180 |
19.72 |
219.9 |
-3.69 |
180 |
19.79 |
216.6 |
-3.55 |
|
190 |
19.83 |
219.2 |
-3.57 |
190 |
19.90 |
215.4 |
-3.42 |
|
200 |
19.93 |
218.7 |
-3.45 |
200 |
19.99 |
214.7 |
-3.31 |
|
210 |
20.02 |
218.1 |
-3.35 |
210 |
20.08 |
214.2 |
-3.21 |
|
220 |
20.11 |
217.7 |
-3.25 |
220 |
20.16 |
213.8 |
-3.12 |
|
230 |
20.18 |
217.2 |
-3.17 |
230 |
20.24 |
213.4 |
-3.04 |
|
240 |
20.26 |
216.8 |
-3.09 |
240 |
20.31 |
213.2 |
-2.96 |
|
250 |
20.32 |
216.5 |
-3.02 |
250 |
20.38 |
213.1 |
-2.89 |
|
260 |
20.39 |
216.2 |
-2.95 |
260 |
20.45 |
213.0 |
-2.82 |
|
270 |
20.45 |
216.0 |
-2.88 |
270 |
20.51 |
213.0 |
-2.76 |
|
280 |
20.52 |
215.8 |
-2.81 |
280 |
20.57 |
213.2 |
-2.70 |
|
290 |
20.58 |
215.6 |
-2.74 |
290 |
20.63 |
213.4 |
-2.65 |
|
300 |
20.63 |
215.4 |
-2.69 |
300 |
20.69 |
213.7 |
-2.59 |
|
310 |
20.69 |
215.2 |
-2.62 |
310 |
20.74 |
214.0 |
-2.55 |
|
320 |
20.75 |
215.0 |
-2.56 |
320 |
20.79 |
214.5 |
-2.51 |
|
330 |
20.80 |
214.8 |
-2.51 |
330 |
20.84 |
215.0 |
-2.47 |
|
340 |
20.86 |
214.6 |
-2.44 |
340 |
20.88 |
215.8 |
-2.45 |
|
350 |
20.91 |
214.4 |
-2.39 |
350 |
20.93 |
216.6 |
-2.41 |
|
360 |
20.96 |
214.2 |
-2.33 |
360 |
20.97 |
217.5 |
-2.39 |
|
370 |
21.01 |
214.0 |
-2.28 |
370 |
21.02 |
228.0 |
-2.35 |
|
380 |
21.07 |
213.9 |
-2.22 |
380 |
21.06 |
218.0 |
-2.31 |
|
390 |
21.12 |
213.8 |
-2.16 |
390 |
21.12 |
217.5 |
-2.24 |
|
400 |
21.17 |
213.7 |
-2.11 |
400 |
21.17 |
216.9 |
-2.18 |
|
410 |
21.22 |
213.6 |
-2.06 |
410 |
21.22 |
216.2 |
-2.11 |
|
420 |
21.26 |
213.6 |
-2.02 |
420 |
21.28 |
215.6 |
-2.04 |
|
430 |
21.31 |
213.5 |
-1.97 |
430 |
21.32 |
215.0 |
-1.99 |
|
440 |
21.35 |
213.5 |
-1.93 |
440 |
21.37 |
214.5 |
-1.93 |
|
450 |
21.40 |
213.4 |
-1.88 |
450 |
21.41 |
214.0 |
-1.88 |
|
460 |
21.43 |
213.4 |
-1.85 |
460 |
21.46 |
213.5 |
-1.82 |
|
470 |
21.47 |
213.3 |
-1.80 |
470 |
21.49 |
213.0 |
-1.78 |
|
480 |
21.51 |
213.2 |
-1.76 |
480 |
21.53 |
212.5 |
-1.73 |
|
490 |
21.54 |
213.1 |
-1.73 |
490 |
21.56 |
212.0 |
-1.69 |
|
500 |
21.57 |
213.0 |
-1.70 |
500 |
21.59 |
211.6 |
-1.65 |
|
510 |
21.60 |
212.9 |
-1.67 |
510 |
21.62 |
211.2 |
-1.61 |
|
520 |
21.62 |
212.9 |
-1.65 |
520 |
21.65 |
210.9 |
-1.57 |
|
530 |
21.64 |
212.8 |
-1.62 |
530 |
21.67 |
210.7 |
-1.55 |
|
540 |
21.66 |
212.7 |
-1.60 |
540 |
21.69 |
210.7 |
-1.53 |
|
550 |
21.68 |
212.7 |
-1.58 |
550 |
21.70 |
210.9 |
-1.52 |
|
560 |
21.69 |
212.7 |
-1.57 |
560 |
21.71 |
211.2 |
-1.52 |
|
570 |
21.71 |
212.6 |
-1.55 |
570 |
21.72 |
211.6 |
-1.52 |
|
580 |
21.72 |
212.7 |
-1.54 |
580 |
21.73 |
212.0 |
-1.52 |
|
590 |
21.73 |
212.7 |
-1.53 |
590 |
21.73 |
212.3 |
-1.52 |
|
600 |
21.73 |
212.7 |
-1.53 |
600 |
21.74 |
212.3 |
-1.51 |
|
610 |
21.74 |
212.8 |
-1.52 |
610 |
21.75 |
212.2 |
-1.50 |
|
620 |
21.75 |
212.9 |
-1.52 |
620 |
21.76 |
212.1 |
-1.49 |
|
630 |
21.75 |
213.0 |
-1.52 |
620 |
21.76 |
212.0 |
-1.49 |
|
640 |
21.75 |
213.1 |
-1.52 |
630 |
21.76 |
212.0 |
-1.49 |
|
650 |
21.75 |
213.2 |
-1.52 |
640 |
21.77 |
212.0 |
-1.48 |
|
660 |
21.75 |
213.3 |
-1.52 |
650 |
21.77 |
212.0 |
-1.48 |
*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good
result, and which distances should be avoided. In H-stack it can be slightly changed.
BEST DISTANCES FOR 4 ANTENNAS IN H-STACK
|
Horizontal distance (cm) |
Vertical distance (cm) |
G (dBi) |
TA (K) |
G/T (dB) |
Remark |
|
5130 |
5003 |
24.44 |
212.1 |
+1.17 |
Per DL6WU formula |
|
6040 |
6440 |
24.69 |
213.1 |
+1.40 |
For max G/T |
|
|
|
|
|
|
For lowest temperature |

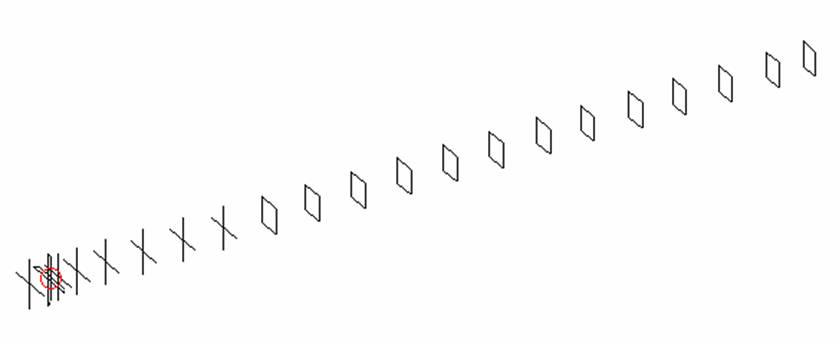

XPOL VERSION
Horizontal components: Same as above
Vertical components: Same as above, except:
PERFORMANCES:
|
Polarization |
G (dBi) |
F/B (dB) |
F/Sh (dBi) |
F/Sv (dBi) |
Hor (◦) |
Ver (◦) |
Temp (◦K) |
G/T (dB) |
Tlos (K) |
|
Horizontal |
18.59 |
31.36 |
19.25 |
17.11 |
23.4 |
24.0 |
215.1 |
-4.74 |
4.9 |
|
Vertical |
18.77 |
29.03 |
14.71 |
16.30 |
22.2 |
21.8 |
219.5 |
-4.64 |
5.2 |
Horizontal polarisation patterns
Vertical polarisation patterns
