ANTENNA QY21210XL2D7

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

12

7015

15.83

34.00

22.05

15.91

31.8

32.8

226.1

-7.71

4.0



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

Bandwidth

141.600

146.000

4.400

200.9

1.08:1

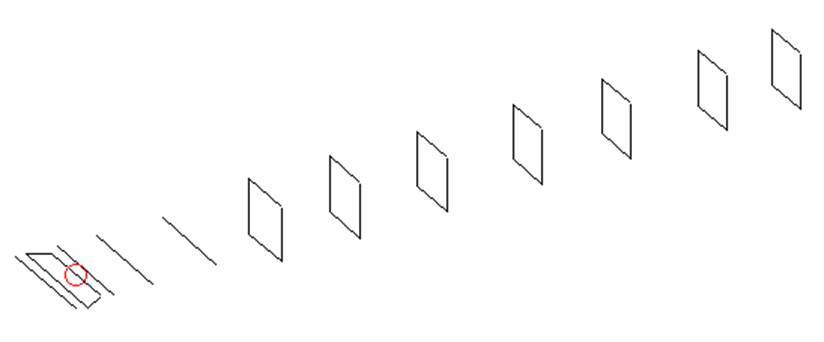

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

DQ1

All elements of Al tubes Ǿ10 mm

The height of rectangles 522 mm

All dimensions given in milimetres

Pos

0

100

280

381

746

1362

2072

Length

1012

1024

820

935

935

904

524



DQ2

DQ3

DQ4

DQ5

DQ6

DQ7



Pos

2825

3654

4555

5406

6315

7015



Length

504

490

478

470

464

464



No boom correction included.



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

QY21210XL2D7

3.37

13.68

200.9

1.08:1

3.92

4.32

19.74

4.0

222.9

-1.59

DK7ZB 11

3.40

13.68

27.9

1.27:1

3.94

3.71

19.61

5.0

234.3

-1.94

UA9TC 12RS

3.40

13.55

51.7

1.09:1

3.80

3.56

19.46

5.1

218.2

-1.78

G0KSC 12LFA

3.41

13.64

50.1

1.18:1

3.90

3.70

19.58

4.3

221.2

-1.72

MBI 3.4

3.42

13.58

37.7

1.62:1

3.87

3.62

19.49

9.2

227.7

-1.93

G0KSC 12LFA 2R

3.43

13.46

50.3

1.06:1

3.95

3.75

19.48

4.9

220.5

-1.80

InnoV 12 LFA

3.43

13.56

49.3

1.07:1

3.80

3.60

19.47

5.4

218.9

-1.78

Gulf Alpha 14

3.44

13.24

198.0

1.21:1

3.71

3.44

19.14

5.5

229.6

-2.32

Gulf Alpha 114 XPOL

3.44

13.25

200.5

1.21:1

3.57

3.57

19.14

5.5

231.8

-2.37

YU7EF 12

3.49

13.67

45.4

1.77:1

3.85

3.60

19.55

6.1

221.1

-1.75

SM5BSZ 11

3.51

13.95

54.4

3.06:1

4.05

3.80

19.81

6.3

238.8

-1.82

SM5BSZ 11A

3.53

14.01

52.3

3.03:1

4.13

3.92

19.93

6.1

245.4

-1.82

17LQD EKM#1

3.59

13.30

50.0

1.23:1

3.75

3.52

19.21

4.2

242.1

-2.48

17LQD EKM#2

3.59

13.39

50.0

1.25:1

3.75

3.50

19.32

4.5

227.5

-2.10

DL6WU 14

3.61

13.63

51.4

1.28:1

3.94

3.70

19.53

2.6

246.9

-2.24

DJ9BV 3.6

3.61

13.67

53.5

1.30:1

4.00

3.78

19.57

5.4

249.7

-2.25

K1FO 15

3.64

13.76

39.1

1.30:1

3.94

3.71

19.67

4.8

233.0

-1.85

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

Data taken from VE7BQH G/T table



DIAGRAMS (no loss included)

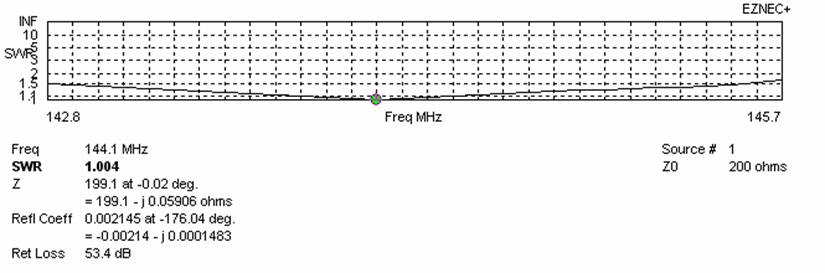

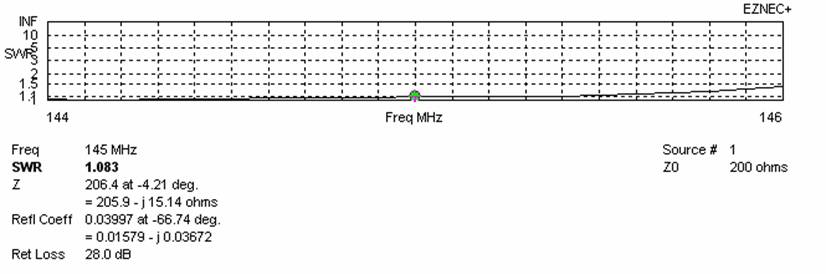

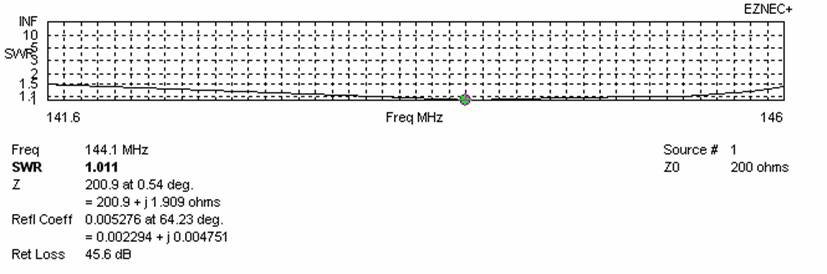

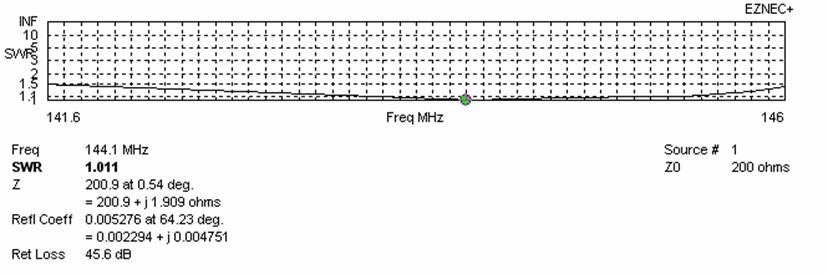

SWR DIAGRAMS (losses included)



STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

16.25

236.2

-7.47

110

15.87

266.0

-8.37

110

16.49

227.4

-7.07

120

16.32

250.2

-7.66

120

16.65

224.6

-6.85

130

16.56

243.7

-7.30

130

16.76

226.1

-6.77

140

16.73

239.1

-7.05

140

16.85

229.1

-6.74

150

16.87

235.9

-6.85

150

16.94

229.6

-6.66

160

16.97

233.8

-6.77

160

17.06

226.8

-6.48

170

17.06

232.3

-6.64

170

17.17

223.5

-6.31

180

17.17

231.3

-6.53

180

17.27

221.9

-6.18

190

17.26

230.7

-6.43

190

17.36

222.1

-6.09

200

17.35

229.9

-6.25

200

17.43

223.5

-6.05

210

17.47

229.6

-6.19

210

17.50

225.7

-6.02

220

17.51

229.0

-6.09

220

17.56

228.0

-6.00

230

17.54

228.6

-6.02

230

17.62

229.9

-5.98

240

17.63

227.9

-5.91

240

17.69

231.1

-5.94

250

17.73

227.3

-5.81

250

17.75

231.5

-5.88

260

17.76

226.4

-5.71

260

17.83

231.0

-5.79

270

17.83

225.7

-5.62

270

17.91

229.9

-5.69

280

17.91

225.2

-5.53

280

17.99

228.5

-5.59

290

17.98

224.7

-5.44

290

18.07

227.1

-5.48

300

18.11

224.3

-5.38

300

18.14

225.7

-5.38

310

18.18

224.0

-5.30

310

18.21

224.6

-5.29

320

18.24

223.6

-5.24

320

18.28

223.9

-5.21

330

18.24

223.5

-5.19

330

18.34

223.7

-5.14

340

18.35

223.3

-5.13

340

18.39

224.1

-5.10

350

18.39

223.4

-5.09

350

18.42

225.0

-5.09

360

18.43

223.6

-5.05

360

18.45

226.2

-5.08

370

18.46

223.8

-5.02

370

18.48

227.3

-5.07

380

18.49

224.2

-5.00

380

18.50

227.9

-5.06

390

18.51

224.6

-4.99

390

18.53

228.1

-5.04

400

18.52

225.0

   -4.99

400

18.55

227.8

-5.01

410

18.54

225.5

-4.98

410

18.57

227.4

-4.98

420

18.55

225.9

-4.98

420

18.58

226.9

-4.96









430

18.60

226.3

-4.93









440

18.60

225.7

-4.92









450

18.61

225.1

-4.90









460

18.61

224.7

-4.89









470

18.61

224.3

-4.88

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good

result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3797

3684

21.71

223.0

-1.77

Per DL6WU formula

3920

4320

21.89

222.9

-1.59

For max G/T











For lowest temperature

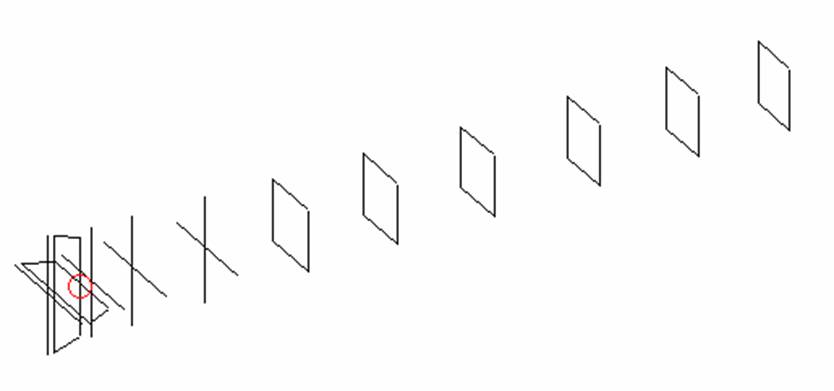

XPOL VERSION

Horizontal components: Same as above

Vertical components: Same as above, except:

PERFORMANCES:

Polarization

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

Horizontal

15.83

34.00

22.05

15.91

31.8

32.8

226.1

-7.71

4.0

Vertical

16.04

22.36

13.09

17.49

30.4

29.8

235.7

-7.68

4.6

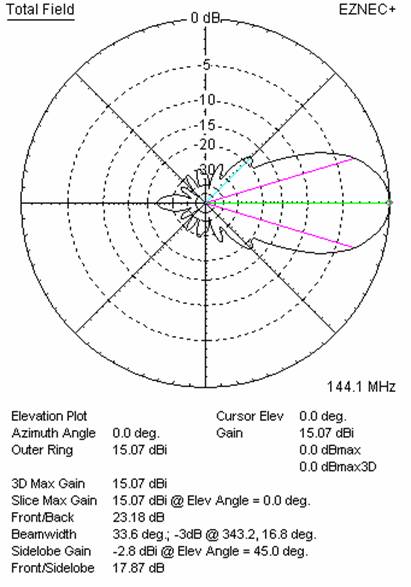

Horizontal polarisation patterns



Vertical polarisation patterns
