ANTENNA QY21208XL7D7

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

11

6455

15.23

26.07

25.54

17.40

34.6

36.0

221.4

-8.22

3.7



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

Bandwidth

140.100

146.300

6.200

198.3

1.06:1



DIMENSIONS:



Ref

De1

De2

D1

D2

D3

DQ1

All elements made of Al rods Ǿ8mm

The height of all rectangles is 500

All dimensions given in milimetres

Pos

0

150

335

425

696

1106

1619

Length

1016

1024

856

941

937

911

549



DQ2

DQ3

DQ4

DQ5

DQ6

DQ7



Pos

2278

3099

3918

4826

5688

6455



Length

526

506

490

478

470

456



No boom correction included.



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

QY21208XL7D7

3.10

13.08

198.3

1.06:1

3.82

3.52

19.05

3.7

221.6

-2.25

MBI ModFT17

3.12

13.29

50.1

1.41:1

3.85

3.60

19.27

8.2

239.5

-2.37

F9FT 17

3.14

12.87

25.8

1.32:1

3.68

3.50

18.90

5.8

236.4

-2.69

CC3219

3.17

12.77

18.3

1.49:1

4.27

3.66

18.80

5.7

307.8

-3.93

CC3219 MOD

3.17

13.25

29.0

1.06:1

3.87

3.62

19.27

5.1

245.6

-2.48

BQH 13

3.19

13.30

50.0

1.11:1

3.85

3.60

19.28

4.3

244.9

-2.46

DJ9BV 3.2

3.22

13.30

71.8

1.36:1

3.85

3.58

19.29

6.5

239.5

-2.35

DG7YBN 12

3.23

13.45

46.2

1.40:1

3.99

3.83

19.47

5.6

231.0

-2.02

K1FO 14

3.26

13.36

29.6

1.42:1

3.80

3.56

19.29

4.7

237.8

-2.32

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

Data taken from VE7BQH G/T table

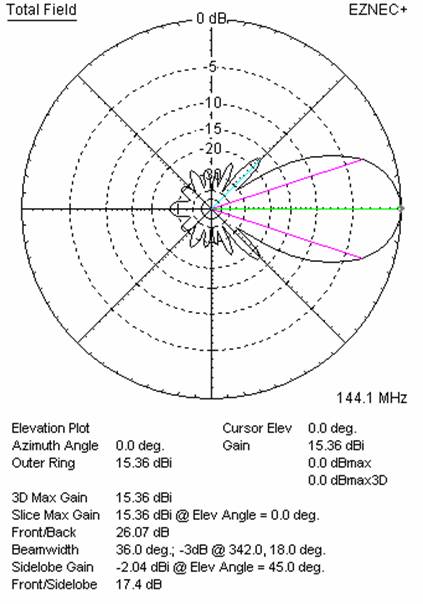

DIAGRAMS (no loss included)

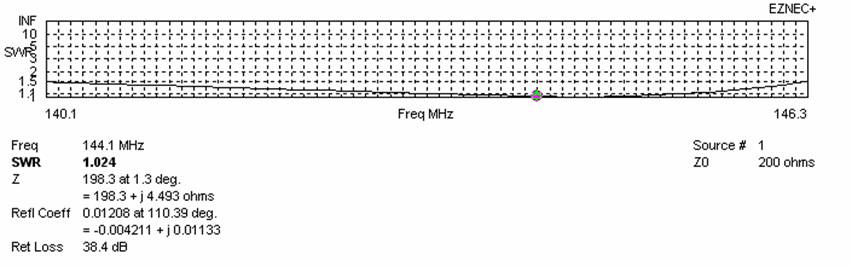

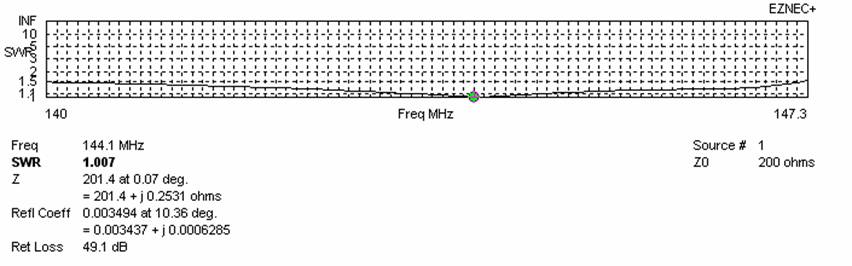

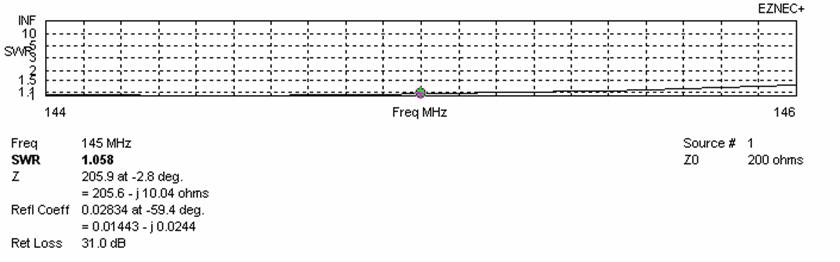

SWR DIAGRAMS (losses included)



STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

16.47

222.2

-7.03

110

16.27

239.7

-7.51

110

16.58

217.4

-6.77

120

16.50

232.1

-7.14

120

16.71

215.5

-6.60

130

16.65

228.0

-6.91

130

16.81

216.2

-6.61

140

16.77

225.5

-6.74

140

16.89

218.4

-6.48

150

16.87

223.9

-6.61

150

16.97

219.5

-6.42

160

16.96

223.1

-6.50

160

17.05

219.0

-6.33

170

17.04

222.7

-6.42

170

17.14

218.6

-6.23

180

17.12

222.6

-6.33

180

17.21

219.0

-6.17

190

17.20

222.7

-6.26

190

17.27

220.1

-6.13

200

17.27

222.9

-6.19

200

17.34

221.4

-6.09

210

17.34

223.0

-6.12

210

17.40

222.8

-6.06

220

17.41

223.0

-6.05

220

17.45

224.0

-6.03

230

17.49

222.9

-5.97

230

17.51

224.9

-5.99

240

17.56

222.6

-5.89

240

17.58

225.3

-5.93

250

17.64

222.3

-5.81

250

17.64

225.2

-5.86

260

17.71

221.9

-5.73

260

17.71

224.6

-5.78

270

17.78

221.4

-5.65

270

17.79

223.7

-5.68

280

17.86

221.0

-5.56

280

17.86

222.7

-5.59

290

17.93

220.5

-5.48

290

17.93

221.6

-5.50

300

18.00

220.0

-5.40

300

18.01

220.7

-5.40

310

18.06

219.6

-5.33

310

18.07

220.0

-5.33

320

18.12

219.3

-5.27

320

18.14

219.5

-5.25

330

18.17

219.0

-5.21

330

18.19

219.4

-5.20

340

18.22

218.9

-5.16

340

18.24

219.6

-5.15

350

18.26

218.8

-5.12

350

18.29

220.0

-5.11

360

18.30

218.8

-5.08

360

18.32

220.6

-5.09

370

18.33

219.0

-5.05

370

18.35

221.1

-5.07

380

18.35

219.1

-5.03

380

18.38

221.5

-5.05

390

18.37

219.4

-5.02

390

18.40

221.8

-5.04

400

18.38

219.7

-5.01

400

18.42

221.9

-5.02

410

18.39

220.0

-5.01

410

18.43

222.0

-5.01

420

18.40

220.4

-5.01

420

18.44

222.0

-5.00









430

18.44

221.9

-5.00









440

18.45

221.7

-4.99









450

18.45

221.4

-4.98

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good

result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Tloss

(K)

Remark

3498

3366

21.05

220.9

-2.39

3.7

Per DL6WU formula

3720

3520

21.20

221.6

-2.25

3.7

For max G/T

3720

3220

21.06

220.4

-2.37

3.7

For lowest temperature





XPOL VERSION

Horizontal components: Same as above

Vertical components: Same as above, except:

PERFORMANCES:

Polarization

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

Horizontal

15.23

26.07

25.54

17.40

34.6

36.0

221.4

-8.22

3.7

Vertical

15.28

21.96

14.58

21.74

35.2

33.8

227.4

-8.28

3.5



Horizontal polarisation patterns





Vertical polarisation patterns
