ANTENNA QY21206XL3D5

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

12

6845

15.56

35.30

20.39

19.18

32.6

34.6

220.7

-7.88

5.7



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

Bandwidth

141.200

146.100

4.900

199.6

1.07:1

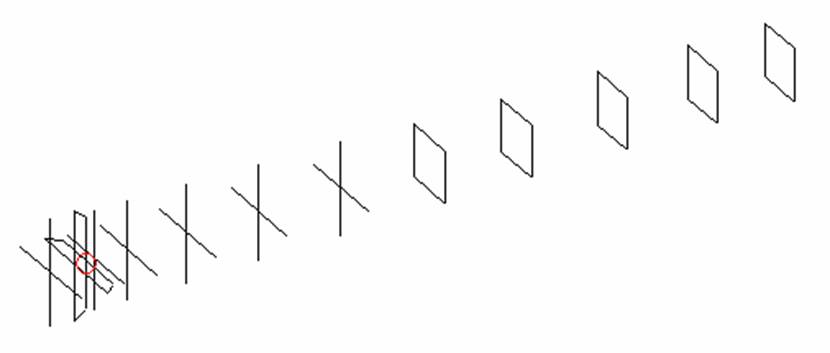

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

All elements made of Al rods Ǿ6mm

The height of all rectangles is 500

All dimensions given in milimetres

Pos

0

235

345

421

735

1286

1959

2729

Length

1016

1032

830

952

956

933

913

894



DQ1

DQ2

DQ3

DQ4

DQ5







Pos

3554

4375

5274

6122

6845







Length

518

502

488

476

464







No boom correction included.



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

QY21206XL3D5

3.29

13.40

199.5

1.07:1

3.96

3.56

19.37

5.7

219.5

-1.90

G0KSC 12LFA

3.32

13.44

49.9

1.07:1

3.78

3.52

19.36

4.0

220.5

-1.92

G0KSC 12OWA

3.33

13.33

49.3

1.05:1

3.85

3.50

19.28

5.7

224.3

-2.08

G4CQM 11

3.36

13.55

46.2

1.94:1

3.92

3.66

19.50

8.3

232.0

-2.01

DK7ZB 11

3.40

13.68

27.9

1.27:1

3.94

3.71

19.61

5.0

234.3

-1.94

UA9TC 12RS

3.40

13.55

51.7

1.09:1

3.80

3.56

19.46

5.1

218.2

-1.78

G0KSC 12LFA

3.41

13.64

50.1

1.18:1

3.90

3.70

19.58

4.3

221.2

-1.72

MBI 3.4

3.42

13.58

37.7

1.62:1

3.87

3.62

19.49

9.2

227.7

-1.93

G0KSC 12LFA 2R

3.43

13.46

50.3

1.06:1

3.95

3.75

19.48

4.9

220.5

-1.80

InnoV 12 LFA

3.43

13.56

49.3

1.07:1

3.80

3.60

19.47

5.4

218.9

-1.78

Gulf Alpha 14

3.44

13.24

198.0

1.21:1

3.71

3.44

19.14

5.5

229.6

-2.32

Gulf Alpha 114 XPOL

3.44

13.25

200.5

1.21:1

3.57

3.57

19.14

5.5

231.8

-2.37

YU7EF 12

3.49

13.67

45.4

1.77:1

3.85

3.60

19.55

6.1

221.1

-1.75

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

Data taken from VE7BQH G/T table

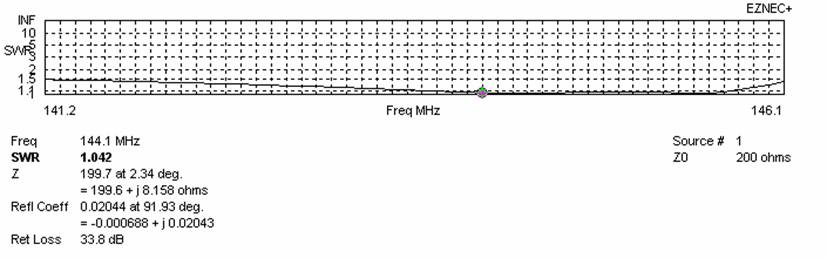

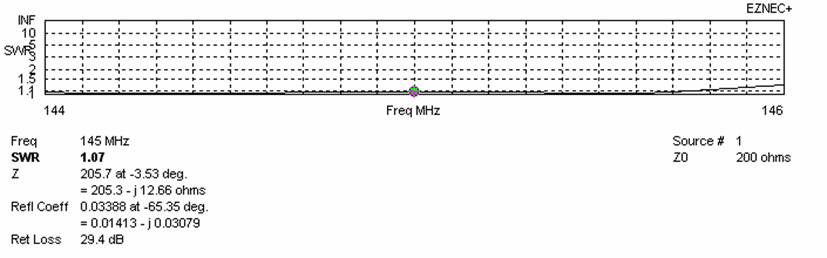

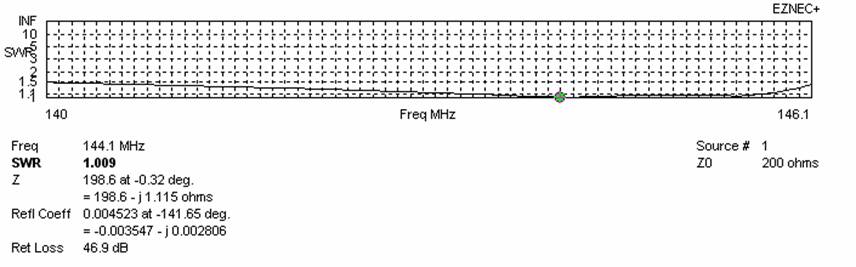

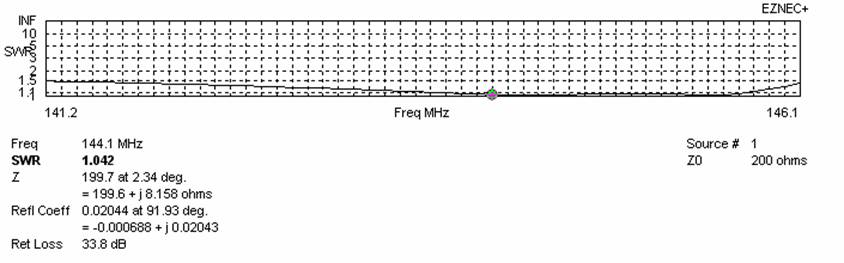

SWR DIAGRAMS (no loss included)



DIAGRAMS (losses included)





STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

16.54

223.5

-6.94

110

15.88

238.5

-7.90

110

16.72

218.4

-6.66

120

16.33

238.4

-7.43

120

16.86

216.1

-6.47

130

16.63

233.3

-7.04

130

16.97

216.2

-6.36

140

16.83

229.3

-6.76

140

17.06

217.7

-6.30

150

16.99

226.4

-6.55

150

17.15

218.6

-6.23

160

17.12

224.5

-6.38

160

17.24

217.9

-6.13

170

17.24

223.2

-6.23

170

17.34

216.8

-6.00

180

17.34

222.3

-6.11

180

17.43

216.2

-5.90

190

17.43

221.6

-6.01

190

17.52

216.3

-5.81

200

17.51

221.1

-5.92

200

17.60

216.8

-5.74

210

17.60

220.6

-5.82

210

17.68

217.8

-5.68

220

17.67

220.2

-5.74

220

17.75

219.0

-5.64

230

17.75

219.8

-5.65

230

17.82

220.0

-5.59

240

17.82

219.4

-5.58

240

17.90

220.6

-5.52

250

17.89

219.1

-5.50

250

17.97

220.7

-5.45

260

17.97

218.7

-4.41

260

18.04

220.3

-5.37

270

18.04

218.4

-5.34

270

18.12

219.6

-5.28

280

18.11

218.1

-5.26

280

18.20

218.7

-5.18

290

18.18

217.8

-5.18

290

18.27

217.8

-5.09

300

18.25

217.6

-5.11

300

18.35

217.0

-5.00

310

18.31

217.4

-5.05

310

18.41

216.5

-4.93

320

18.37

217.3

-4.98

320

18.47

216.3

-4.86

330

18.43

217.2

-4.92

330

18.53

216.5

-4.81

340

18.48

217.2

-4.87

340

18.57

217.0

-4.78

350

18.53

217.3

-4.82

350

18.61

217.9

-4.76

360

18.57

217.5

-4.79

360

18.64

218.9

-4.75

370

18.60

217.7

-4.76

370

18.67

219.9

-4.74

380

18.63

217.9

-4.74

380

18.69

220.7

-4.73

390

18.66

218.2

-4.71

390

18.71

221.2

-4.72

400

18.68

218.5

-4.70

400

18.73

221.4

-4.71

410

18.70

218.8

-4.68

410

18.74

221.5

-4.70

420

18.71

219.1

-4.68

420

18.75

221.5

-4.69

430

18.73

219.3

-4.66

430

18.76

221.2

-4.67

440

18.73

219.5

-4.67

440

18.77

220.9

-4.66

450

18.74

219.7

-4.66

450

18.77

220.5

-4.65

*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good

result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Tloss

(K)

Remark

3706

3498

21.45

218.7

-1.95

5.7

Per DL6WU formula

3960

3560

21.53

219.9

-1.90

5.7

For max G/T

3660

3120

21.25

216.4

-2.11

5.7

For lowest temperature





XPOL VERSION

Horizontal components: Same as above

Vertical components: Same as above. except:

PERFORMANCES:

Polarization

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

Horizontal

15.56

35.30

20.39

19.18

32.6

34.6

220.7

-7.88

5.7

Vertical

15.61

34.79

18.44

20.30

34.0

32.2

221.8

-7.85

6.0

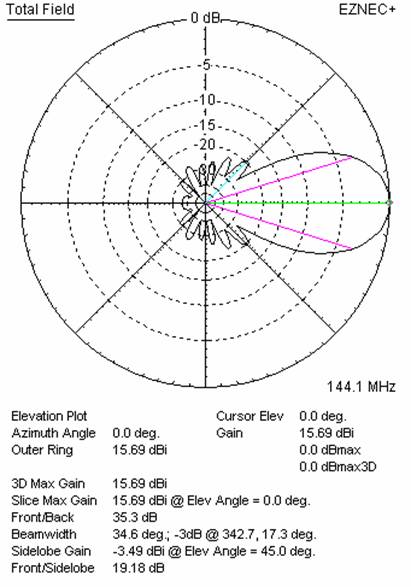

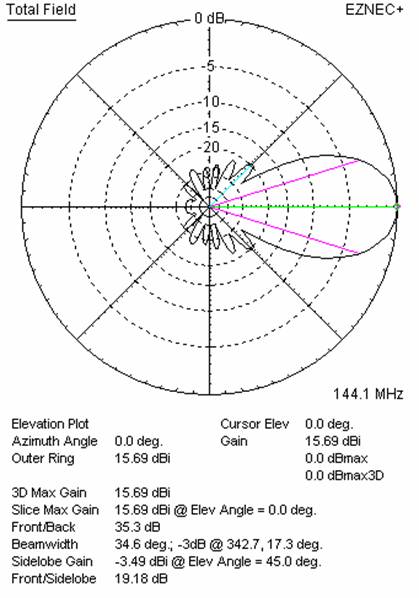

Horizontal polarisation patterns

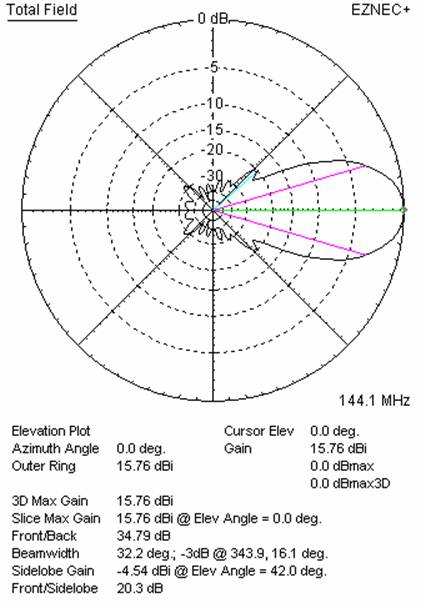

Vertical polarisation patterns
