ANTENNA QY20910XL2D4

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

9

4325

14.21

30.23

19.50

14.79

37.4

40.0

239.6

-9.58

3.4



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

Bandwidth

142.000

146.600

4.600

200.6

1.05:1

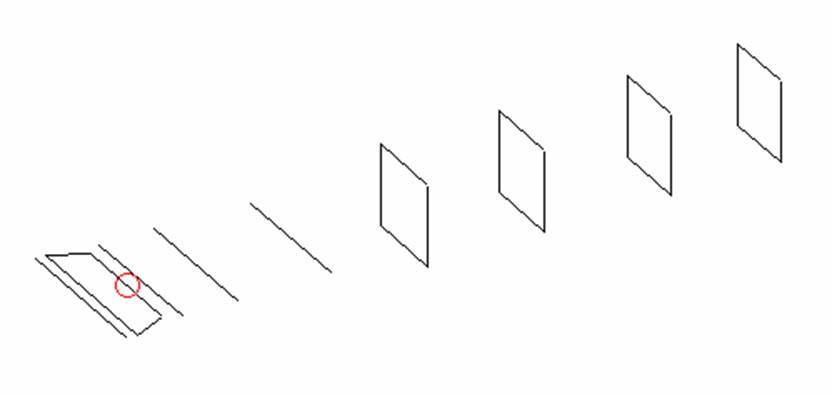

DIMENSIONS:



Ref

De1

De2

D1

D2

D3

DQ1

DQ2

DQ3

DQ4

All elements made of Al tubes Ǿ10 mm

The height of rectangles 522 mm

All dimensions given in milimetres

Pos

0

60

290

385

733

1341

2065

2815

3624

4325

Length

1012

1020

800

931

931

896

518

504

490

478

No boom correction included.



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

DG0OPK 9

2.07

11.45

28.4

1.11:1

3.04

2.72

17.34

5.7

231.9

-4.16

QY20910XL2D4

2.08

12.06

200.6

1.05:1

3.66

3.12

18.14

3.4

239.9

-3.51

DK7ZB 8

2.09

12.01

28.0

1.26:1

3.40

3.10

18.02

4.8

253.6

-3.87

G0KSC 9OWA

2.09

11.99

49.1

1.30:1

3.33

3.04

17.96

4.9

247.0

-3.82

RA3AQ 9S

2.12

12.04

47.1

1.08:1

3.35

3.06

18.02

4.7

246.5

-3.75

M2 9SSB

2.12

11.96

200.6

1.26:1

3.33

3.04

17.92

10.8

245.9

-3.84

WiMo WX220 XPOL

2.13

11.23

202.0

1.08:1

2.94

2.94

17.44

8.4

300.8

-5.19

Gulf Alpha 9

2.13

11.62

203.3

1.15:1

3.26

2.97

17.64

4.6

266.2

-4.46

Gulf Alpha 9 XPOL

2.13

11.60

203.9

1.15:1

3.12

3.12

17.62

5.0

267.6

-4.50

DJ9BV 2.1

2.13

11.89

44.9

1.30:1

3.33

3.04

17.87

5.8

255.2

-4.05

G0KSC 9LFA

2.14

11.97

50.5

1.08:1

3.26

2.94

17.88

5.2

235.1

-3.68

OZ5HF 9

2.16

11.52

38.0

1.15:1

3.21

2.92

17.47

3.0

272.6

-4.74

YU7EF 9

2.16

11.84

49.8

1.17:1

3.20

2.89

17.74

5.3

236.6

-3.84

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

Data taken from VE7BQH G/T table

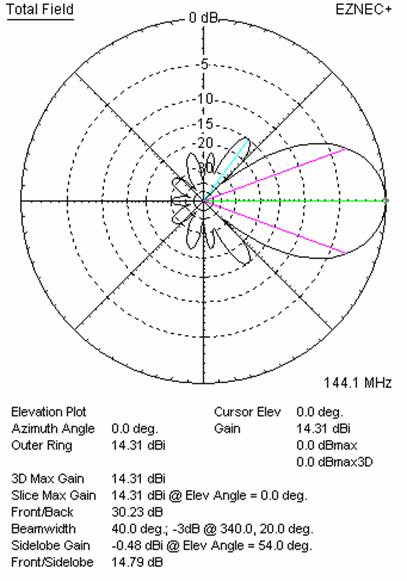

DIAGRAMS (no loss included)

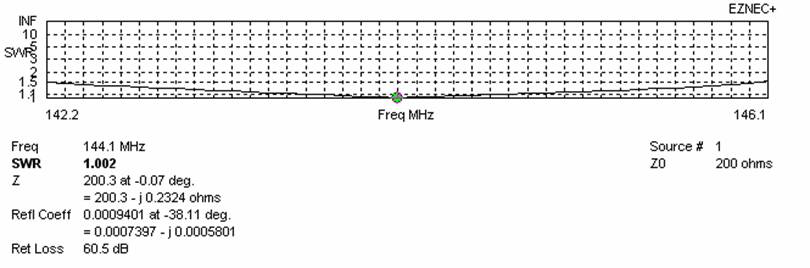

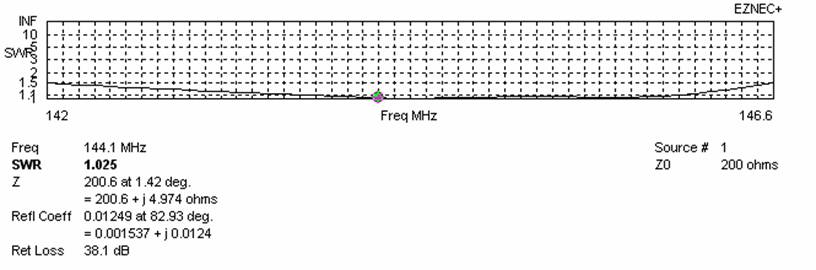

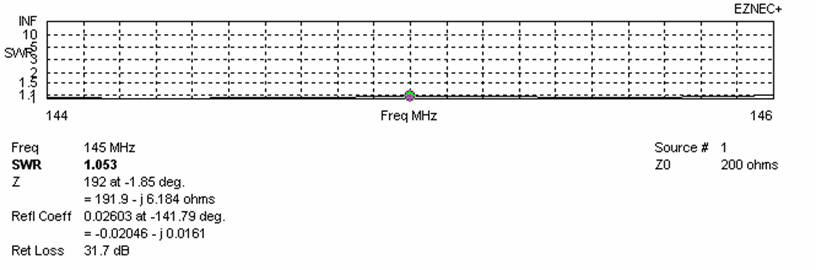

SWR DIAGRAMS (loss included for Al)



STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

15.39

235.0

-8.31

110

15.09

259.1

-9.04

110

15.57

226.9

-7.98

120

15.39

252.1

-8.62

120

15.71

223.9

-7.78

130

15.59

246.6

-8.32

130

15.81

225.0

-7.70

140

15.74

242.8

-8.10

140

15.89

228.2

-7.68

150

15.87

240.2

-7.93

150

15.97

230.0

-7.63

160

15.98

238.8

-7.79

160

16.07

229.6

-7.53

170

16.08

238.1

-7.68

170

16.16

229.5

-7.44

180

16.17

238.0

-7.58

180

16.25

231.3

-7.38

190

16.25

238.1

-7.51

190

16.32

234.6

-7.37

200

16.33

238.5

-7.43

200

16.38

238.1

-7.38

210

16.41

239.0

-7.36

210

16.45

240.7

-7.36

220

16.49

239.4

-7.29

220

16.53

241.9

-7.30

230

16.57

239.7

-7.22

230

16.62

241.6

-7.20

240

16.65

239.9

-7.14

240

16.71

240.4

-7.09

250

16.74

239.9

-7.05

250

16.81

238.8

-6.96

260

16.82

239.9

-6.97

260

16.90

237.3

-6.84

270

16.90

239.7

-6.89

270

17.00

236.1

-6.72

280

16.97

239.5

-6.81

280

17.08

235.4

-6.63

290

17.04

239.3

-6.74

290

17.16

235.3

-6.55

300

17.11

239.0

-6.66

300

17.22

235.6

-6.49

310

17.16

238.7

-6.61

310

17.28

236.3

-6.44

320

17.21

238.5

-6.56

320

17.33

237.3

-6.41

330

17.26

238.4

-6.50

330

17.36

238.6

-6.41

340

17.29

238.3

-6.47

340

17.39

240.1

-6.40

350

17.32

238.3

-6.44

350

17.41

241.8

-6.41

360

17.34

238.3

-6.42

360

17.42

243.4

-6.43

370

17.36

238.5

-6.40









380

17.37

238.7

   -6.40









390

17.38

238.9

   -6.39









400

17.39

239.2

   -6.39









410

17.39

239.5

-6.39









420

17.39

239.9

-6.40









*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good

result. and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (cm)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Remark

3244

3041

20.12

238.5

-3.65

Per DL6WU formula

3660

3120

20.29

239.9

-3.51

For max G/T

3080

1740

19.78

234.0

-3.91

For lowest temperature

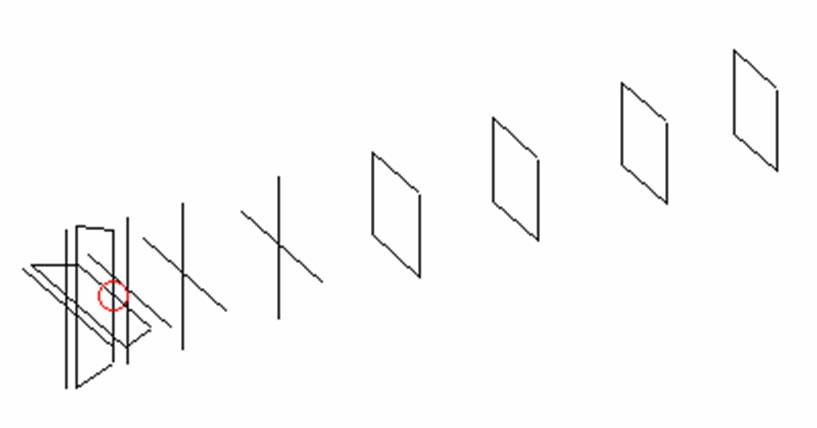

XPOL VERSION

Horizontal components: Same as above

Vertical components: Same as above, except:

PERFORMANCES:

Polarization

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

Horizontal

14.21

30.23

19.50

14.79

37.4

40.0

239.6

-9.58

3.4

Vertical

14.35

23.19

13.34

18.10

38.4

36.2

241.5

-9.47

3.2

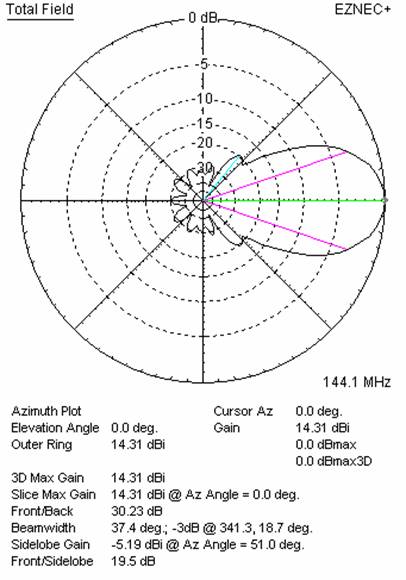

Horizontal polarisation patterns

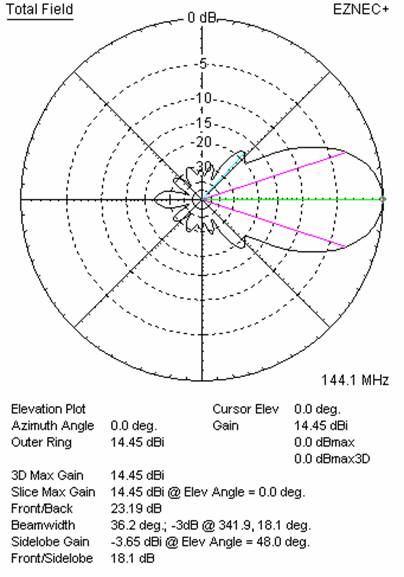

Vertical polarisation patterns
