ANTENNA QY20905XL1D2

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

9

4465

14.22

23.39

20.15

17.27

37.0

41.0

236.3

-9.52

5.8



WORKING CONDITION:

Frequency for SWR=1,5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR at 145.000 MHz

Lowest

Highest

Bandwidth

141.500

146.000

4.500

198.9

1.08:1



DIMENSIONS:



Ref

De1

De2

D1

D2

D3

D4

D5

DQ3

DQ4

All elements made of Al rods Ǿ5 mm

The height of all rectangles is 500 mm

All dimensions given in milimetres

Pos

0

220

390

506

871

1494

2206

2994

3832

4465

Length

1016

1004

800

955

951

925

910

890

516

498

No boom correction included.



COMPARISON

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

I0JXX 8

2.04

12.11

200.1

3.00:1

3.46

3.17

18.10

9.3

257.3

-3.86

DG0OPK 9

2.07

11.45

28.4

1.11:1

3.04

2.72

17.34

5.7

231.9

-4.16

DK7ZB 8

2.09

12.01

28.0

1.26:1

3.40

3.10

18.02

4.8

253.6

-3.87

G0KSC 9OWA

2.09

11.99

49.1

1.30:1

3.33

3.04

17.96

4.9

247.0

-3.82

RA3AQ 9S

2.12

12.04

47.1

1.08:1

3.35

3.06

18.02

4.7

246.5

-3.75

M2 9SSB

2.12

11.96

200.6

1.26:1

3.33

3.04

17.92

10.8

245.9

-3.84

WiMo WX220 XPOL

2.13

11.23

202.0

1.08:1

2.94

2.94

17.44

8.4

300.8

-5.19

Gulf Alpha 9

2.13

11.62

203.3

1.15:1

3.26

2.97

17.64

4.6

266.2

-4.46

Gulf Alpha 9 XPOL

2.13

11.60

203.9

1.15:1

3.12

3.12

17.62

5.0

267.6

-4.50

DJ9BV 2.1

2.13

11.89

44.9

1.30:1

3.33

3.04

17.87

5.8

255.2

-4.05

QY20905XL1D2

2.14

12.07

198.9

1.08:1

3.62

2.88

17.97

5.8

234.7

-3.58

OZ5HF 9

2.16

11.52

38.0

1.15:1

3.21

2.92

17.47

3.0

272.6

-4.74

YU7EF 9

2.16

11.84

49.8

1.17:1

3.20

2.89

17.74

5.3

236.6

-3.84

F9FT 11

2.17

11.78

21.5

1.25:1

3.26

2.97

17.75

5.3

251.0

-4.10

CC 13B2

2.17

11.79

21.1

1.37:1

3.33

3.01

17.78

5.9

257.9

-4.18

K1FO 11

2.18

11.97

44.0

1.29:1

3.30

3.00

17.90

4.3

248.0

-3.89

CC 215WB

2.19

11.78

17.4

1.47:1

3.36

3.07

17.78

6.6

266.6

-4.33

Vine 9 FD

2.22

11.93

50.0

1.07:1

3.21

2.91

17.80

9.4

230.0

-3.67

Z(ohms) - measured on 144.100 MHz

Bandwidth – VSWR measured on 145.000 MHz

Data taken from VE7BQH G/T table



DIAGRAMS (no loss included)

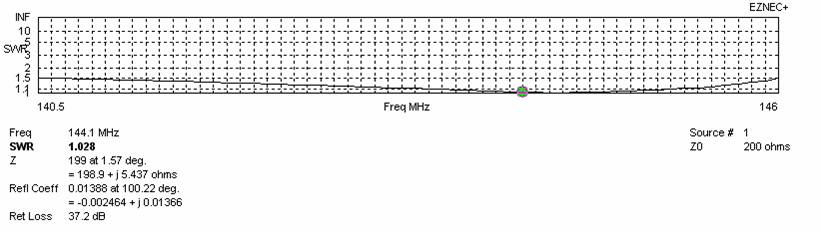

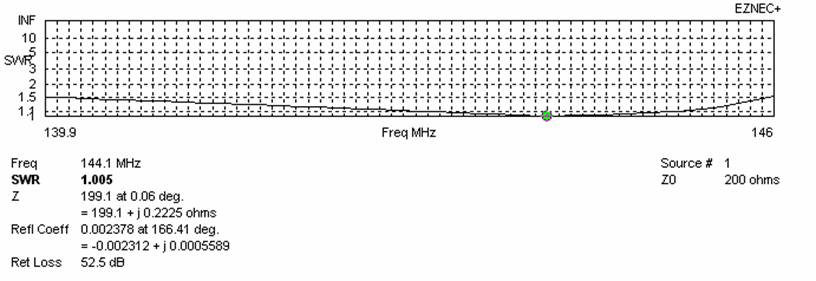

SWR DIAGRAMS (loss included for Al)



STACKING

Horizontal distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

Vertical distance (cm)

G

(dBi)

TA

(K)

G/T

(dB)

100







100

15.43

226.4

-8.11

110

14.64

266.9

-9.62

110

15.58

221.3

-7.86

120

15.19

252.8

-8.83

120

15.71

218.9

-7.68

130

15.45

247.2

-8.48

130

15.82

219.4

-7.58

140

15.64

243.2

-8.21

140

15.91

221.6

-7.54

150

15.79

240.2

-8.01

150

16.00

223.0

-7.47

160

15.91

238.0

-7.85

160

16.09

223.2

-7.39

170

16.03

236.5

-7.70

170

16.19

223.8

-7.30

180

16.13

235.5

-7.58

180

16.27

225.4

-7.25

190

16.23

234.9

-7.47

190

16.36

227.6

-7.20

200

16.32

234.5

-7.37

200

16.44

229.6

-7.16

210

16.40

234.3

-7.29

210

16.52

230.6

-7.10

220

16.49

234.2

-7.20

220

16.61

230.7

-7.01

230

16.57

234.2

-7.12

230

16.70

230.0

-6.91

240

16.66

234.3

-7.03

240

16.80

229.0

-6.79

250

16.74

234.3

-6.95

250

16.89

228.4

-6.69

260

16.82

234.4

-6.87

260

16.98

228.2

-6.59

270

16.89

234.5

-6.80

270

17.06

228.6

-6.52

280

16.97

234.7

-6.73

280

17.13

229.6

-6.47

290

17.03

234.7

-6.67

290

17.19

231.1

-6.44

300

17.09

234.9

-6.61

300

17.25

232.9

-6.41

310

17.15

235.0

-6.55

310

17.29

234.9

-6.41

320

17.19

235.1

-6.51

320

17.33

237.0

-6.41

330

17.23

235.1

-6.48

330

17.36

239.0

-6.42

340

17.27

235.4

-6.44

340

17.38

241.0

-6.43

350

17.30

235.6

-6.41

350

17.39

242.9

-6.46

360

17.32

235.8

-6.40









370

17.33

236.1

-6.39









380

17.35

236.3

-6.38









390

17.36

236.6

-6.37









400

17.36

236.8

-6.38









*The Table is presented without KF2YN convergence correction applied and serves only to show which distance can be used with good

result, and which distances should be avoided. In H-stack it can be slightly changed.



BEST DISTANCES FOR 4 ANTENNAS IN H-STACK

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tloss

(K)

Remark

2.984

2.984

19.39

242.0

-4.45

4.3

Per DL6WU formula

3.300

3.880

19.46

239.8

-4.34

4.3

For max G/T

3.380

1.720

18.60

229.1

-5.00

4.3

For lowest temperature





XPOL VERSION

Horizontal components: Same as above

Vertical components: Same as above. except:

PERFORMANCES:

Polarization

G

(dBi)

F/B

(dB)

F/Sh (dBi)

F/Sv (dBi)

Hor

(◦)

Ver

(◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

Horizontal

14.22

23.39

20.15

17.27

37.0

41.0

236.3

-9.52

5.8

Vertical

14.16

23.35

17.74

20.53

41.2

37.2

231.7

-9.49

5.8

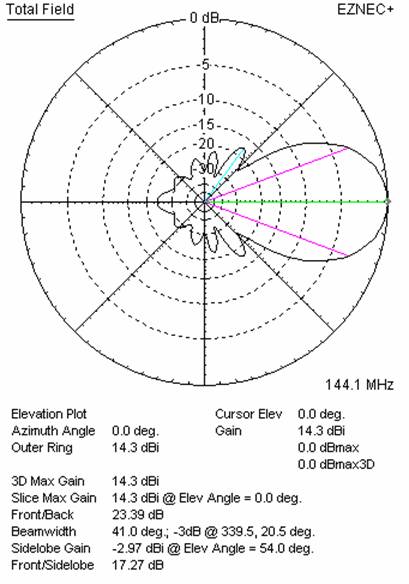

Horizontal polarisation patterns



Vertical polarisation patterns
